LCP 341-30

RS-232 Remote Control Circuit Breaker Panel

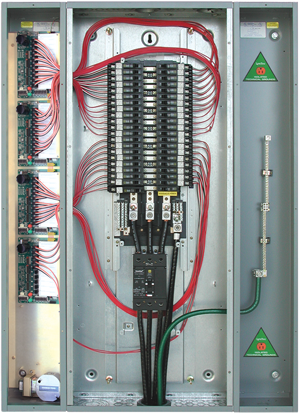

Have as many RS-232 controlled circuits as you need in one power panel. You can mix RS-232 controlled motorized branch breakers and standard QO breakers together for a single power panel solution. The panelboard is big and roomy with lots of space to work (250% more room than a load center), which makes it the electricians’ favorite! Big as it is, the SCP still saves valuable wall space when compared to traditional relay-based control systems. The SCP comes with 200% neutrals to reduce neutral overheating caused by switch-mode power supplies. The SCP series also offers bolt-on breakers as an option to traditional plug-on models, and can control one, two or three pole breakers.

  • Saves space compared to breaker panel + relay panel installations
  • Saves redundant installation and hardware costs!
  • Energy efficient – NO holding current or heat sinks required to maintain state – Runs cool, lasts long!
  • Easy set-up, no on-site commissioning or factory start-up required
  • Simple jumper system sets RS-232 addressing
  • Individual or zone control of circuits
  • IP / serial integration with Building Management Systems
  • Automatic load shedding feature standard
  • Brownout / Power outage shut-down standard
  • Branch current monitoring available
  • SurgeX in-panel surge elimination modules – optional

Single Phase:

SCP 139-xx (for main breakers <100A)

SCP 141-xx (for main breakers >100A)

Three Phase:

SCP 338-xx (for main breakers <100A)

SCP 341-xx (for main breakers >100A)

Specifiying in 5 easy steps

  1. Choose the control method MS=Sequencing, LC=DMX512, and SC=RS-232
  2. Choose the cabinet style: P for panelboard
  3. Choose three phase (3) or single phase (1)
  4. Choose the number of circuits: 38 or 41 (38 circuits if the main size is 100A or less)
  5. Choose the maximum number of controlled circuits: 12, 24, 36, or 48 for MS and 10,20, 30, 40,or 50 for LC and SC

EXAMPLE: SCP 341-20 = a 3 phase RS-232 controlled panel board with 41 circuits (20 max controlled)

SCP 341-30 = a 3 phase RS-232 controlled panel board with 41 circuits (30 max controlled)

IPC Integrated Power Center

The RPC is also available in an integrated enclosure that combines an isolation transformer and up to 84 circuit breakers into a single standing floor unit.  Each panel is custom built to your specification.  Call or write for more information.

SC-10 Series

Each motorized breaker is RS-232 addressable via a simple set of jumpers on the LynTec control board. Once the RS-232 address starting point is set by inserting the jumper, each motorized breaker has the next sequential address assigned to it (one address per breaker), the RS-232  operator can then program the breaker addresses for individual control. The LynTec control boards only use as many addresses as there are motorized breakers connected to it, this saves valuable RS-232 addresses for other equipment. RS-232  commands for each breaker are on, off or no change.

Move your mouse over the red dots Red-Dot.gif to see all of the great features.

You must install Adobe Flash to view this content.

MB and BMB Series Motorized Breakers

Available in 15, 20 and 30 Amps, one, two and three poles.

For complete mototized breaker details click here.

Click thumbnail to view.

 Integrated Power Center - Single Cabinet Solution

Integrated Power Center – Single Cabinet Solution

See the IPC at a glance – an elegant way to package a very common panelboard(s) + transformer design.

Power Control Simplified

Power Control Simplified

LynTec Panel Basics: Why a controllable breaker panel?

Square D motorized branch circuit breakers plus LynTec customized control electronics provides the most elegant electrical power control platform.

Building a Motorized Breaker Panel System Part Number

Building a Motorized Breaker Panel System Part Number

In this video we describe how to create a system part number for a LynTec motorized circuit breaker panel. We cover panel, control board and motorized breaker options.

Controllable Motorized Circuit Breaker Tutorial

Controllable Motorized Circuit Breaker Tutorial

LynTec uses Square D manufactured remotely operated motorized branch circuit breakers to build custom AC power control systems for the pro A/V industry.
