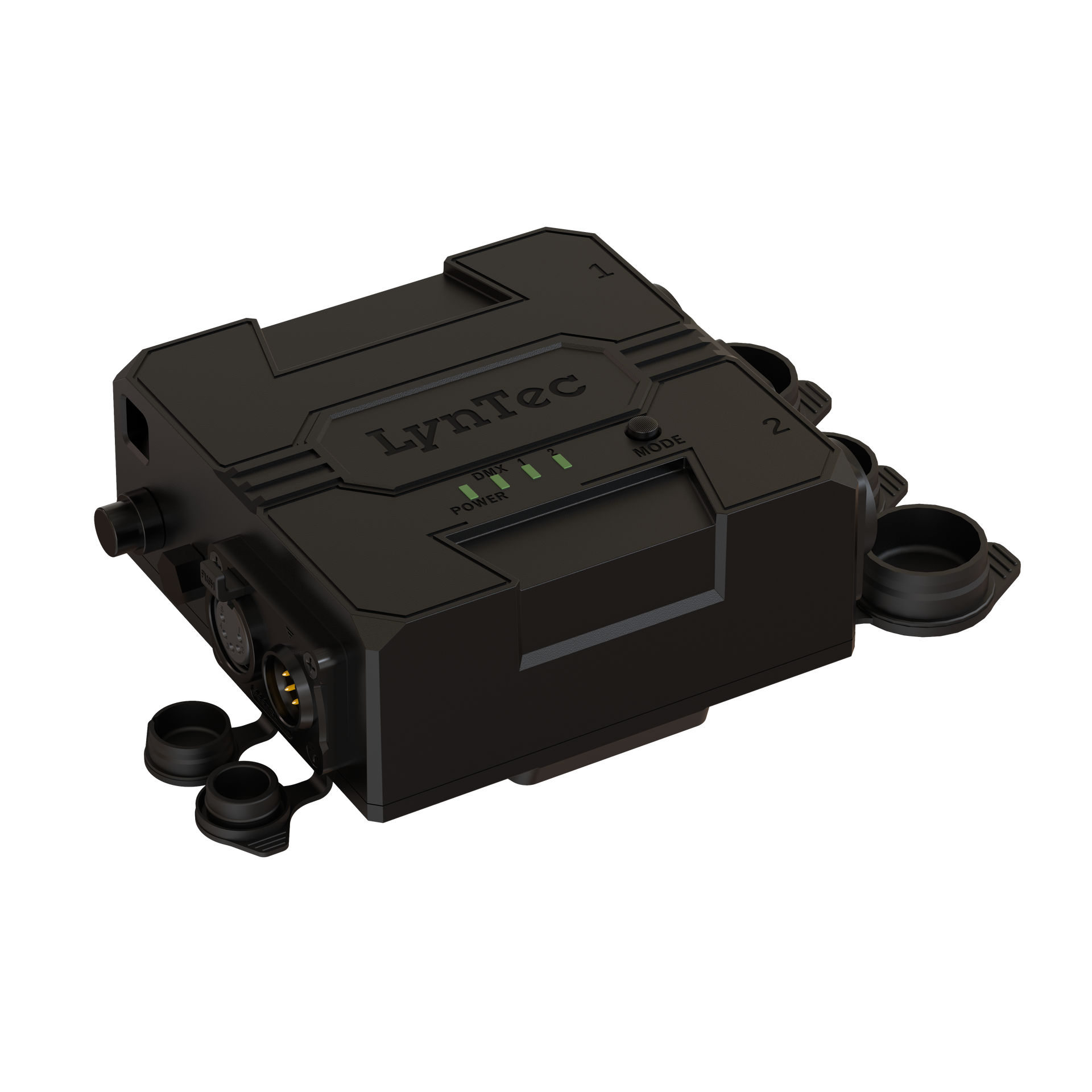

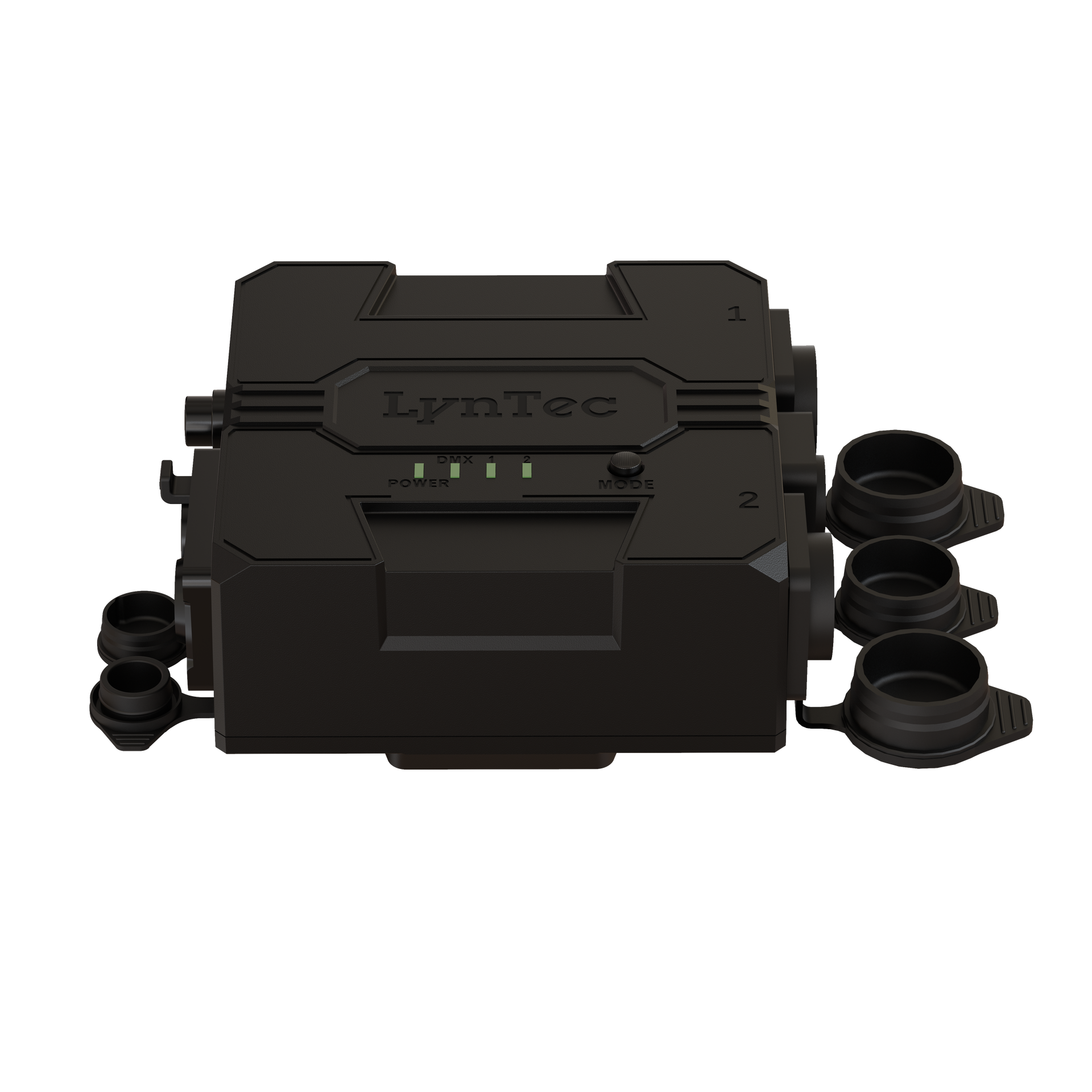

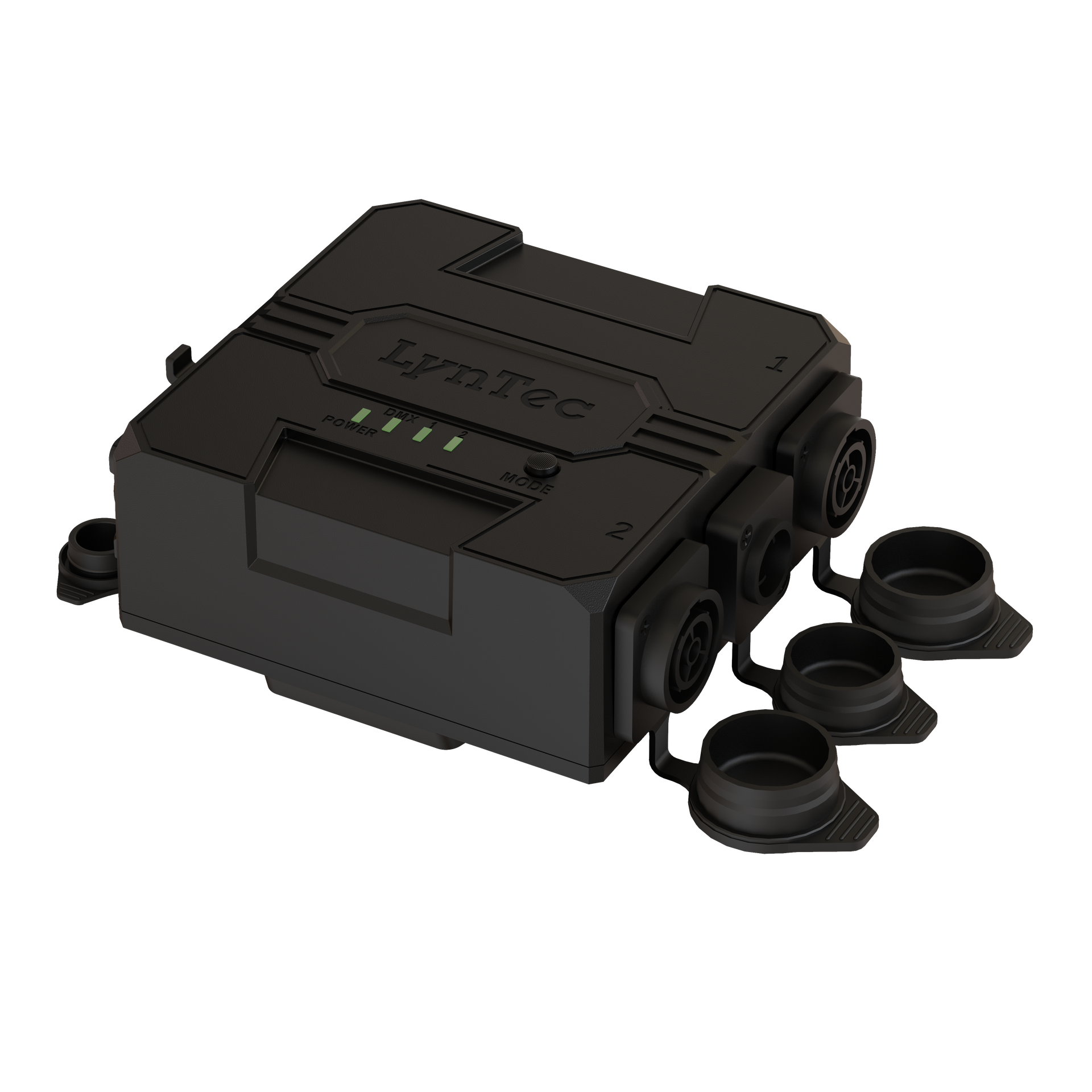

    DMX Dual Relay

    IP65-rated DMX/RDM dual-relay for portable and remote power-control applications.

    The DMX Dual Relay (DDR) is a compact, portable, and IP65-rated power control solution designed for rapid deployment in entertainment and AV environments. With a single 20-amp input (16-amp EU) feeding two independently controlled outputs, the DDR provides reliable switching for fixtures, projectors, distributed loads, and remote gear without running power back to a rack. DMX and RDM control ensures seamless integration with existing lighting networks, while its rugged housing and flexible mounting options make it ideal for touring, temporary installs, architectural uplighting, and outdoor events.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    Physical control interfaces for LynTec power sequencing systems. Includes key switches, push-button sets, and locking switches in wall-plate and rack-mount form factors for simple, secure system activation.
    Deploy Power Control Anywhere.

    Input Service

    20A

    Outputs

    2, Switched

    Control

    DMX, RDM

    Enclosure

    IP-Rated

    Form Factor

    Portable
    DMX POWER CONTROL

    Reliable DMX power switching, anywhere you need it.

    The DMX Dual Relay (DDR) delivers simple, reliable power control for distributed loads in a rugged, IP-rated enclosure. Built for the demands of touring, temporary installations, and architectural lighting, the DDR places two DMX and RDM controlled relays exactly where you need them. This eliminates long power runs back to a central rack, streamlining setup for fixtures, projectors, and other remote equipment.

    With a single 20-amp input and flexible mounting options, the DDR integrates seamlessly into any existing lighting control network. It offers a practical, portable solution for AV integrators and lighting designers who require dependable switching in challenging indoor or outdoor environments.

    SYSTEM INTEGRATION

    Integrate the DDR into your lighting rig.

    The DMX Dual Relay works with standard DMX control systems and a wide range of powered equipment.

    DMX Lighting Consoles

    Control switching directly from any lighting console or software that outputs standard DMX512.

    RDM Controllers

    Use any RDM-compatible controller to remotely set the DMX address and check device status.

    Theatrical and Architectural Fixtures

    Provides switched power for LED fixtures, conventional lights, and other powered scenic elements.

    Distributed AV Equipment

    Switch power for projectors, monitors, and powered speakers in remote or temporary locations.
    WHY LYNTEC

    Simplified power control for complex environments.

    • Deploy DMX control without running new power circuits
    • Rugged, IP-rated design for reliable outdoor use
    • Trusted LynTec engineering in a portable package
    • US-based support for design and installation
    FEATURES

    DMX Dual Relay Features

    Engineered for rapid deployment and reliable operation in any environment.
    CAPABILITIES

    Features

    Dual Switched Outputs

    Provides two independently controlled relays from a single power input.

    20-Amp Capacity

    Handles a single 20A input (16-amp EU), suitable for a wide range of fixtures and AV gear.

    DMX and RDM Control

    Integrates with standard lighting networks for remote switching and configuration.

    IP-Rated Enclosure

    IP65 – Designed for reliable operation in temporary outdoor and architectural installations.

    Portable Form Factor

    Compact and lightweight design allows for rapid deployment and flexible placement.

    Flexible Mounting

    Easily mount to truss, scenery, or architectural elements for clean installations, using the M12 and M10 threads hole (clamp sold separately).
    01

    Rugged, IP-Rated Design

    The compact enclosure is built to withstand the rigors of touring and outdoor events, protecting internal components from dust and moisture.
    • IP-rated for outdoor use
    • Durable, compact housing
    • Flexible mounting options
    02

    Seamless DMX and RDM Control

    Integrate directly into existing lighting control systems using standard DMX512 and RDM protocols for addressing and status monitoring.
    • Native DMX and RDM support
    • Independently control two outputs
    • Simplifies wiring for distributed loads
    SPECIFICATIONS

    DMX Dual Relay Specifications

    All electrical and physical specs in one place for easy integration.

    DMX Dual Relay Specifications

    Technical details for integrating the DMX Dual Relay into your installation.

    Electrical

    • Input Voltage
      100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Input Service
      20A (16A EU)
    • Output Channels
      2
    • Output Control
      Independent Mechanical Relay Switching
      • Isolation
        • Between Open Contacts
          1500Vrms
        • Between Low-Voltage & Contacts
          4000Vrms

    Relay

    Endurance (per output):

    • Resistive
      100,000 18A @ 250V
    • Inductive
      100,000 1HP @ 125VAC
    • Ballast
      6,000 20A @ 277VAC
    • Standard Ballast Electronic
      100,000 30A @ 277VAC, General Purpose, 85°C

    Control

    • Connections
      DMX In/Thru
    • Input
      5-Pin XLR In
    • Output
      5-Pin XLR Out (not self-terminating)
    • DMX Channels
      2
    • Protocols
      DMX512A, RDM
      • RDM configuration
        • Identify
        • RDM Direct mode
        • DMX Address
          (default: 1)
        • On Threshold
          (default: 192(75%))
        • Off Threshold
          (default: 64(25%))
        • Sense Mode Auto Off Timeout
          (default: 5-minutes)
        • Sense Mode Auto On Timeout
          (default: 1 second)

    Physical

    • Enclosure
      Molded textured black plastic with integral safety connection point
    • Mounting Options
      Truss, Wall Mount, & Stackable
    • Cooling
      Convection cooled
    • Weight
      1.1 lb (0.5 kg)
    • Size
      6 x 5 x 2.3 in (153 x 127 x 57 mm)

    Enviromental

    • IP Rating
      IP65
    • Startup Temperature
      -4 °F to 113 °F (-20 °C to 45 °C)
    • Operating Temperature
      -22 °F to 113 °F (-30 °C to 45 °C)

    Regulatory & Compliance

    • Approvals
      CE, MET, ROHS, FCC
    • Regulatory Compliance
      Conforms to UL 508 Certified to CSA C22.2 No. 14 cMETus Listed CE Compliant

    Warranty

    • Warranty
      2 Years

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    DMX Dual Relay Support

    Documentation, application notes, and answers to common questions.
    FAQ

    FAQs about the Dual DMX Relay

    How does the DDR connect to a lighting system?

    It integrates using standard DMX512 for control and RDM for remote addressing and configuration, connecting via DMX in and thru ports to your existing lighting network.

    Is the DDR suitable for outdoor use?

    Yes, the unit features a rugged, IP-rated enclosure designed to protect against dust and moisture, making it suitable for many outdoor event and architectural applications.

    What kind of equipment can I control with this relay?

    It can reliably switch power for a variety of loads, including lighting fixtures, video projectors, powered speakers, and other distributed AV equipment within its 16A capacity.

    Where is the Dual DMX Relay typically used?

    It’s ideal for portable applications like live events, touring, and temporary installations, as well as permanent architectural uplighting where running new power circuits is impractical.
