    A3EC-25FT

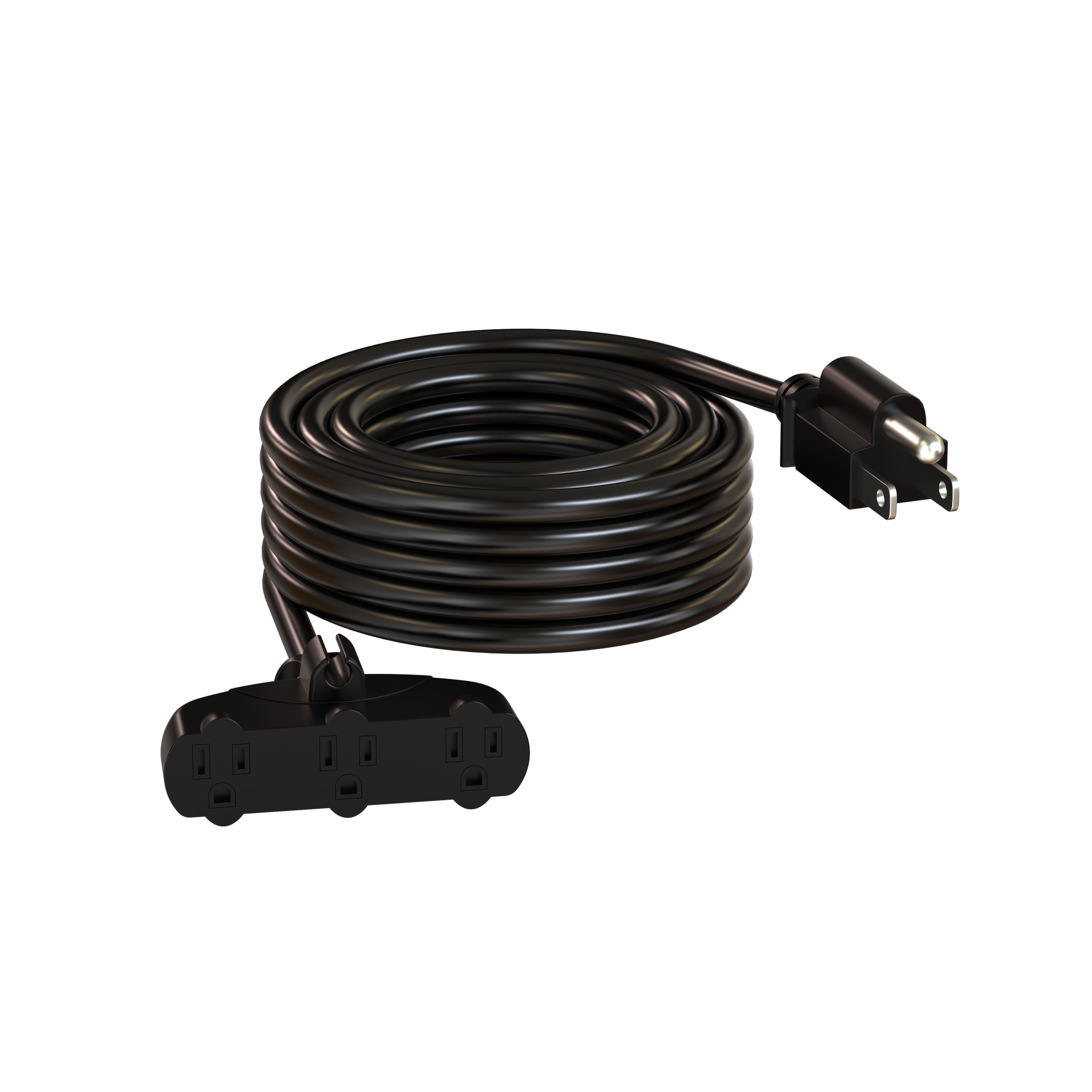

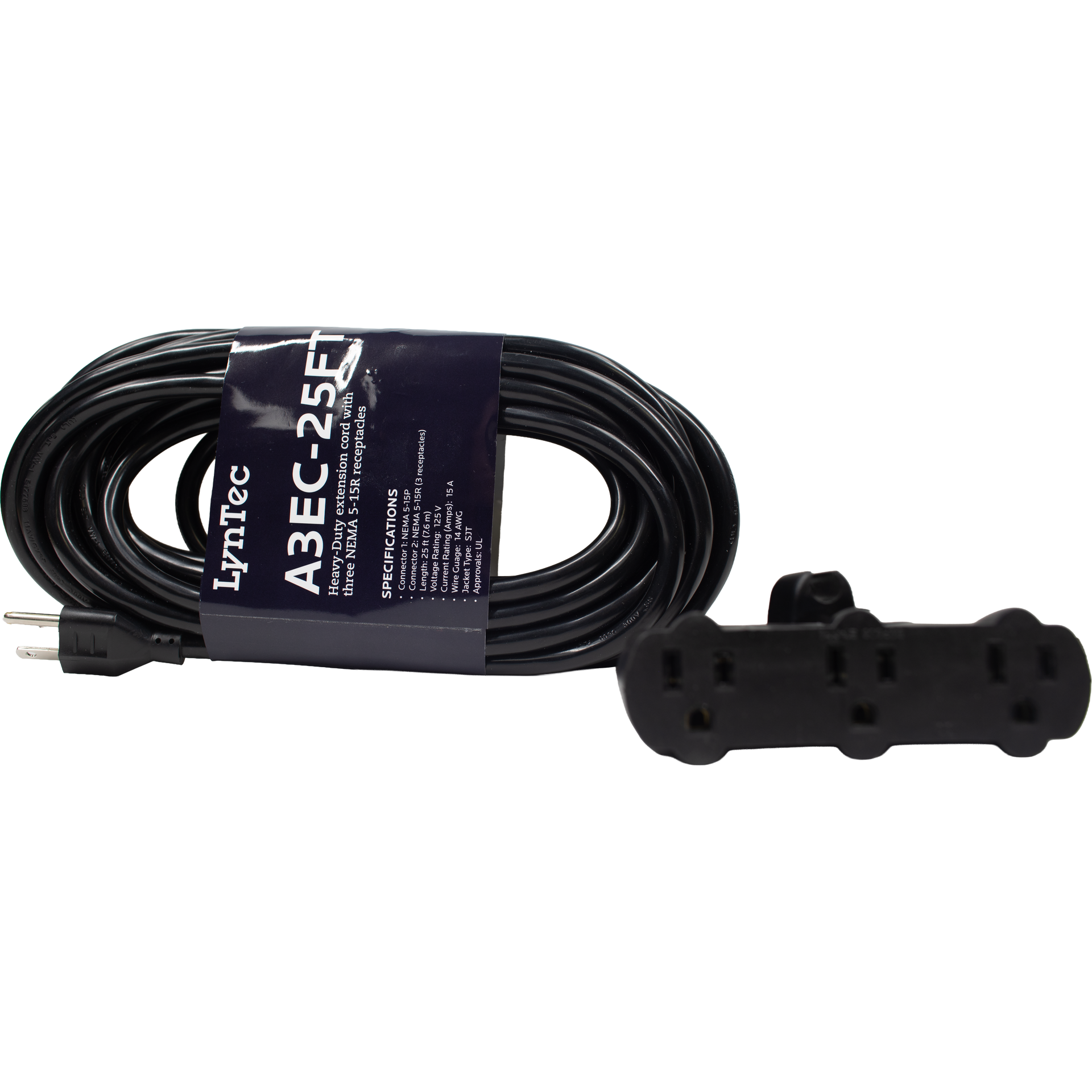

    A 25ft. Heavy-Duty extension cord with three NEMA 5-15R receptacles for expanding power where extra reach is required.

    The A3EC25FT is a professional-grade, heavy-duty extension cord designed to expand power and extend connections for AVL and live-production applications. This reliable 25-foot cord features a three-receptacle end, offering greater flexibility in equipment placement.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    POWER CORD

    25ft. Heavy-Duty extension cord with three NEMA 5-15R receptacles

    The A3EC25FT is a professional-grade, heavy-duty extension cord designed to expand power and extend connections for AVL and live-production applications. This reliable 25-foot cord features a three-receptacle end, offering greater flexibility in equipment placement.

    FEATURES

    A3EC-25FT Features

    Engineered for permanent installs — capabilities, control protocols, and integration support.
    CAPABILITIES
    SPECIFICATIONS

    A3EC-25FT Specifications

    Submittal-ready model numbers, capacities, and electrical characteristics.

    SPECIFICATION

    • Output Connector
      NEMA 5-15R (3 receptacles)
    • Input Connector
      NEMA 5-15P
    • Length
      25 ft (7.6 m)
    • Rated Voltage
      125V
    • Current Rating (Amps)
      15A
    • Wire Gauge
      14 AWG
    • Jacket Type
      SJT
    • Impedance
      69.0 mΩ
    • Approvals
      UL

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    A3EC-25FT Support

    Setup videos, documentation, case studies, and answers to common questions — everything you need to get the A3EC-25FT running and keep it running.
