    A6SB

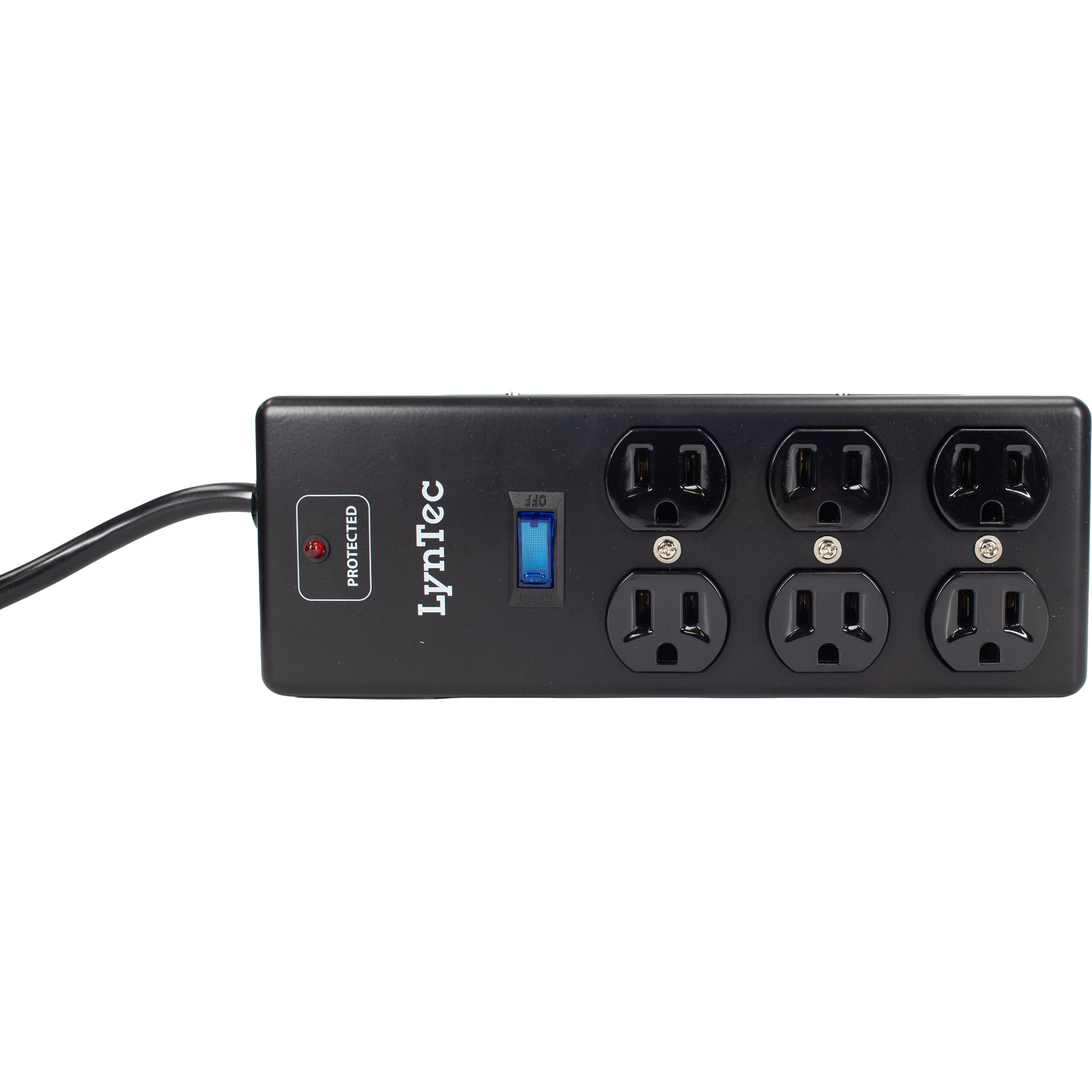

    Compact 6-receptacle power strip with surge suppression and 15A capacity.

    The A6SB is a heavy-duty surge suppressor capable of powering 6 devices simultaneously totaling 15 Amps. The A6SB protects electronics up to 540J and boasts 40db of noise filtering and for quality sound and video. A robust metal housing and 15ft power cable make the A6SS ideal for almost any environment including touring, temporary installations, and outdoor events.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    POWER DISTRIBUTION

    6 receptacles with surge suppression in a compact, durable power strip.

    The A6SB is a compact, durable 6-receptacle power strip with surge suppression, designed to simplify AC power distribution for audio, video, and lighting gear on stage, in the studio, or at a workstation.

    FEATURES

    A6SB Features

    Engineered for permanent installs — capabilities, control protocols, and integration support.
    CAPABILITIES

    Devices Supported

    Power up to 6 devices totaling up to 15Amps

    Surge Protection

    540J of protection to safeguard sensitive electronics

    Cable Length

    Heavy-Duty 15ft power cord

    Filtering

    40dB of noise filtering for clean video and audio

    Construction

    Metal housing ensures long-term life

    Indication

    LED indicator for surge protection
    SPECIFICATIONS

    A6SB Specifications

    Submittal-ready model numbers, capacities, and electrical characteristics.

    SPECIFICATION

    • Output Connector
      NEMA 5-15R (6 receptacles)
    • Input Connector
      NEMA 5-15P
    • Max surge protection
      540 J
    • Cable length
      15ft (4.6m)
    • EMI / RFI noise filter
      40 dB
    • Rated Voltage
      120 V
    • Max capacity
      15 A
    • Overcurrent Protection
      Breaker Switch
    • Max spike current
      36,000 A
    • Max spike voltage
      6 kV
    • Approvals
      UL
    • UL clamping voltage
      400 V
    • Dimensions
      9.5” x 3.5” x 1.5”
