    A6SBEVS

    Compact 6-receptacle power strip with surge suppression, EVS, and 15A capacity.

    The A6SBEVS provides power surge protection for up to 6 devices, totaling 15 Amps. It is capable of safeguarding sensitive electronics with 540 Joules of protection while also shielding downstream devices from prolonged overvoltage and undervoltage through its Extreme Voltage Shutdown (EVS) feature. A 15 ft. heavy-duty power cord adds flexibility for installation, and a 40dB noise filter ensures clean video and audio recording. The A6SBEVS serves as indispensable power protection and distribution for nearly any pro A/V environment.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    POWER DISTRIBUTION

    Compact power strip with surge suppression and EVS.

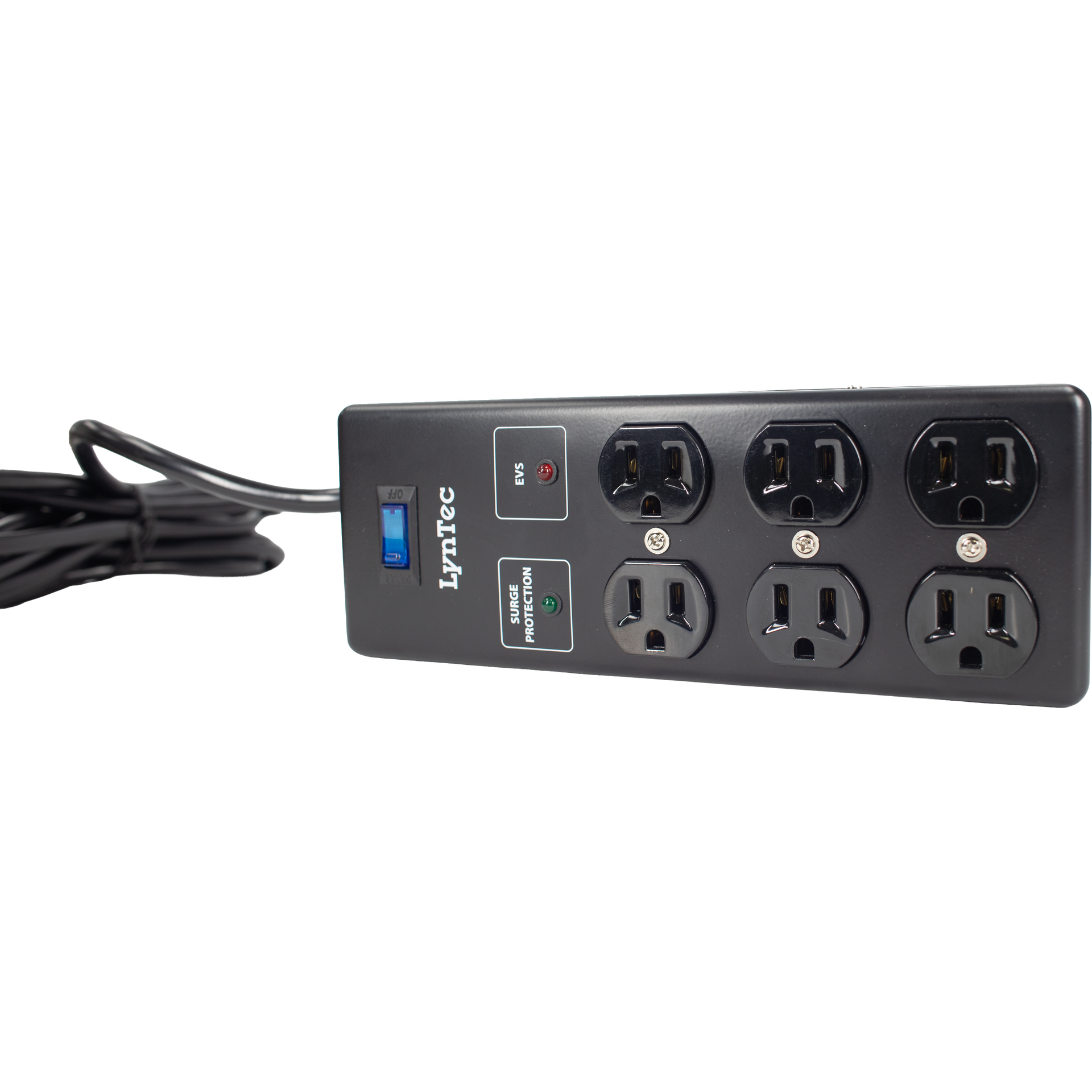

    The A6SBEVS is a compact, 6-receptacle power strip in 2×3 configuration designed for professional audio, video, and lighting power distribution. Featuring surge protection and EVS, the A6SBEVS brings power distribution and protection to your stage, studio, or workstation.

    FEATURES

    A6SBEVS Features

    Engineered for permanent installs — capabilities, control protocols, and integration support.
    CAPABILITIES

    Devices Supported

    Power up to 6 devices totaling up to 15Amps

    Surge Protection

    540J of protection to safeguard sensitive electronics

    Protection

    Extreme Voltage Shutdown (EVS) protects devices from out-of-spec power

    Cable Length

    Heavy-Duty 15ft power cord

    Filtering

    40dB of noise filtering for clean video and audio

    Indication

    LED indicator for surge protection
    SPECIFICATIONS

    A6SBEVS Specifications

    Submittal-ready model numbers, capacities, and electrical characteristics.

    • Output Connector
      NEMA 5-15R (6 receptacles)
    • Input Connector
      NEMA 5-15P
    • Max surge protection
      540 J
    • Cable length
      15ft (4.6m)
    • EMI / RFI noise filter
      40 dB
    • Rated Voltage
      120 V
    • Max capacity
      15 A
    • Overcurrent Protection
      Breaker Switch
    • Max spike current
      36,000 A
    • Max spike voltage
      6 kV
    • Approvals
      UL
    • UL clamping voltage
      400 V
    • EVS Shutoff Thresholds
      > 140 +/- 7 VAC, < 95 +/- 5 VAC
    • Dimensions
      9.5” x 3.5” x 1.5”
