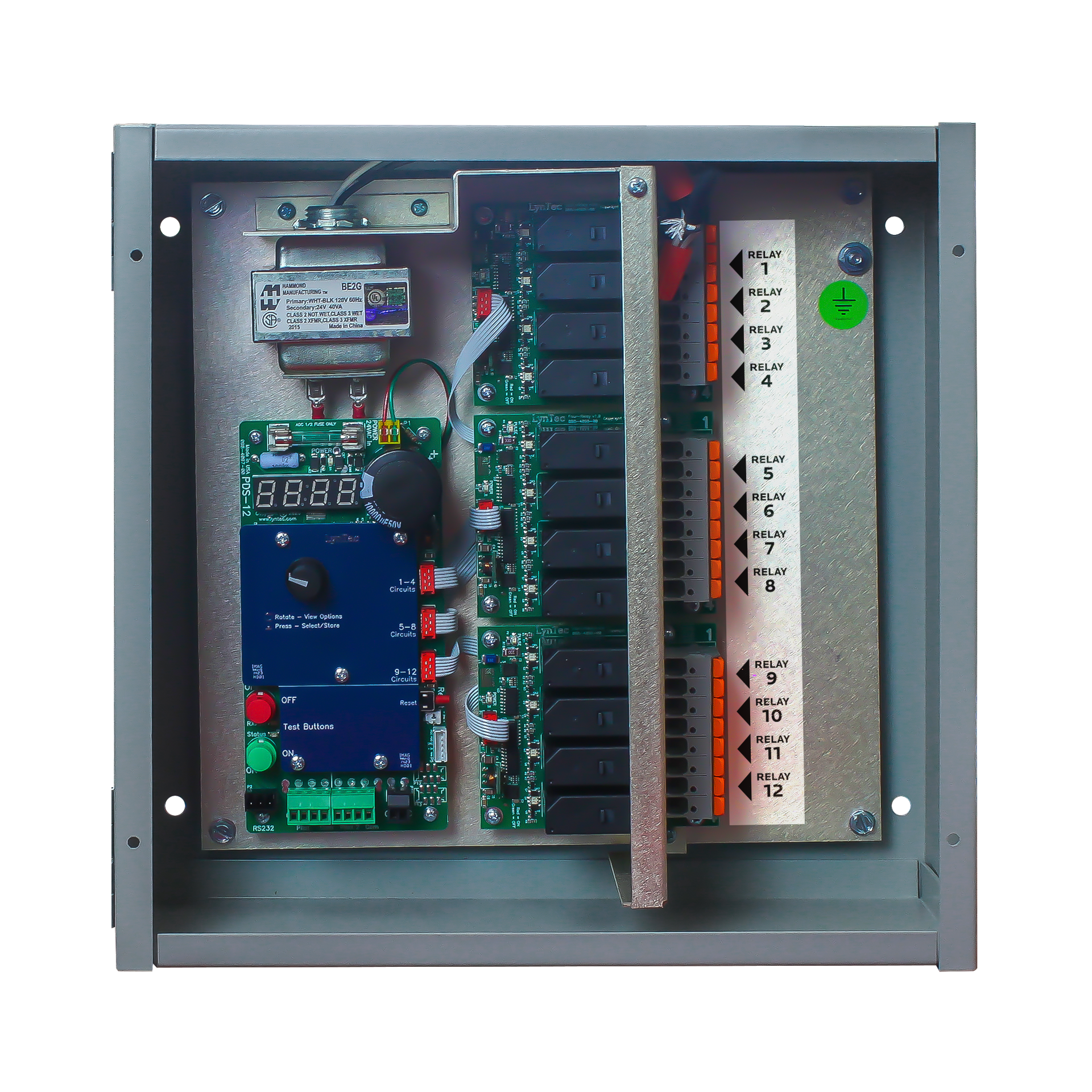

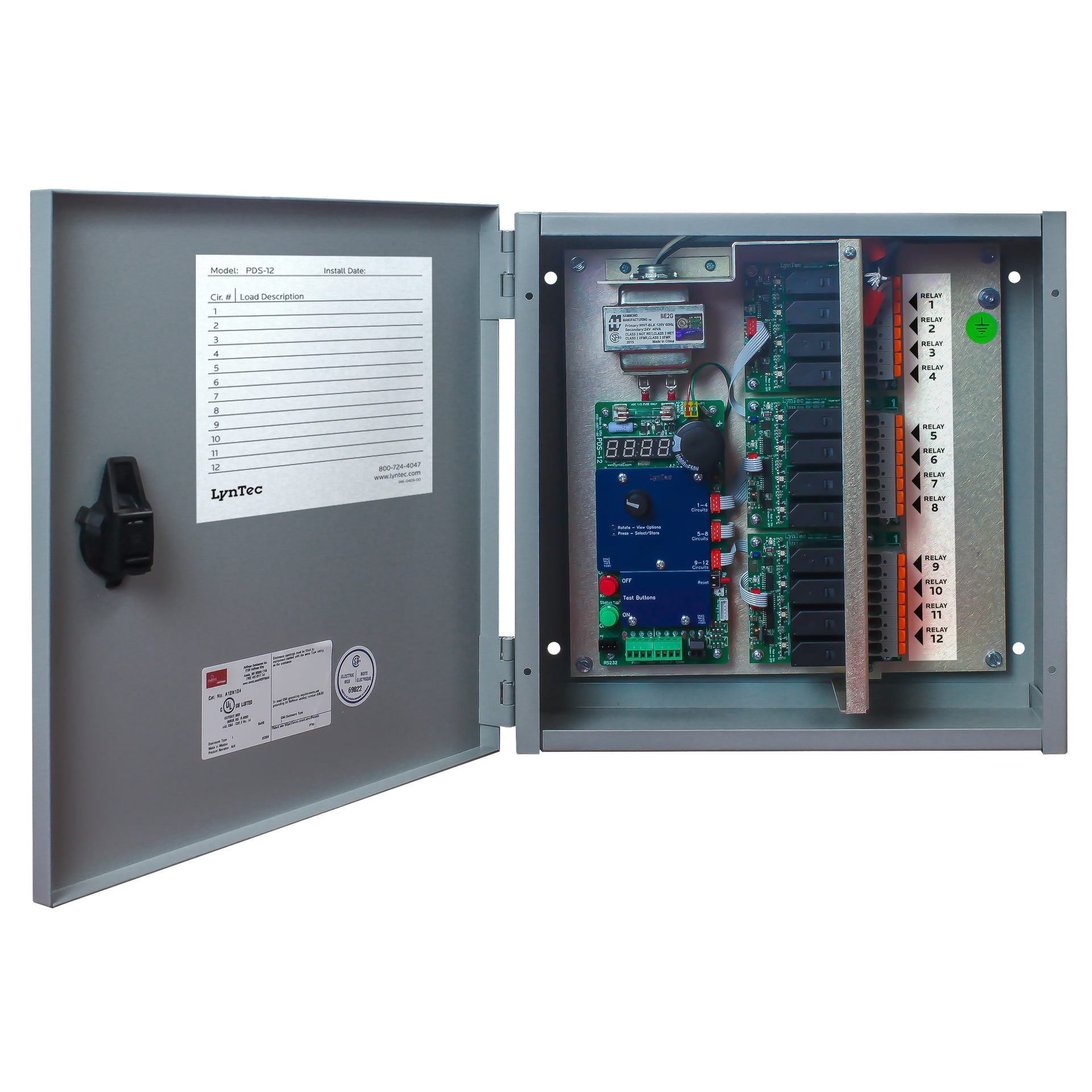

    PDS-12 Sequencing Relay Panel

    A modular sequencing relay panel for simple, one-touch AVL system control.

    The PDS-12 is a standalone sequencing relay panel designed to control AC power circuits with reliable, high-current latching relays for simplified installations. It provides essential brownout protection and emergency shutdown for small to mid-sized performance venues, houses of worship, and commercial AVL systems.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    The PDS series provides robust, multi-circuit power sequencing for installations requiring controlled startup and shutdown of equipment. Featuring 30A latching relays, these sequencers protect sensitive electronics from inrush current and ensure stable system operation.
    Engineered for Simplicity and Safety

    Circuits

    4, 8, or 12

    Voltage

    120V, 240V, 277V

    Control Input

    Contact Closure

    Protection

    Brownout, Load Shed

    Compliance

    UL Listed
    SEQUENCING CONTROL

    Simple, reliable power sequencing for any installation.

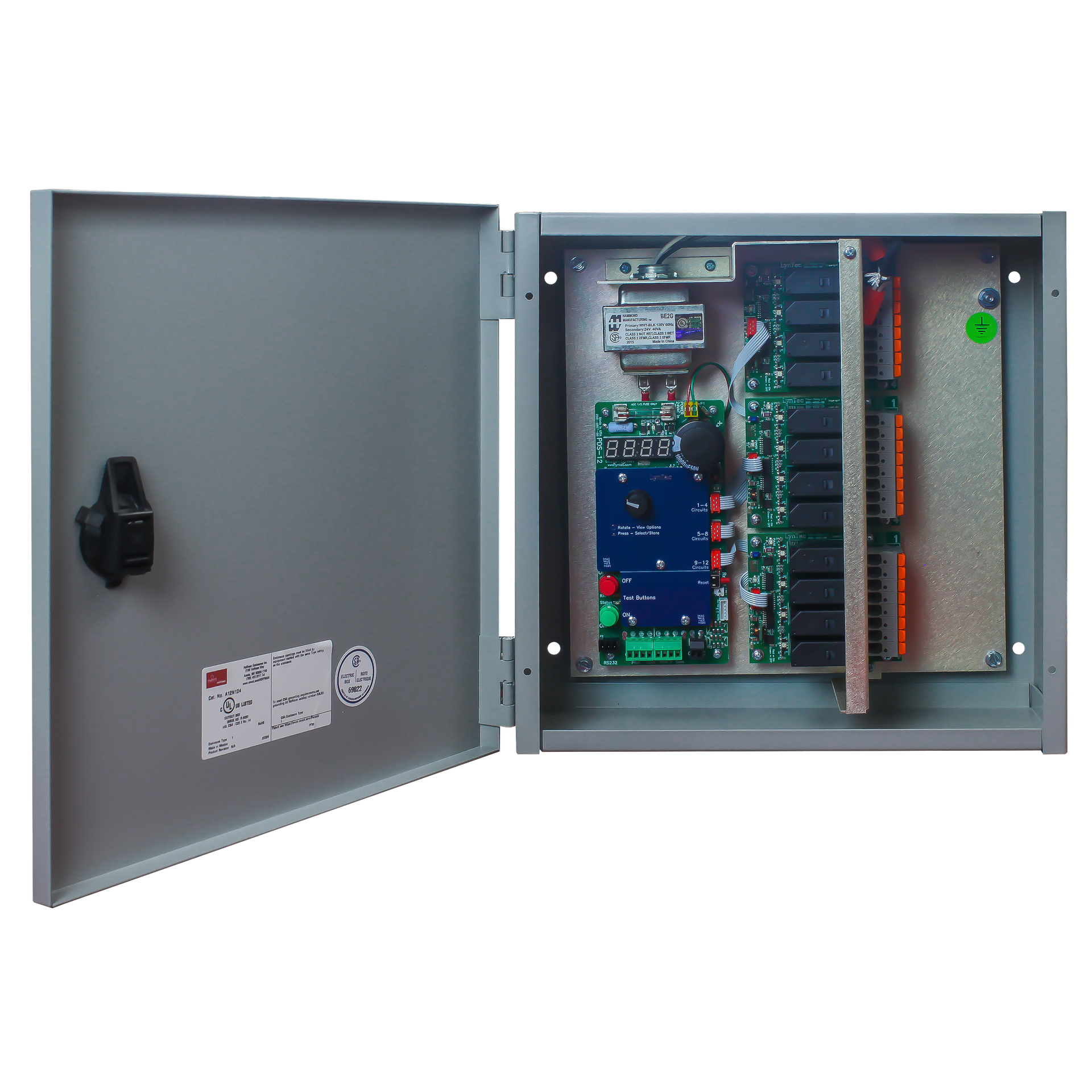

    The PDS-12 Sequencing Relay Panel simplifies power control for any venue requiring straightforward, reliable power-up and power-down sequencing. Engineered as a complete, tested package, the PDS-12 mounts next to your main breaker panel to control AC “hot” lines directly, reducing installation labor and complexity. It uses robust Panasonic latching relays that consume no continuous power, ensuring cool, efficient, and long-term operation without thermal stress.

    Available in 4, 8, or 12 circuit configurations, the PDS-12 is built for electrician-friendly deployment. Standard features like automatic load shedding for emergency shutdown and brownout protection for sensitive equipment provide a layer of safety and reliability essential for modern AVL systems. Simple contact closure inputs enable one-touch system control, making daily operation intuitive for any user.

    SYSTEM INTEGRATION

    Integrate the PDS-12 into your system.

    The PDS-12 works with standard electrical panels and simple control hardware.

    Standard Electrical Panels

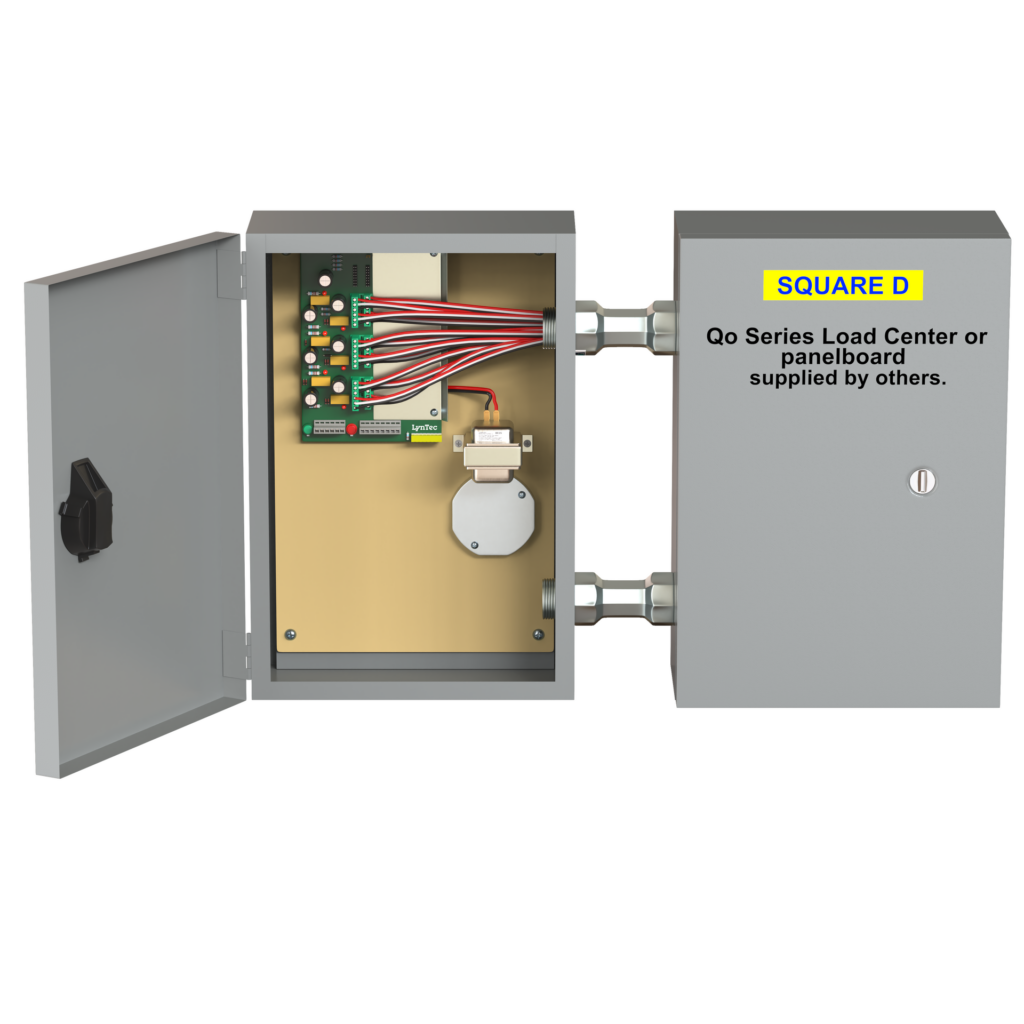

    Mounts alongside any standard circuit breaker panel to provide sequenced control of existing circuits.

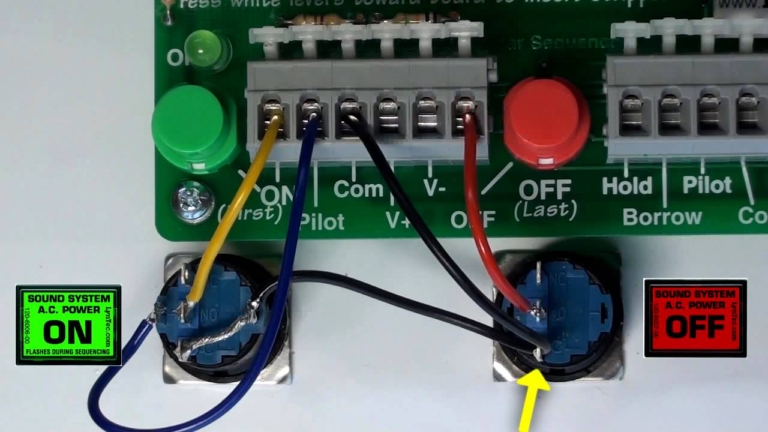

    Key Switches and Push Buttons

    The contact closure input can be triggered by any dry-contact switch for simple, secure user control.

    Third-Party Control Systems

    Integrates with any automation system that provides a relay output, including Crestron, AMX, and Q-SYS.

    Life Safety and Egress Systems

    The load-shedding input accepts a signal from fire alarm or emergency systems for automatic shutdown.
    CONFIGURATION OPTIONS

    Configure your PDS-12 panel.

    Select the circuit count and voltage required for your specific installation.
    Circuit Capacity

    Choose the number of circuits your panel needs to control. All models share the same chassis and core features.

    • 4-Circuit (PDS-12-4): Ideal for smaller racks or distributed power control points.
    • 8-Circuit (PDS-12-8): A versatile option for mid-sized systems or single-room installations.
    • 12-Circuit (PDS-12): Provides maximum capacity for main equipment rooms or larger venues.
    2-Pole Option

    A new 2-pole option is available that ties two relays together, allowing them to switch as a single circuit for loads that require it.

    Voltage Options

    The PDS-12 is available in three voltage configurations to match your facility’s electrical service.

    • 120V (Standard): The default configuration for most North American AVL installations.
    • 240V (Optional): For systems requiring 240V single-phase power.
    • 277V (Optional): For installations using 277V lighting or other commercial power systems.
    Control and I/O

    All panels include standard control inputs, with optional outputs available for system integration.

    • Control Input (Standard): A simple contact closure input allows for one-touch control via a key switch or automation system.
    • Control Outputs (Optional): Add contact closure outputs to provide status feedback to third-party monitoring or control systems.
    WHY LYNTEC

    Reliable Sequencing, Simplified.

    • Tested, complete package reduces installation labor
    • Latching relays run cool for a longer operational life
    • Integrated brownout and load-shedding protection
    • Simple setup with no on-site commissioning required
    FEATURES

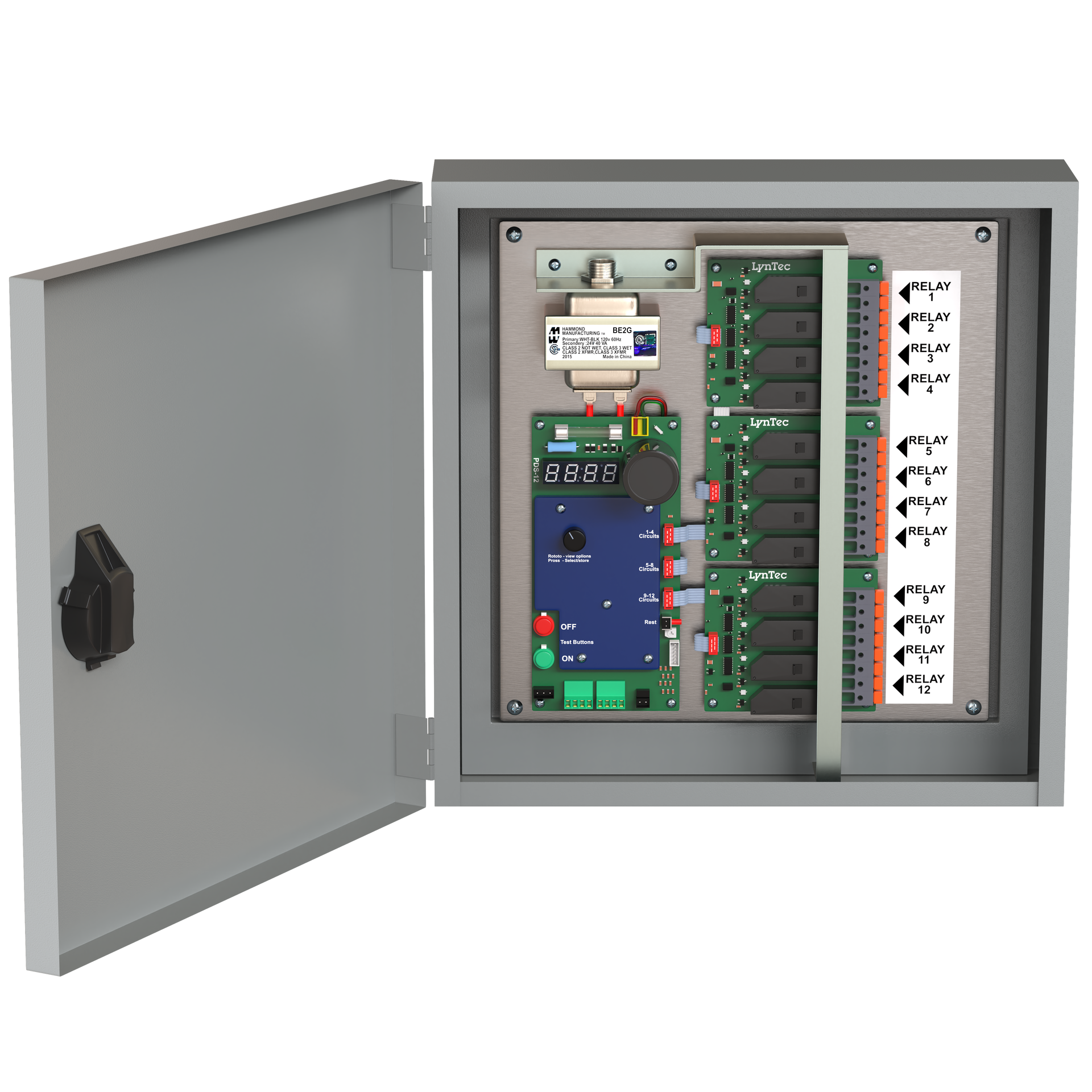

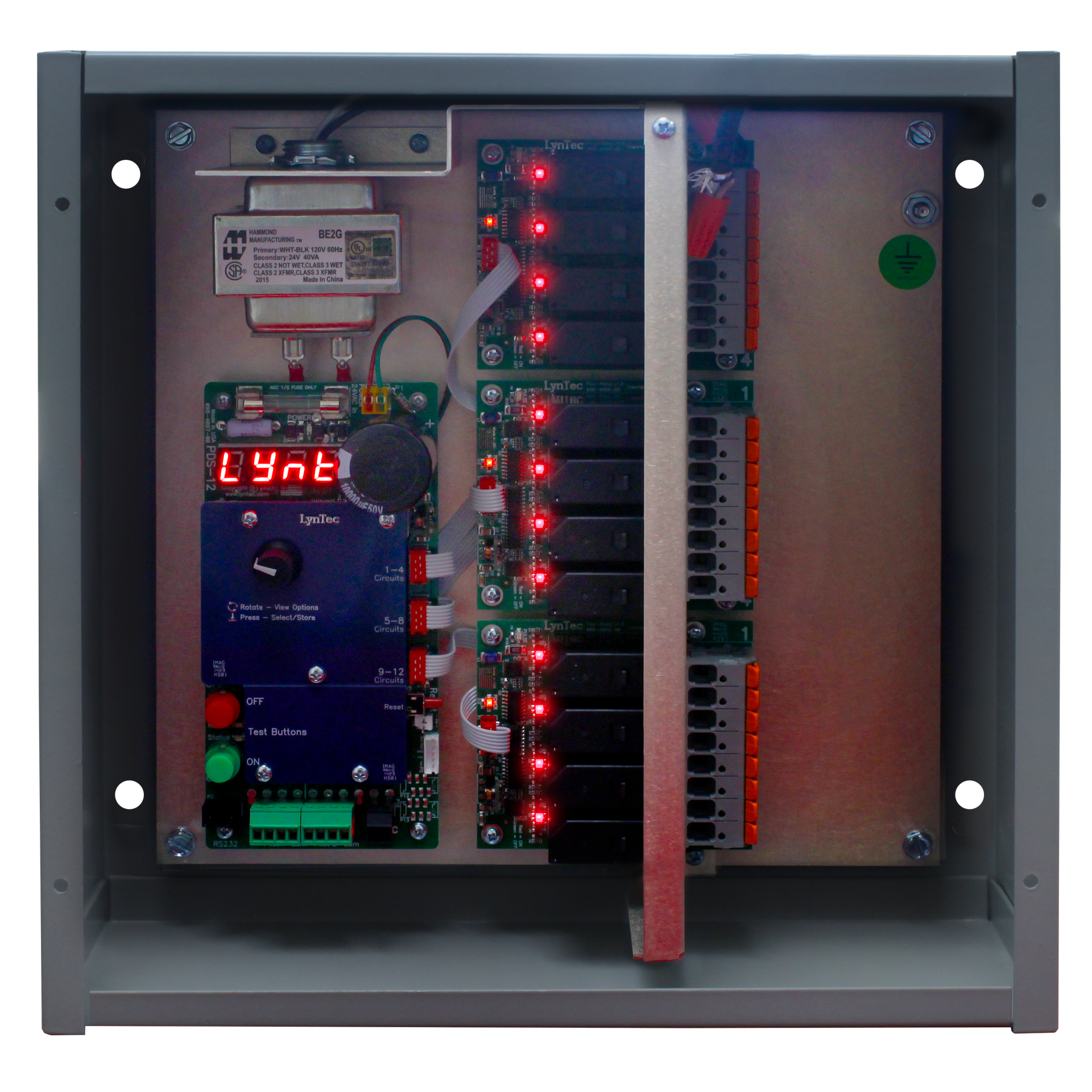

    PDS-12 Panel Features

    Core capabilities built into every PDS-12 sequencing relay panel.
    CAPABILITIES

    Features

    Sequential Power Control

    Provides sequential turn-on and reverse-sequence turn-off for connected circuits.

    Latching Relay Design

    Uses reliable Panasonic relays that run cool and consume no continuous power.

    Brownout Protection

    Automatically shuts down the system during under-voltage events to protect equipment.

    Automatic Load Shedding

    Supports emergency shutdown protocols for life safety and egress systems.

    Simple Contact Closure Control

    Enables one-touch system operation from a simple wall switch or control system.

    Selectable Step Rate

    Allows adjustment of the delay time between sequencing steps to match system needs.

    Onboard Diagnostics

    Features diagnostic LEDs and test switches to simplify installation and troubleshooting.

    Modular and Scalable

    Available in 4, 8, or 12 circuit models that can be daisy-chained for larger systems.

    UL Listed

    The cabinet and all high-voltage components are UL listed for code-compliant installation.
    01

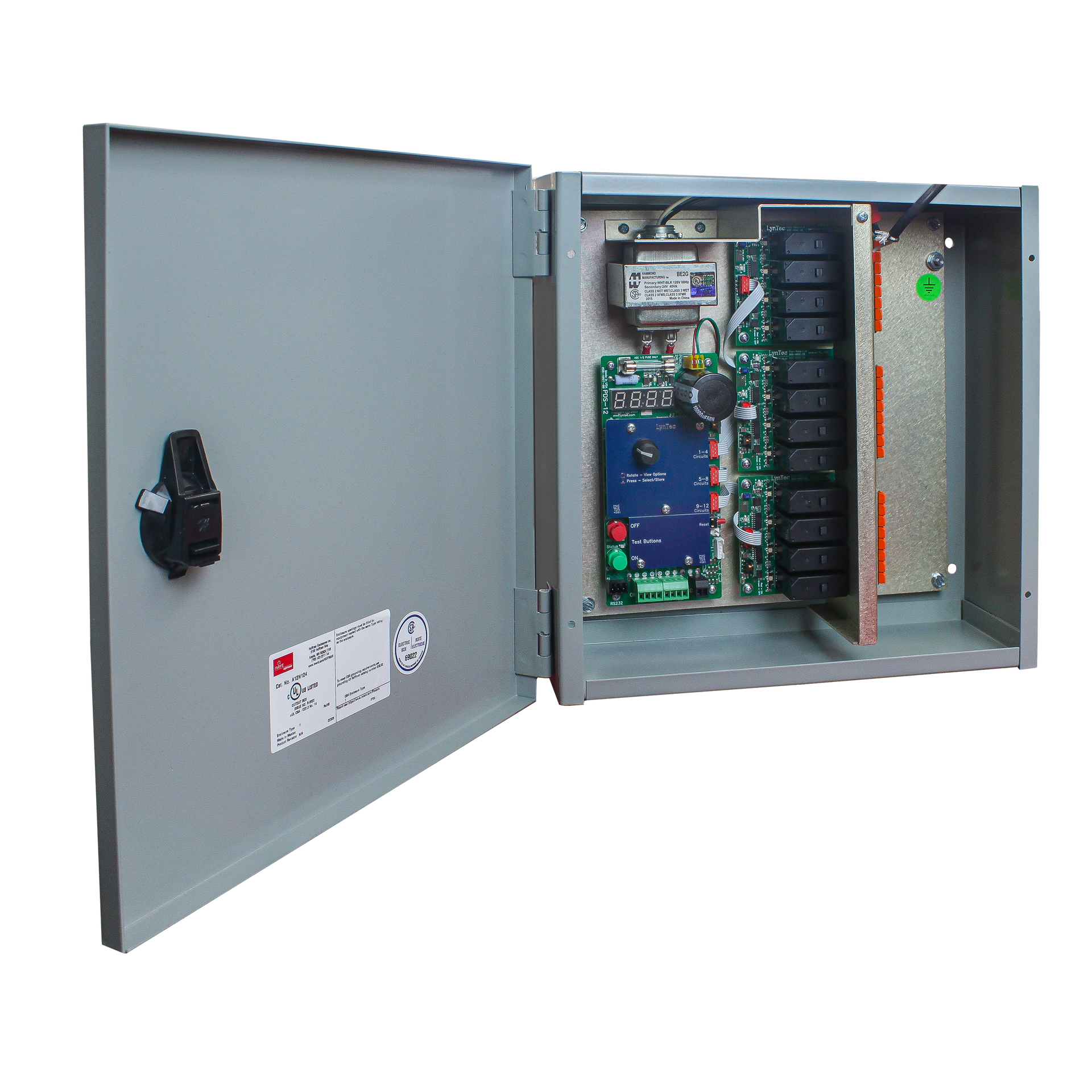

    Installs Fast, Works Simply

    The PDS-12 is a self-contained unit that mounts next to your existing breaker panel, streamlining wiring and reducing on-site labor.
    • Pre-tested, complete package
    • Controls AC ‘hot’ lines directly
    • Simple setup, no commissioning required
    • UL-listed cabinet and components
    02

    Built for Long-Term Stability

    High-quality Panasonic latching relays require no continuous coil power, allowing the panel to run cool and consume minimal energy.
    • Low power consumption
    • Reduced heat for longer component life
    • Modular 4-relay blocks for expansion
    • Daisy-chain multiple panels for more circuits
    03

    Protect Your Connected Equipment

    Standard safety features automatically protect sensitive electronics from common power issues and support emergency egress protocols.
    • Brownout (under-voltage) shutdown
    • Automatic load shedding for emergencies
    • Sequential startup prevents inrush trips
    • Reverse sequence for safe shutdown
    SPECIFICATIONS

    PDS-12 Panel Specifications

    Technical data for all PDS-12 models and available options.

    PDS-12 Series Technical Details

    Core electrical and control specifications for the PDS-12 family of sequencing relay panels.

    Electrical

    • Circuit Counts
      4, 8, or 12
    • Relay Type
      30A Latching Relays

    Control and Operation

    • Primary Control
      Contact Closure Input
    • Sequencing
      Sequential ON, Reverse Sequence OFF
    • Step Rate Delay
      Selectable
    • Outputs
      Contact Closure (Optional)

    Protection

    • Under-Voltage
      Automatic Brownout Shutdown
    • Emergency
      Automatic Load Shedding Input

    Physical and Compliance

    • Mounting
      Surface Mount Enclosure
    • Compliance
      UL Listed
