    MRTS Retrofit Sequencing Panel

    Add simple, reliable sequencing to any existing Square D QO breaker panel.

    The MRTS is a self-contained sequencing controller designed to retrofit existing Square D QO breaker cabinets with simple, one-touch power control. It simplifies sound system and AVL installations for contractors who need reliable, sequential power-up and power-down without replacing the entire electrical panel.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    The MS Series provides modular sequencing for power control using breaker or relay based panels. Engineered to protect sensitive audio and video systems from damaging inrush currents, these panels ensure a safe, controlled startup and shutdown sequence for all connected equipment.
    Upgrade, Don’t Replace

    Application

    Retrofit Sequencing

    Compatibility

    Square D QO Panels

    Circuit Capacity

    12 or 24

    Control

    Contact Closure

    Setup

    Pre-Commissioned
    RETROFIT SEQUENCER

    Add intelligent sequencing to existing panels, simplified.

    The MRTS Retrofit Sequencing Panel provides a straightforward solution for adding robust, one-touch sequential control to any installation using a Square D cabinet that accepts QO circuit breakers. Instead of a costly panel replacement, the MRTS mounts next to the existing cabinet and integrates with new Square D remote-controlled breakers. This approach significantly reduces installation complexity and cost, making it ideal for upgrading legacy sound systems and AVL infrastructure.

    Each MRTS unit is housed in a lockable, rain-tight Hoffman cabinet and features our proven MS-12 Modular Sequencer boards. The system is engineered for long-term reliability and energy efficiency, requiring no holding current to maintain its state.

    SYSTEM COMPATIBILITY

    Integrate the MRTS into your facility.

    The MRTS is designed to work with specific panels and control accessories.

    Square D QO Load Centers

    Designed exclusively for use with any existing Square D electrical cabinet that accepts QO-series breakers.

    Square D QO Motorized Breakers

    Provides control signals to operate Square D QO remote controlled breakers, which must be purchased separately.

    Contact Closure Switches

    Integrates with any dry contact closure switch, such as the LynTec SS-2 series, for simple one-touch control.
    CONFIGURATION OPTIONS

    Configure your retrofit.

    Select the right MRTS model and options for your existing electrical panel.
    Available Models

    Choose the model based on the number of circuits you need to sequence:

    • MRTS-12: Provides control for up to 12 motorized circuit breakers in a single Square D QO panel.
    • MRTS-24: Expands capacity with a second control board to sequence up to 24 motorized circuit breakers.
    Breaker Integration

    The MRTS panel works exclusively with Square D remote controlled breakers, which must be ordered separately:

    • Required Breakers: Order as many Square D QO remote controlled breakers as you need to sequence for your project.
    • Installation: The new breakers plug into the existing Square D panel and are then wired to the MRTS control boards.
    Control Options

    Control is handled via simple and reliable contact closures:

    • Inputs (Standard): A contact closure input is standard on all panels for one-touch system control via a key switch or remote button.
    • Outputs (Optional): Contact closure outputs can be added to any panel to signal system status to other equipment.
    WHY LYNTEC

    The simple, reliable path to system upgrades.

    • Upgrade existing panels without the cost of a full replacement
    • Simple setup with no on-site commissioning required
    • Built on proven, reliable Square D and LynTec components
    • US-based engineering support for design and installation
    FEATURES

    MRTS Panel Features

    Engineered for simple installation, reliable operation, and long-term system protection.
    CAPABILITIES

    Features

    Sequential Power Control

    Provides sequential turn-on and reverse-sequence-off for connected circuits.

    Adjustable Step Rate

    A selectable delay step-rate setting comes standard for customized sequencing.

    Simplified Installation

    Engineered for simple setup with no on-site commissioning required.

    Energy-Efficient Design

    Requires no holding current to maintain state, reducing energy use and heat.

    Emergency Load Shedding

    Automatically sheds loads for safe shutdown during emergency events.

    Brownout Protection

    Protects sensitive processors and equipment from under-voltage conditions.

    Simple System Control

    Standard contact closure inputs enable one-touch system control from third-party switches.
    01

    Simplified Retrofit Installation

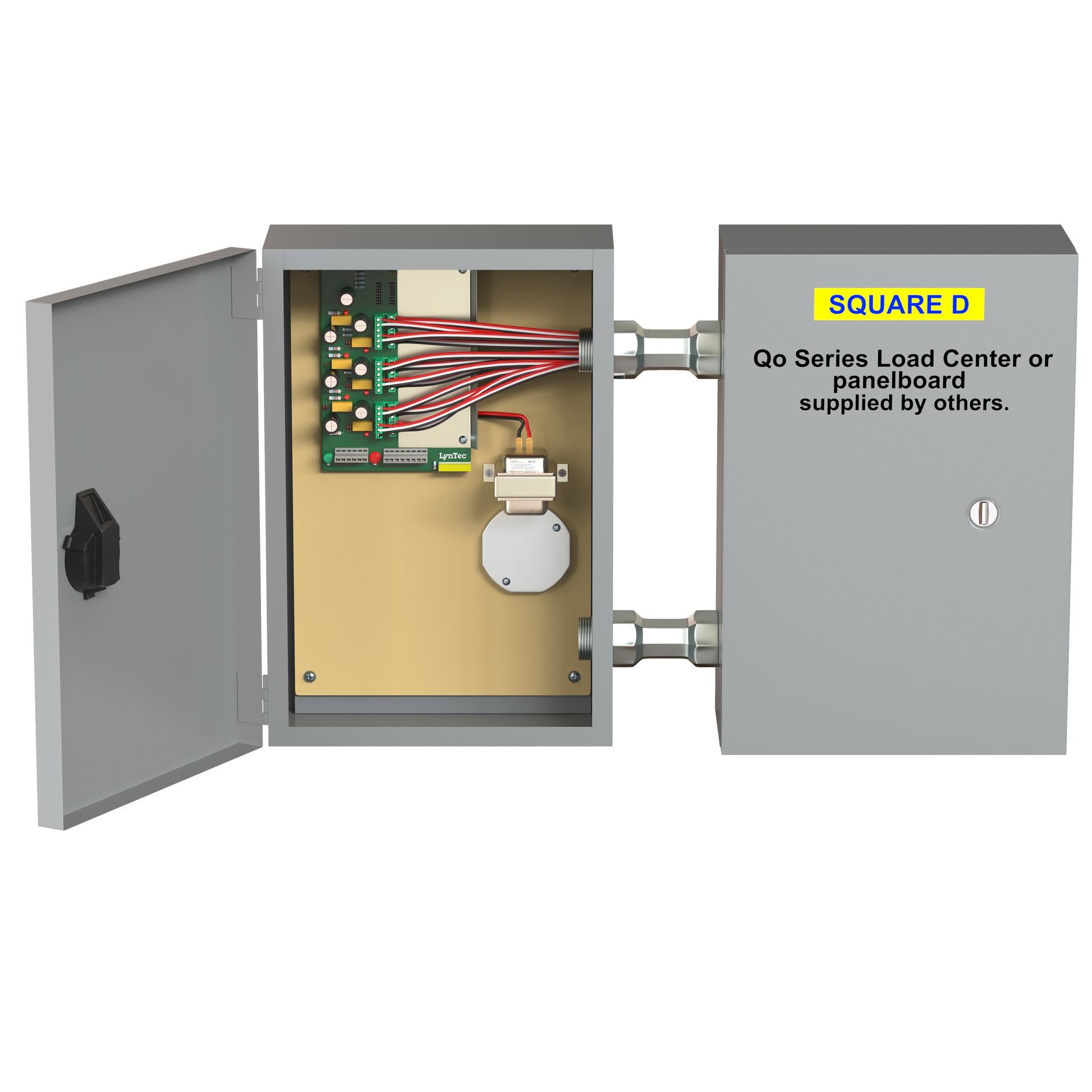

    Mount the self-contained MRTS cabinet next to an existing Square D panel to add sequencing without a full electrical system overhaul.
    • Reduces labor costs and installation time
    • Avoids disruption of replacing existing infrastructure
    • Smooth-walled cabinet provides flexible mounting and piping options
    02

    Simple and Reliable Control

    Built on the proven LynTec MS-12 sequencer board and Square D motorized breakers for dependable, one-touch operation.
    • Simple contact closure inputs for system control
    • No on-site commissioning or software setup required
    • Sequential turn-on and reverse-sequence-off operation
    03

    Engineered for Protection

    Integrated safeguards protect connected equipment from common power issues, ensuring system longevity and stable operation.
    • Automatic load shedding for emergency shutdown
    • Brownout (under-voltage) protection for sensitive electronics
    • Energy-efficient design runs cool with no holding current
    SPECIFICATIONS

    MRTS Panel Specifications

    Technical details for control, protection, and physical installation.

    MRTS Panel Specifications

    Technical details for integrating the MRTS into your installation.

    Control System

    • Sequencer
      LynTec MS-12 Modular Sequencer Board
    • Circuit Capacity
      Up to 12 (MRTS-12) or 24 (MRTS-24)
    • Breaker Compatibility
      Square D QO Remote Controlled Breakers
    • Control Input
      Contact Closure (standard)
    • Control Output
      Contact Closure (optional)

    System Protection

    • Emergency Shutdown
      Automatic Load Shedding
    • Under-Voltage Protection
      Brownout Shutdown

    Physical

    • Cabinet
      Hoffman, UL & CSA Listed
    • Rating
      Rain-tight, lockable
    • Mounting
      Surface mount

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    MRTS Panel Support

    Find documentation, application notes, and answers to common questions.
    VIDEOS

    Setup & training video series.

    EPISODE 1 / 5 · 9:27
    Building a Controllable Breaker Panel Part Number
    CASE STUDIES

    Real-world installations.

    View all Case Studies
    FAQ

    FAQs about the MRTS Panel

    Can I use this with a panel that is not a Square D QO type?

    No, the MRTS is specifically designed and engineered to provide sequencing for Square D cabinets that accept QO-series circuit breakers. It is not compatible with other manufacturers’ panels or breaker types.

    Does this require a LynTec technician for setup?

    No, the MRTS is designed for simple setup and does not require on-site commissioning by a LynTec specialist. The system is pre-configured for straightforward installation by a qualified electrician.

    How is the sequencing controlled?

    The system is controlled via a simple contact closure input, which is a standard feature. This allows you to use a key switch, a remote button like our SS-2, or any other dry contact switch for one-touch operation.

    What else do I need to order besides the MRTS panel?

    You will need to order the appropriate number of Square D QO remote controlled (motorized) circuit breakers separately. The MRTS panel contains the controller, but the breakers are installed in your existing panel.
