    CQ 1515-RX

    Rack-mount power sequencer with 15A service and integrated RX Series surge protection.

    The CQ 1515-RX is a 1U rack-mount power sequencer with three timed steps, seven outlets, and a 15-amp capacity for standalone operation. It protects sensitive AVL equipment in smaller racks from damaging surges and inrush current, simplifying system startup without requiring a primary controller.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    The CQ Series offers modular, standalone power sequencers designed for simple and reliable operation. Units can be easily linked with RJ-45 cables to create scalable, synchronized power-up sequences for AV systems of any size, without requiring a central controller.
    Engineered for Simplicity and Protection

    Service

    15A / 120V

    Outlets

    7 Total (6 Seq.)

    Sequence Steps

    3

    Protection

    RX Series

    Form Factor

    1U Rack-Mount
    POWER SEQUENCER

    Sequenced power-up and surge protection in one unit.

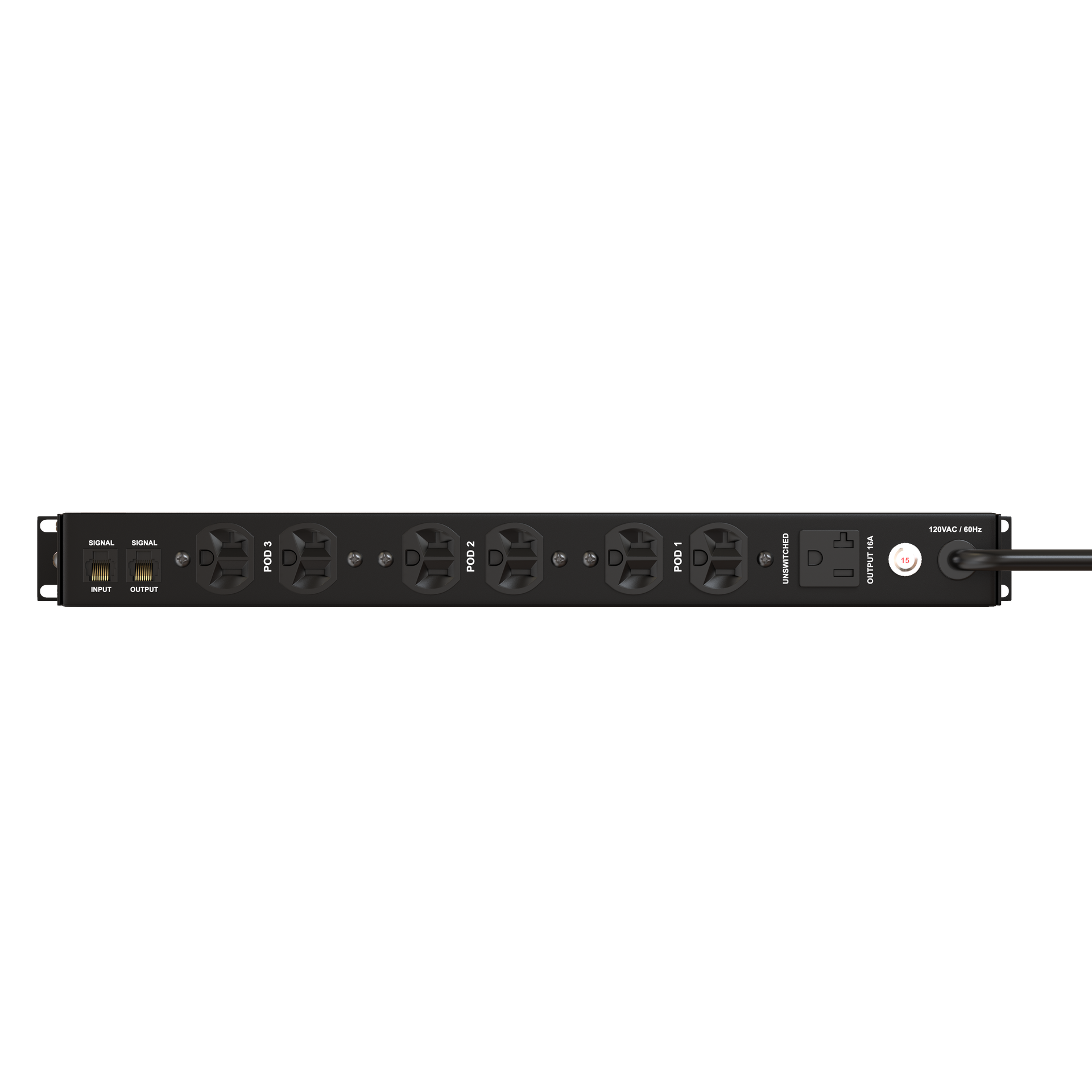

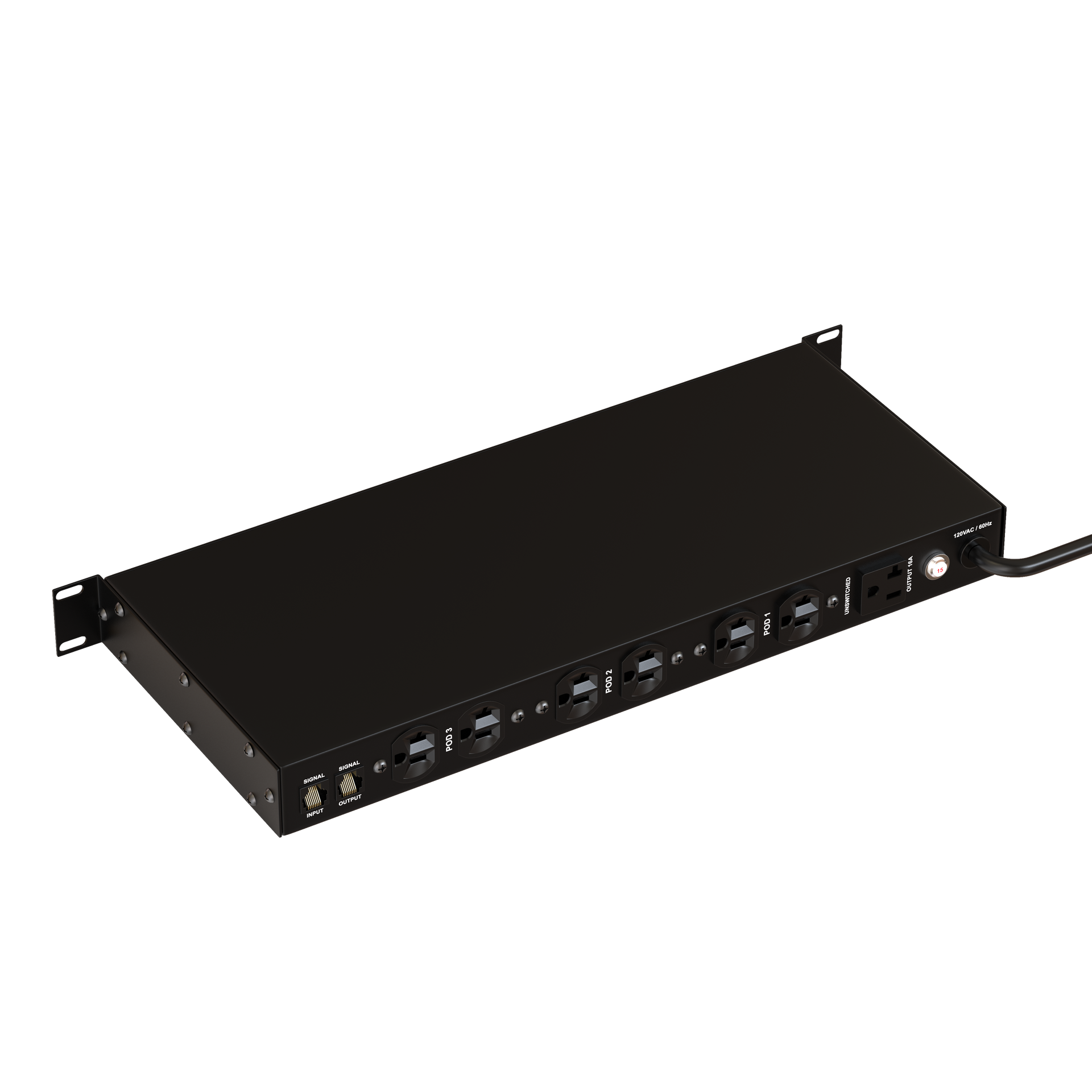

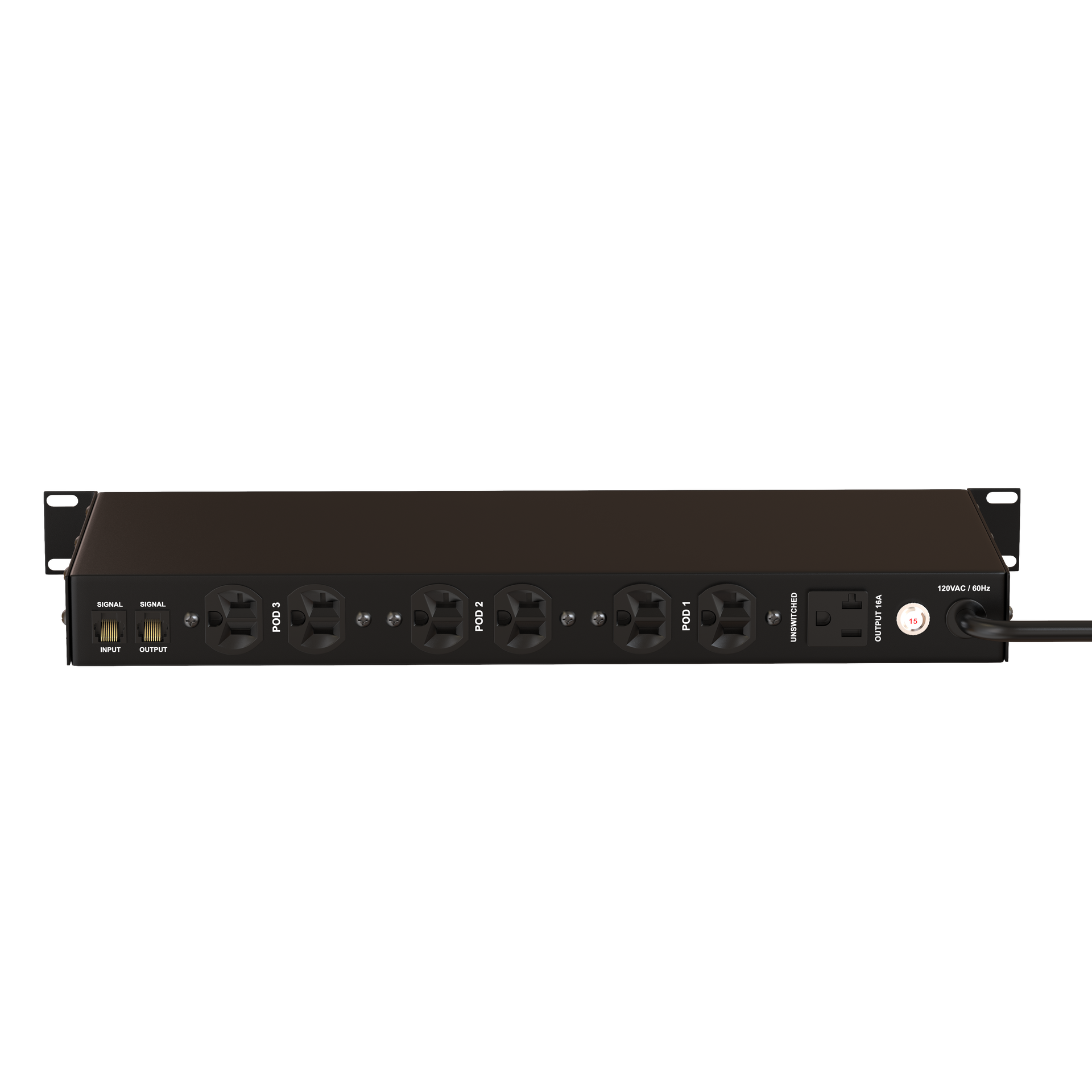

    The CQ 1515-RX provides reliable three-step power sequencing and proven RX Series surge protection in a single 1U rack unit. It features seven rear outlets, with six outlets grouped into three sequenced pods to manage equipment startup and prevent inrush current trips on a single 15A circuit. An integrated sequencing engine allows the CQ 1515-RX to operate as a standalone primary unit or be daisy-chained with other CQ Series products via simple RJ-45 connections for scalable deployments.

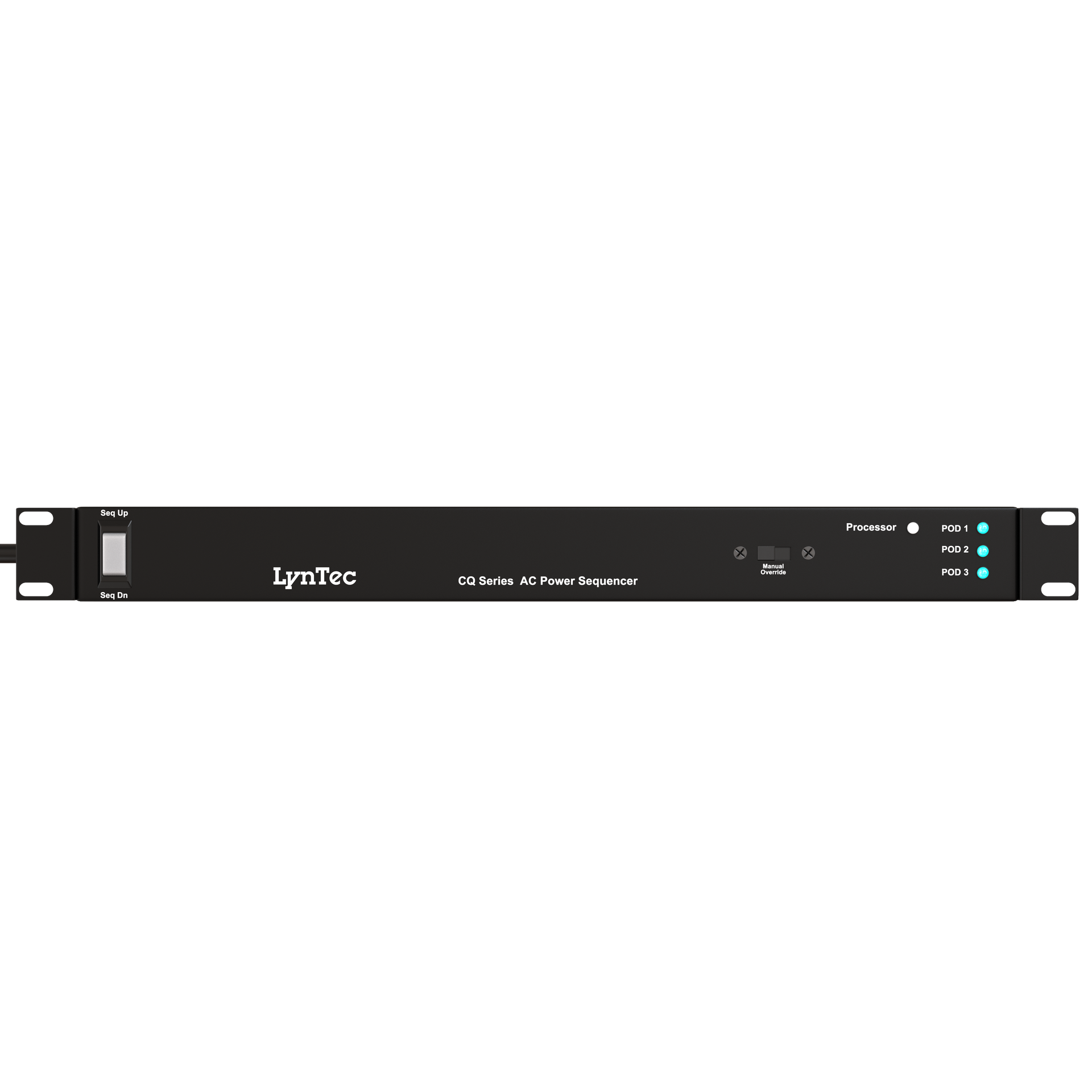

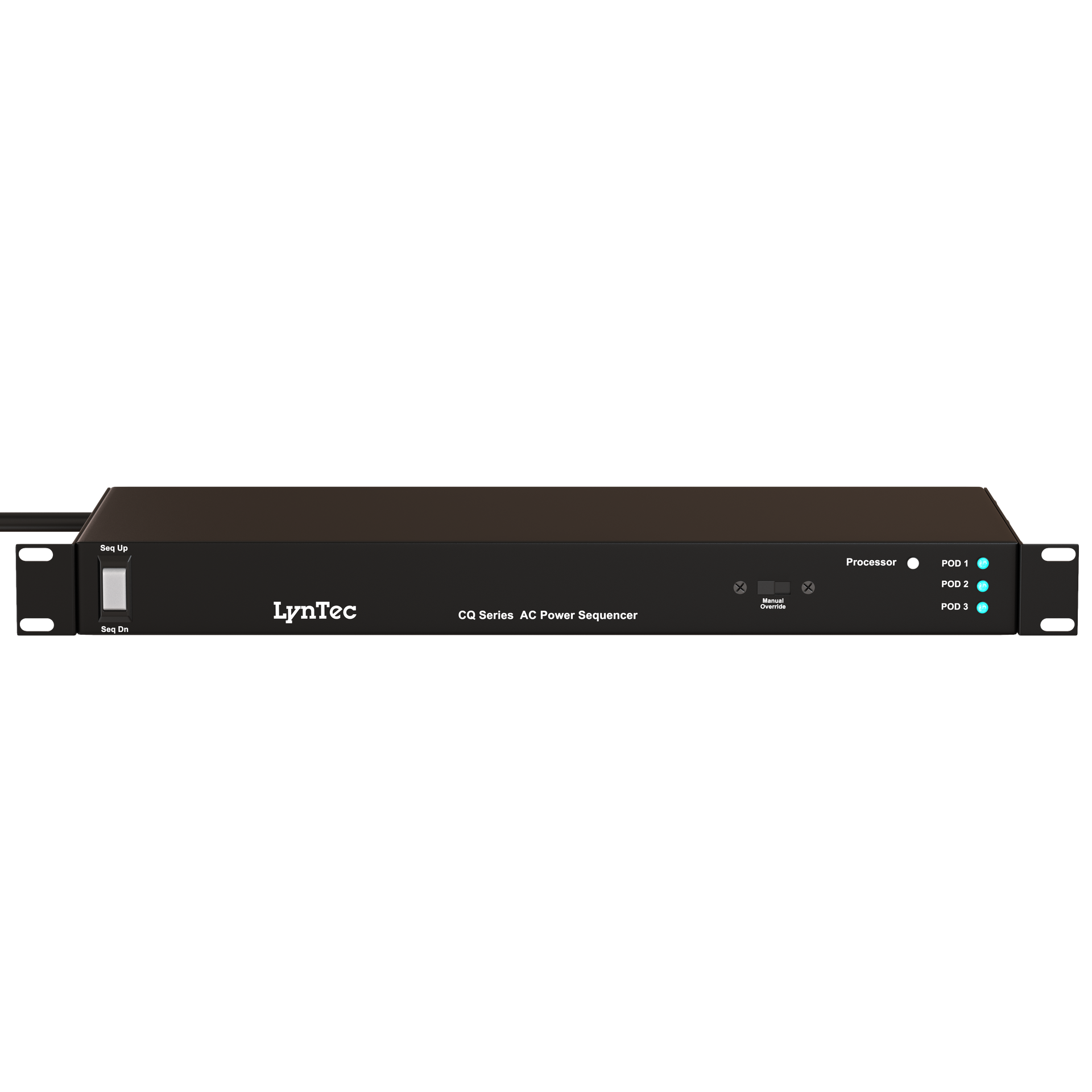

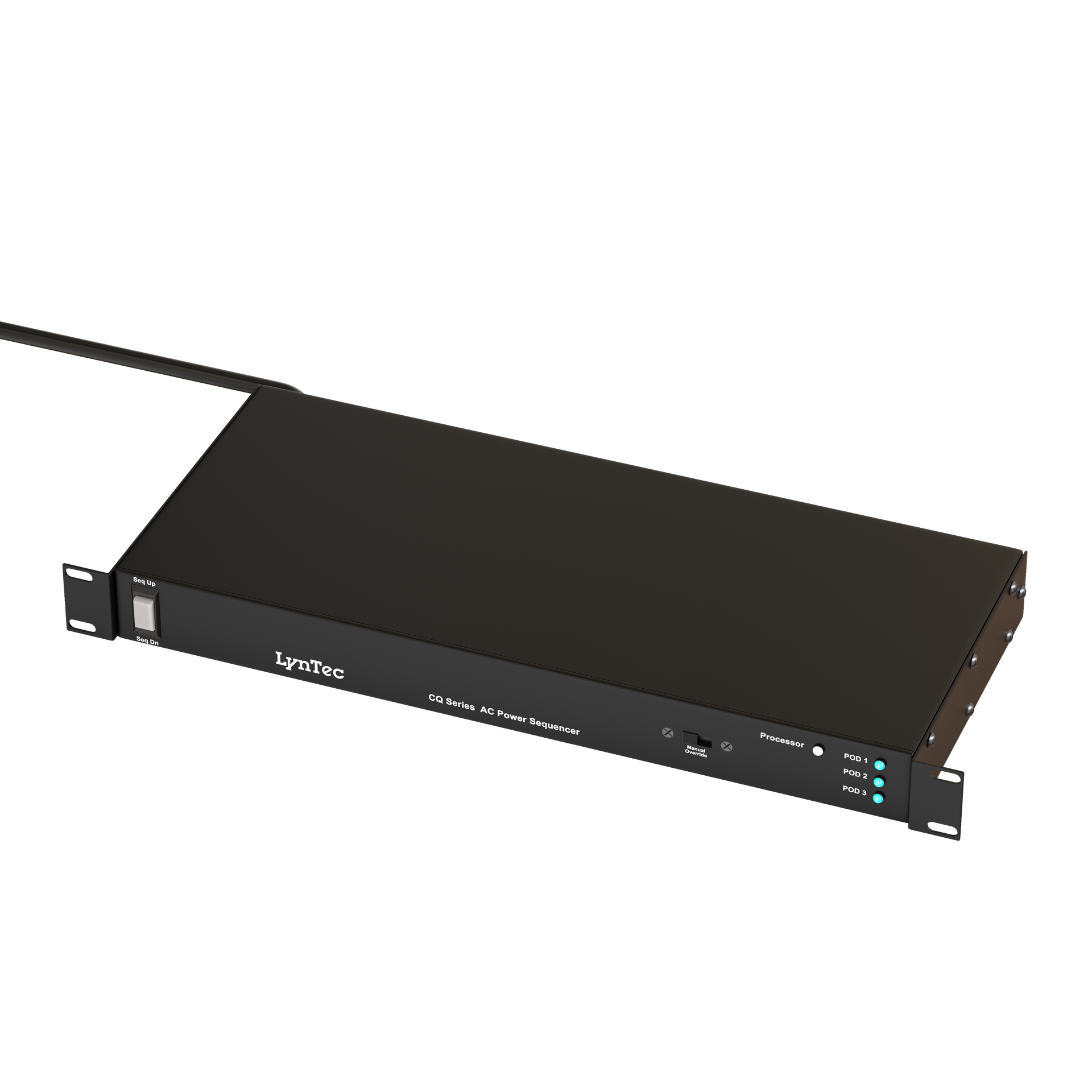

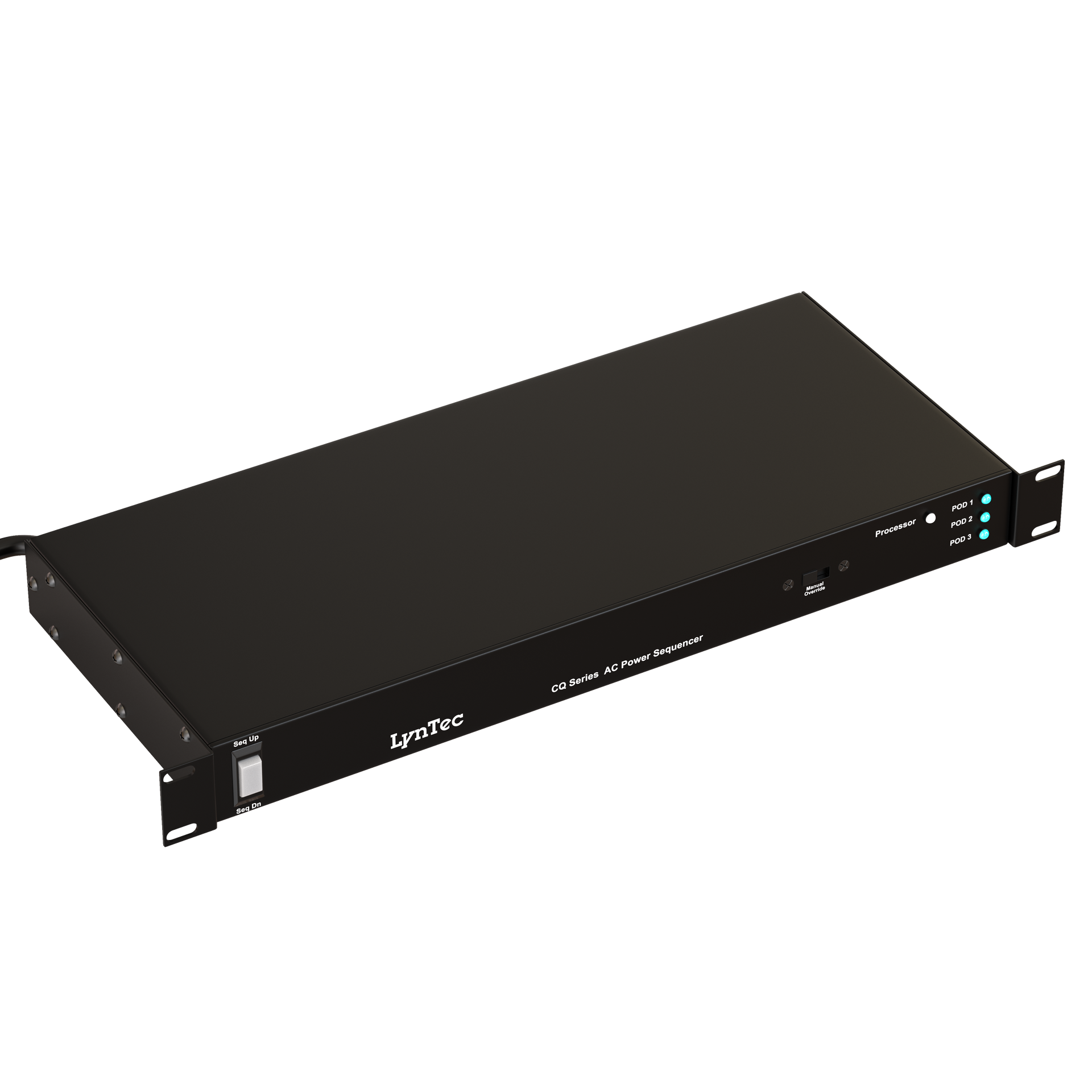

    Engineered for dependability, the onboard RX Series protection shields connected gear from both normal mode (line-neutral) and common mode (line-ground) electrical surges and noise. Front-panel LEDs provide clear at-a-glance status of each sequence pod, while internal DIP switches allow installers to adjust the delay timing to match system requirements.

    SYSTEM EXPANSION

    Expand your CQ 1515-RX installation.

    The CQ 1515-RX integrates with other CQ and RC series products for expanded control.

    Other CQ Series Sequencers

    Daisy-chain with any other CQ Series model to create a larger, synchronized sequencing system.

    RC Series Remote Controls

    Add remote key switch or push button control using RC5-RM or RC5-KPS accessories.

    RCDM Remote Control Combiners

    Use an RCDM module to enable sequencer control from up to three different remote locations.

    Standard 19-Inch Equipment Racks

    The 1U chassis is designed to mount in any standard 19-inch EIA equipment rack.
    WHY JUICE GOOSE

    Dependable power infrastructure, simplified.

    • Proven RX Series protection against common and normal mode surges
    • Plug-and-play design requires no complex programming or setup
    • Scalable architecture allows easy system expansion
    • Engineered and built for long-term reliability in professional AVL systems
    FEATURES

    CQ 1515-RX Features

    Core capabilities engineered for simple installation and reliable operation.
    CAPABILITIES

    Features

    Three-Step Sequencing

    Six switched outlets are organized into three pods of two, providing a controlled power-up sequence.

    15 Amp Capacity

    Provides reliable power distribution for typical AV and audio rack configurations.

    RX Series Surge Protection

    Protects against both normal mode and common mode surges to ensure equipment safety and uptime.

    Standalone Operation

    Functions independently without the need for an external primary controller or programmer.

    Daisy-Chain Capable

    RJ-45 ports allow simple, reliable connection to other CQ units for system expansion.

    Front Panel Status LEDs

    Provides real-time visual feedback on sequence pod status and the health of the protection circuit.

    Adjustable Sequence Timing

    Internal DIP switches allow installers to set sequence delays from 2 to 30 seconds.

    Unswitched Convenience Outlet

    One rear outlet remains always-on for devices that require constant power.
    01

    Standalone Sequencing

    With an onboard sequencing circuit, the CQ 1515-RX works right out of the box with no primary controller required, simplifying small system installations.
    • Plug-and-play operation
    • Functions as a primary or secondary unit
    • Automatic power-up and power-down sequences
    02

    Proven RX Series Protection

    Integrated surge protection and power filtration technology defends connected equipment against common and normal mode events, limiting ground line surges to 0.5V.
    • Protects against surges up to 6,000V
    • Advanced line noise filtration
    • Front-panel LED indicates protection status
    03

    Scalable System Control

    Easily expand your power control system by linking multiple CQ Series units together using standard RJ-45 cables for synchronized, multi-zone sequencing.
    • Signal Input and Output RJ-45 ports
    • Daisy-chain with other CQ sequencers
    • Integrates with RC Series remote accessories
    SPECIFICATIONS

    CQ 1515-RX Specifications

    Key technical data for system design and integration.

    CQ 1515-RX Specifications

    Technical details for integrating the CQ 1515-RX into your installation.

    Electrical

    • Current Rating
      15 Amps
    • Total Outlets
      7 (NEMA 5-15R)
    • Sequenced Outlets
      6 (3 pods of 2)
    • Unswitched Outlets
      1
    • Power Protection
      Juice Goose RX Series

    Control

    • Sequence Events
      3
    • Sequence Timing
      Adjustable (2, 10, 20, 30 seconds)
    • Inter-Unit Connection
      RJ-45 (8-wire)

    Physical

    • Chassis
      1U Rack Mount
    • Indicators
      LEDs for Power Pods and Processor Status

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    CQ 1515-RX Support

    Find manuals, datasheets, and answers to common questions.
    FAQ

    FAQs about the CQ 1515-RX

    Can I adjust the power-up and power-down sequence timing?

    Yes, the delay time between sequence events is adjustable. By changing the position of two DIP switches on the main circuit board, you can select a delay of 2 seconds (standard), 10 seconds, 20 seconds, or 30 seconds.

    Does the CQ 1515-RX require a primary controller to operate?

    No, the CQ 1515-RX has a self-contained sequencing circuit and can operate as a standalone primary unit right out of the box. It does not require any external controller or programming for basic operation.

    How do I connect multiple CQ units together for a larger system?

    You can daisy-chain multiple CQ Series units using standard eight-wire RJ-45 cables. Connect the Signal Output of the primary unit to the Signal Input of the next unit in the chain to synchronize their sequencing.

    What do the front panel LEDs indicate?

    The blue ‘Pod’ LEDs light up when power is applied to each of the three sequenced output groups. A flashing blue and red ‘Processor’ LED indicates that the sequencer and surge protection circuits are operating correctly.

    What kind of surge protection is included?

    The CQ 1515-RX features Juice Goose’s proven RX Series power protection, which defends against both normal mode (line to neutral) and common mode (ground line) surges and includes line noise filtration.
