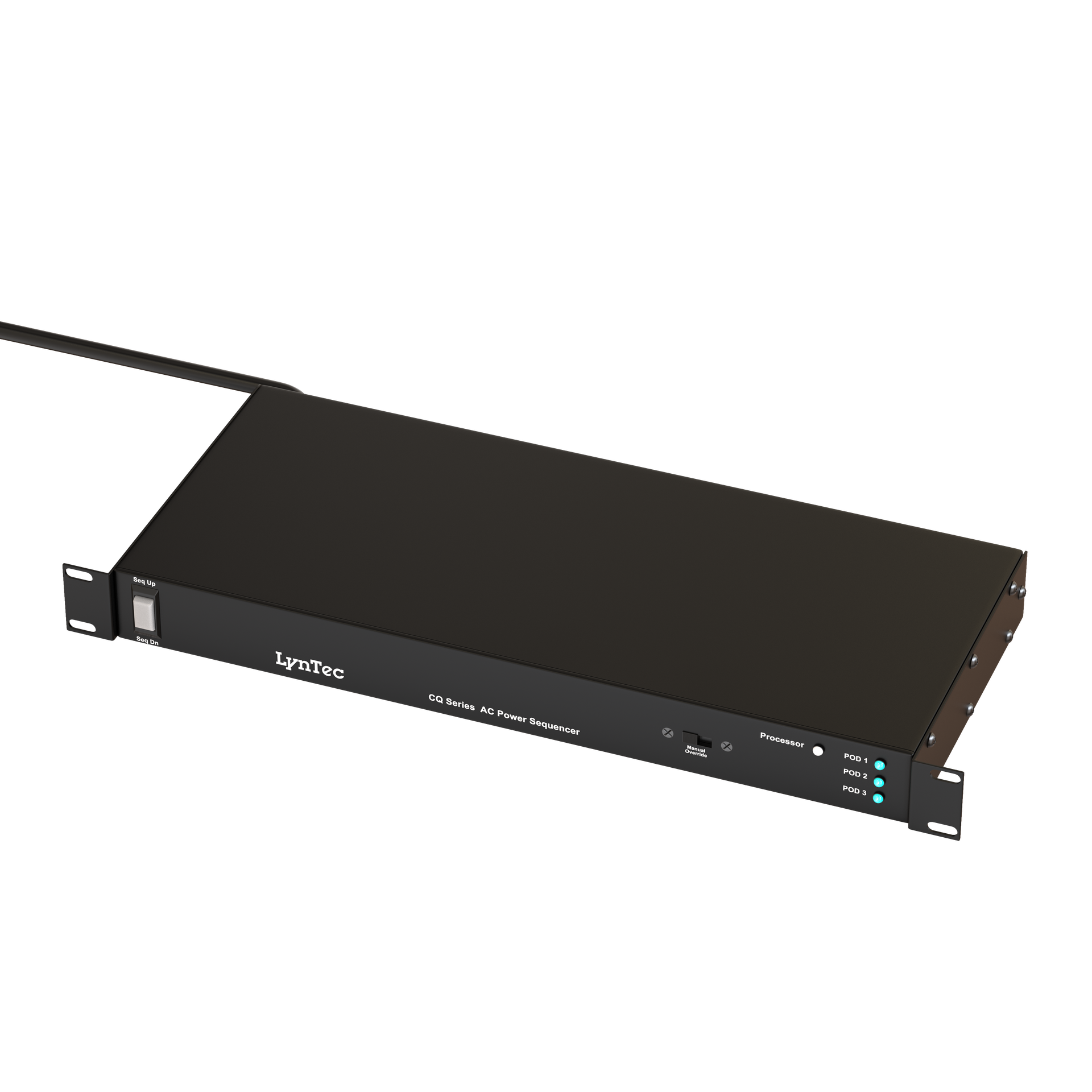

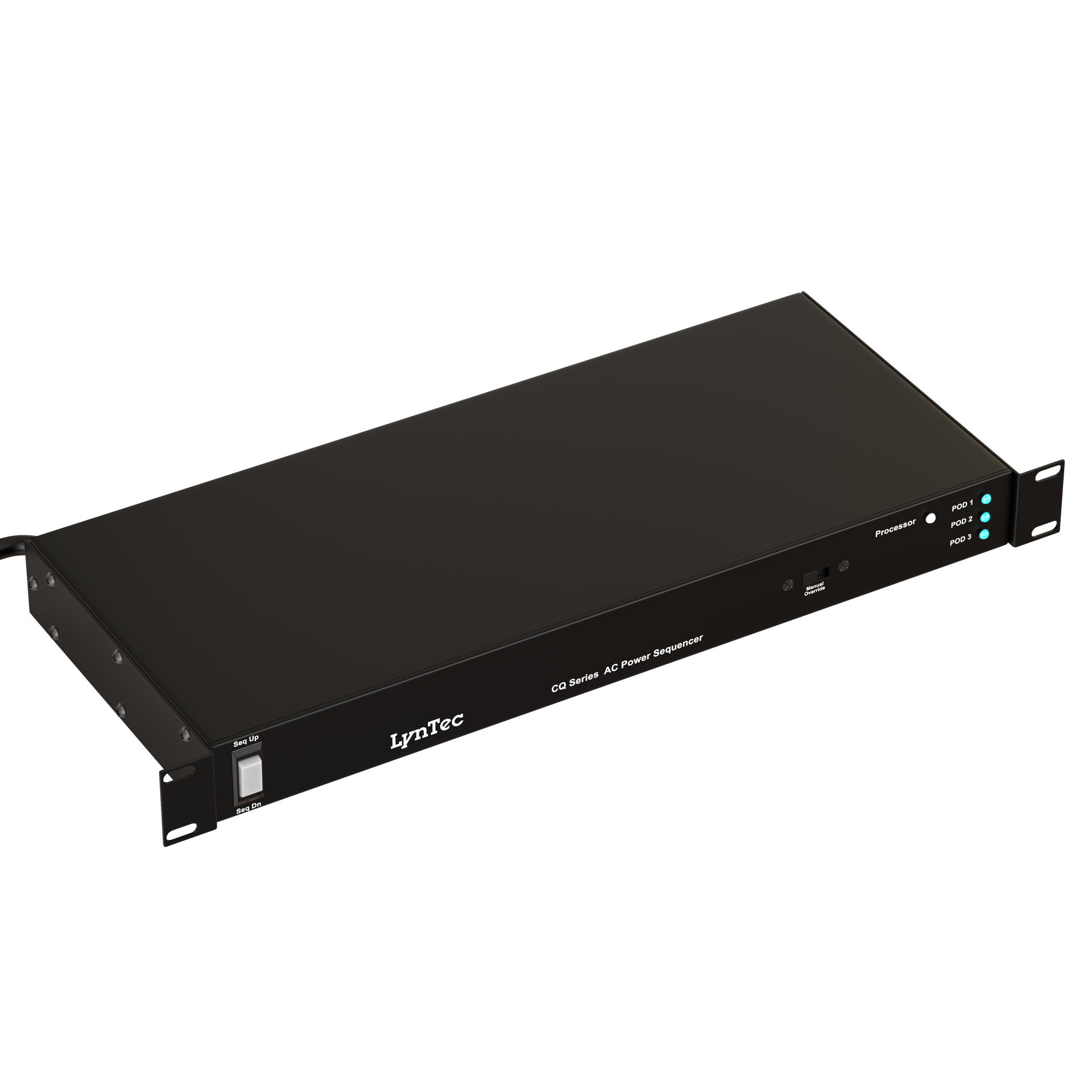

    CQ 1520-RX Power Sequencer

    A 20A, three-step power sequencer with integrated RX Series surge protection.

    The CQ 1520-RX is a rack-mounted power sequencer that provides reliable, three-step activation for connected equipment on a single 20-amp circuit. It simplifies power-up for AV racks and small venues, protecting sensitive electronics with proven RX Series surge protection and advanced line noise filtration.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    The CQ Series offers modular, standalone power sequencers designed for simple and reliable operation. Units can be easily linked with RJ-45 cables to create scalable, synchronized power-up sequences for AV systems of any size, without requiring a central controller.
    Engineered for Simplicity and Protection

    Service

    20A / 120V

    Outlets

    6 Switched, 1 On

    Sequencing

    3 Steps

    Protection

    RX Series

    Form Factor

    1U Rack-Mount
    POWER SEQUENCER

    Reliable power sequencing with integrated surge protection.

    The CQ 1520-RX simplifies power management for any rack by combining dependable three-step sequencing with our proven RX Series surge protection and filtration. Engineered for standalone operation or as part of a larger system, it requires no external controller. Units can be easily daisy-chained using standard RJ-45 cables, allowing for simple, scalable deployment across multiple racks or rooms. The onboard intelligence automatically manages power-up and power-down sequences, protecting connected equipment from startup inrush currents.

    At its core, the CQ 1520-RX features advanced power protection that safeguards against both normal mode (line to neutral) and common mode (ground line) surges. This is critical for modern digital equipment, where ground line surges can cause operating faults. The robust circuitry provides the clean, stable power required in professional audio and video environments, giving you confidence in your system’s reliability and uptime.

    COMPATIBLE ACCESSORIES

    Build a complete sequencing system.

    The CQ 1520-RX integrates with other CQ sequencers and RC remote controls to create a scalable system.

    Other CQ Series Sequencers

    Daisy-chain with any other CQ model to expand the number of sequenced steps and circuits in your system.

    RC5-RM Rack Mount Keyswitch

    Add secure, key-activated remote control to your sequencing system from a 1U rack panel.

    RC5-WM Wall Mount Keyswitch

    Provides secure, unauthorized remote operation of a CQ sequencer from a standard wall-mounted plate.

    RCDM Emergency Alarm Interface

    Connects to an emergency alarm trigger to force an immediate, system-wide sequence down.
    WHY LYNTEC

    Dependable sequencing, simplified for any install.

    • Proven RX Series protection for sensitive digital equipment
    • Standalone or system operation without complex programming
    • Built for long-term reliability in commercial AV racks
    • Responsive, US-based technical support and expertise
    FEATURES

    CQ 1520-RX Features

    Explore the standard capabilities of the CQ 1520-RX, from its sequencing logic to its integrated power protection.
    CAPABILITIES

    Features

    20 Amp Capacity

    Engineered for 20A circuits with a 12-gauge power cable and NEMA 5/20P plug.

    Three-Step Sequencing

    Six switched outlets are organized into three power pods of two, each an individual sequence event.

    RX Series Power Protection

    Provides surge protection against common and normal mode events plus line noise filtration.

    Standalone Operation

    Contains all necessary circuitry and logic, requiring no external primary controller to operate.

    Scalable System Control

    Daisy-chain multiple CQ Series units or connect RC Series accessories via RJ-45 ports.

    Adjustable Sequence Timing

    Internal DIP switches allow delay adjustments between steps to 2, 10, 20, or 30 seconds.

    Front Panel Diagnostics

    LEDs provide real-time status for each sequence pod and the health of the protection circuit.

    1U Rack-Mount Chassis

    Fits into any standard 19-inch equipment rack, saving valuable space.
    01

    Plug-and-Play Sequencing

    Designed for straightforward installation, the CQ 1520-RX can operate as a primary or secondary unit without complex programming. Simply connect units with standard network cables to create a synchronized, multi-zone sequencing system.
    • Functions as a primary or secondary unit
    • Simple RJ-45 connections for system expansion
    • Automatic power-up and power-down operation
    • No external controller or software required
    02

    Integrated RX Series Protection

    Go beyond basic surge suppression. The onboard RX Series circuitry provides industrial-grade protection against power surges and filters out line noise, limiting ground line surges to less than 0.5V to protect sensitive digital processing equipment.
    • Protects against normal and common mode surges
    • Advanced line noise filtration for clean power
    • Proven to prevent operating faults in digital gear
    • Protection status indicator on front panel
    03

    Clear Operational Status

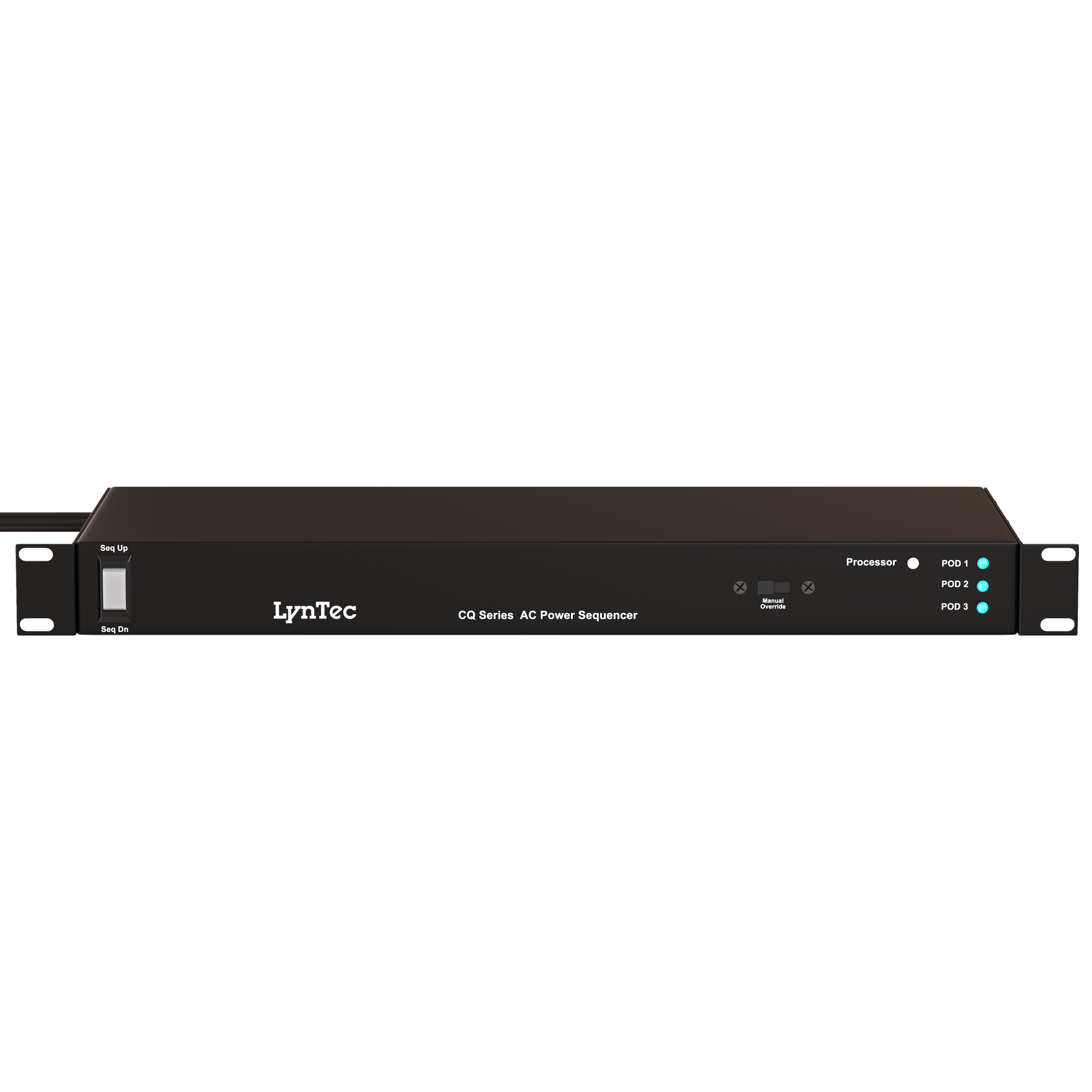

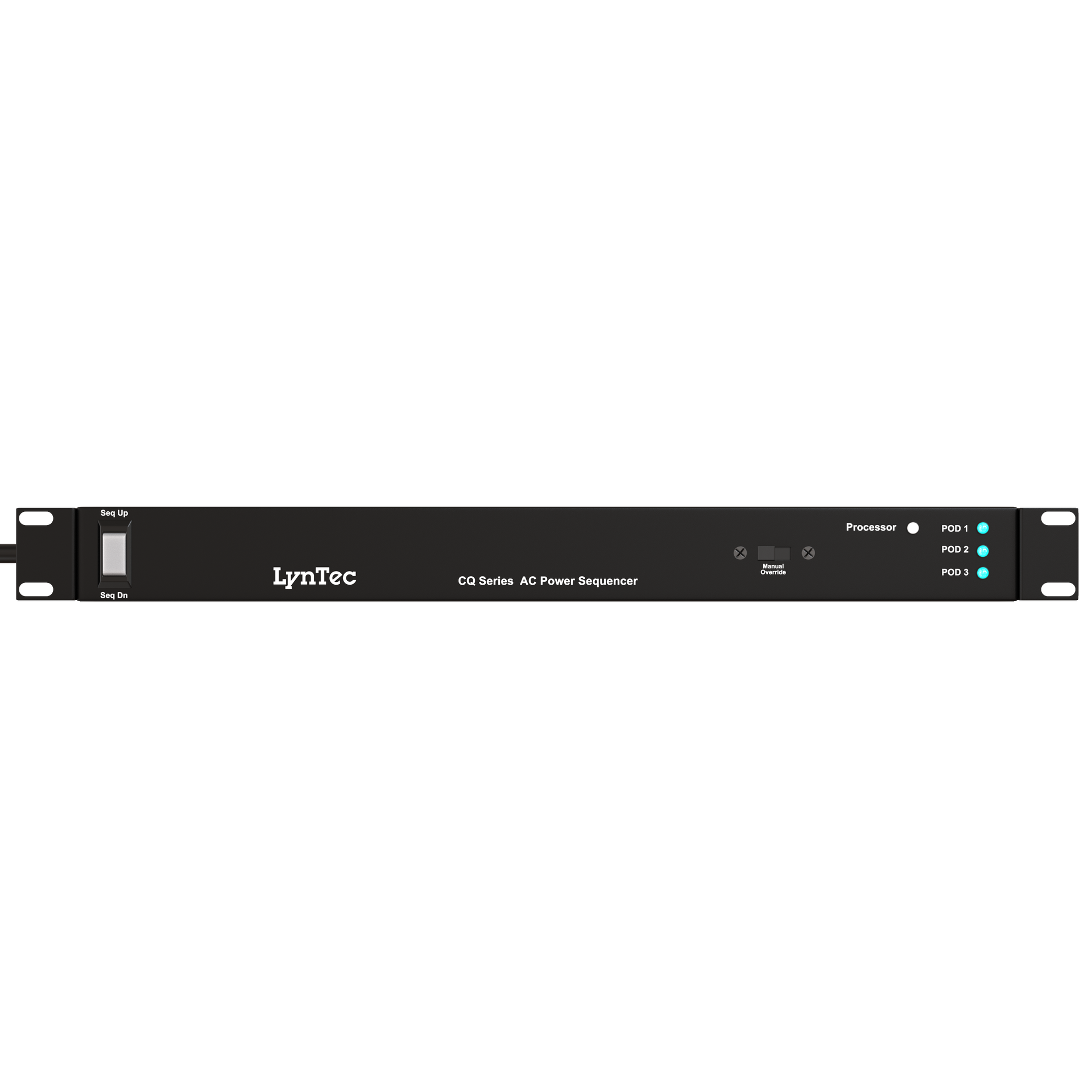

    Front-panel LEDs provide at-a-glance monitoring of system health and sequencing status. Instantly verify that power is applied to each sequence pod and confirm that the surge protection circuitry is active and healthy.
    • Individual LEDs for each of the three sequence pods
    • Processor LED indicates health of control logic
    • Surge protection status indicator
    • Real-time operational visibility
    SPECIFICATIONS

    CQ 1520-RX Specifications

    Find all the technical details needed to integrate the CQ 1520-RX into your power infrastructure design.

    CQ 1520-RX Technical Details

    Electrical, sequencing, and protection specifications for the CQ 1520-RX power sequencer.

    Electrical

    • Load Rating
      20 Amps
    • Power Input
      12-gauge cord with NEMA 5/20P plug
    • Output Receptacles
      7 total (6 sequenced, 1 unswitched)
    • Sequenced Outputs
      3 pods of 2 NEMA 5-15R

    Sequencing and Control

    • Sequence Events
      3
    • Inter-Unit Connection
      RJ-45 Signal In / Out
    • Sequence Delay
      Adjustable (2, 10, 20, 30 seconds)

    Protection

    • Protection Technology
      RX Series
    • Normal Mode Protection
      Up to 6,000V / 3,000A
    • Common Mode Protection
      Limits ground surges to 0.5V
    • Filtration
      AC line noise filtration

    Physical

    • Chassis
      1U Rack-Mount
    • Dimensions (W x H x D)
      19 in x 1.75 in x 7.0 in

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    CQ 1520-RX Support

    Access manuals, datasheets, and frequently asked questions for the CQ 1520-RX.
    FAQ

    FAQs about the CQ 1520-RX

    Can I change the delay time between sequencing steps?

    Yes, the delay time is adjustable. By changing the position of two DIP switches on the main circuit board, you can select a delay of 2 seconds (standard), 10 seconds, 20 seconds, or 30 seconds.

    Does the CQ 1520-RX need a primary controller to operate?

    No, the CQ 1520-RX is a self-contained sequencer with its own control logic. It can function as the primary (primary) unit in a sequence or as a secondary (secondary) unit controlled by another CQ device.

    How do I connect multiple CQ units together for a larger system?

    CQ Series units are designed for simple, plug-and-play expansion. You can link them by connecting a standard eight-wire RJ-45 cable from the Signal Output of one unit to the Signal Input of the next.

    What makes the RX Series protection different from a standard surge protector?

    RX Series technology protects against both normal mode (line-neutral) and common mode (ground line) surges. Limiting ground line surges is critical for preventing operating faults and damage in modern digital audio and video equipment.
