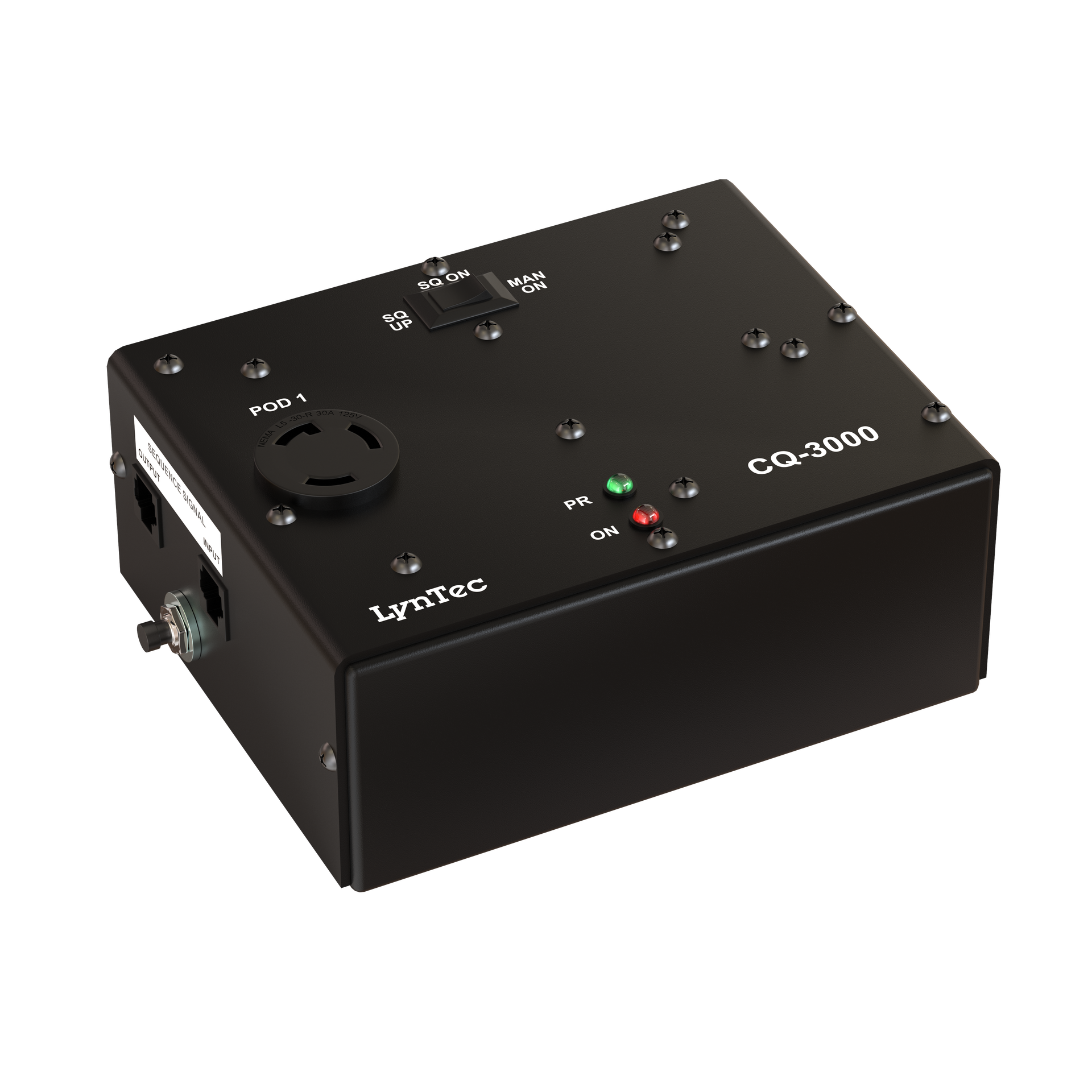

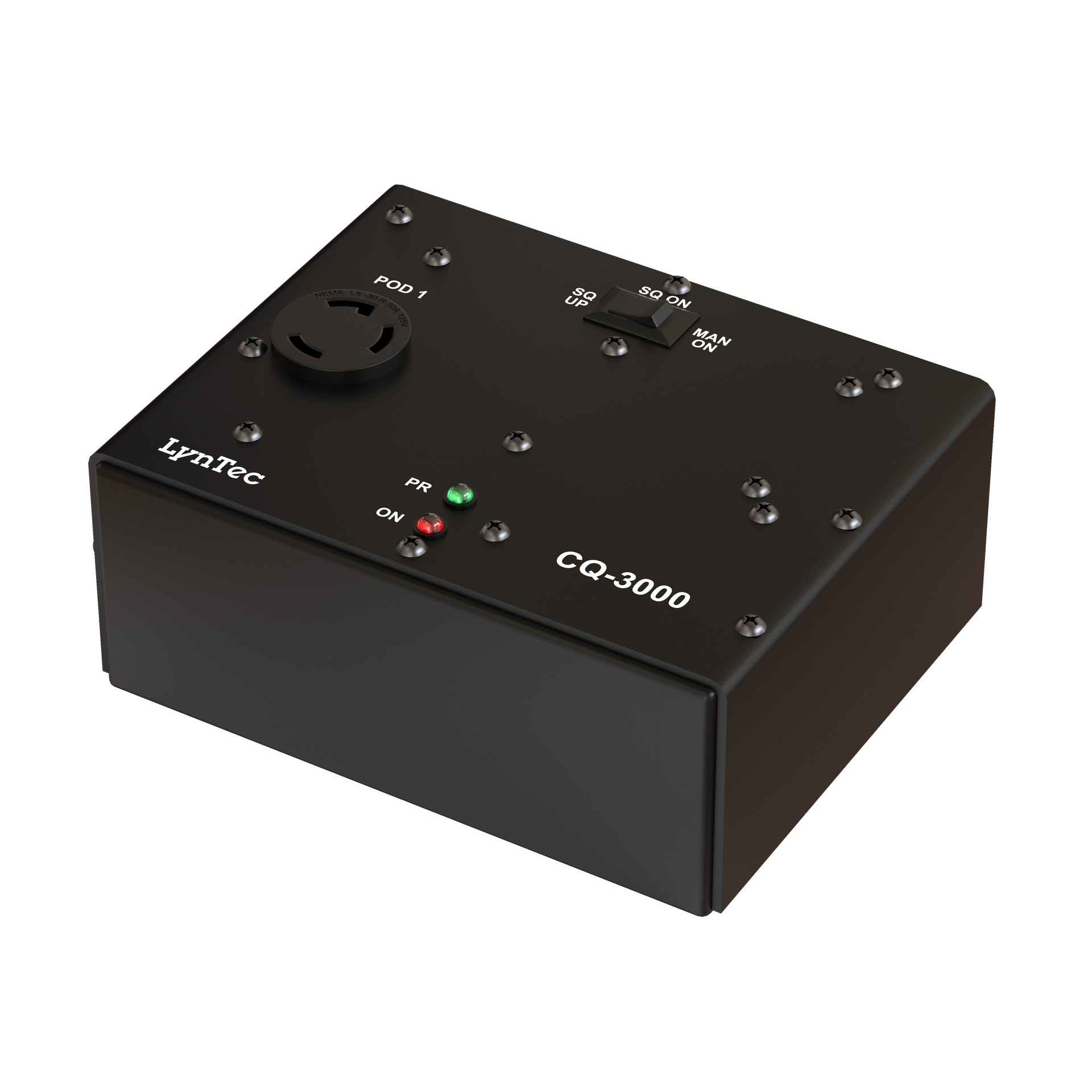

    CQ 3000

    Single-circuit 30A power sequencer for high-current amplifier control.

    The CQ 3000 is a single-circuit power sequencer designed to manage high-current loads with a 30A twist-lock receptacle for dependable amplifier connections. It provides simple, reliable startup sequencing for performance venues and audio systems, operating independently or daisy-chained with other CQ series devices.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    The CQ Series offers modular, standalone power sequencers designed for simple and reliable operation. Units can be easily linked with RJ-45 cables to create scalable, synchronized power-up sequences for AV systems of any size, without requiring a central controller.
    Reliable Control for Demanding Loads

    Service

    30A / 120V

    Receptacle

    1x NEMA L5-30R

    Sequencing

    1 Event

    Control

    CQ Network

    Protection

    30A Breaker
    POWER SEQUENCING

    Simplified sequencing for high-current audio systems.

    The CQ 3000 provides robust, single-circuit power control for the high-current, low-frequency amplifiers that form the foundation of modern audio systems. Engineered for simplicity and reliability, it features a single 30A NEMA L5-30R twist-lock receptacle to ensure a secure connection for demanding loads. A heavy-duty internal relay and a 30A thermal circuit breaker protect connected equipment during startup and operation, providing a dependable power-on sequence every time.

    Designed for plug-and-play operation, the CQ 3000 can function as a standalone sequencer or integrate seamlessly into a larger CQ series system. Its compact chassis mounts easily behind a rack or on any surface, and it can be placed anywhere in a sequence chain to provide the final, high-current power-on event. This modular approach allows integrators to build scalable, cost-effective sequencing systems tailored to any installation.

    BUILD YOUR SYSTEM

    Expand your CQ sequencing system.

    The CQ 3000 integrates seamlessly with other CQ sequencers and remote controls.

    CQ Series Sequencers

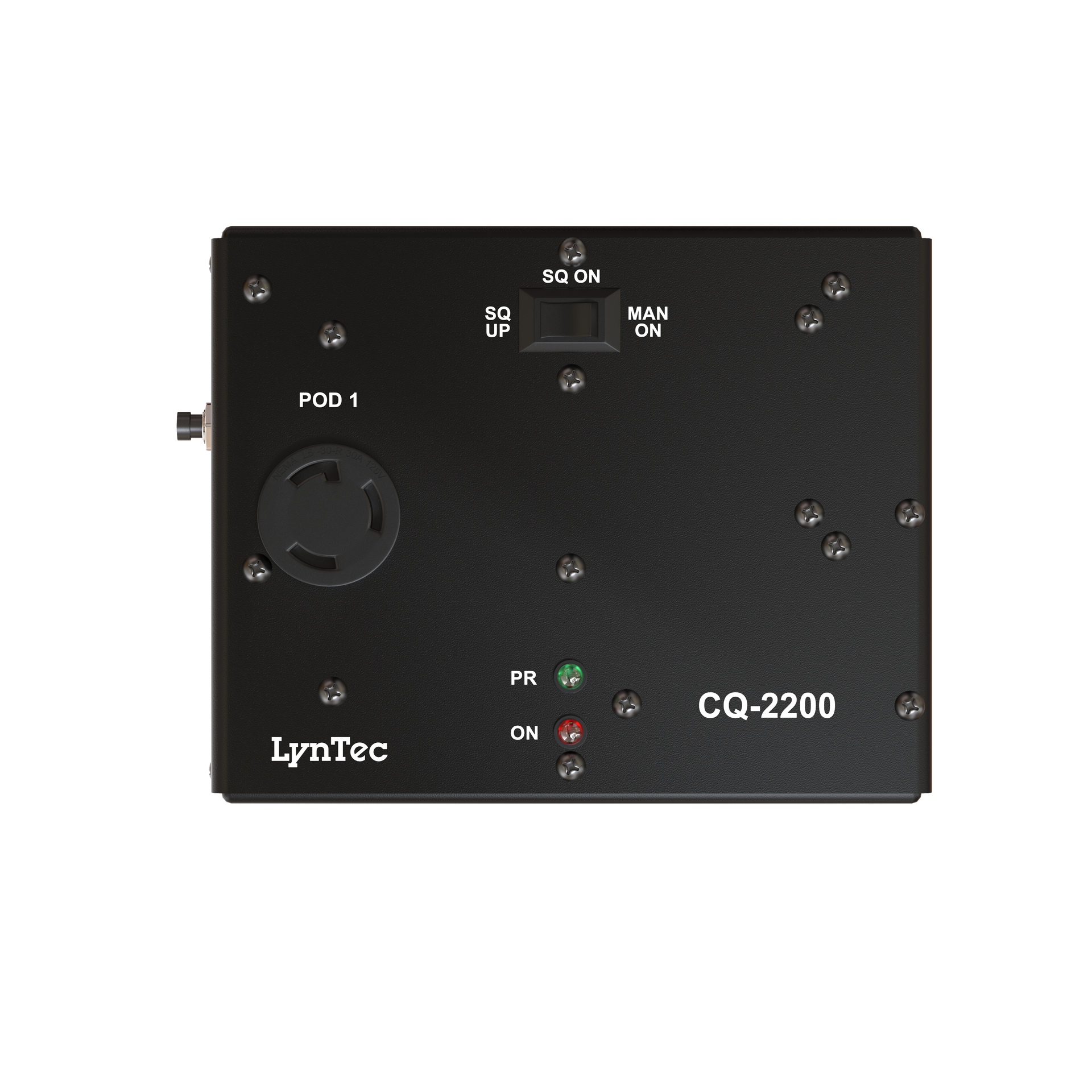

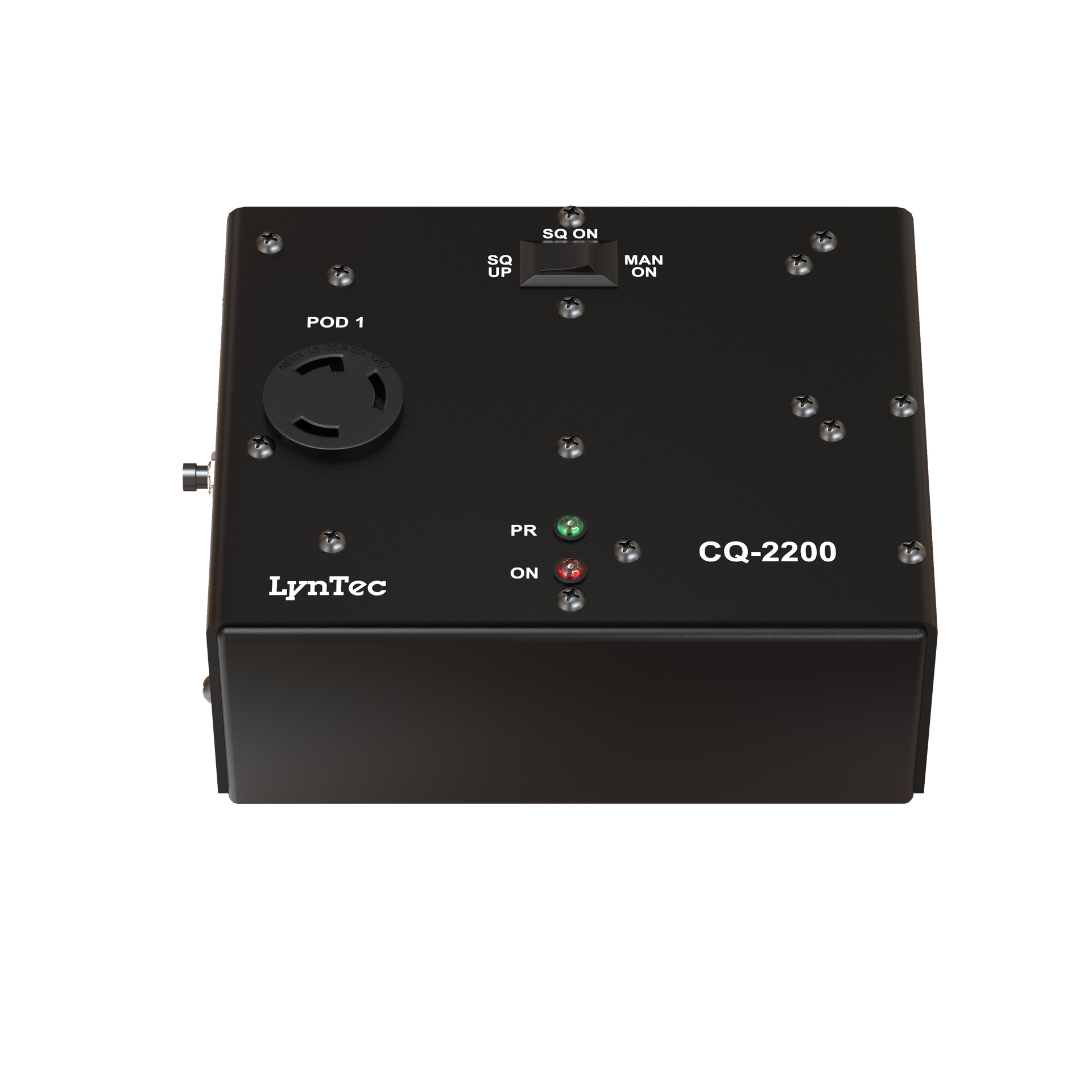

    Daisy-chain with other CQ units like the CQ 1515 or CQ 2200 to create multi-step sequences.

    RC5 Series Remote Controls

    Add wall-mounted or rack-mounted key or switch controls for secure, remote system activation.

    RCDM Remote Control Combiners

    Use a remote control combiner to trigger a CQ sequence from up to three separate locations.

    High-Current Amplifiers

    Provides controlled power for professional audio amplifiers and subwoofers with NEMA L5-30P plugs.
    WHY LYNTEC

    Reliable Power Control, Simplified.

    • Built for high-current audio systems
    • Plug-and-play modular sequencing
    • Decades of experience in AVL power
    • Responsive, practical support
    FEATURES

    CQ 3000 Features

    Core capabilities that make the CQ 3000 a reliable choice for high-current sequencing.
    CAPABILITIES

    Features

    30 Amp Service

    Provides a dedicated 30A circuit for high-current amplifiers and other demanding equipment.

    NEMA L5-30R Receptacle

    Features a single twist-lock connector for a secure, reliable power connection.

    Single Sequence Event

    Designed for a single power-on, power-off step, typically at the end of a sequence chain.

    Thermal Circuit Breaker

    An integrated 30A breaker protects the circuit and connected gear from over-current events.

    Modular CQ Integration

    Connects easily to other CQ sequencers to build a simple or complex control network.

    Standalone Operation

    Functions independently without needing a primary controller for simple, single-unit installs.

    Hardwired AC Input

    Connects directly to facility power via an internal terminal block for permanent installations.

    Status Indicators

    Front-panel LEDs provide clear visual feedback on sequence activation and power status.
    01

    Engineered for High-Current Loads

    A heavy-duty relay and 30A thermal breaker provide safe, reliable sequencing for power-hungry low-frequency amplifiers.
    • Single 30A NEMA L5-30R twist lock
    • Handles high inrush current
    • Onboard thermal circuit breaker
    02

    Plug-and-Play Sequencing

    Operates as a standalone unit or connects to any other CQ series device with a simple RJ-45 cable for scalable system design.
    • No primary controller required
    • Daisy-chain with other CQ units
    • Simple installation and operation
    SPECIFICATIONS

    CQ 3000 Specifications

    All the technical details needed for system design and installation.

    CQ 3000 Technical Specifications

    Key electrical and physical details for integrating the CQ 3000 into your power system.

    Electrical

    • Input Service
      30A, 120V
    • Input Connection
      Hardwire terminal block
    • Output Receptacle
      1 x NEMA L5-30R (30A Twist Lock)
    • Over-Current Protection
      30A thermal circuit breaker

    Sequencing and Control

    • Sequence Events
      1
    • Control Network

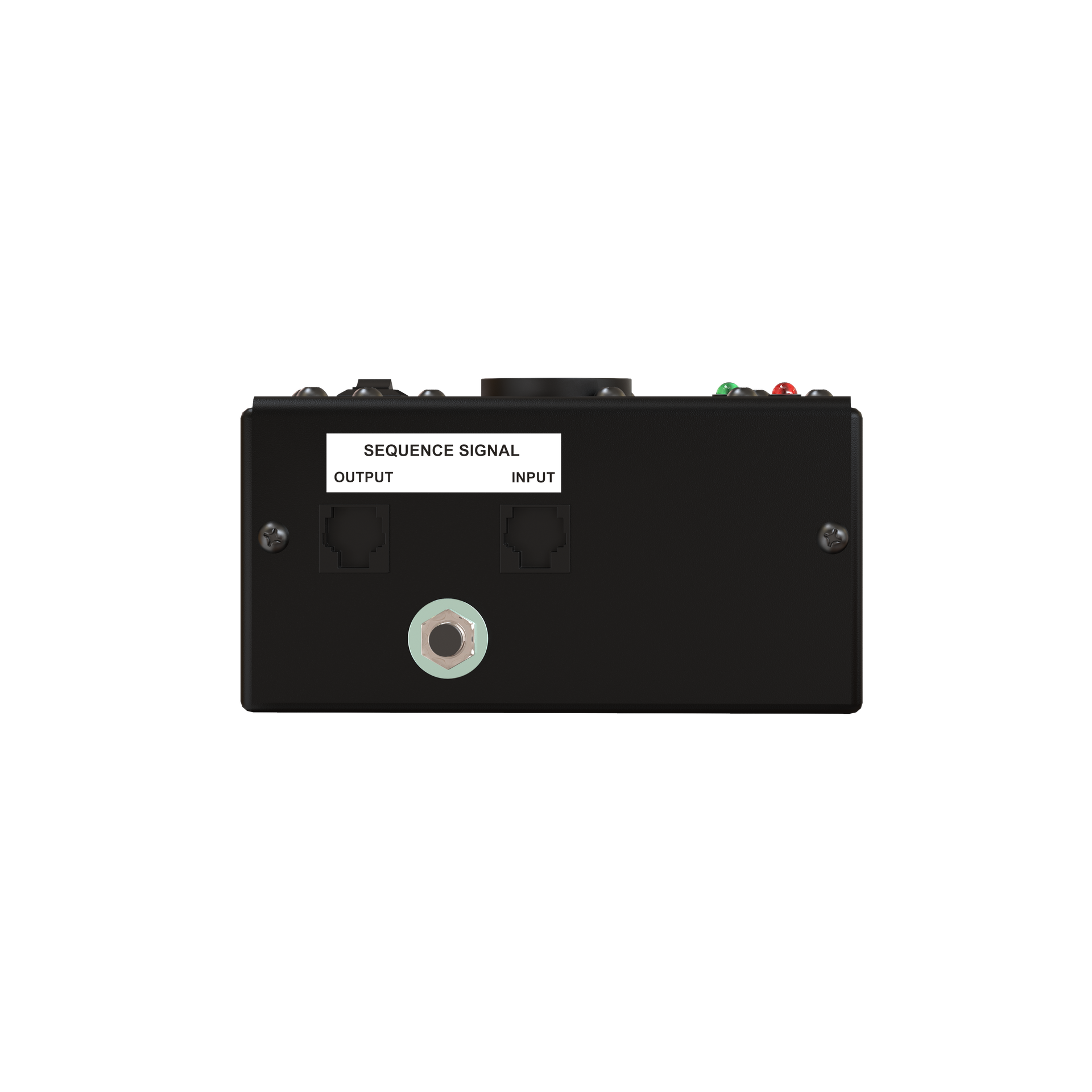

      CQ Series (RJ-45 In/Out)
    • Local Control
      Primary sequence activation switch

    Physical

    • Chassis
      Steel enclosure
    • Mounting
      Surface mount, behind rack
    • Dimensions (W x H x D)
      7.25 in x 1.75 in x 3.0 in
    • Weight
      2.5 lbs

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    CQ 3000 Support

    Find datasheets, manuals, and answers to common questions about the CQ 3000.
    DOCUMENTS

    Manuals, guides, and factsheets.

    Manuals
    Datasheets
    Application Notes
    FAQ

    FAQs about the CQ 3000

    Can I use the CQ 3000 by itself?

    Yes, the CQ 3000 can operate as a standalone sequencer. It is also designed to be daisy-chained with other CQ series products using standard network cables to create larger, multi-step sequencing systems.

    How does the CQ 3000 connect to main power?

    The CQ 3000 is intended for permanent installation and connects to the AC mains via a hardwire connection to a terminal block located inside the chassis.

    What is the primary use for the CQ 3000?

    The CQ 3000 is specifically designed for sequencing high-current equipment, such as low-frequency audio amplifiers, that require a 30A circuit. It provides a safe, controlled power-up to prevent inrush current issues.

    What kind of outlet does the CQ 3000 have?

    It features a single NEMA L5-30R, which is a 30 amp twist-lock receptacle designed to provide a secure connection for high-power equipment.
