    CQ 1520 Power Sequencer

    Rack-mount power sequencer with 20A service and three-step sequencing.

    The CQ 1520 is a standalone rack-mount power sequencer providing 20A service across three sequenced output groups for controlled system startup. It is designed for front-of-house racks and distributed systems needing simple, reliable power sequencing without requiring a separate primary control unit.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    The CQ Series offers modular, standalone power sequencers designed for simple and reliable operation. Units can be easily linked with RJ-45 cables to create scalable, synchronized power-up sequences for AV systems of any size, without requiring a central controller.
    Engineered for Simplicity and Reliability

    Service

    20A / 120V

    Outlets

    6 Switched, 1 Unswitched

    Sequence Steps

    3

    Form Factor

    1U Rack-Mount

    Control

    Standalone or Linked
    POWER SEQUENCING

    Simple, reliable power sequencing for any rack.

    The CQ 1520 simplifies power management for any installation that requires controlled system startup and shutdown. This 1U rack-mount unit provides 20A service across three sequenced power pods, protecting connected equipment from inrush current damage. Engineered for standalone operation, it requires no external controller, making it an ideal plug-and-play solution for front-of-house applications, small venues, and conference rooms.

    For larger systems, multiple CQ units can be easily linked using standard RJ-45 or RJ-12 cables to create a scalable primary and secondary sequencing architecture. Integrated surge and spike protection on all outlets ensures connected equipment is safe, while front-panel LEDs provide clear status on sequence operation and protection health.

    COMPATIBLE ACCESSORIES

    Expand your CQ sequencing system.

    Add remote control and multi-unit synchronization with these compatible accessories.

    RC5 Series Remote Controls

    Add secure or convenient remote operation using wall or rack-mounted key, push button, or rotary switches.

    Other CQ Series Sequencers

    Link with other CQ models in a primary/secondary configuration for synchronized, multi-zone sequencing.

    RCDM Remote Control Combiners

    Control a single CQ sequencer or system from up to three separate locations with a simple plug-and-play module.

    Emergency System Integration

    Connect to an emergency alarm trigger via the RCDM1 module to automatically force a system sequence down.
    CONFIGURATION OPTIONS

    Configure your sequencing system.

    The CQ 1520 offers simple, hardware-based options for system design and operation.
    System Architecture

    The CQ 1520 can be deployed in two primary roles depending on your system’s scale:

    • Standalone Unit: Use a single CQ 1520 for simple, localized sequencing in a single rack or console. No other hardware is required.
    • Primary/Secondary System: Link multiple CQ units using standard network cables. The first unit in the chain acts as the primary, triggering all connected secondary units in a synchronized sequence.
    Sequence Timing

    Adjust the delay between each of the three sequence steps to match your equipment’s startup requirements:

    • 2 Seconds (Default): Standard timing suitable for most general-purpose audio and video equipment.
    • 10, 20, or 30 Seconds: Longer delays for equipment with extended boot times, such as projectors or DSPs, preventing overlap. Timing is set via internal DIP switches.
    Remote Control Options

    Add remote operation to a CQ system with simple, reliable hardwired controllers:

    • RC5 Series Remotes: Add wall or rack-mounted key switches, push buttons, or rotary switches for convenient remote operation when security is a consideration.
    • RCDM Combiners: Allow a CQ system to be controlled from up to three separate locations, or integrate with an emergency alarm system for automated shutdown.
    WHY LYNTEC

    Dependable power control, simplified.

    • Built on decades of experience in AVL power infrastructure
    • Engineered for simple installation and reliable, long-term operation
    • Scalable from a single rack to a multi-zone facility
    • US-based support from power control experts
    FEATURES

    CQ 1520 Power Sequencer Features

    Core capabilities engineered for simple installation and reliable operation in any AVL environment.
    CAPABILITIES

    Features

    20 Amp Capacity

    Provides robust power for typical AVL equipment racks, delivered via a 12-gauge cord with a NEMA 5-20P plug.

    Three Sequenced Pods

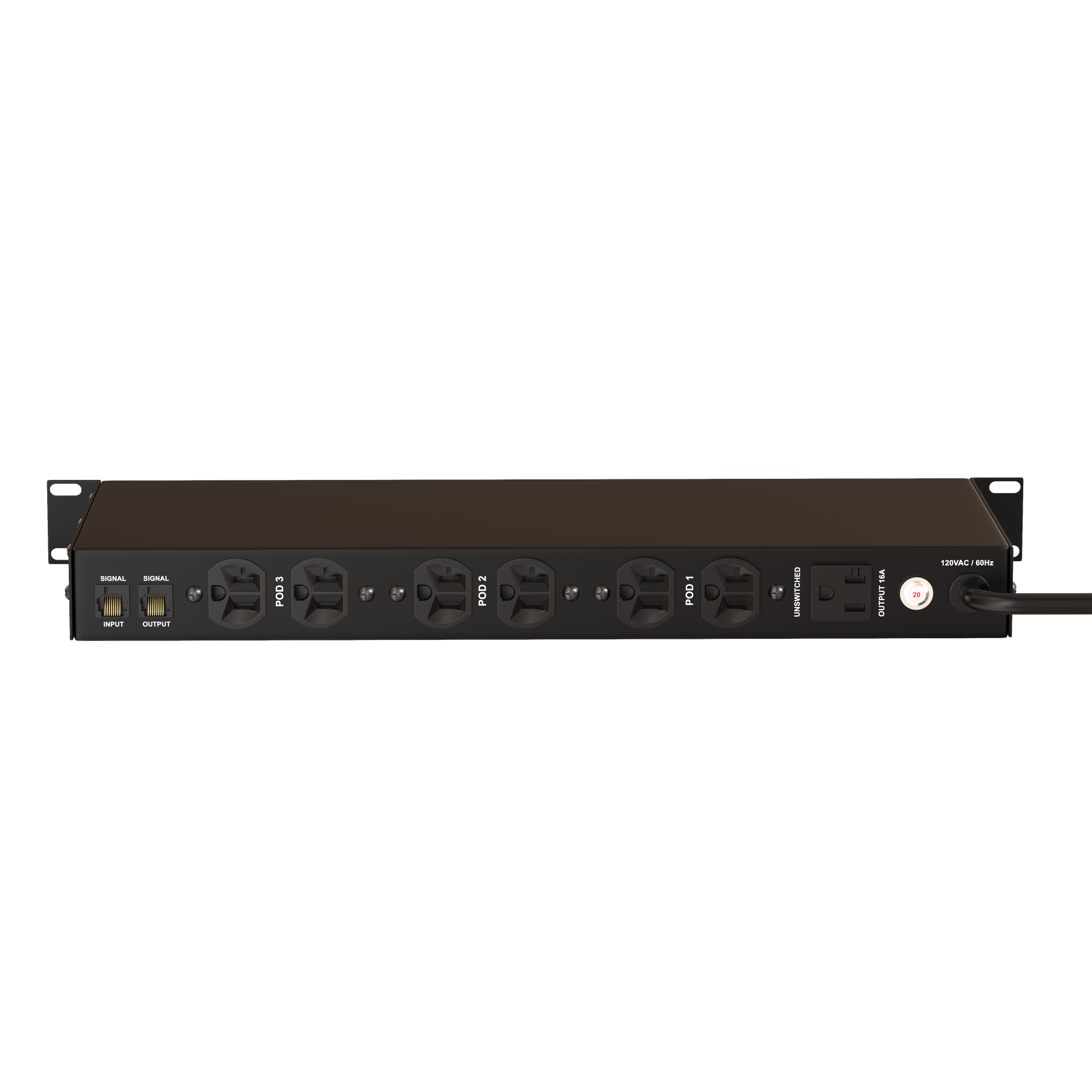

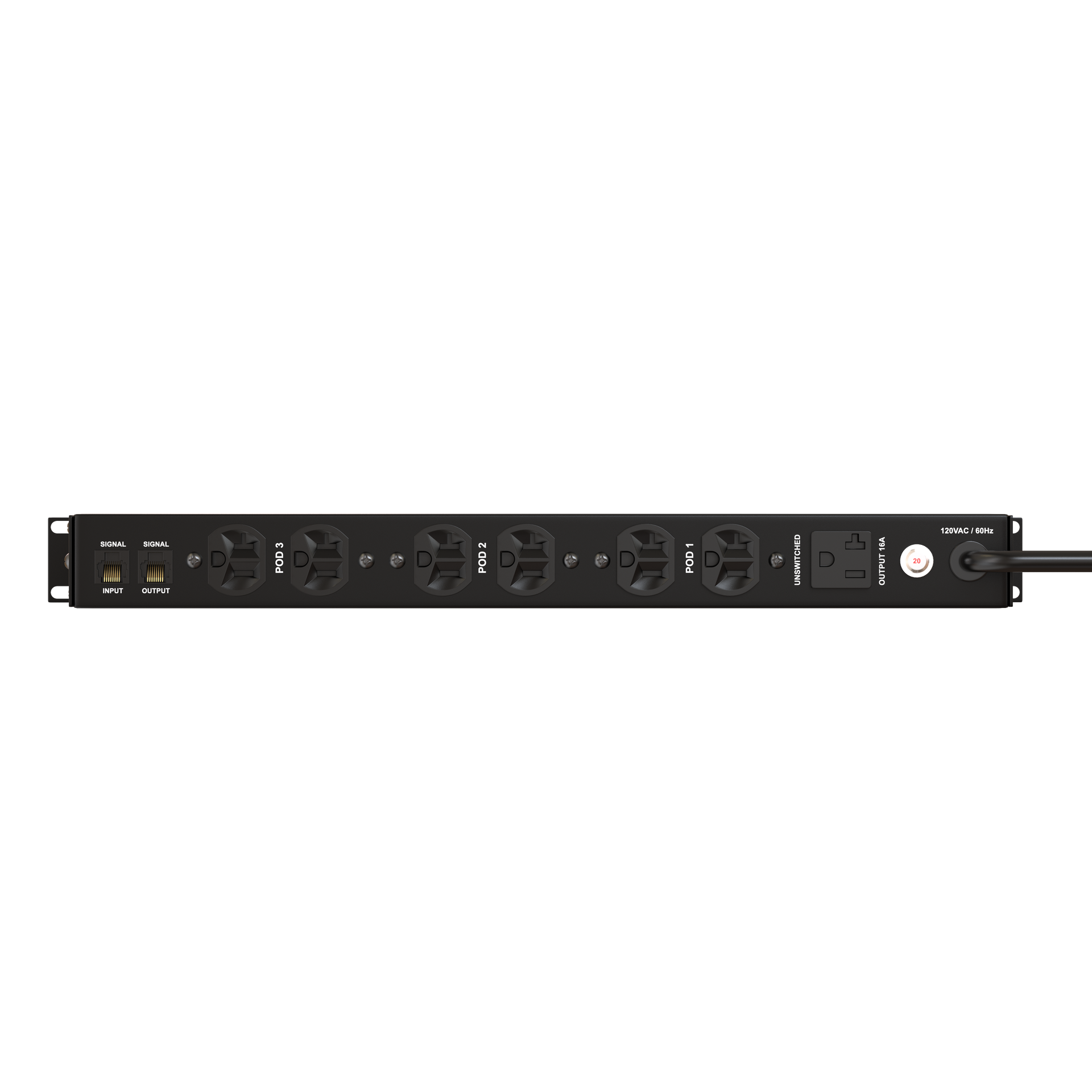

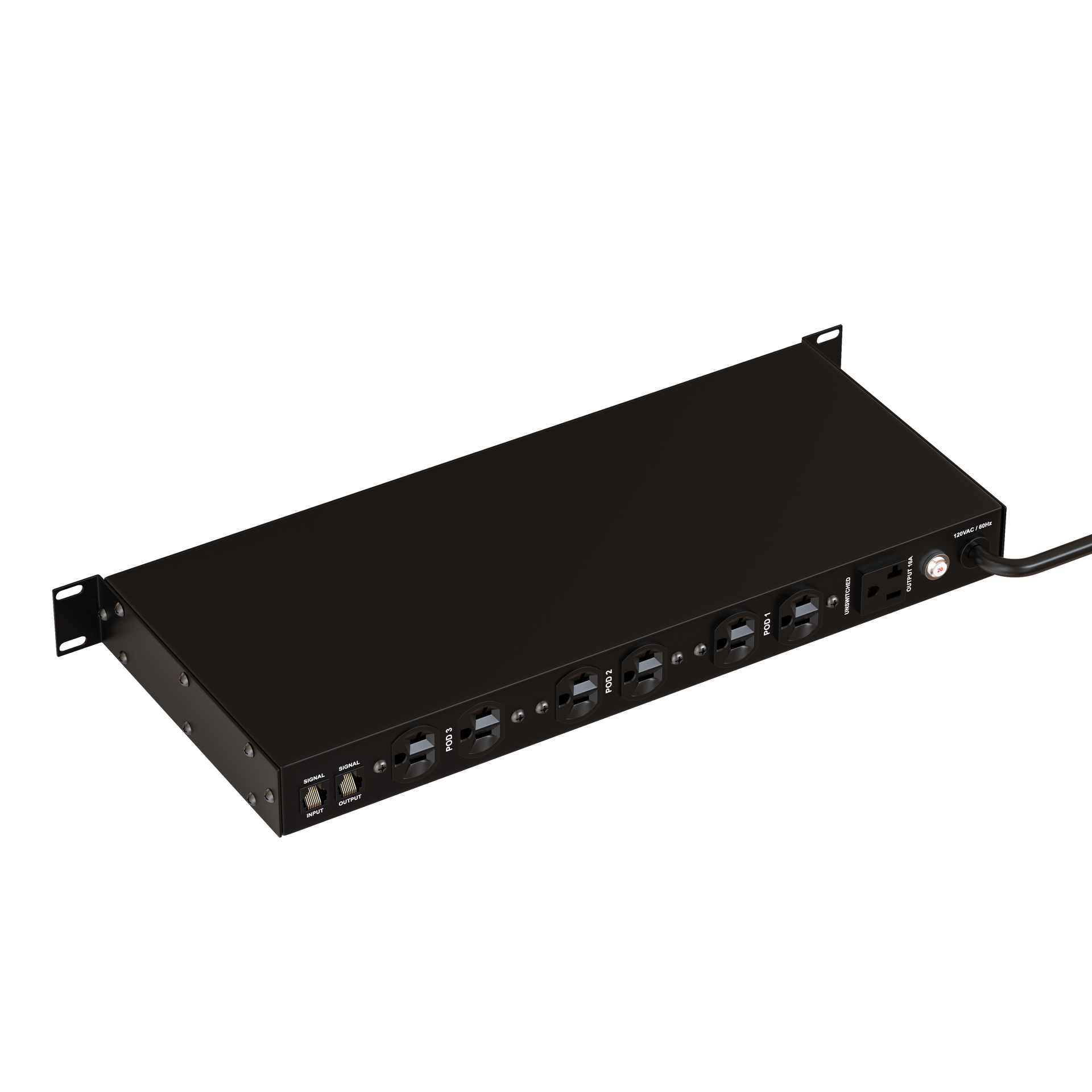

    Six switched outlets are grouped into three pairs, each representing a single step in the power-up sequence.

    Unswitched Convenience Outlet

    One rear outlet provides constant power for devices that should not be sequenced, such as utility lights or chargers.

    Primary or Secondary Operation

    Can function as the primary controller in a sequencing system or as a secondary unit controlled by another device.

    Adjustable Sequence Timing

    Internal DIP switches allow adjustment of the delay time between sequence events from 2 to 30 seconds.

    Clear Status Indicators

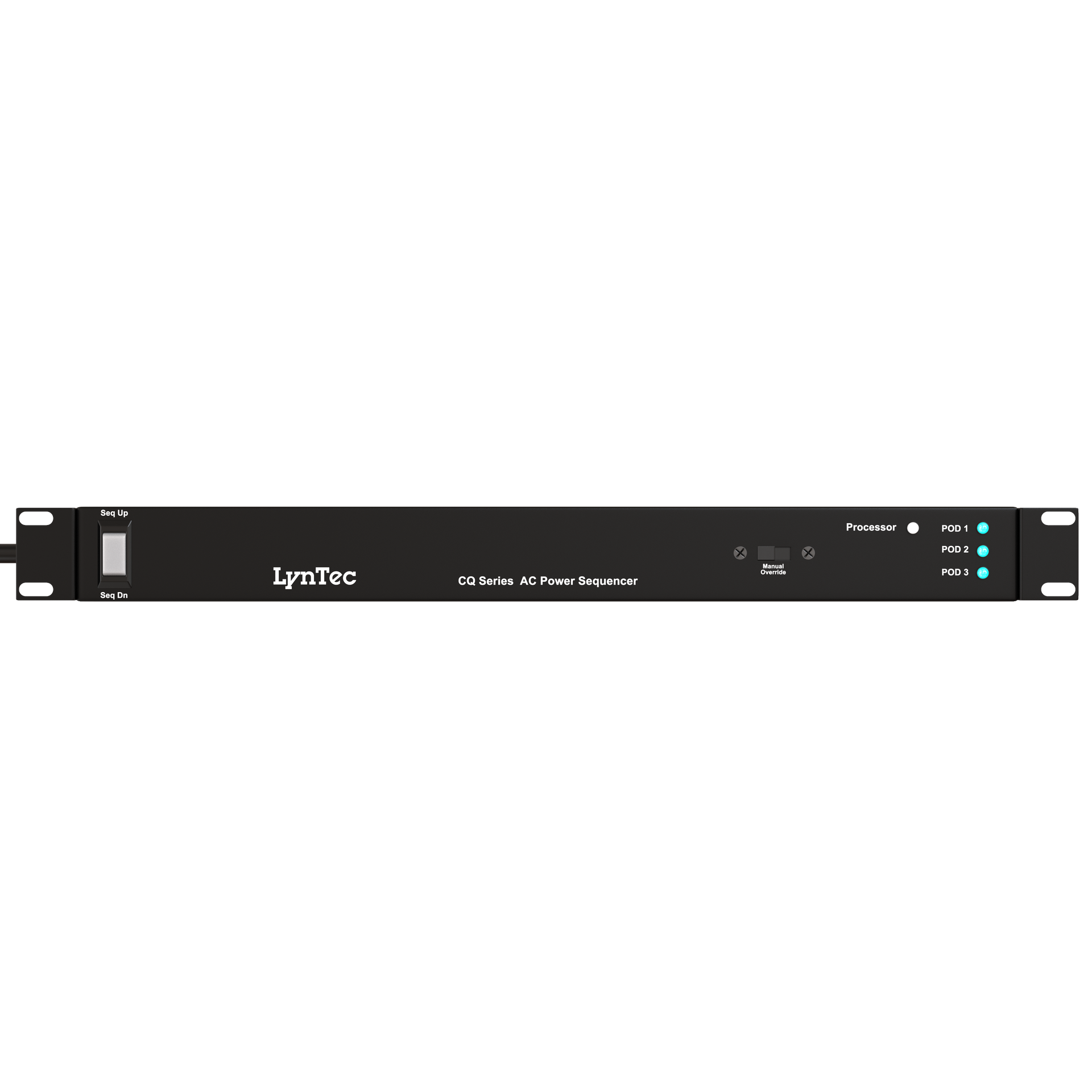

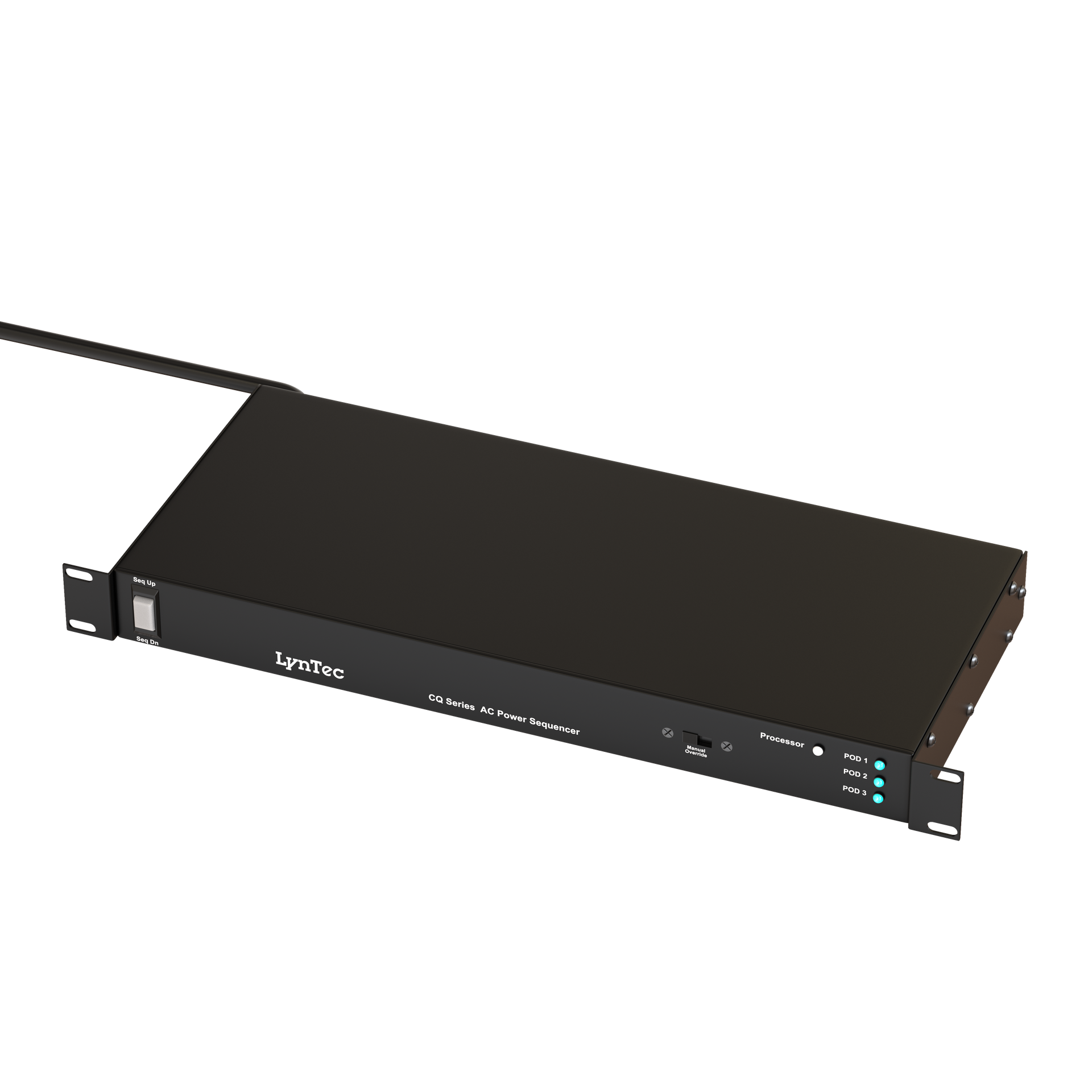

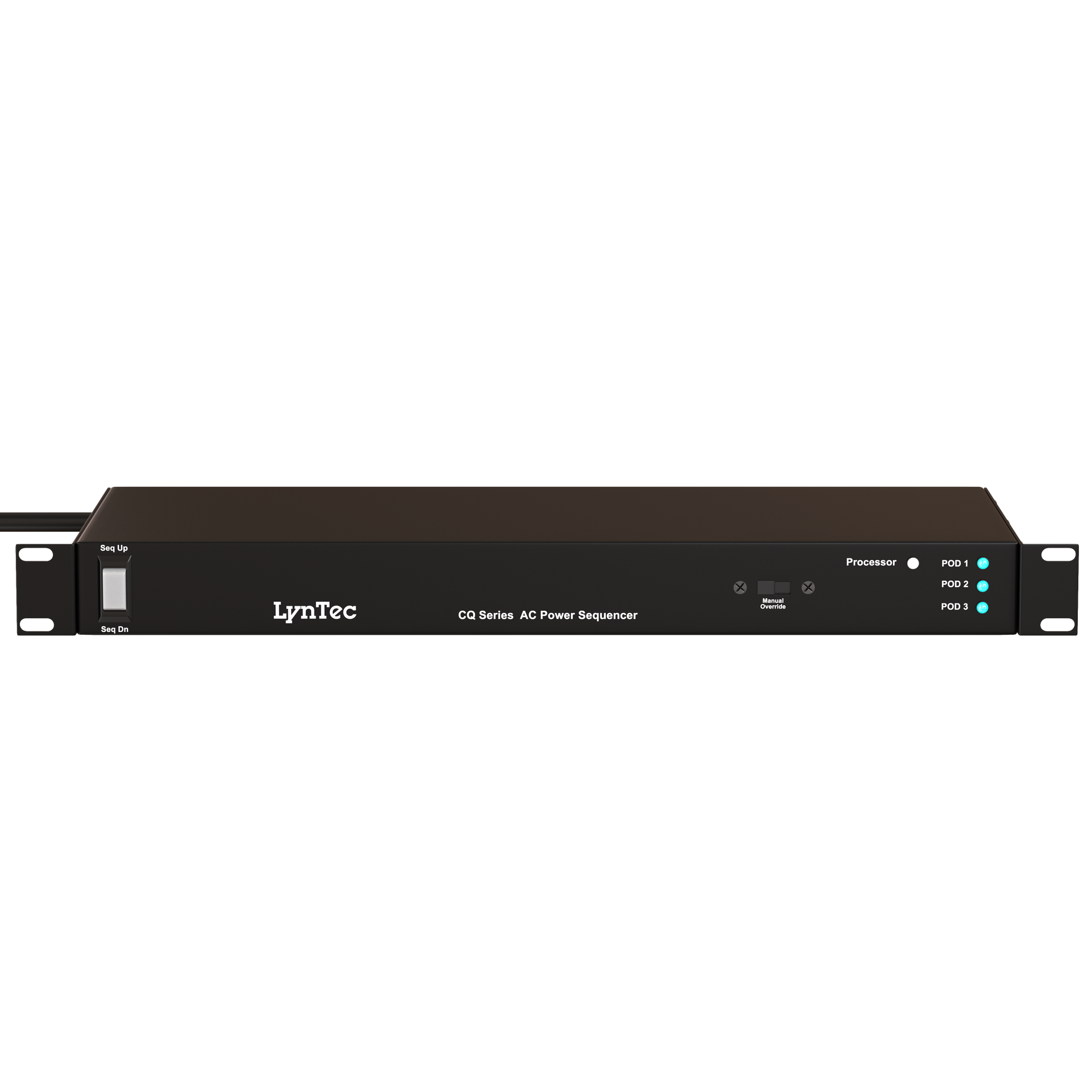

    Front-panel LEDs provide at-a-glance status for each power pod and the health of the surge protection circuit.

    Simple Interconnects

    Standard RJ-45 or RJ-12 ports for Signal Input and Output make linking units straightforward and reliable.
    01

    Standalone Sequencing

    With a self-contained sequencing circuit, the CQ 1520 operates right out of the box with no programming or primary controller required.
    • Plug-and-play installation
    • Ideal for non-networked environments
    • Reduces system complexity and cost
    02

    Scalable System Control

    Easily expand your power control system by linking multiple CQ units together to function as a unified primary and secondary system.
    • Simple linking via RJ-45 or RJ-12 cables
    • Control multi-zone or multi-rack systems
    • Integrates with RC5 remote control accessories
    03

    Integrated Protection

    All outlets are protected by Juice Goose quality surge and spike protection, with onboard diagnostics to monitor protection status.
    • Triple-stage AC surge protection
    • Front-panel LED indicates protection status
    • Protects sensitive audio and video equipment
    SPECIFICATIONS

    CQ 1520 Power Sequencer Specifications

    All electrical, control, and physical specifications for the CQ 1520 unit.

    CQ 1520 Technical Specifications

    Technical details for integrating the CQ 1520 into your installation.

    Electrical

    • Input Service
      20A, 120V
    • Input Connector
      NEMA 5-20P on 12 AWG power cord
    • Output Connectors
      7 x NEMA 5-15R
    • Surge Protection
      Triple-stage, line-neutral

    Control and Sequencing

    • Sequence Events
      3 steps (3 pairs of outlets)
    • Unswitched Outlets
      1
    • Sequence Timing
      Adjustable: 2, 10, 20, or 30 seconds
    • Interconnect Ports
      RJ-45 / RJ-12 (Input and Output)

    Physical

    • Chassis
      1U rack-mount
    • Dimensions
      19” W x 1.75” H x 7” D
    • Weight
      8 lbs

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    CQ 1520 Power Sequencer Support

    Find documentation and answers to common questions about installing and operating the CQ 1520.
    FAQ

    FAQs about the CQ 1520

    Can I adjust the time delay between sequence steps?

    Yes, the delay time is adjustable via two DIP switches on the main circuit board. Options are 2 seconds (default), 10 seconds, 20 seconds, and 30 seconds to accommodate various equipment startup times.

    Does the CQ 1520 require a network connection to operate?

    No, the CQ 1520 is a standalone analog sequencer and does not have any IP or network capabilities. It operates independently or can be linked to other CQ devices via low-voltage wiring.

    How do I know if the surge protection has failed?

    The front panel Processor LED will blink red if the internal surge protection has failed. During normal operation with healthy protection, the LED will flash blue and red. Contact LynTec support for replacement instructions.

    How do I link multiple CQ units together?

    Multiple CQ units can be daisy-chained using standard eight-wire RJ-45 or six-wire RJ-12 cables. Connect the Signal Output of the primary unit to the Signal Input of the next unit in the sequence.

    What kind of outlet does the NEMA 5-20P plug require?

    The NEMA 5-20P plug on the CQ 1520 requires a 20-amp rated NEMA 5-20R electrical receptacle. This type of receptacle has one T-shaped slot and is common in commercial installations.
