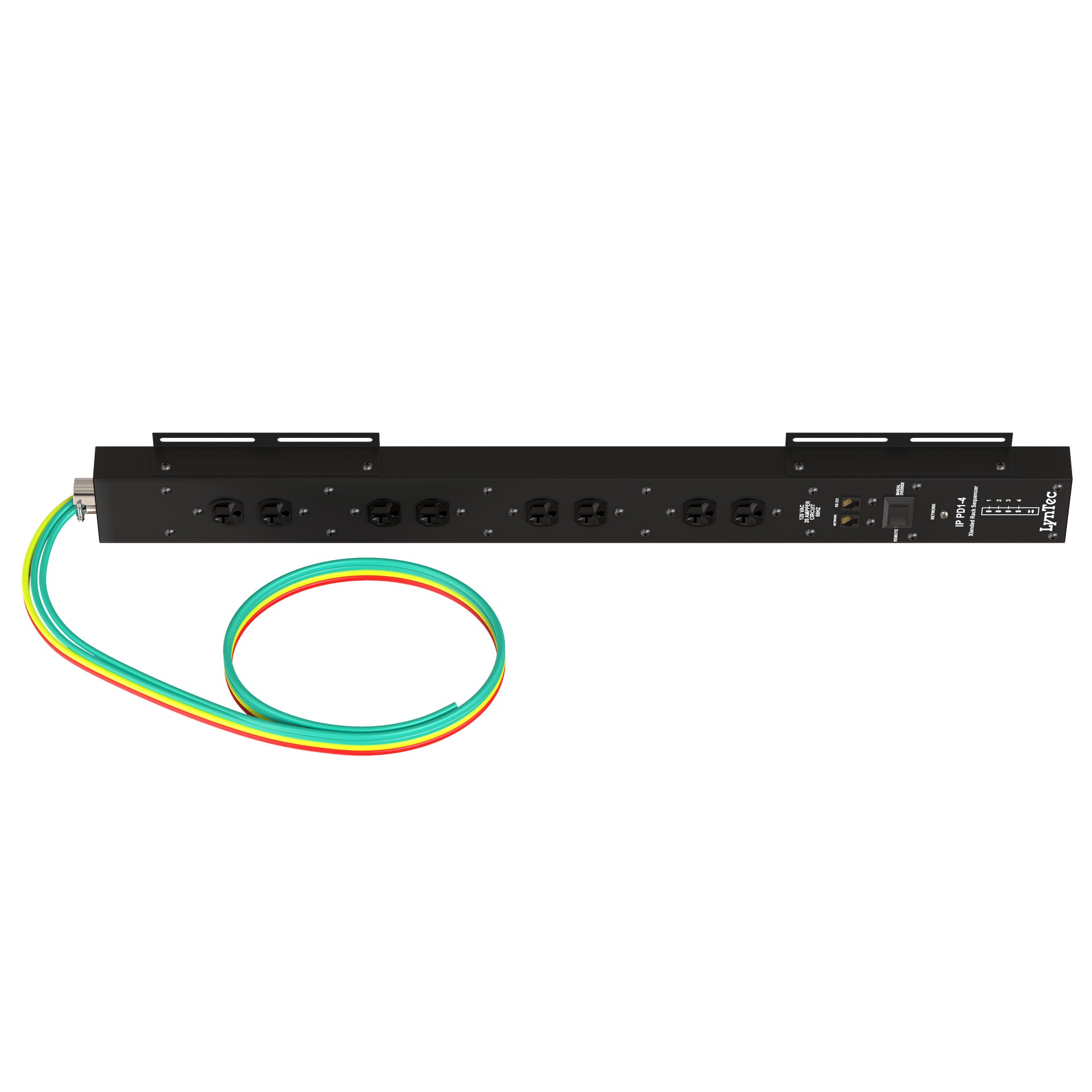

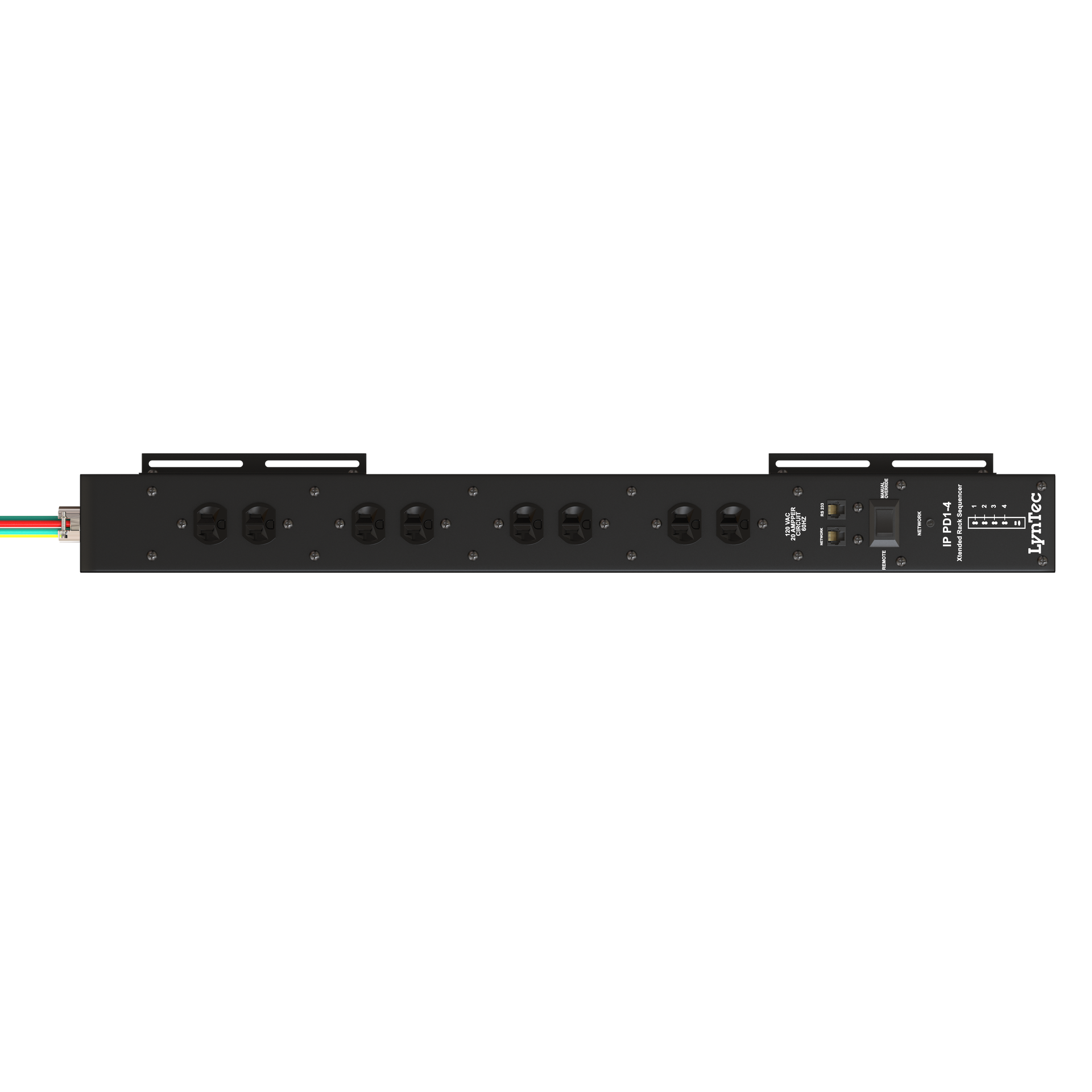

    iP PD1-4

    Web-based power control for four 20A circuits with remote monitoring and sequencing.

    The iP PD1-4 is a power distribution unit providing web-based control and monitoring for four independent twenty-amp circuits in a single chassis. It is designed for integrators needing centralized, high-capacity power management with remote reboot capabilities for distributed equipment racks and commercial AV systems.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    Network-addressable power control and distribution units designed for remote management and integration with AV control systems. The IP Series allows for control and monitoring over standard IP networks via a web interface, TCP/IP, or UDP for simplified system automation.
    Reliable High-Capacity Power Management

    Total Capacity

    80A

    Circuits

    4 x 20A

    Control

    IP / RS232

    Monitoring

    Per-Circuit Amps

    Form Factor

    Vertical Mount
    IP POWER CONTROL

    Centralized control for four high-current circuits.

    The Juice Goose iP PD1-4 simplifies managing high-demand power loads by consolidating control of four 20A circuits, for a total of 80A, into a single, network-addressable unit. An onboard web server provides an intuitive interface for remote control and monitoring from any standard browser, while support for TCP, UDP, and RS232 protocols ensures seamless integration with commercial and proprietary control systems like Crestron. This makes it easy to remotely sequence power, reboot unresponsive equipment, or schedule shutdowns to conserve energy.

    Engineered for reliability, the iP PD1-4 includes local fail-safe controls and manual overrides, ensuring continuous operation even if the network connection is lost. Per-circuit amperage monitoring provides clear visibility into power consumption, helping integrators manage loads and diagnose issues with greater confidence.

    SYSTEM INTEGRATION

    Integrate the iP PD1-4 with your facility.

    The iP PD1-4 is designed to work with standard control systems and electrical infrastructure.

    Crestron Control Systems

    A certified module allows for native control and true feedback within Crestron automation environments.

    Commercial Control Systems

    Integrates with any system capable of sending simple text commands via TCP, UDP, or RS232.

    Standard Web Browsers

    The onboard web server provides a graphical interface for setup and control on any device with a browser.

    Standard NEMA 5-20P Plugs

    Each of the four circuits terminates in a 20A NEMA 5-20R duplex receptacle for standard connections.
    WHY LYNTEC

    Reliable Power Control, Simplified.

    • Engineered for dependable, long-term operation
    • Straightforward integration with existing control systems
    • Decades of experience in AVL power infrastructure
    • Knowledgeable, US-based support for design and installation
    FEATURES

    iP PD1-4 Features

    Core capabilities for remote power control, monitoring, and system integration.
    CAPABILITIES

    Features

    Integrated Web Server

    Provides a graphic user interface for control and monitoring from any standard web browser.

    Multi-Protocol Control

    Communicate and control via Ethernet using HTML, TCP, or UDP.

    Per-Circuit Amperage Monitoring

    View real-time current draw from 0.2 to 20.0 amps for each of the four power circuits.

    Automatic Power Cycle

    Automatically reboots a connected network router if internet connectivity is lost.

    Fail-Safe Operation

    A three-position switch provides local sequencing and manual override if network control fails.

    Programmable Sequencing

    Outlets can be sequenced on and off to protect sensitive equipment during power-up.

    Crestron Integration

    A certified Crestron module enables native control and feedback within Crestron ecosystems.
    01

    Control 80 Amps Remotely

    Manage four individual 20A circuits from a single device, providing robust power distribution for mid to large sized AVL systems.
    • Four individually controlled 20A circuits
    • 80A total power capacity
    • NEMA 5-20R duplex receptacles
    02

    Flexible System Integration

    An onboard web server and support for multiple communication protocols allow for simple setup and integration with third-party control systems.
    • Control via HTML, TCP, UDP, and RS232
    • No special software required for setup
    • Crestron module available for easy integration
    03

    Greater Visibility and Control

    Monitor the current draw on each circuit to manage power loads effectively and troubleshoot issues with precision, right from the web interface.
    • Live amperage monitoring from 0.2A to 20.0A per circuit
    • Automatic power cycling to reboot routers
    • Fail-safe local sequencing and manual override
    SPECIFICATIONS

    iP PD1-4 Specifications

    All electrical, control, and physical data for system design and installation.

    iP PD1-4 Specifications

    Technical details for integrating the iP PD1-4 into your power infrastructure.

    Electrical

    • Total Current Capacity
      80A
    • Circuit Configuration
      4 independent 20A circuits
    • Receptacles
      4 x NEMA 5-20R duplex
    • Power Input
      External wire harness (12 AWG)
    • Current Monitoring Range
      0.2A to 20.0A per circuit

    Control

    • Network Protocols
      HTML, TCP, UDP
    • Local Control
      3-position switch (Sequence Up/Down, Manual Override)
    • Third-Party Integration
      Crestron module available

    Physical

    • Chassis Mounting
      Vertical
    • Front Panel Indicators
      Network connection, outlet status

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    iP PD1-4 Support

    Find documentation, integration guides, and answers to common questions.
    FAQ

    FAQs about the iP PD1-4

    Can I monitor the power draw of connected equipment?

    Yes. The iP PD1-4 provides real-time amperage monitoring for each of the four circuits, with a range of 0.2 to 20.0 amps, accessible through the web interface or other control protocols.

    How do I control the iP PD1-4?

    You can control the unit through its onboard web server using any browser, or integrate it with a control system via TCP or UDP commands. A certified module is also available for Crestron systems.

    How does the Automatic Power Cycle feature work?

    The Power Cycle feature monitors internet connectivity by PINGing a user-defined domain. If a connection failure is detected after a set number of attempts, the feature automatically power cycles outlet POD1 to reboot a connected router and restore the connection.

    What happens if the network connection fails?

    The unit features a three-position switch on the front panel for fail-safe local control. You can use it to sequence all outlets on or off, or use the manual override position to ensure power.

    What is the total power capacity of this unit?

    The iP PD1-4 manages a total of 80 amps, distributed across four individually controllable 20-amp circuits. Each circuit features a NEMA 5-20R duplex receptacle.
