SKU: iP-1520 Market: North America Series: IP

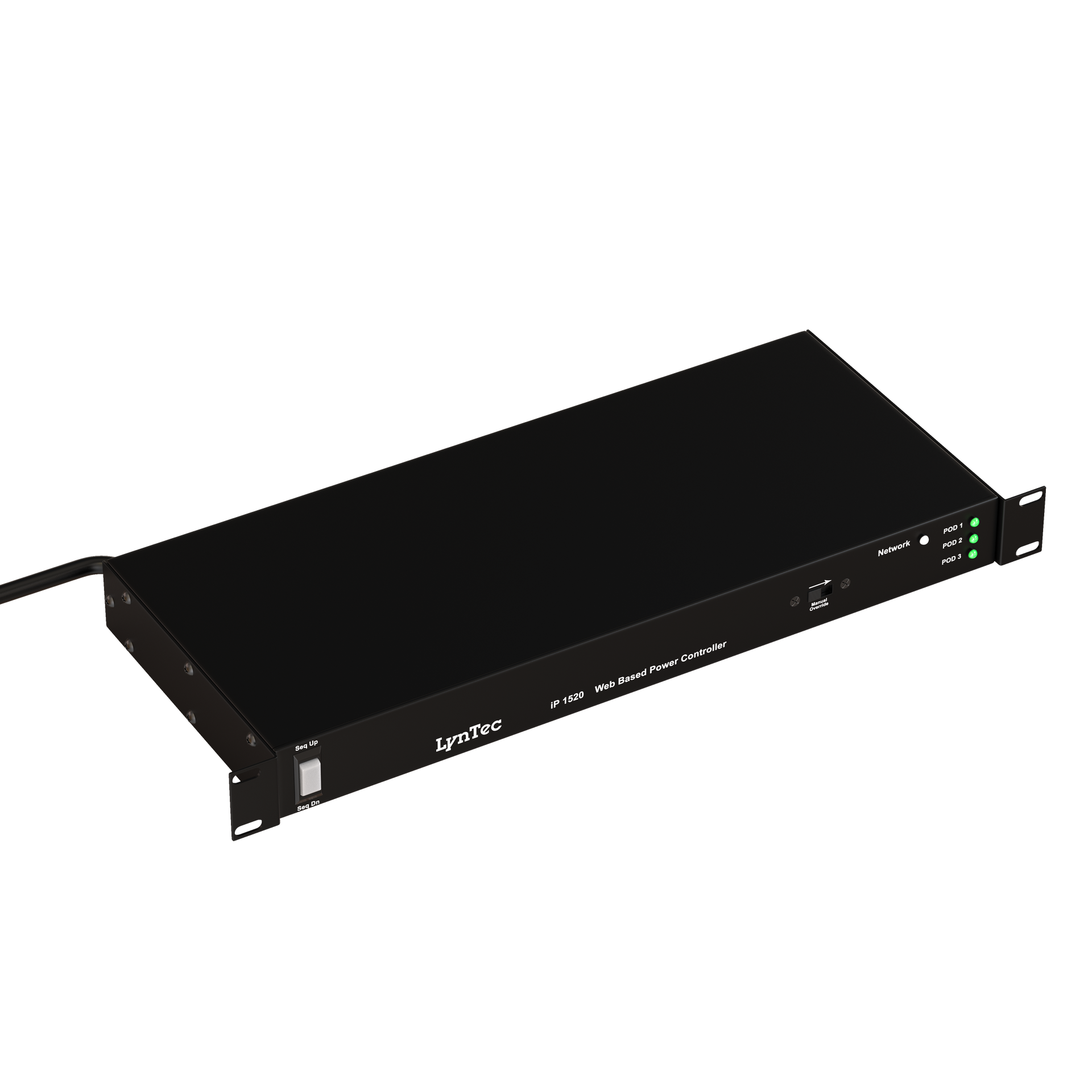

iP-1520

A 20A power distribution unit with IP and RS-232 control over three power pods.

The iP-1520 is a web-enabled power distribution unit providing remote on/off control over three independent power pods via Ethernet or an RS-232 connection. It is designed for any installation requiring remote reboot capabilities, scheduled power cycling, or simple energy management for connected AVL or IT equipment.

Request a Quote

Where To Buy

IP

Series

Network-addressable power control and distribution units designed for remote management and integration with AV control systems. The IP Series allows for control and monitoring over standard IP networks via a web interface, TCP/IP, or UDP for simplified system automation.

Reliable Control, Accessible Anywhere

Service

20A / 120V

Control

IP / RS-232

Outlets

6 (3 Pods)

Protection

AC Surge

Form Factor

1U Rack Mount

IP POWER CONTROL

Simple, reliable remote power control over the network.

The Juice Goose iP-1520 provides straightforward, network-based power control for any equipment that needs remote management. Built around a simple and reliable web server, the iP-1520 allows operators to switch three distinct groups of outlets (Power Pods) on or off from any web browser, without complex software or proprietary clients. This makes it easy to reboot frozen equipment, schedule power-down sequences to save energy, or manage devices in inaccessible locations.

With a robust 20A capacity, integrated surge protection, and support for control via TCP/IP, UDP, and RS-232, the iP-1520 integrates cleanly into both simple network environments and sophisticated third-party automation systems like Crestron or Q-SYS. It delivers essential remote control functionality in a dependable, cost-effective package.

IP SERIES FAMILY

Part of the trusted IP Series.

COMPATIBLE ACCESSORIES

Integrate the iP-1520 with your facility.

The iP-1520 is designed to work with standard control systems and rack hardware.

Third-Party Control Systems

Integrates with automation platforms like Crestron and Q-SYS via RS-232 or raw TCP/IP commands.

Standard 19-Inch Equipment Racks

The 1U chassis mounts easily into any standard EIA equipment rack.

Network Routers and Switches

Provides remote reboot capability for network hardware and can auto-cycle a router on connection loss.

Any Web Browser

The onboard web server is accessible from any modern browser for simple setup and control.

WHY JUICE GOOSE

Dependable power control, simplified.

Built on decades of experience in AVL power.
Simple web interface requires no special software.
Failsafe design with local manual override.
US-based support for integrators and end users.

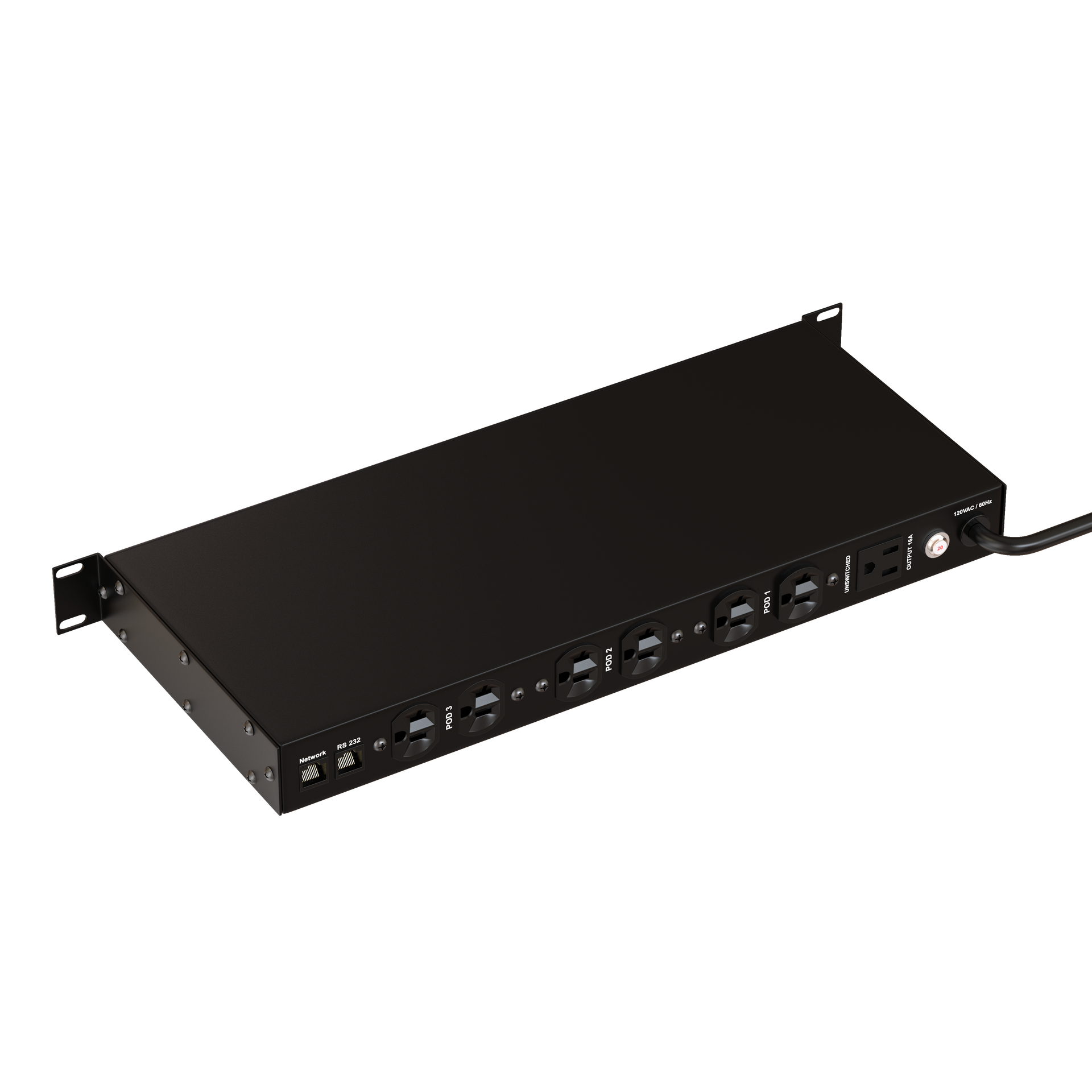

FEATURES

iP-1520 Features

Core capabilities for remote control, integration, and protection.

CAPABILITIES

Features

Web-Based Remote Control

Access and control outlets via internet or intranet using any standard web browser.

Three Controllable Power Pods

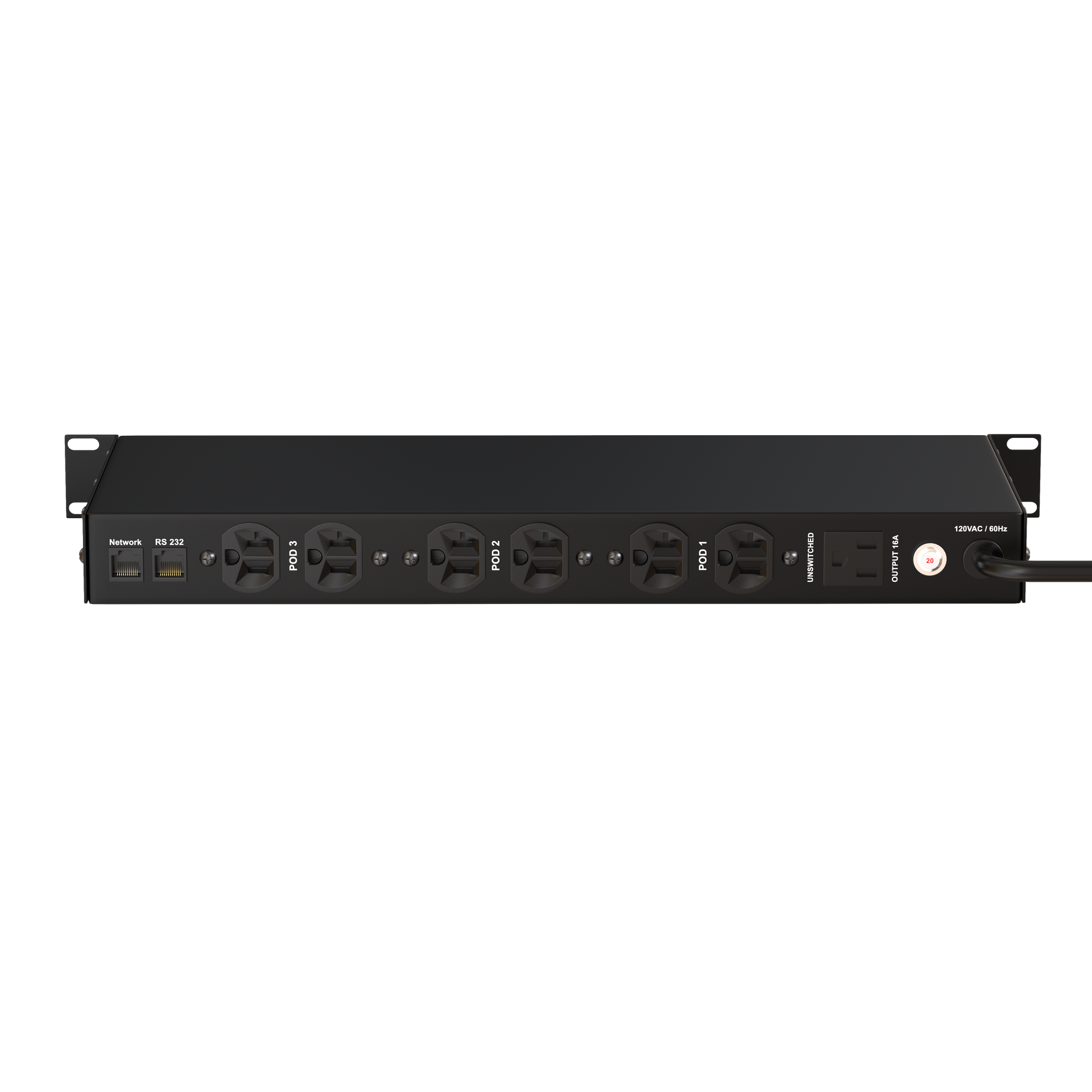

Six outlets are grouped into three pods of two for independent on/off remote switching.

Multiple Control Protocols

Integrate using Ethernet (TCP/IP, UDP) or a direct serial RS-232 connection.

Integrated Web Server

Provides an intuitive graphical interface for easy setup, control, and monitoring.

Automatic Power Cycling

Can be configured to automatically reboot a connected router if network connectivity is lost.

AC Surge Protection

Provides protection against power surges and spikes to safeguard connected equipment.

Failsafe Manual Override

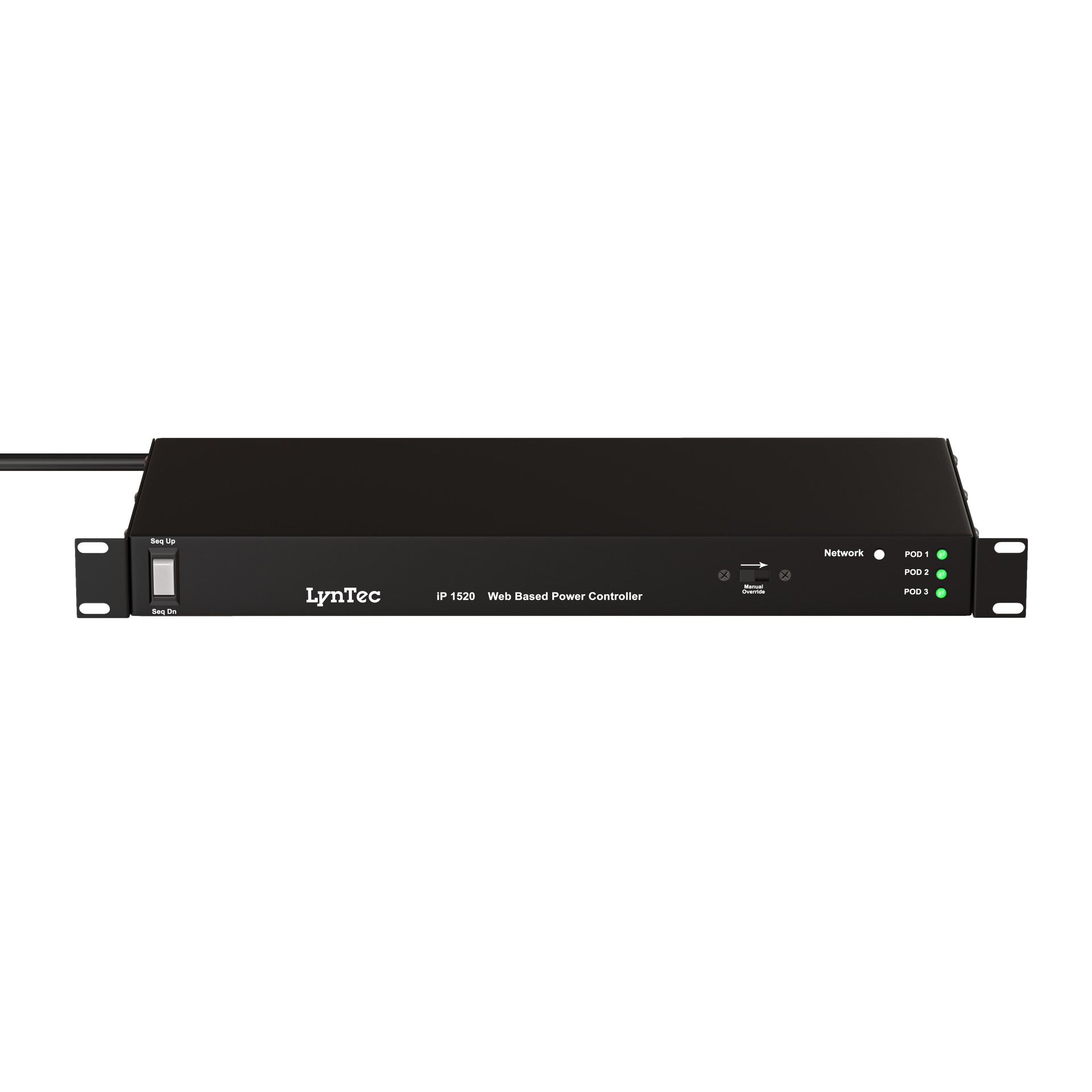

A front-panel switch allows local sequencing control in the event of a network failure.

20 Amp Capacity

Engineered for 20A service with a 12-gauge power cord and NEMA 5-20P plug.

Control From Any Browser

The integrated web server provides a simple, graphical interface for setup and control, accessible from any device on your network without special software.

Intuitive on/off control for 3 power pods
Administrator and user-level logins
Monitor power status from anywhere

Integrates With Your System

Communicate directly with the iP-1520 using raw TCP/IP, UDP, or serial RS-232 commands for seamless integration with third-party control systems.

Compatible with Crestron, Q-SYS, and others
Simple text-based command structure
Monitor and control via your existing platform

Engineered for Uptime

Designed with multiple layers of control and protection to keep your systems running, even if the network goes down.

Automatic router reboot on network loss
Local manual override switch for failsafe operation
Integrated AC surge protection

SPECIFICATIONS

iP-1520 Specifications

Technical data for integrating the iP-1520 into your power infrastructure.

iP-1520 Technical Specifications

Key electrical, control, and physical details for the iP-1520 power controller.

Electrical

Amperage Rating

20A
Voltage

120V
Power Cord

12 AWG with NEMA 5-20P Plug
Total Outlets

6
Controllable Groups

3 (Power Pods)
Surge Protection

AC Line (Hot to Neutral)

Control and Communication

Network Interface

Ethernet (RJ-45)
Network Protocols

HTTP, TCP/IP, UDP
Serial Interface

RS-232 (RJ-11)
Local Control

Front Panel Manual Override Switch

Physical

Chassis

1U Rack Mount
Indicators

LED for Power Pods, Network, and Surge Status

Questions or Concerns?

Let us know, we’re here to help! Contact Us

PRODUCT SUPPORT

iP-1520 Support

Find manuals, datasheets, and answers to common questions about the iP-1520.

FAQ

FAQs about the iP-1520

Are all six outlets individually controllable?

The six outlets are grouped into three ‘Power Pods’ of two outlets each. Each pod is controlled as a single unit, allowing you to switch three independent groups of equipment on and off remotely.

Can the iP-1520 integrate with systems like Crestron or Q-SYS?

Yes. The iP-1520 is designed to be controlled by commercial AV control systems from companies like Crestron and Q-SYS. Integration is typically achieved using the available RS-232 or TCP/IP text-based command protocols.

How do I control the iP-1520?

The iP-1520 can be controlled from any standard web browser via its onboard web server. It also supports integration with third-party automation systems using raw TCP/IP, UDP, or serial RS-232 commands. A manual override switch is located on the front panel for local control.

What happens if the network connection is lost?

The iP-1520 features a failsafe manual override switch on the front panel for local control if the network is unavailable. It can also be configured to automatically power cycle a connected router or modem to attempt to reestablish an internet connection.

What kind of power outlet does the iP-1520 require?

As a 20A device, the iP-1520 is equipped with a NEMA 5-20P plug and must be connected to a 20A circuit with a corresponding NEMA 5-20R receptacle.
