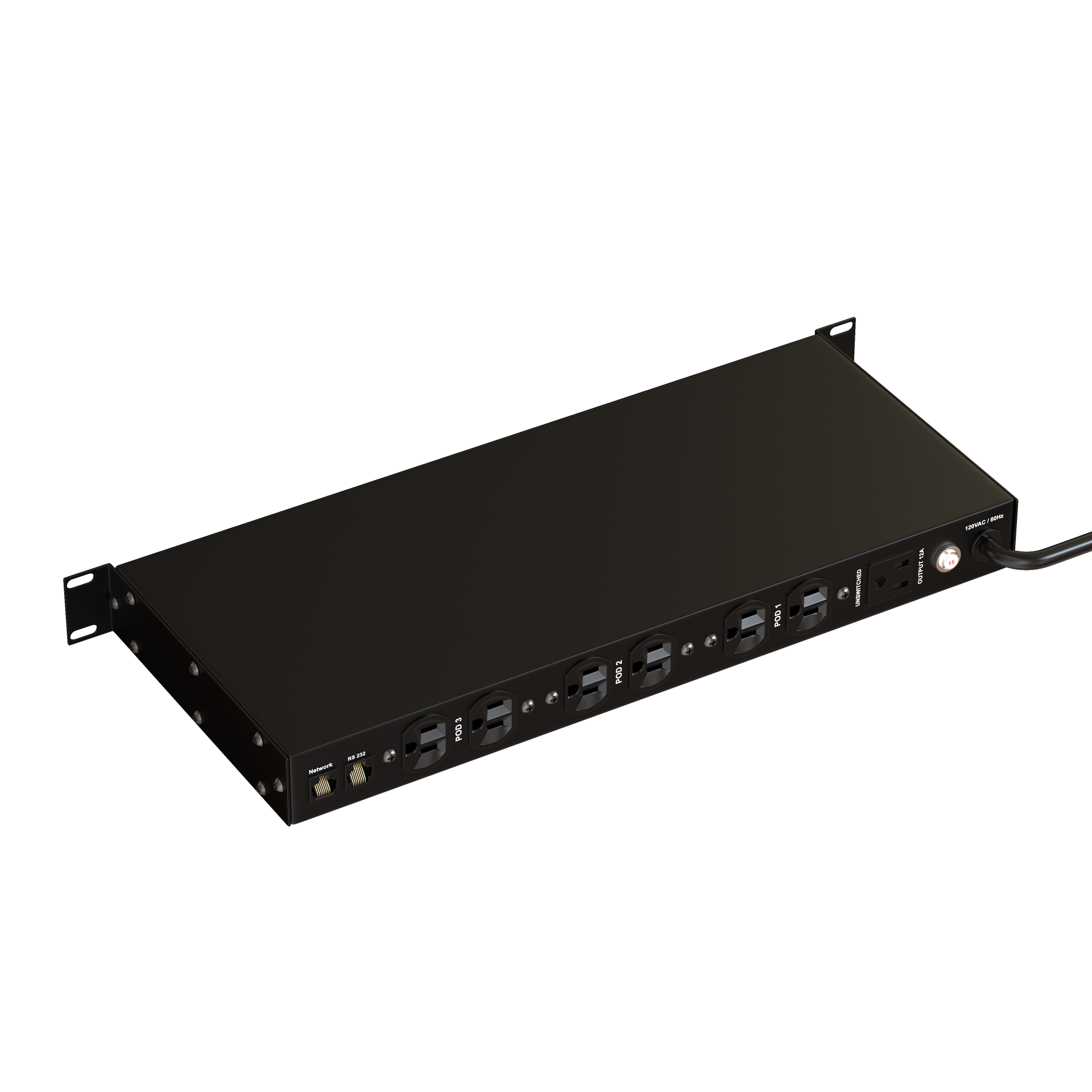

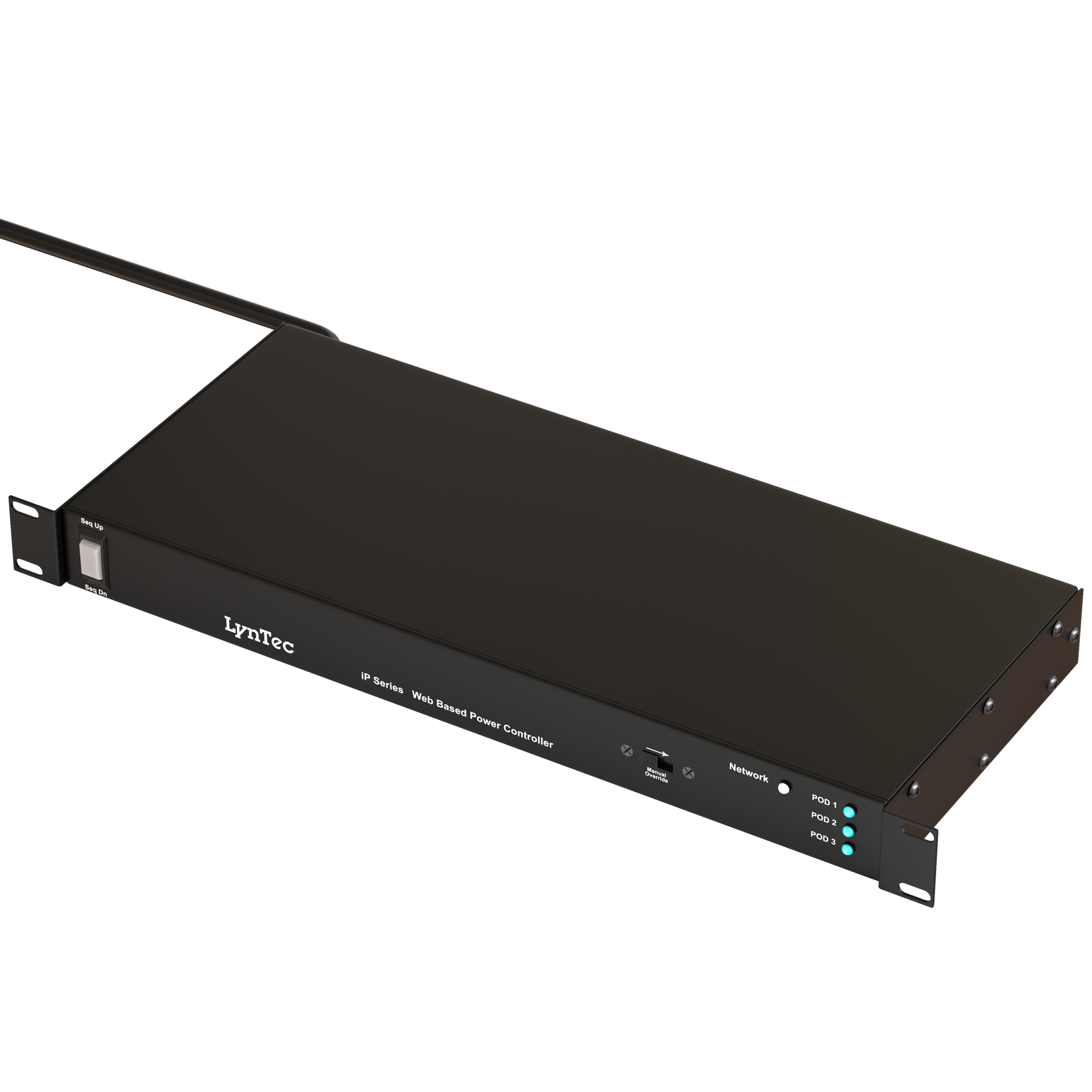

    iP-1515-RX

    Network-controlled PDU with RX Series surge protection and power conditioning.

    The iP-1515-RX is a rack-mounted power distribution unit that combines web-based control with proven RX Series surge protection and AC line filtration. It provides integrators with remote power management and equipment protection for AV racks and other distributed systems requiring reliable 15A power control.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    Network-addressable power control and distribution units designed for remote management and integration with AV control systems. The IP Series allows for control and monitoring over standard IP networks via a web interface, TCP/IP, or UDP for simplified system automation.
    Intelligent Control. Trusted Protection.

    SERVICE

    15A / 120V

    CONTROL

    IP / Web / RS232

    OUTLETS

    6 (3 Pods)

    PROTECTION

    RX Series

    FORM FACTOR

    Rack Mount
    NETWORK POWER CONTROL

    Remote power control with integrated surge protection.

    The Juice Goose iP-1515-RX delivers reliable, network-managed power distribution with the added confidence of our integrated RX Series surge protection and filtration. This unit allows engineers and technicians to remotely control individual outlet groups (Power Pods) via a simple web interface, TCP/IP, or RS232, simplifying the management of connected equipment. Reboot frozen devices, schedule power cycles, and monitor status from anywhere on the network without needing a site visit. The onboard web server makes setup and operation intuitive, requiring only a standard browser for full access.

    Built for professional AVL installations, the iP-1515-RX also includes robust power conditioning. It protects sensitive electronics from common mode and normal mode surges, with significant AC line filtration. This ensures connected equipment receives clean, stable power, improving system reliability and longevity.

    COMPATIBLE ACCESSORIES

    Integrate the iP-1515-RX into Your System.

    The iP-1515-RX works with standard racks, network infrastructure, and leading AV control platforms.

    Standard 19-Inch Equipment Racks

    The chassis is designed for easy installation in any standard 19-inch equipment rack.

    AV Control Systems

    Integrates directly with platforms like Crestron and Q-SYS using available control modules.

    Standard IP Networks

    Connects to any standard Ethernet network for remote access via its onboard web server or TCP/IP.

    Serial Control Devices

    An RS232 port allows for direct control from nearby equipment or serial-based automation systems.
    WHY LYNTEC

    Reliable Power Control, Simplified.

    • Proven RX Series protection against ground and line surges.
    • Intuitive web-based control simplifies remote management.
    • Failsafe design with local override for guaranteed uptime.
    • Built on decades of experience in AVL power infrastructure.
    FEATURES

    iP-1515-RX Features

    Explore the standard capabilities for control, protection, and monitoring.
    CAPABILITIES

    Features

    Web Based Power Control

    Access and control three individual power pods via a standard web browser, TCP/IP, or RS232.

    RX Series Surge Protection

    Provides 1,020 Joules of protection against surges and transient voltage events.

    Advanced Power Filtration

    Reduces AC line noise by 60dB to 80dB at 30MHz for cleaner power to sensitive gear.

    Onboard Web Server

    Simplifies setup, control, and monitoring with an intuitive, built in graphic user interface.

    Failsafe Operation

    Includes local sequencing and a manual override switch for reliable control during network outages.

    Automatic Power Cycle

    Monitors network connectivity and can automatically reboot a connected router or modem if it fails.

    Third Party Integration

    Control modules are available for seamless integration with Crestron, Q-SYS, and other AV systems.

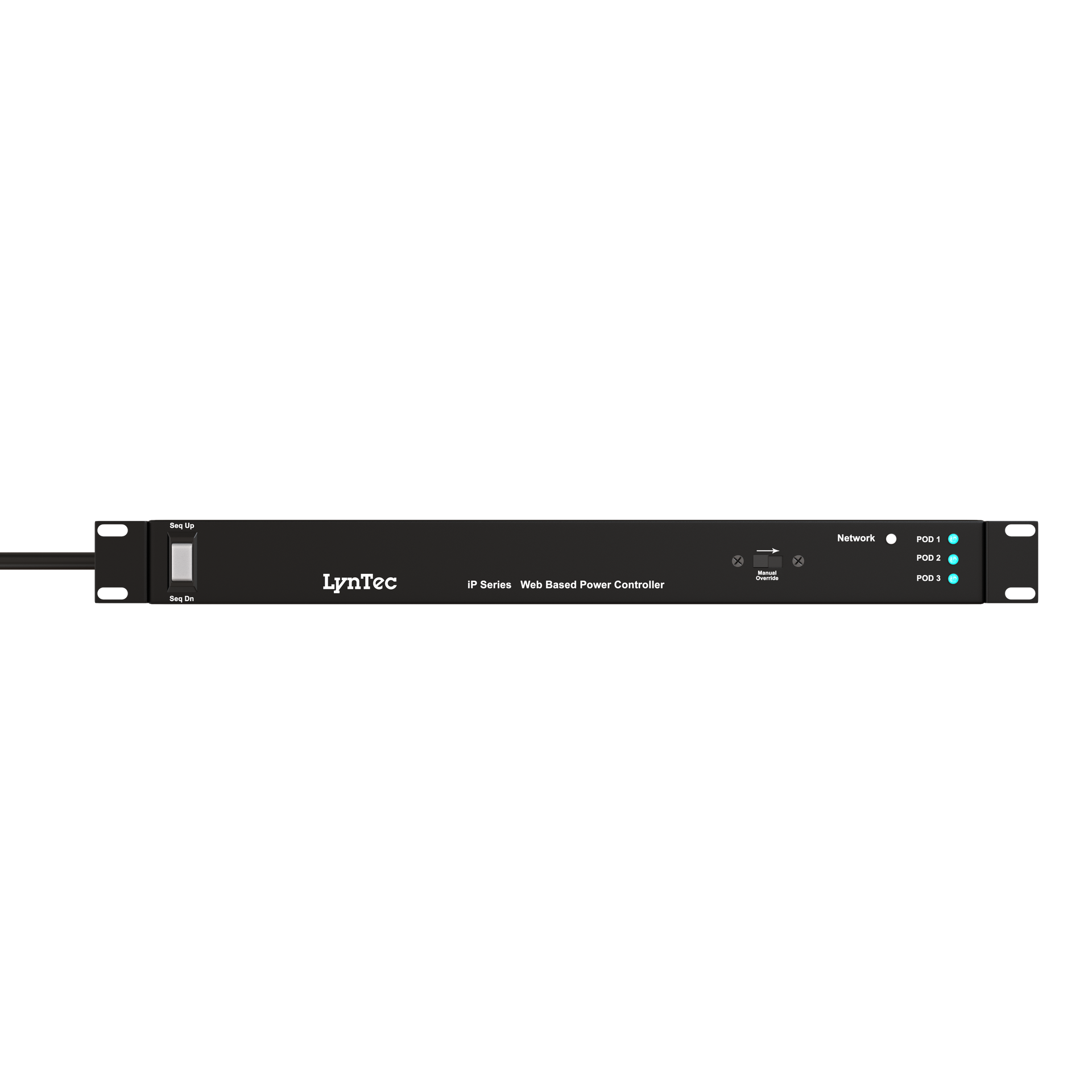

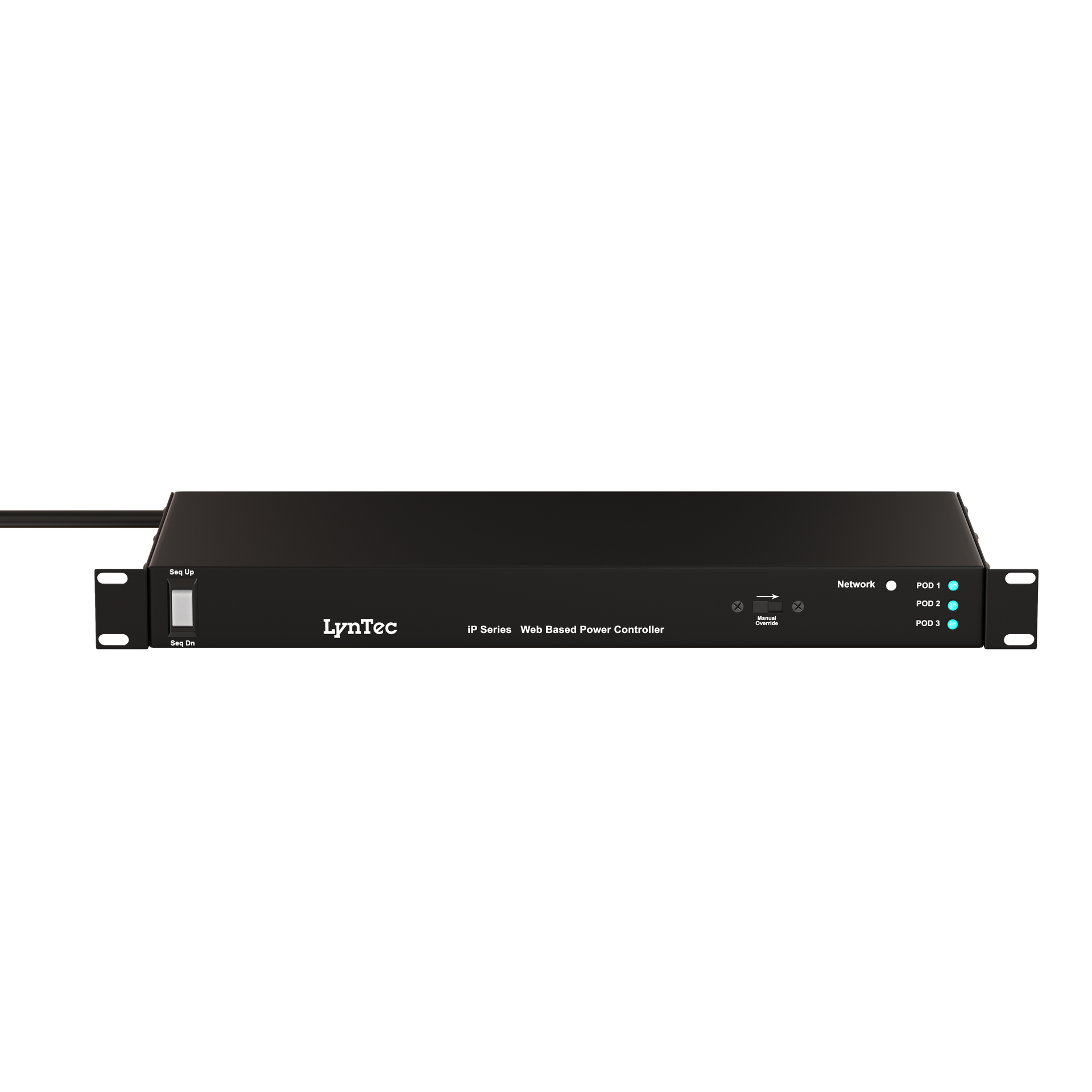

    Front Panel Diagnostics

    LED indicators provide at a glance status for network connection, surge protection, and active outlets.
    01

    Manage Power From Anywhere

    An onboard web server provides an intuitive interface for remote control and monitoring over any standard IP network.
    • Control 3 individual Power Pods
    • Reboot equipment remotely
    • TCP/IP, UDP, and RS232 support
    • Integrates with Crestron and Q-SYS
    02

    Reliable RX Series Protection

    Protect sensitive electronics with proven surge protection and power conditioning that guards against both common and normal mode events.
    • 1,020 Joules of energy absorption
    • Limits ground line surges to 0.5V
    • Reduces AC line noise by up to 80dB
    • Protects against building wiring faults
    03

    Engineered for Uptime

    Designed with failsafe features to ensure continuous operation, even if network connectivity is lost.
    • Local manual override switch
    • Automatic router reboot function
    • Front panel status indicators
    • Administrator and user login levels
    SPECIFICATIONS

    iP-1515-RX Specifications

    All technical details for integrating the iP-1515-RX into your system.

    iP-1515-RX Technical Specifications

    Key electrical, control, and physical data for the iP-1515-RX power distribution unit.

    Electrical

    • Input Service
      15A, 120V
    • Output Receptacles

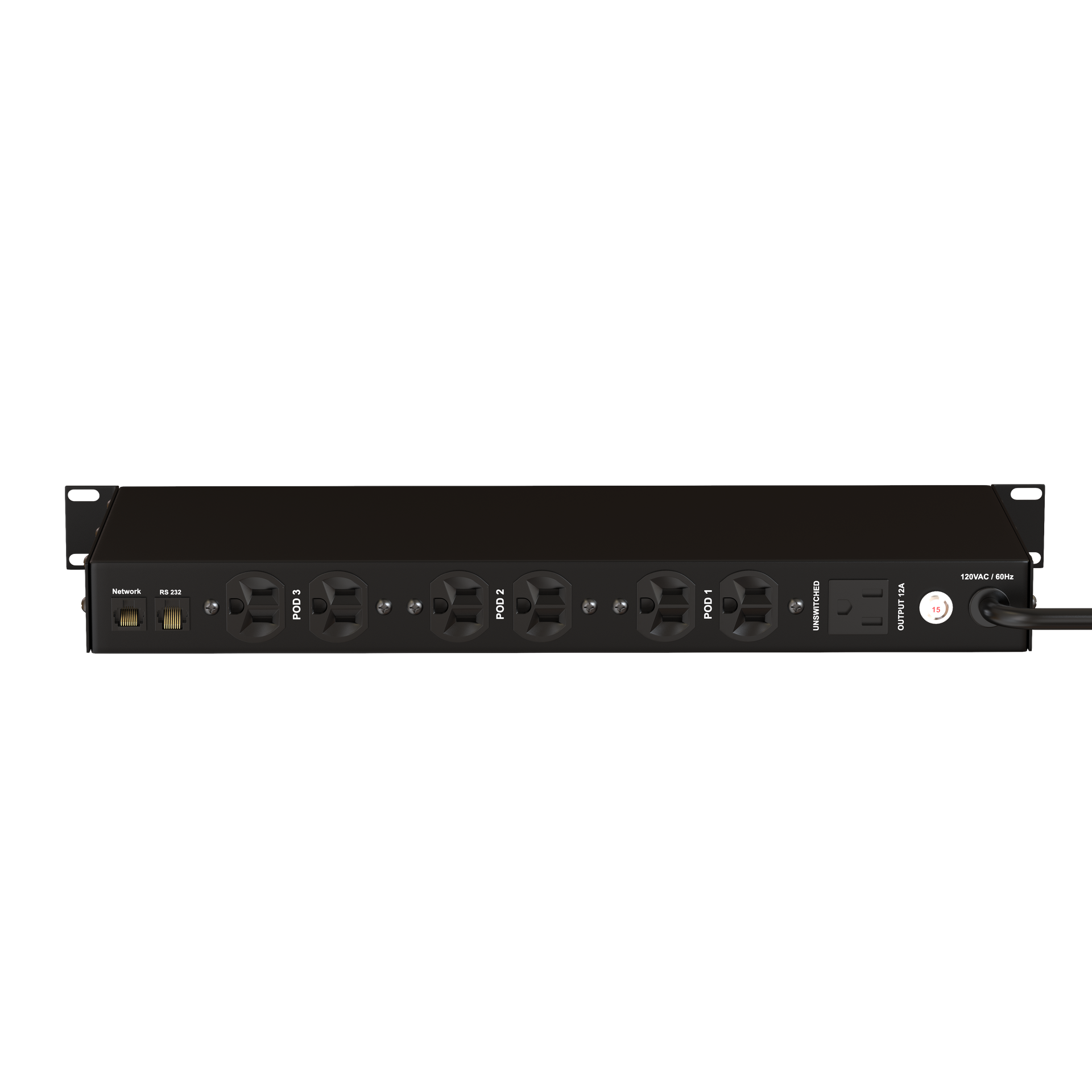

      6 NEMA 5-15R (in 3 Power Pods)
    • Max Surge (Line to Neutral)
      10V
    • Max Surge (Ground Line)
      0.5V
    • AC Line Filtration
      60dB to 80dB @ 30MHz

    Control and Monitoring

    • Network Interface
      Ethernet (RJ45)
    • Protocols
      HTML, TCP/IP, UDP, RS232
    • Serial Interface
      RS232 (RJ11)
    • Local Control
      Manual Override Switch
    • Indicators
      LEDs for Network, Protection, Pods

    Physical

    • Chassis
      Rack Mount

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    iP-1515-RX Support

    Find manuals, datasheets, and other resources to get your system running.
    FAQ

    FAQs about the iP-1515-RX

    How does the iP-1515-RX integrate with AV control systems?

    The unit supports control via TCP/IP, UDP, and RS232 protocols. LynTec provides downloadable modules for seamless integration with major control platforms like Crestron and Q-SYS, simplifying programming and deployment.

    What are the ‘Power Pods’ and how are they controlled?

    The six outlets are grouped into three ‘Power Pods’ of two outlets each. Each pod can be turned on or off independently via the web interface, TCP/IP, or RS232, giving you granular control over your connected equipment.

    What happens if the network connection goes down?

    The iP-1515-RX is designed for failsafe operation. A manual override switch on the front panel allows for local control of the outlets. The unit can also be configured to automatically power cycle a connected router if it detects a loss of network connectivity.

    What kind of protection does the RX Series circuitry provide?

    The RX Series provides robust surge protection and power conditioning. It protects against both line-to-neutral (normal mode) and ground line (common mode) surges, and filters out AC line noise to ensure clean, stable power for sensitive digital equipment.
