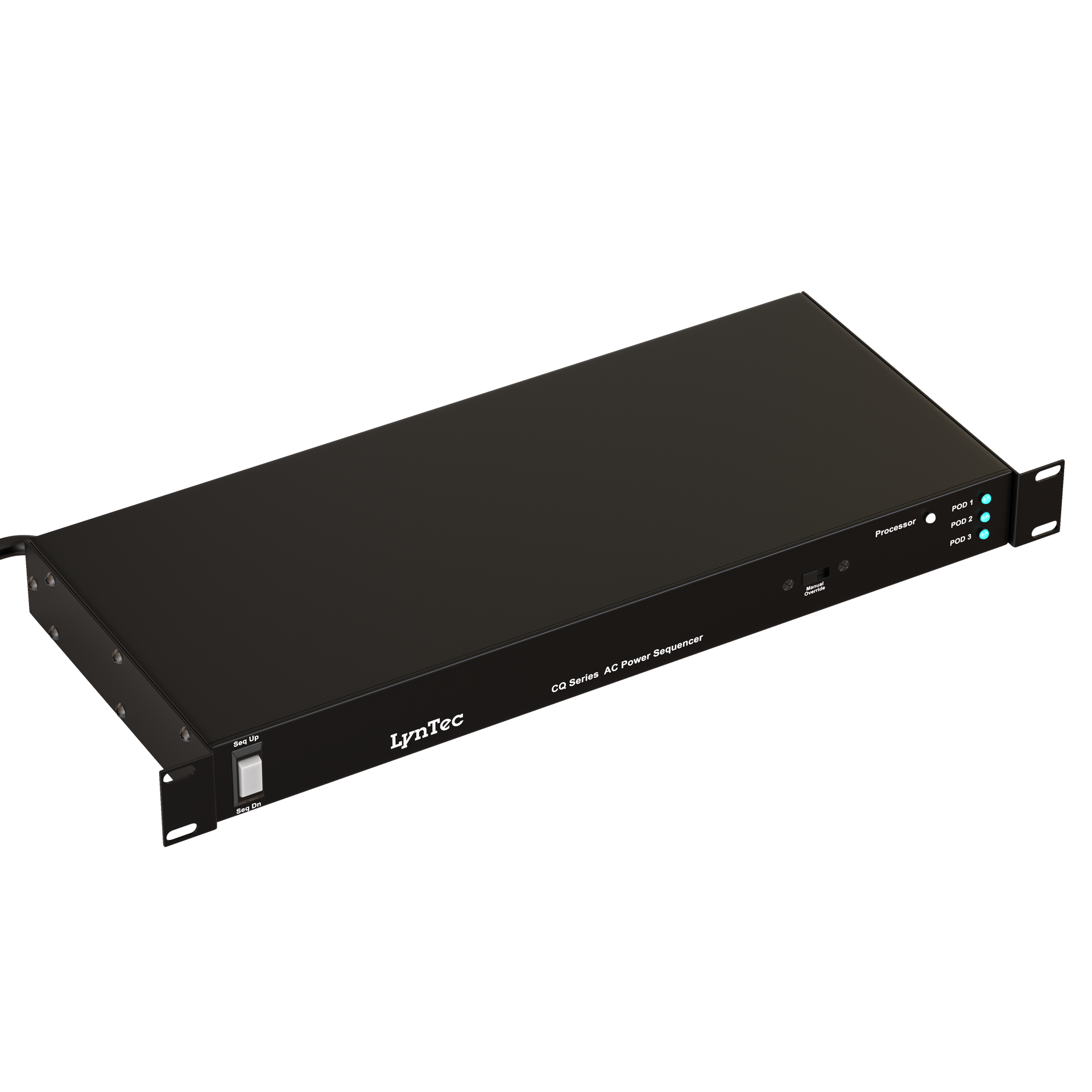

    CQ 1515 Power Sequencer

    Rack-mount power sequencer with 15A service and three adjustable delay steps.

    The CQ 1515 is a 1U rack-mount power sequencer providing 15A service across seven outlets with integrated surge and spike protection. It simplifies startup for AV racks and small venues, protecting connected equipment with reliable, three-step power-on sequencing without requiring a primary controller.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    The CQ Series offers modular, standalone power sequencers designed for simple and reliable operation. Units can be easily linked with RJ-45 cables to create scalable, synchronized power-up sequences for AV systems of any size, without requiring a central controller.
    Reliable Sequencing, Simplified

    Service

    15A / 120V

    Outlets

    7 Total (6 Sequenced)

    Sequence Steps

    3 (Adjustable)

    Form Factor

    1U Rack-Mount

    Control

    Standalone or Linked
    POWER SEQUENCER

    Simplified, standalone power sequencing for AV racks.

    The JuiceGoose CQ 1515 delivers dependable, three-step power sequencing in a straightforward 1U rack-mount unit. Engineered for standalone operation, it protects sensitive electronics from startup inrush current without needing a separate primary controller. Six sequenced outlets are grouped into three pods, each with an adjustable delay, while a seventh unswitched outlet provides constant power. Integrated surge protection shields connected equipment from common power anomalies.

    For larger systems, the CQ 1515 easily connects to other CQ or RC series devices using standard RJ-45 cables, allowing you to build a scalable, synchronized power control system. It is a plug-and-play solution for any application needing simple, reliable power sequencing.

    COMPATIBLE ACCESSORIES

    Expand your sequencing system.

    The CQ 1515 integrates with a range of remote controls and other sequencers for scalable power management.

    Other CQ Series Sequencers

    Daisy-chain with other CQ models like the CQ 1520 or CQ 2200 for synchronized, multi-circuit sequencing.

    RC5 Series Remote Controls

    Add remote key switch or push-button control with RC5-RM, RC5-WM, or RC5-KPS units for secure operation.

    RCDM Remote Control Combiners

    Use an RCDM1 or RCDM3 to enable control from multiple locations or integrate with an emergency alarm trigger.

    Standard 19-Inch Equipment Racks

    The 1U chassis mounts securely in any standard EIA equipment rack for clean, professional installations.
    WHY LYNTEC

    Dependable power control, built for the real world.

    • Plug-and-play ready right out of the box
    • Standalone operation, no primary controller required
    • Integrated surge protection for connected equipment
    • Linkable with other CQ devices for easy system expansion
    FEATURES

    CQ 1515 Power Sequencer Features

    Explore the standard capabilities engineered into every CQ 1515 unit.
    CAPABILITIES

    Features

    15 Amp Capacity

    Provides reliable power distribution for a fully loaded AV rack on a standard 15A circuit.

    Three Sequenced Groups

    Six outlets are organized into three ‘Power Pods’ of two, creating three distinct sequence events.

    Adjustable Timing

    Internal DIP switches allow adjustment of sequence delay time between 2, 10, 20, or 30 seconds.

    One Unswitched Outlet

    An always-on outlet provides constant power for devices that do not require sequencing.

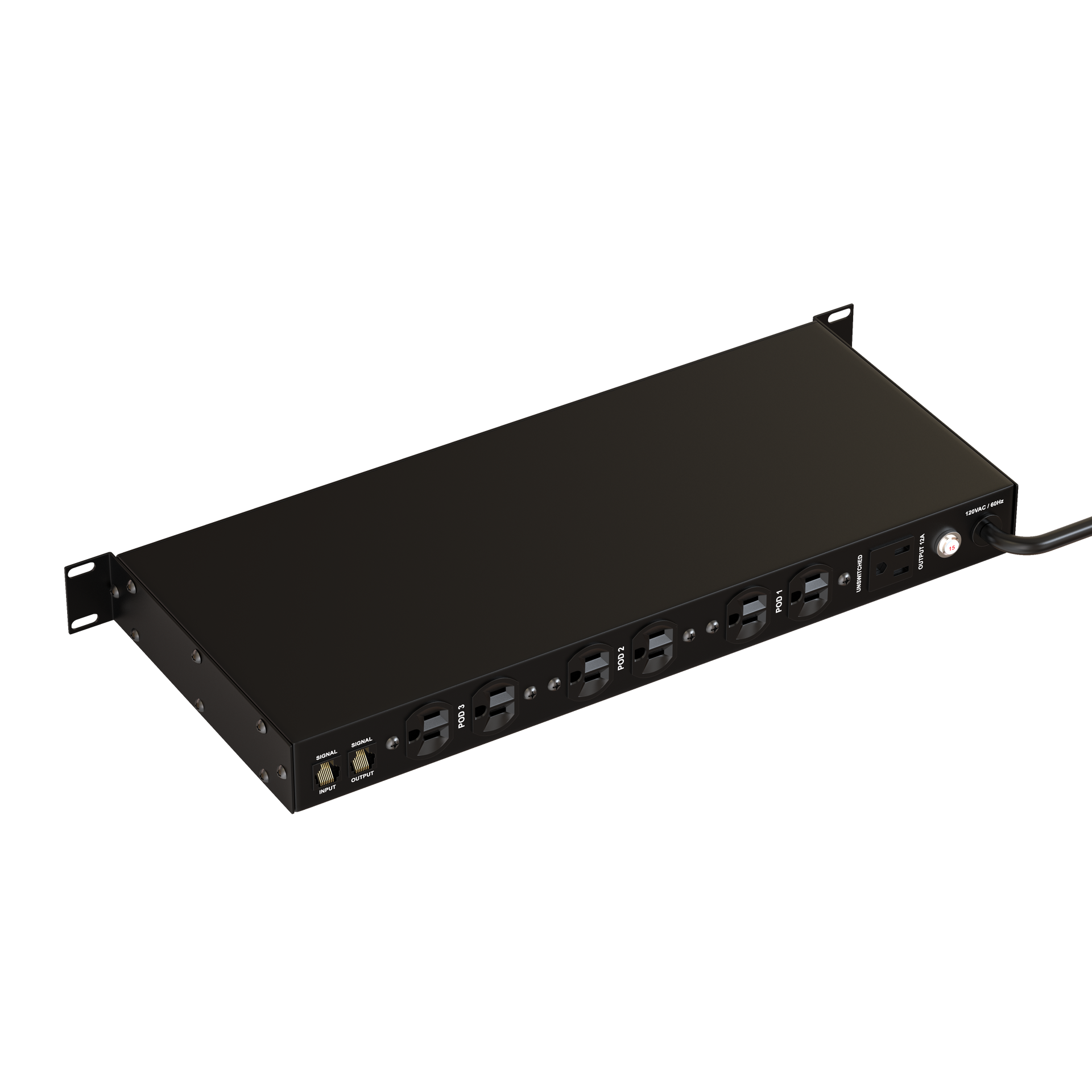

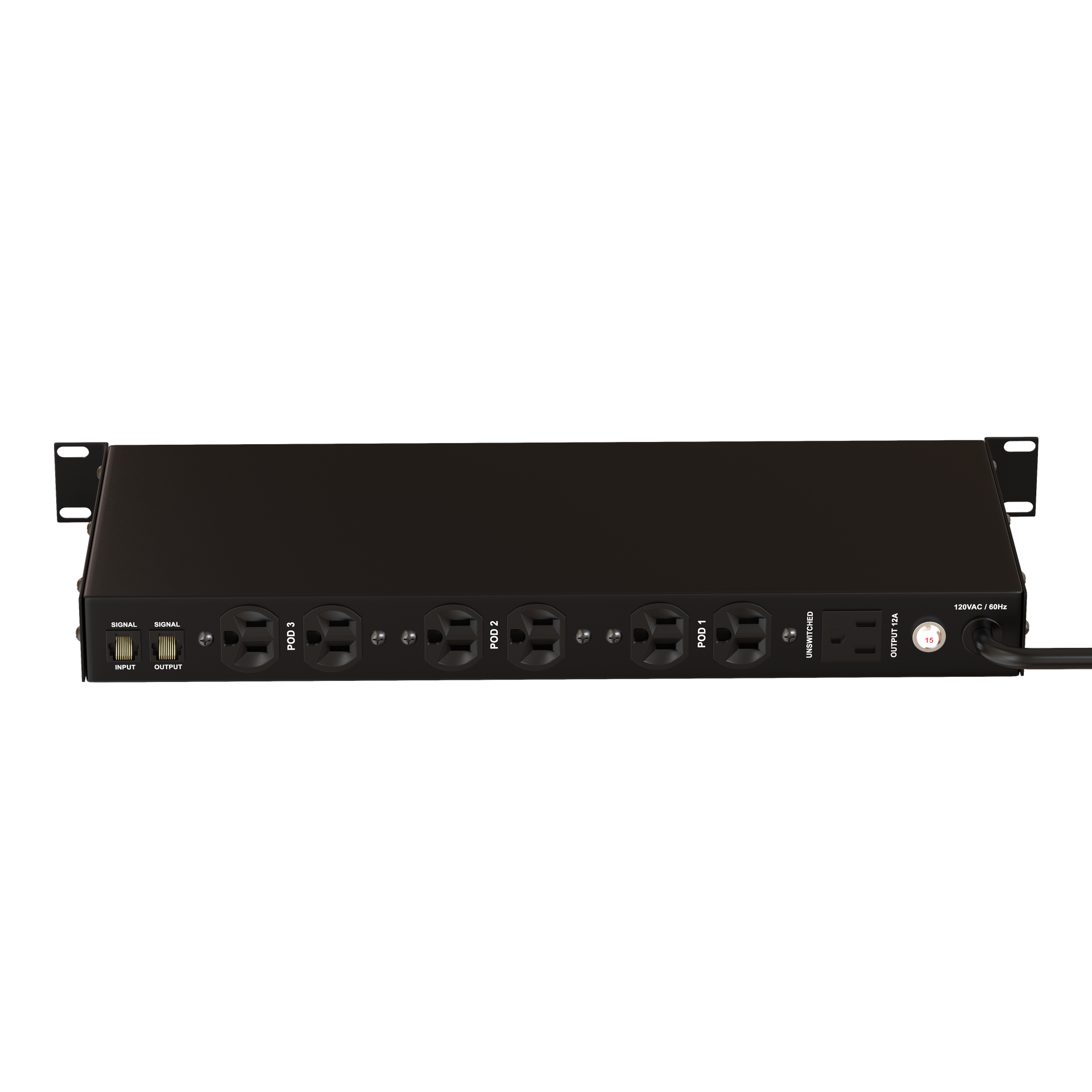

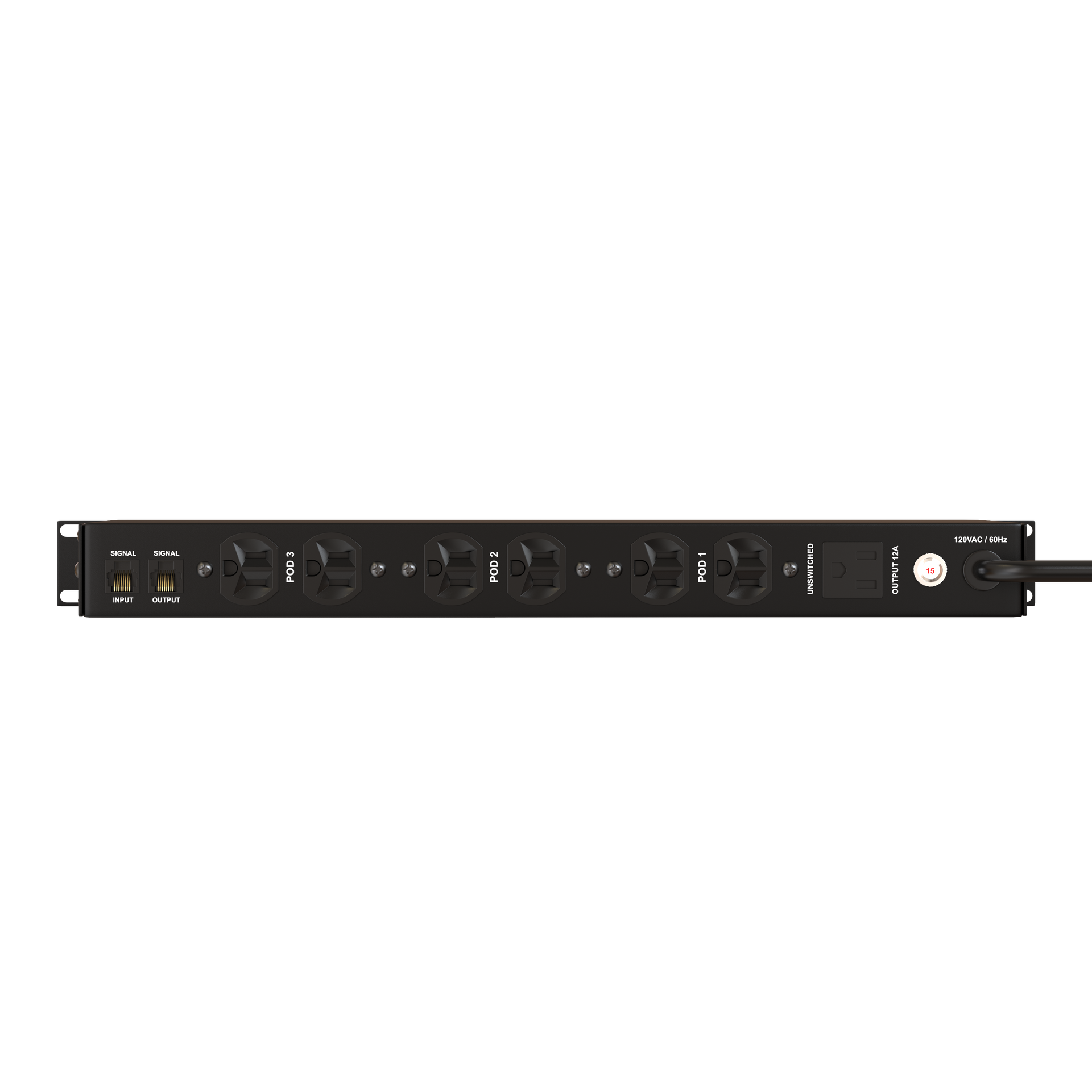

    Linkable Design

    RJ-45 input and output ports allow for easy interconnection with other CQ and RC series devices.

    Surge and Spike Protection

    Features durable, triple-stage AC surge protection to safeguard all connected equipment.

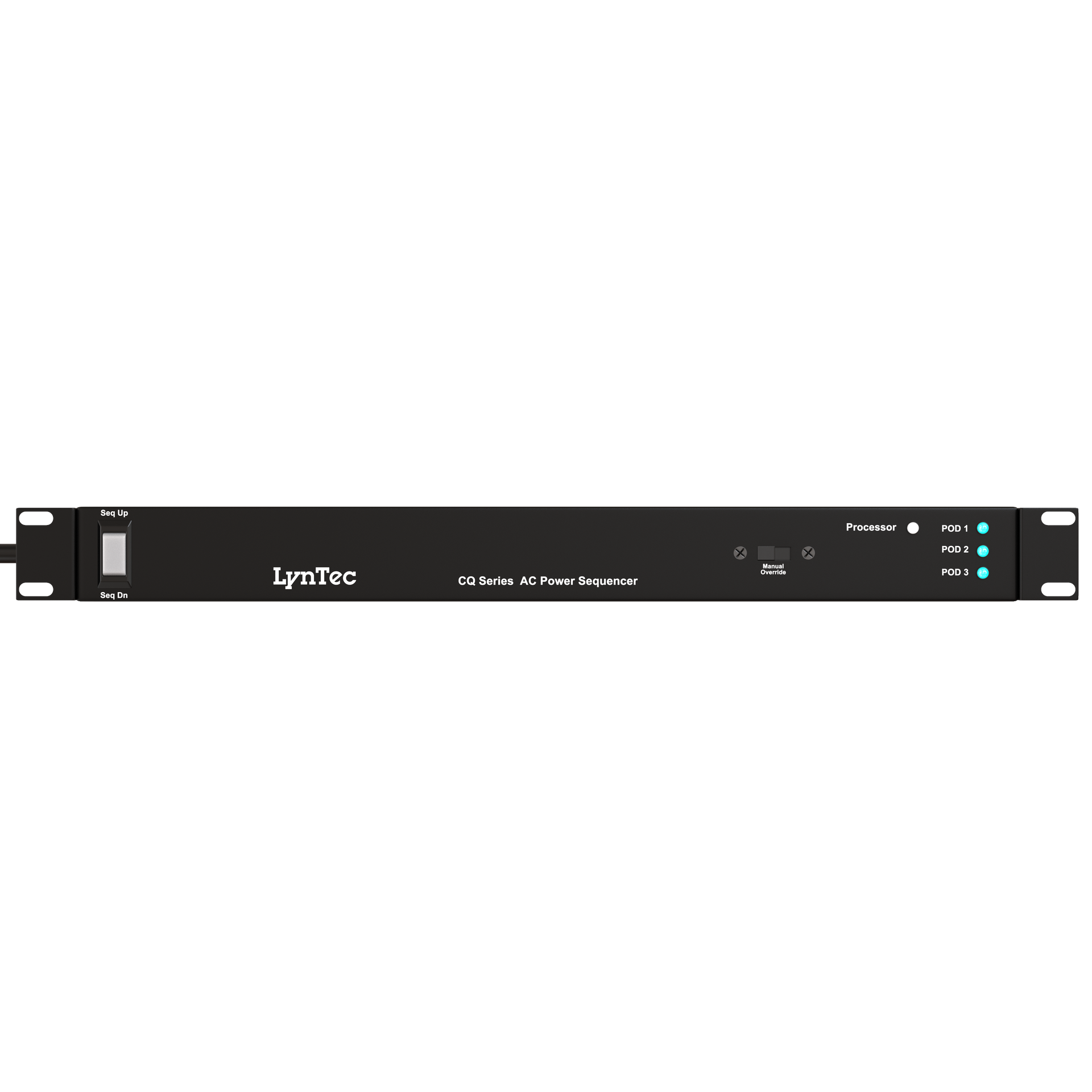

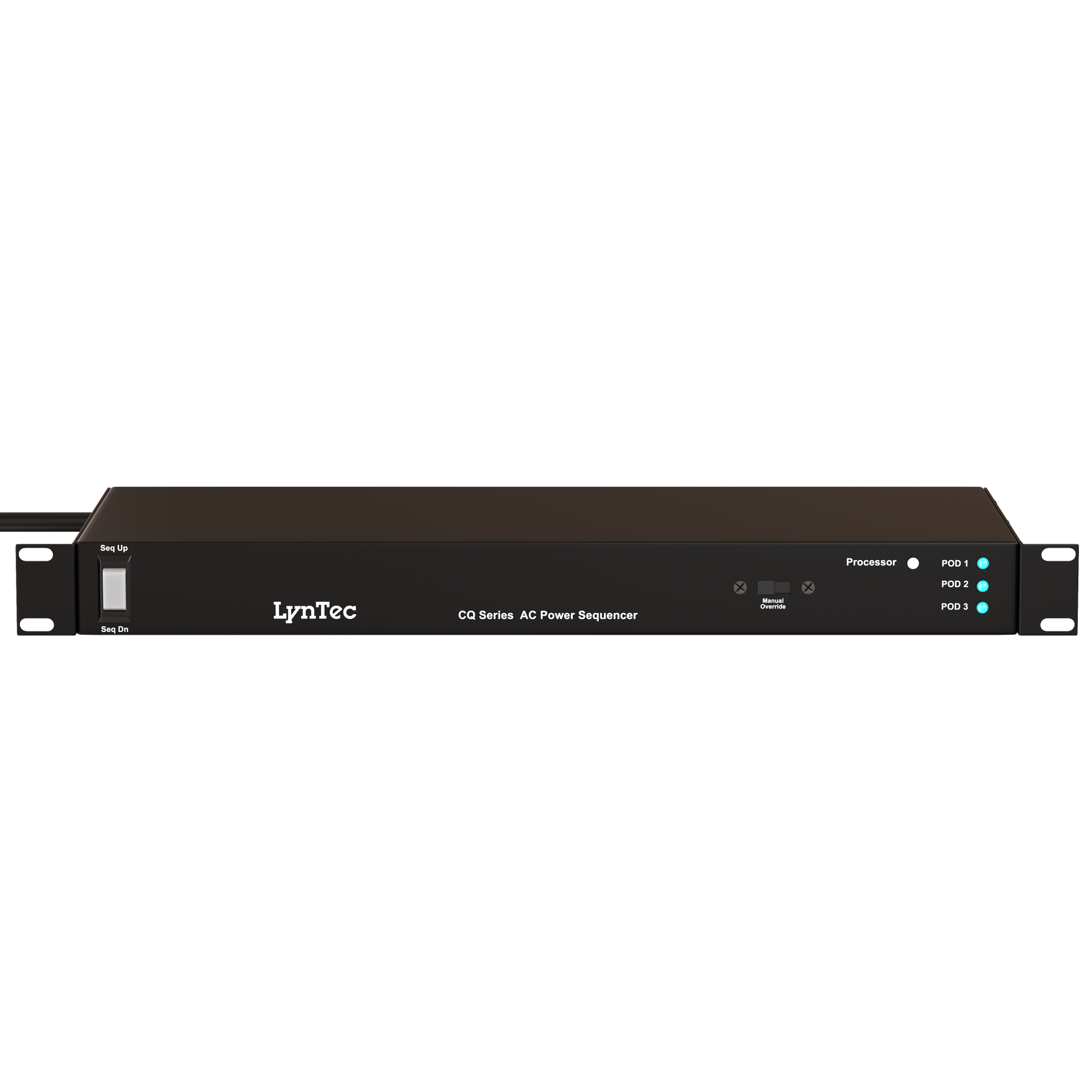

    Front Panel Diagnostics

    LED indicators provide clear status updates for power, sequencing events, and surge protection health.

    1U Rack-Mount Chassis

    Installs cleanly into any standard 19-inch equipment rack, occupying a single rack space.
    01

    Standalone Operation

    With a self-contained sequencing circuit, the CQ 1515 is ready to work right out of the box. No primary controller or complex programming is required for basic operation.
    • Plug-and-play design for fast installation
    • Functions as a primary or secondary unit
    • Ideal for single-rack or distributed systems
    02

    Scalable Control

    Easily expand your power control system by linking multiple CQ units. Signal input and output ports use standard RJ-45 cables for simple, reliable interconnection.
    • Daisy-chain multiple units for synchronized sequencing
    • Integrates with RC Series remote controls
    • Build a larger system as your needs grow
    03

    Integrated Protection

    Dependable surge and spike protection shields connected equipment from damaging power events. Front-panel LEDs provide at-a-glance status of the sequencer and protection circuits.
    • Triple-stage AC surge protection
    • LEDs confirm normal operation or indicate a fault
    • Protects sensitive audio, video, and data gear
    SPECIFICATIONS

    CQ 1515 Power Sequencer Specifications

    All the technical details you need for system design and installation.

    CQ 1515 Technical Specifications

    Technical details for integrating the CQ 1515 into your installation.

    Electrical

    • Load Capacity
      15 Amps
    • Total Outlets
      7 (NEMA 5-15R)
    • Sequenced Outlets
      6 (in 3 groups of 2)
    • Unswitched Outlets
      1
    • Surge Protection
      Triple-stage, Line-Neutral

    Control & Sequencing

    • Sequence Events
      3
    • Sequence Delay
      2s, 10s, 20s, or 30s (user selectable)
    • Interconnection
      RJ-45 Signal Input / Output
    • Indicators
      Processor, Pod Status, and Protection LEDs

    Physical

    • Chassis
      1U Rack-Mount
    • Dimensions
      19” W x 1.75” H x 7” D
    • Weight
      7 lbs

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    CQ 1515 Power Sequencer Support

    Find documentation, guides, and answers to common questions about the CQ 1515.
    FAQ

    FAQs about the CQ 1515

    Can I change the delay time between sequence steps?

    Yes, the delay time is adjustable. By changing the position of two DIP switches on the main circuit board, you can select a delay of 2 seconds (standard), 10 seconds, 20 seconds, or 30 seconds. Refer to the product manual for detailed instructions.

    Does the CQ 1515 require a primary controller to work?

    No, the CQ 1515 is designed for standalone operation. It has a self-contained sequencing circuit and is ready to use out of the box without needing any external primary controller.

    How do I connect multiple CQ 1515 units together?

    You can link multiple CQ units by connecting a standard eight-wire RJ-45 cable from the Signal Output of the primary unit to the Signal Input of the secondary unit. This allows them to sequence in a synchronized order.

    What do the LEDs on the front panel indicate?

    The LEDs provide system status. A flashing blue/red Processor LED indicates normal operation. A blinking red Processor LED indicates a surge protection failure. The individual blue ‘Pod’ LEDs light up when each corresponding sequence relay is active.

    What remote controls are compatible with the CQ 1515?

    The CQ 1515 can be controlled remotely by connecting it to any JuiceGoose RC5 series remote, such as the RC5-RM (rack mount key switch) or RC5-KPS (wall mount push button). It can also be linked to other CQ sequencers.
