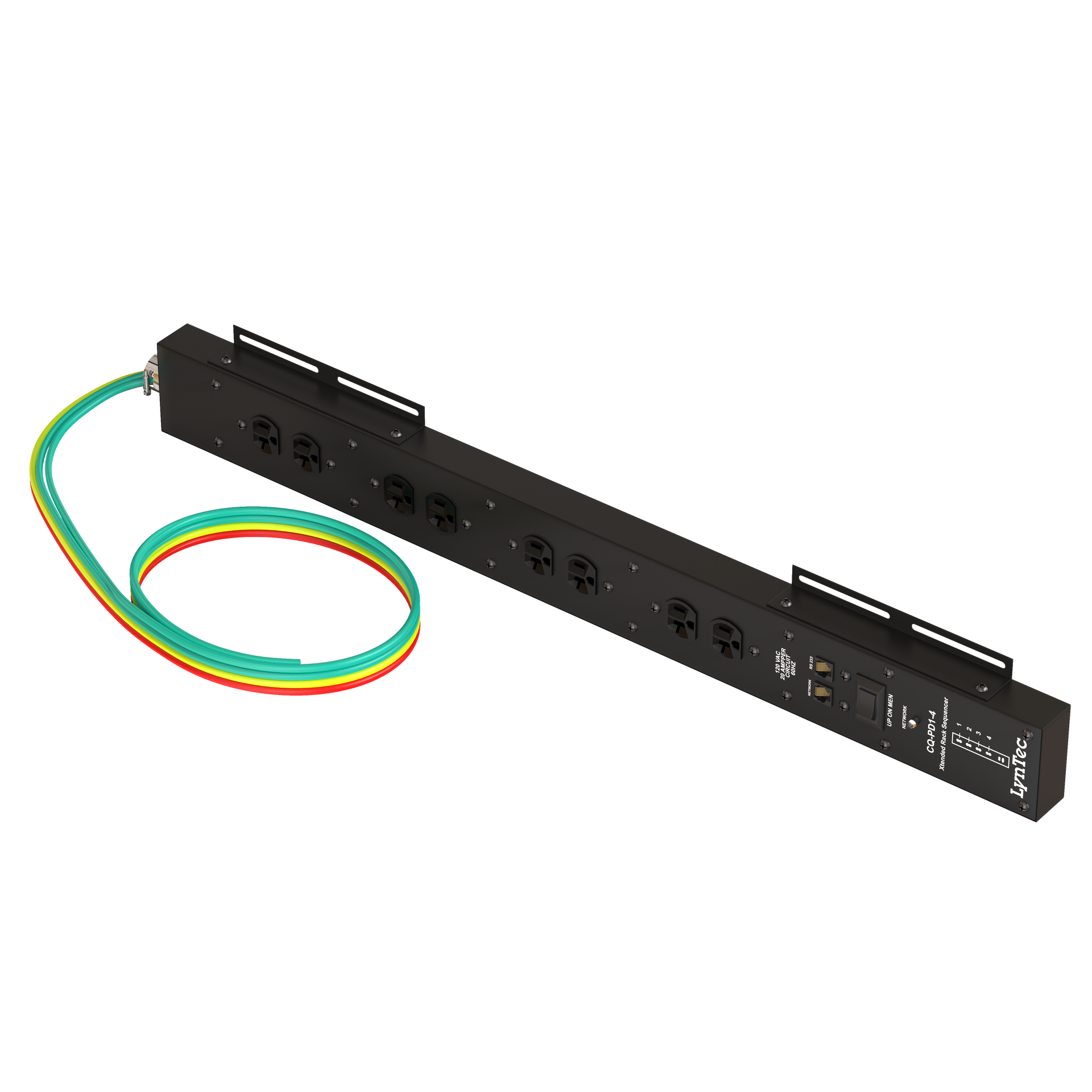

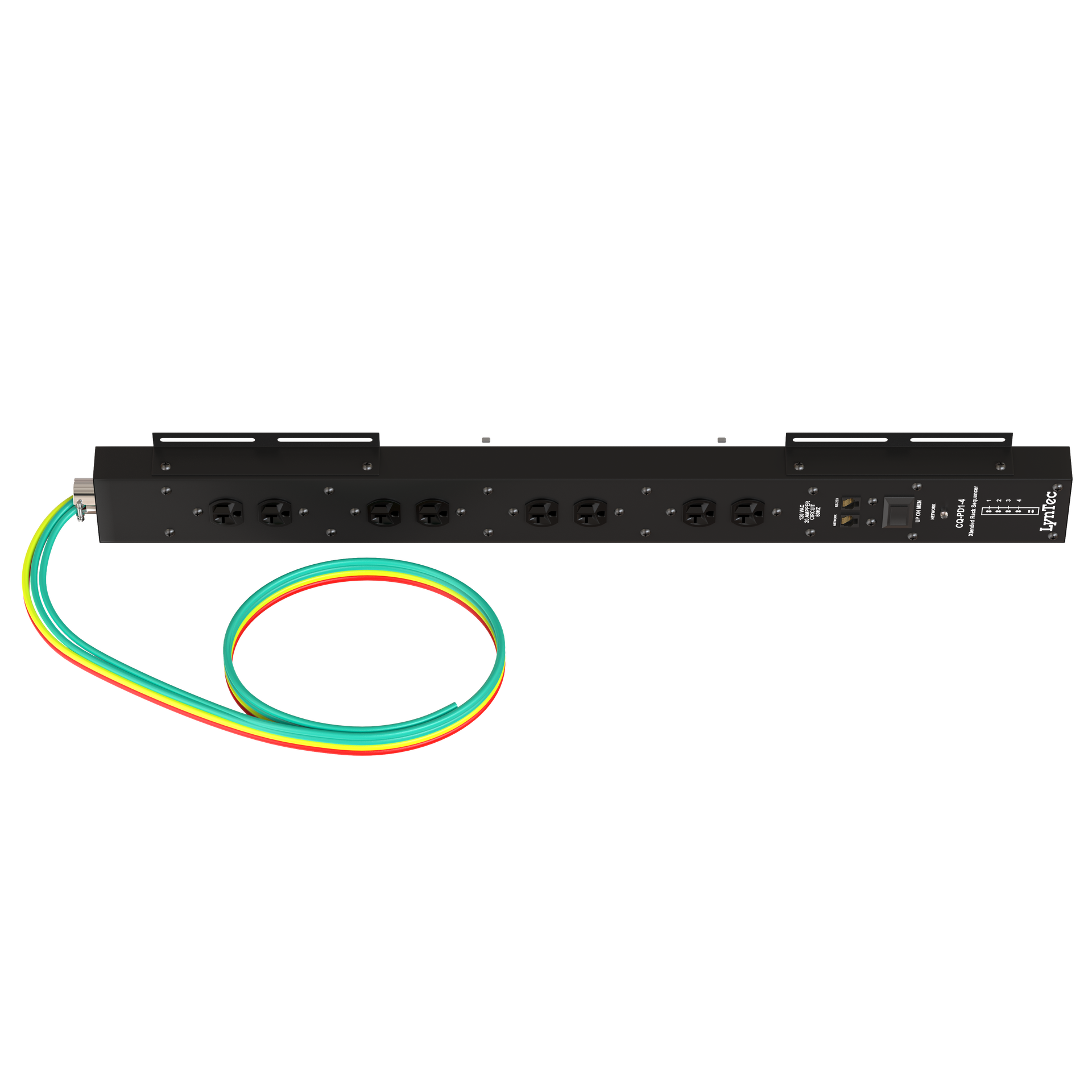

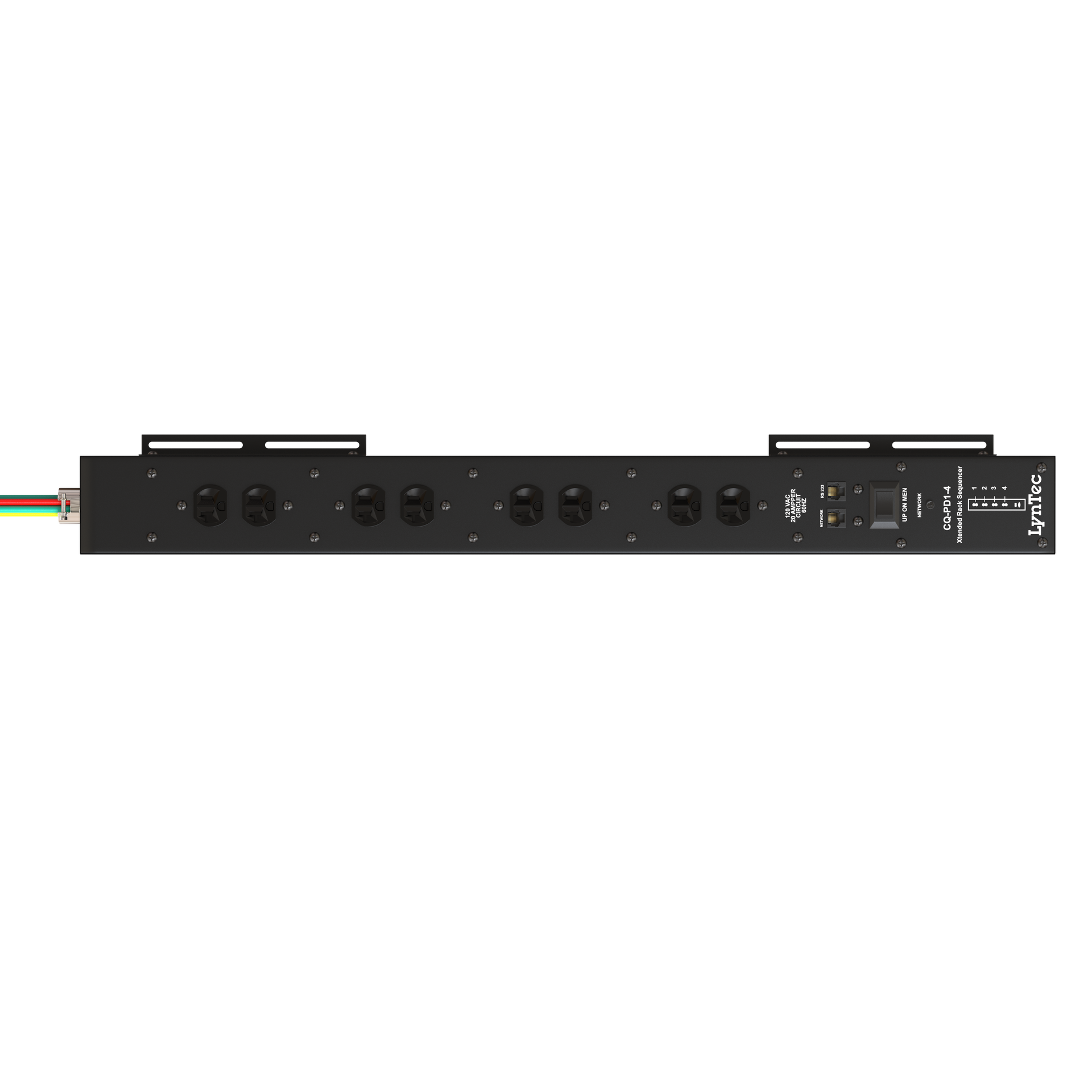

    CQ PD1-4 Power Sequencer

    Compact 4-step power sequencer with four 20A circuits for behind-rack installs.

    The CQ PD1-4 is a self-contained power distribution and sequencing unit providing four 20A circuits across four timed steps for controlled system startup. It simplifies installation for AV integrators in racks or enclosures needing reliable, multi-circuit power sequencing without requiring a separate primary controller or complex assembly.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    The CQ Series offers modular, standalone power sequencers designed for simple and reliable operation. Units can be easily linked with RJ-45 cables to create scalable, synchronized power-up sequences for AV systems of any size, without requiring a central controller.
    Engineered for Simplicity and Reliability

    Service

    80A Total (4x 20A)

    Sequence Events

    4 Steps

    Outlets

    4x NEMA 5-20R

    Form Factor

    Compact / Rack-Mount

    Control

    Standalone or CQ Bus
    POWER SEQUENCING

    Simplified, multi-circuit power sequencing for any rack.

    The CQ PD1-4 delivers robust, four-circuit power sequencing in a single, pre-assembled unit designed to save installation time and complexity. With a total capacity of 80 amps distributed across four 20A duplex outlets, it provides ample power for typical AV racks. Each circuit is activated in a timed, four-step sequence to protect connected equipment from damaging inrush current.

    Engineered for plug-and-play simplicity, the CQ PD1-4 can operate as a standalone sequencer or integrate seamlessly into a larger system with other Juice Goose CQ Series devices using simple RJ45 connections. Its compact chassis mounts easily in the back of a rack, making it an efficient solution for streamlined, reliable power control.

    COMPATIBLE ACCESSORIES

    Expand Your Sequencing System.

    Integrate the CQ PD1-4 with these CQ Series accessories for enhanced control and functionality.

    Other CQ Series Sequencers

    Daisy-chain with any CQ Series device for synchronized, multi-location power control.

    CQ Series Remote Controls

    Integrate with RC5 key switches or push-button stations for secure, remote operation of the power sequence.

    RCDM Emergency Interface

    Connect to an RCDM module to trigger an emergency power-down from a fire alarm or other contact closure system.

    Standard Equipment Racks

    The compact chassis is designed for easy mounting in the rear of standard 19-inch AV and IT equipment racks.
    WHY LYNTEC

    Power Sequencing That Simplifies Your Install.

    • Pre-assembled to reduce on-site labor and installation time
    • Standalone or system-integrated flexibility for any project size
    • Plug-and-play setup with the entire CQ ecosystem
    • Built on decades of experience in AVL power infrastructure
    FEATURES

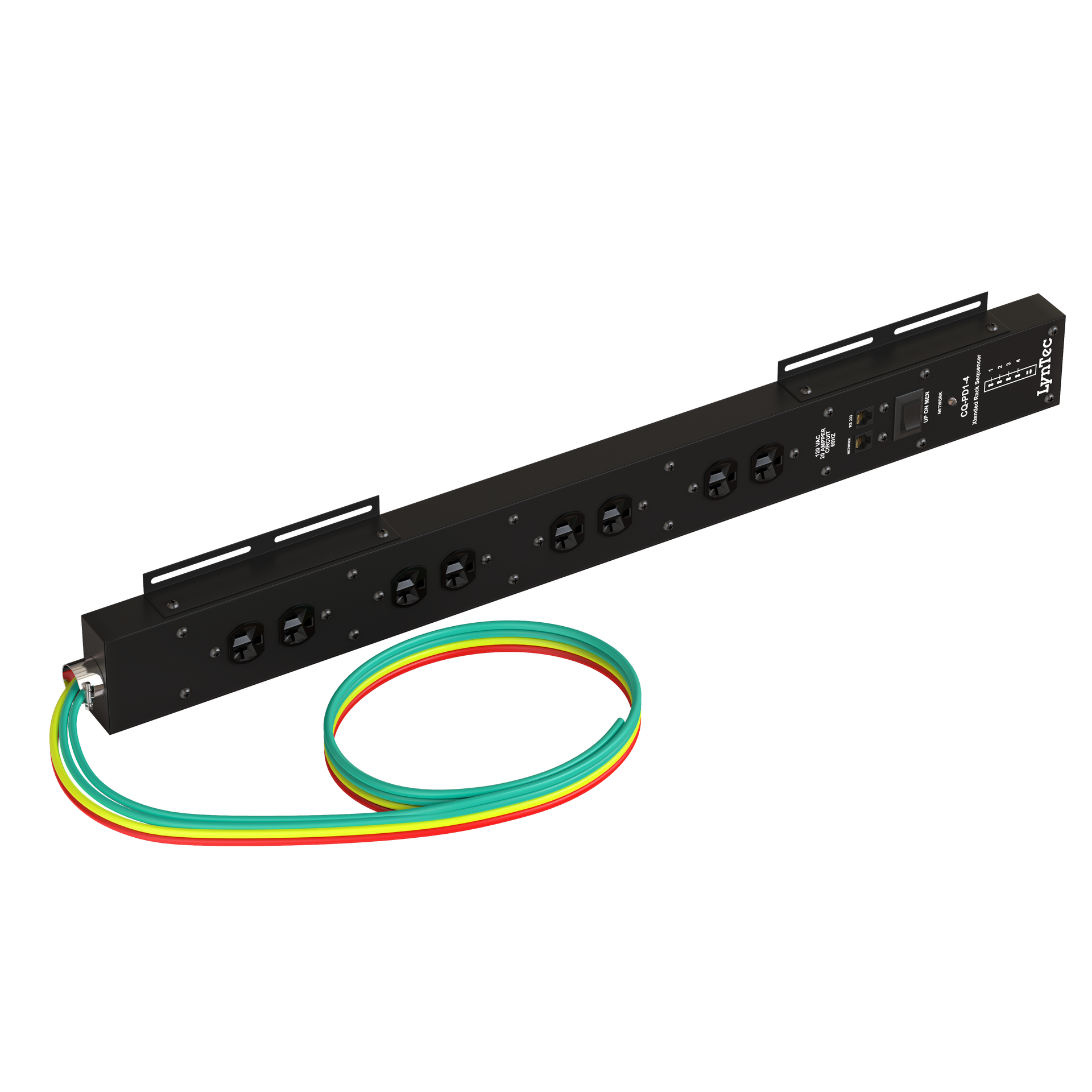

    CQ PD1-4 Features

    Explore the standard capabilities engineered to simplify installation and ensure reliable operation.
    CAPABILITIES

    Features

    Four-Step Sequencing

    Provides a timed power-up sequence across four events to prevent high inrush currents.

    80A Total Capacity

    Delivers ample power for demanding AV systems, distributed across four 20A circuits.

    Four 20A Duplex Outlets

    Offers four standard NEMA 5-20R duplex receptacles for connecting equipment.

    Standalone Operation

    Contains all necessary control logic to function as a self-contained sequencing solution.

    CQ Series Integration

    RJ45 input and output ports allow for easy communication with other CQ devices.

    Compact, Behind-Rack Design

    Saves valuable rack space with a chassis designed for mounting in the rear of an enclosure.

    Hardwire Ready

    Features an external wire harness and flexible conduit for direct connection to a junction box.

    Plug-and-Play Setup

    Engineered for simple installation and operation right out of the box.
    01

    Streamlined Installation

    A single, pre-assembled unit reduces specification complexity and on-site labor compared to multi-part sequencing systems.
    • Single part number for easy ordering
    • Pre-assembled and wired from the factory
    • Includes flexible conduit for direct hardwiring
    02

    Scalable Sequencing Control

    Operates autonomously out of the box or connects with other CQ Series devices to create a synchronized, system-wide sequencing network.
    • Functions as a standalone sequencer
    • Integrates with any CQ Series device
    • RJ45 ports for simple daisy-chain communication
    03

    Robust Power Distribution

    Provides a total of 80 amps of power, organized into four sequenced 20-amp circuits to safely manage equipment in a fully loaded rack.
    • 80A total power capacity
    • Four independent 20A circuits
    • Four-step sequence protects sensitive electronics
    SPECIFICATIONS

    CQ PD1-4 Specifications

    All the technical details needed for system design and integration.

    CQ PD1-4 Technical Specifications

    Technical details for integrating the CQ PD1-4 into your installation.

    Electrical

    • Total Current Rating
      80A
    • Number of Circuits
      4
    • Per-Circuit Rating
      20A
    • Receptacles
      4 x NEMA 5-20R Duplex
    • Power Input Connection
      Flexible Conduit

    Control

    • Sequence Events
      4
    • Communication Bus
      CQ Series
    • Communication Ports
      2 x RJ45 (Input/Output)

    Physical

    • Chassis Dimensions (W x H x D)
      33 in x 3.5 in x 2.5 in
    • Mounting
      Behind-rack or surface mount

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    CQ PD1-4 Support

    Find documentation, guides, and answers to common questions about the CQ PD1-4.
    FAQ

    FAQs about the CQ PD1-4

    Does the CQ PD1-4 require a primary controller to operate?

    No, the CQ PD1-4 is a fully autonomous sequencer with all necessary control circuitry built in. It can operate independently or be connected to other CQ Series devices for synchronized control.

    How do I connect multiple CQ units together?

    CQ Series devices connect to each other using standard RJ45 network cables via the input and output ports, creating a simple, daisy-chained communication bus for system-wide sequencing.

    How does the CQ PD1-4 connect to the main power source?

    The unit includes an external wire harness and flexible conduit, allowing it to be hardwired directly into a junction box or circuit breaker panel by a qualified electrician.

    What is the total power capacity of the CQ PD1-4?

    The CQ PD1-4 has a total power capacity of 80 amps. This is distributed across four independent, 20-amp circuits, each with its own duplex receptacle.

    Where is this unit typically installed?

    Its compact design is optimized for installation in the back of a standard equipment rack or enclosure, saving valuable space while providing convenient power distribution.
