    CQ 50

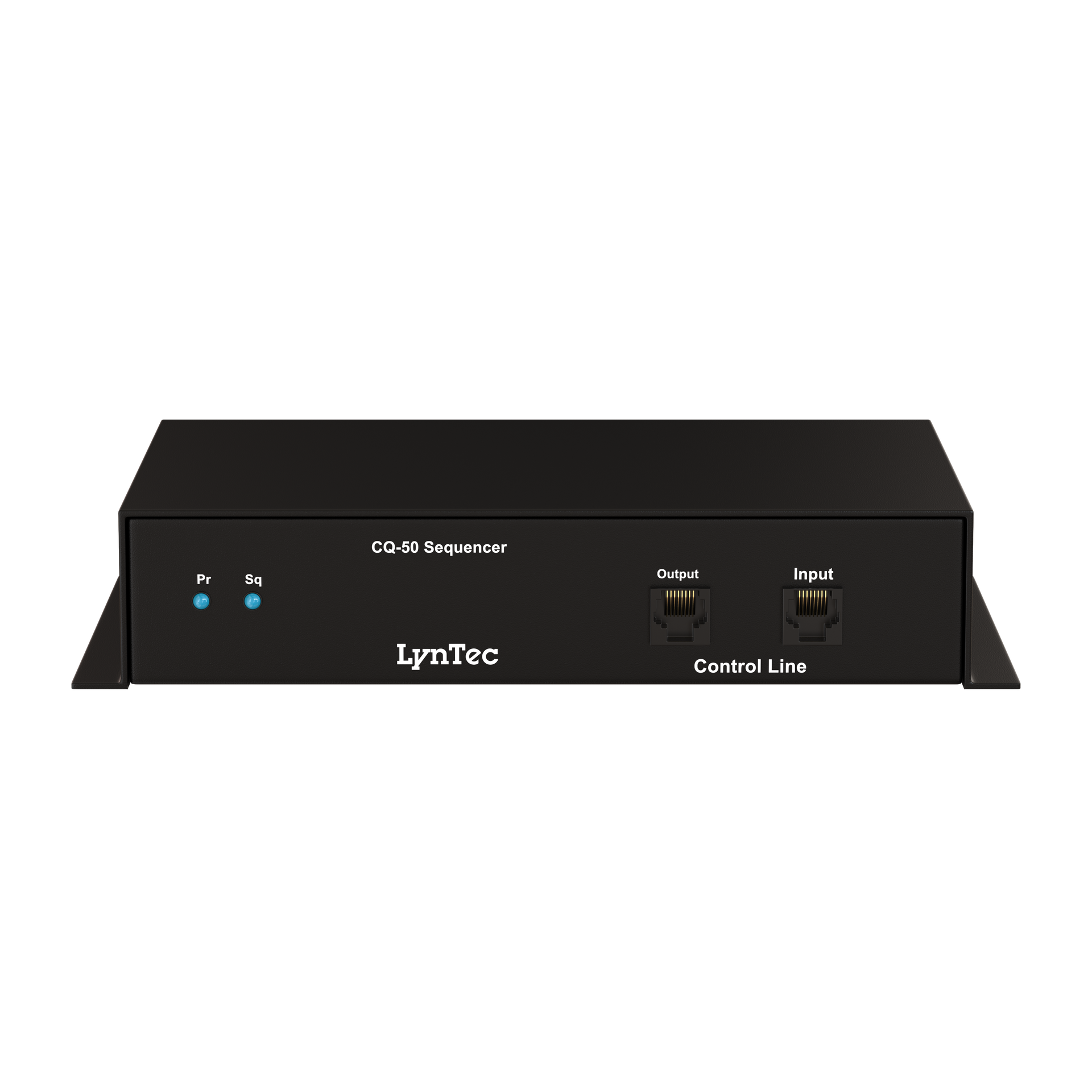

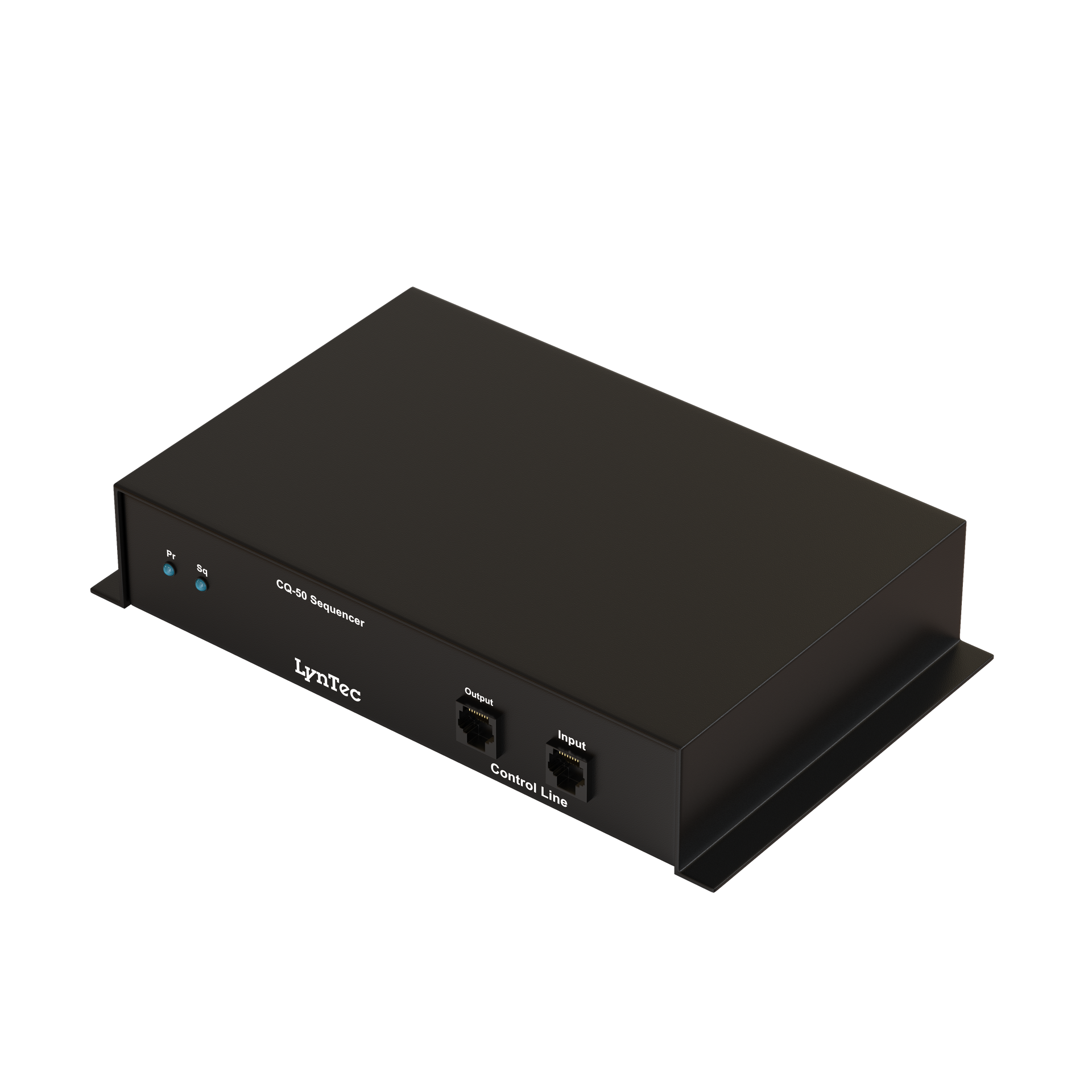

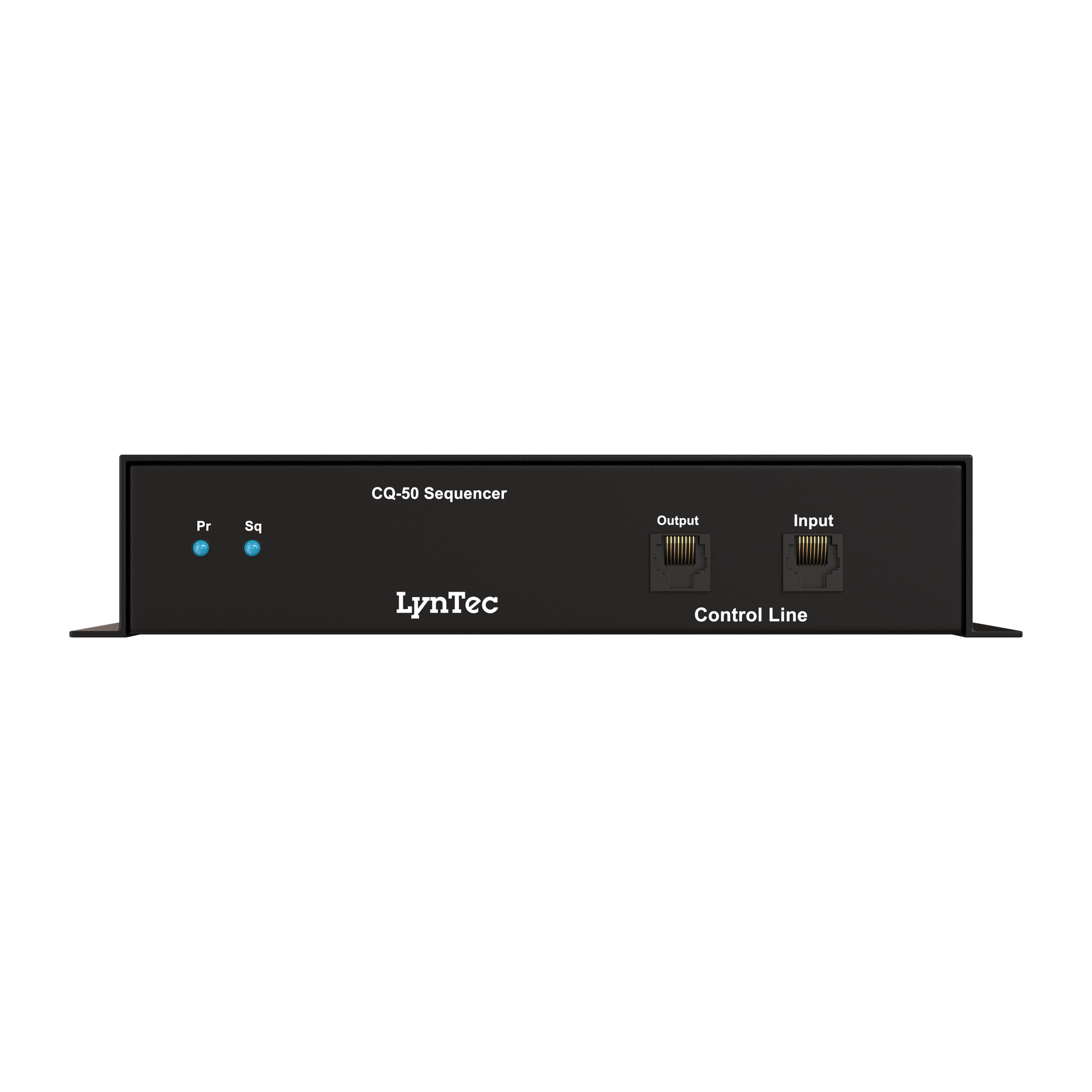

    Compact 15A power sequencer for distributed, non-racked AV equipment.

    The CQ 50 is a compact, surface-mountable power distribution module that provides single-event sequencing for two 15A outlets. It simplifies power control for distributed, non-racked equipment like projectors and powered speakers, allowing remote sequencing from a central location.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    The CQ Series offers modular, standalone power sequencers designed for simple and reliable operation. Units can be easily linked with RJ-45 cables to create scalable, synchronized power-up sequences for AV systems of any size, without requiring a central controller.
    Simplified Sequencing for Distributed Systems

    Service

    15A / 120V

    Outlets

    2 Switched, 1 Always On

    Sequencing

    1 Event

    Control

    Contact Closure

    Form Factor

    Surface Mount
    CQ SERIES SEQUENCER

    Extend sequenced power control beyond the rack.

    The CQ 50 brings reliable, sequenced power control to equipment located outside of a traditional AV rack. This compact module is designed for simple surface mounting near projectors, powered speakers, or other distributed AV hardware, providing a single sequencing event for two 15A outlets.

    It integrates seamlessly into the broader CQ family, allowing it to be daisy-chained with other CQ sequencers for synchronized, multi-zone startup and shutdown. Control can be triggered from any other CQ device, a simple contact closure, or a dedicated LynTec RC5 remote control accessory. With its plug-and-play design and detachable power cord, the CQ 50 simplifies installation and provides a dependable power foundation for any piece of gear in your facility.

    COMPATIBLE ACCESSORIES

    Expand your CQ 50 installation.

    Control accessories and companion sequencers that integrate directly with the CQ 50.

    Other CQ Series Sequencers

    Daisy-chain with any CQ Series unit for scalable, synchronized power sequencing across multiple locations.

    RC5 Remote Controls

    Connect RC5 series remote controls, such as the RC5-KPS or RC5-WM, for secure, manual control of the power sequence.

    Third-Party Contact Closures

    Integrates with any latching dry contact closure from automation systems, relays, or simple switches.

    Distributed AV Equipment

    Provides sequenced power for non-racked gear like projectors, powered speakers, and digital signage.
    WHY LYNTEC

    Reliable Sequencing. Simplified Installation.

    • Plug-and-play setup right out of the box
    • Daisy-chain with other CQ units for scalable systems
    • Durable metal chassis for long-term reliability
    • US-based support for design and installation questions
    FEATURES

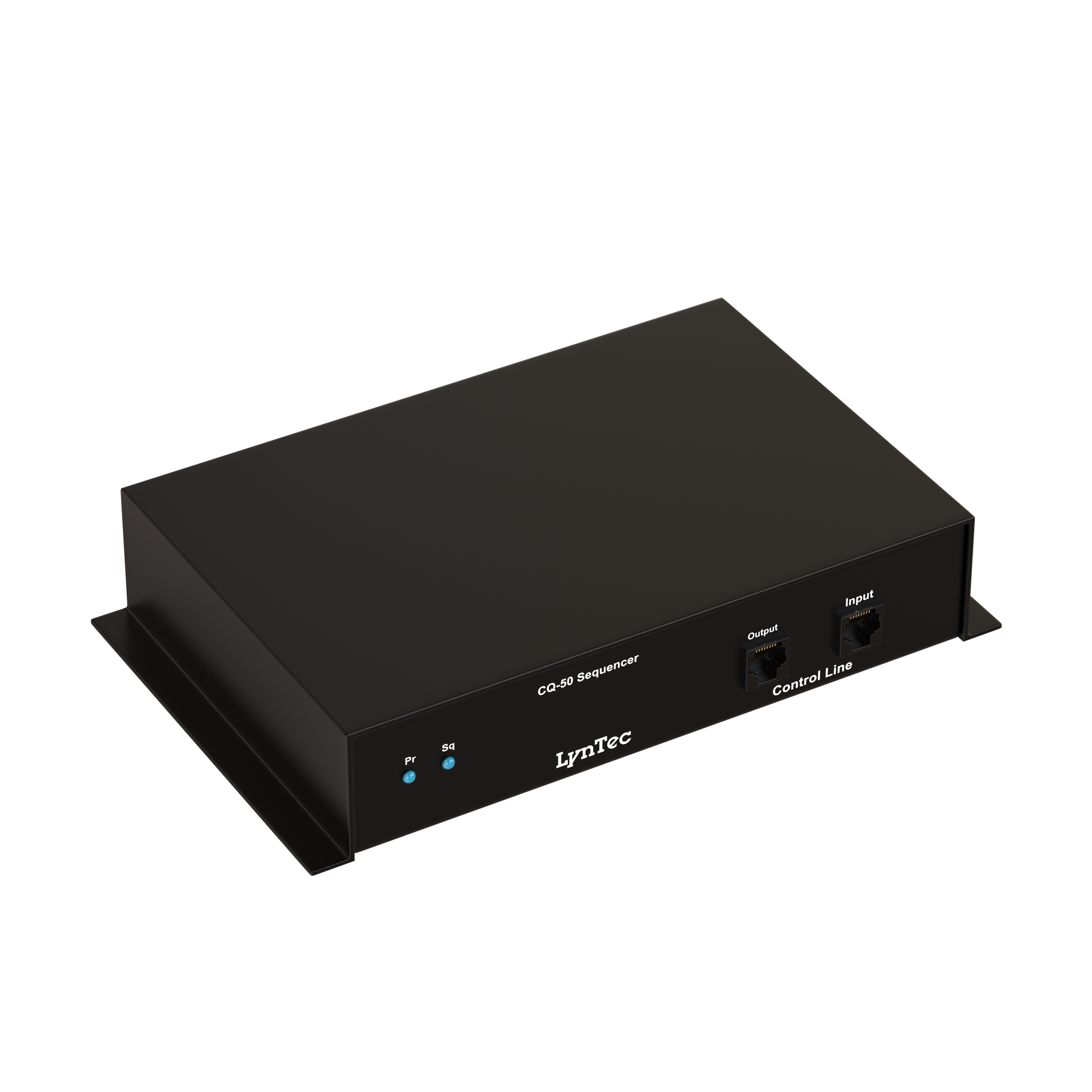

    CQ 50 Features

    Explore the standard capabilities engineered into every CQ 50 for simple, reliable power sequencing.
    CAPABILITIES

    Features

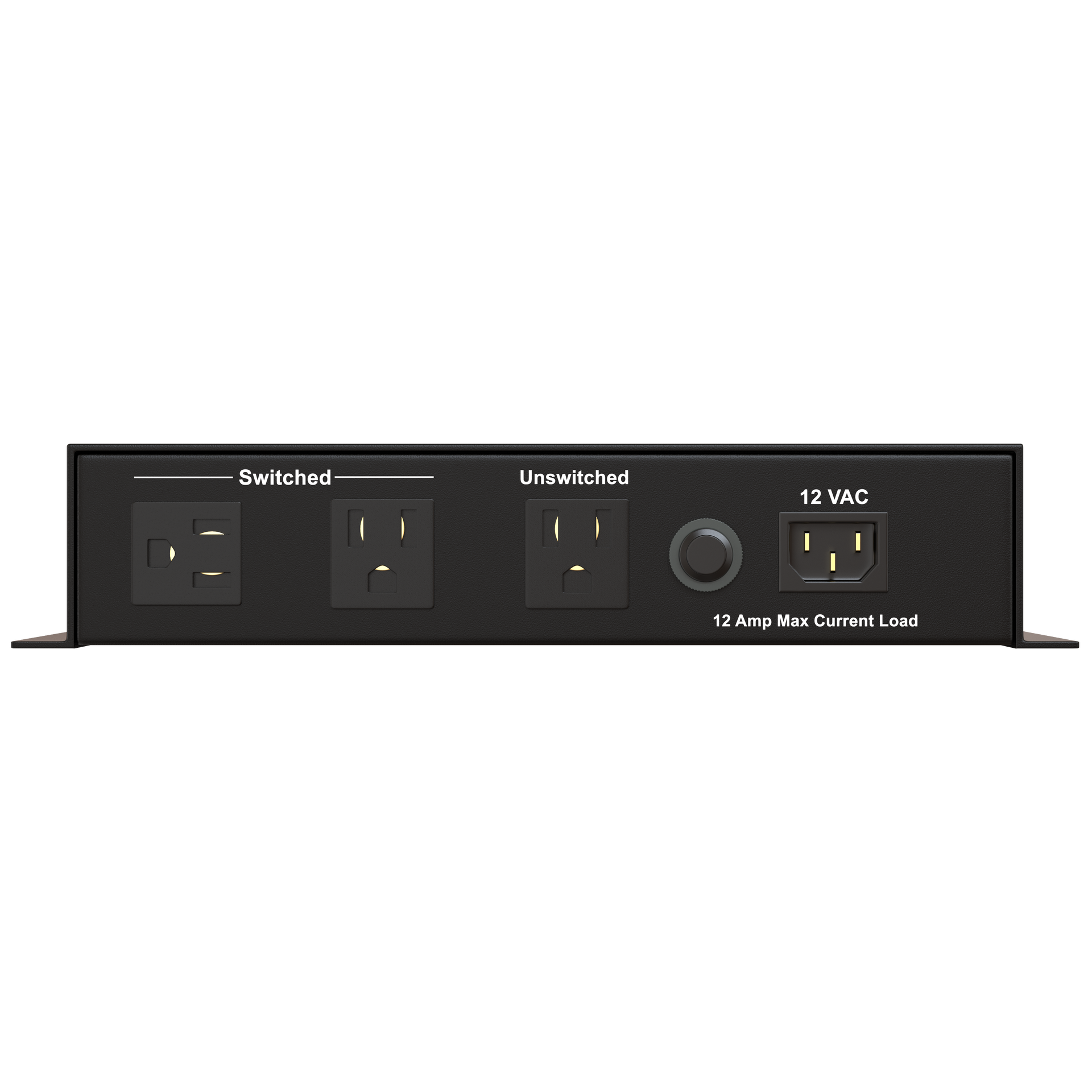

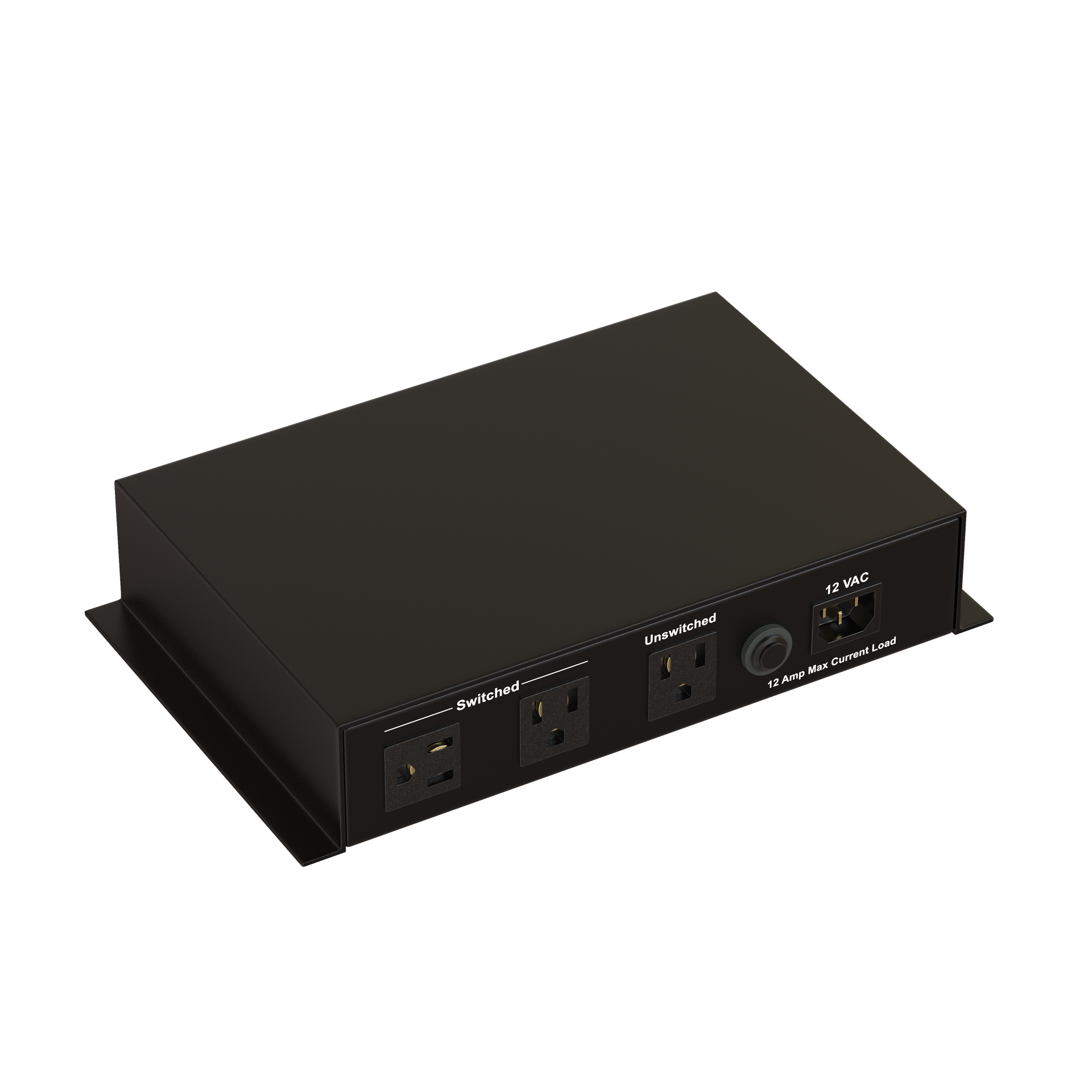

    Two Switched Outlets

    Provides sequenced power to connected equipment on a single step.

    One Unswitched Outlet

    A convenience outlet that is always on for devices that do not require sequencing.

    Single Sequence Event

    Simplifies operation by activating both switched outlets simultaneously.

    Daisy-Chain Control

    RJ45 ports allow simple, scalable linking with other CQ Series devices.

    Contact Closure Trigger

    Can be controlled by a simple remote switch, relay, or RC5 accessory.

    Detachable Power Cord

    Allows for easy installation and adaptation to different site requirements.

    Surface-Mount Chassis

    Integrated mounting flanges for secure installation on walls, shelves, or structures.

    15A Circuit Breaker

    Provides overcurrent protection for connected devices.
    01

    Power Control Beyond the Rack

    The compact, surface-mount chassis is engineered to bring safe, sequenced power to non-racked equipment like projectors, displays, and powered speakers.
    • Two switched outlets on a single sequence event
    • One unswitched convenience outlet
    • Mounts easily to any stable surface
    02

    Simple, Scalable Control

    Integrates with other CQ Series sequencers or simple contact closures, enabling scalable system designs without complex programming or a dedicated primary controller.
    • RJ45 input and output ports for daisy-chaining
    • Trigger with any latching contact closure switch
    • Compatible with LynTec RC5 remote controls
    03

    Engineered for Easy Installation

    The plug-and-play design gets you up and running quickly. A detachable power cord provides flexibility for various installation requirements.
    • Plugs into any standard 15A AC outlet
    • Durable metal enclosure for long-term reliability
    • No on-site commissioning or software setup required
    SPECIFICATIONS

    CQ 50 Specifications

    All electrical, control, and physical data needed to specify the CQ 50 for your project.

    CQ 50 Technical Specifications

    Technical details for integrating the CQ 50 into your installation.

    Electrical

    • Input Voltage
      120 VAC, 60 Hz
    • Maximum Current
      15A
    • Outlets
      2x Switched NEMA 5-15R, 1x Unswitched NEMA 5-15R
    • Power Cord
      Detachable, NEMA 5-15P
    • Overcurrent Protection
      15A Circuit Breaker

    Control

    • Control Input
      RJ45 (for CQ signal or contact closure)
    • Control Output
      RJ45 (for daisy-chaining to next CQ unit)
    • Trigger Mechanism
      Latching contact closure or CQ signal line

    Physical

    • Chassis
      Powder-coated steel
    • Mounting
      Surface mount via integrated flanges
    • Dimensions (W x H x D)
      5.0″ x 2.5″ x 4.5″
    • Weight
      2.5 lbs

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    CQ 50 Support

    Find documentation, application notes, and answers to common questions about the CQ 50.
    FAQ

    FAQs about the CQ 50

    Can I use multiple CQ 50s together in a sequence?

    Yes. The dedicated RJ45 input and output ports are designed for daisy-chaining. You can link any number of CQ Series devices together to create a synchronized power-up and power-down sequence across your entire system.

    Does the CQ 50 require a primary controller?

    No, the CQ 50 and the entire CQ Series are designed for standalone operation. A sequence can be initiated from any unit in a daisy-chain or from a simple, third-party contact closure, eliminating the need for a separate primary controller.

    How do I control the CQ 50?

    The CQ 50 can be triggered in two ways. You can daisy-chain it from another CQ Series sequencer using the RJ45 ports, or you can use a simple latching contact closure device, such as a key switch or a relay connected to the input port.

    What is the unswitched outlet for?

    The unswitched outlet provides constant power that is not part of the sequence. It’s a convenience outlet perfect for devices that need to remain on at all times, such as small network switches or utility lighting.

    What kind of equipment is the CQ 50 designed for?

    The CQ 50 is ideal for any non-racked AV equipment that requires sequenced power. Common applications include powering on projectors, video displays, powered speakers, and other distributed hardware that needs to be controlled from a central point.

    NEXT Features
    BACK Overview NEXT Specifications
    BACK Features NEXT Product Support
    BACK Specifications NEXT Contact Us

    Need to extend sequenced power control?

    Our team can help you design a complete sequencing solution for your facility, including both racked and distributed equipment. Contact us to review your project requirements.
