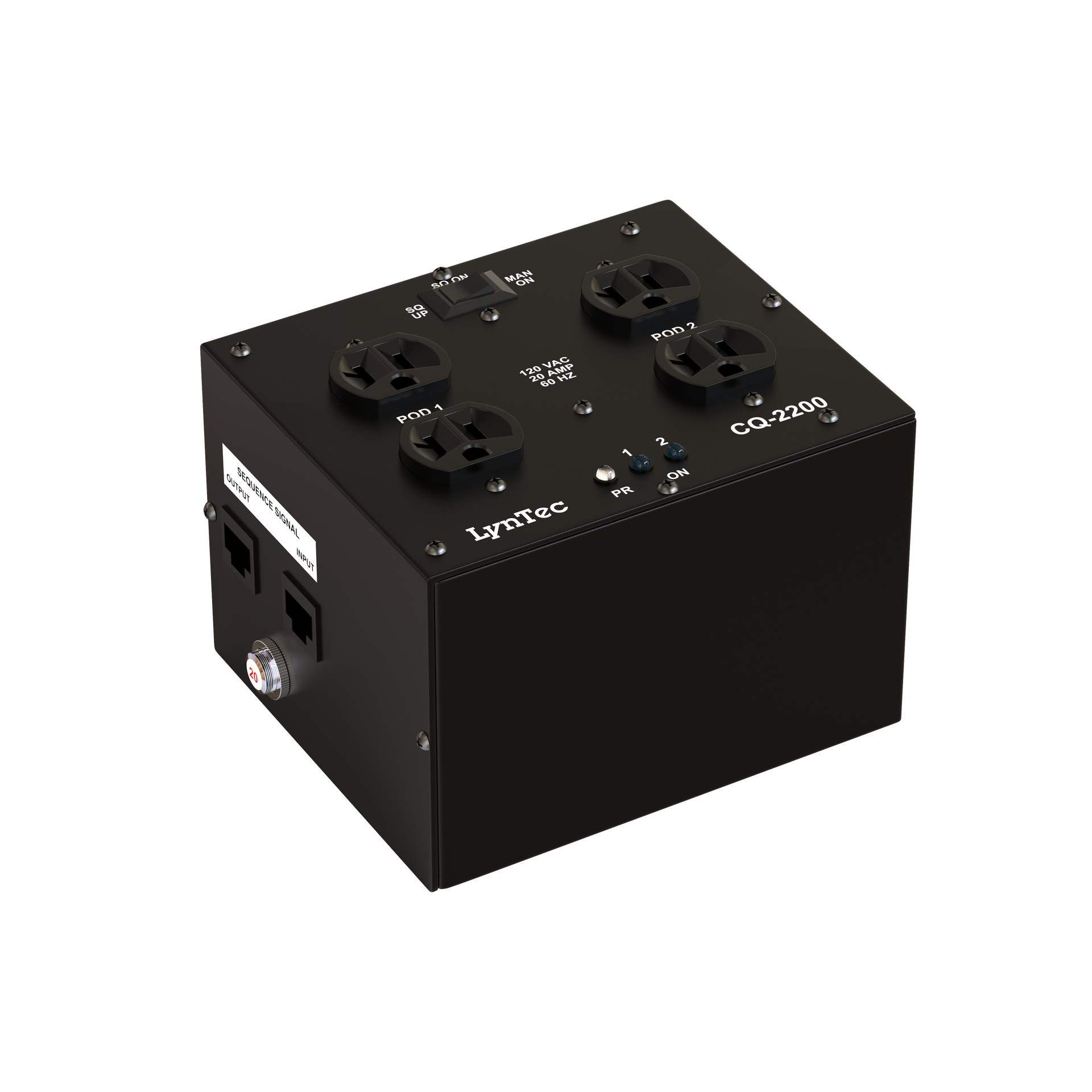

    CQ 2200

    Hardwired power sequencer with two timed events for 20A circuits.

    The CQ 2200 is a compact, hardwired power sequencer that provides two timed events to manage inrush current on a single 20A circuit. It is designed for smaller AVL systems where installers need to stage amplifier power-up or create simple, reliable on and off audio equipment delays.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    The CQ Series offers modular, standalone power sequencers designed for simple and reliable operation. Units can be easily linked with RJ-45 cables to create scalable, synchronized power-up sequences for AV systems of any size, without requiring a central controller.
    Reliable Sequencing, Simplified

    Service

    20A / 120V

    Sequence Events

    2

    Outlets

    2x NEMA 5-20R

    Control

    Contact Closure

    Form Factor

    Chassis Mount
    POWER SEQUENCING

    Staged power-up for single 20A circuits, simplified.

    High-current devices like power amplifiers can overload a circuit if they all turn on at once. The CQ 2200 solves this by staging the power-up sequence across two events, preventing inrush current trips on a single 20A service. This simple, hardwired unit includes two 20A duplex receptacles, allowing you to separate front-end equipment from amplification on a timed delay for safer, more reliable system operation.

    Engineered for straightforward installation, the CQ 2200 can operate as a standalone sequencer or be integrated with other CQ Series devices for multi-zone control. Remote activation is managed via a simple contact closure, making it easy to connect to key switches or control systems without proprietary accessories. It’s a practical, economical solution for managing power in smaller AVL installations.

    COMPATIBLE ACCESSORIES

    Expand your CQ 2200 installation.

    The CQ 2200 integrates with other CQ Series devices and remote controls for a complete sequencing solution.

    Other CQ Series Sequencers

    Daisy-chain multiple CQ units to create a synchronized, multi-circuit power sequencing system.

    RC5 Series Remote Controls

    Provides secure, convenient remote operation via wall-mounted key switches or rack-mounted controls.

    RCDM Series Combiners

    Allows sequencer control from multiple locations and connects to emergency alarm triggers for automated shutdown.
    WHY LYNTEC

    Dependable Power Control, Built to Last.

    • Engineered for simple, reliable operation
    • Reduces electrical service requirements
    • Easy to install and use with no complex programming
    • Built on four decades of power control experience
    FEATURES

    CQ 2200 Features

    Core capabilities designed for simple installation and reliable operation.
    CAPABILITIES

    Features

    Two Sequence Events

    Stages power-up and power-down to manage high inrush loads on a single circuit.

    20 Amp Capacity

    Provides reliable power for demanding audio and video equipment.

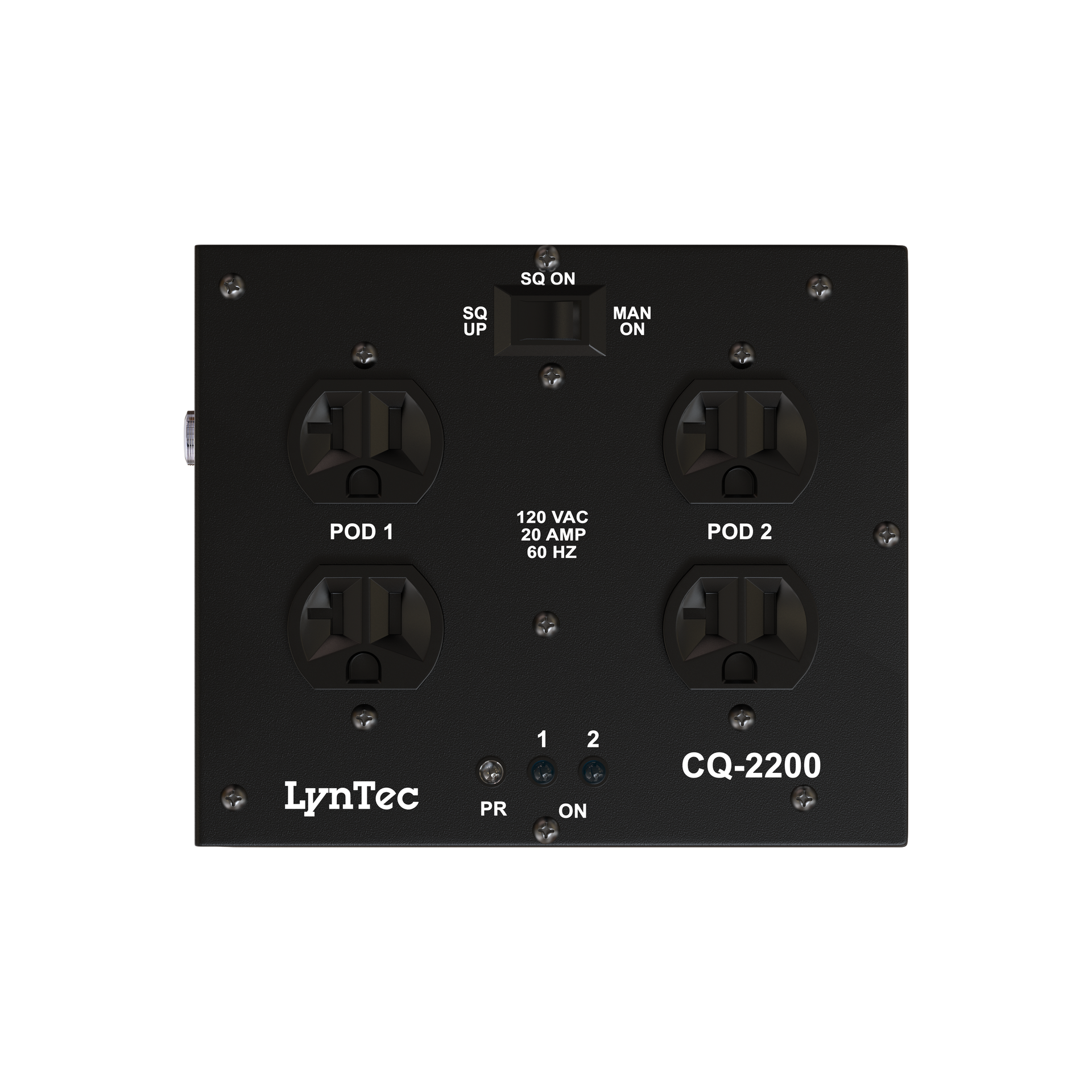

    Two Duplex Outlets

    Connect up to four devices across the two timed sequence events.

    Contact Closure Control

    Allows for simple remote activation from a switch or control system.

    Standalone or System Operation

    Functions independently or connects with other CQ devices for larger systems.

    Hardwired Installation

    Designed for permanent, secure installation behind the rack.
    01

    Prevent Inrush Overloads

    Two sequence events stage the turn-on of connected equipment, reducing the startup current surge on a single 20A circuit.
    • Protects sensitive electronics
    • Avoids nuisance circuit breaker trips
    • Ideal for staging power amplifiers
    02

    Simple, Flexible Control

    Activate the sequence remotely via a simple contact closure, allowing for easy integration with key switches or third-party control systems.
    • No expensive accessories required
    • Integrates with LynTec RC5 key and rotary switches
    • Can operate as a standalone unit
    03

    Built for Behind the Rack

    The compact chassis is designed for hardwired installation behind an equipment rack or in a utility closet, keeping it out of sight.
    • Durable steel enclosure
    • Provides two 20A duplex receptacles
    • Available in an isolated ground version
    SPECIFICATIONS

    CQ 2200 Specifications

    All the technical details needed for system design and installation.

    CQ 2200 Specifications

    Technical details for integrating the CQ 2200 into your installation.

    Electrical

    • Input Voltage
      120 VAC, 60 Hz
    • Maximum Current
      20 Amps
    • Output Receptacles
      2 x NEMA 5-20R Duplex
    • Power Input
      Hardwired

    Control

    • Activation
      Contact Closure

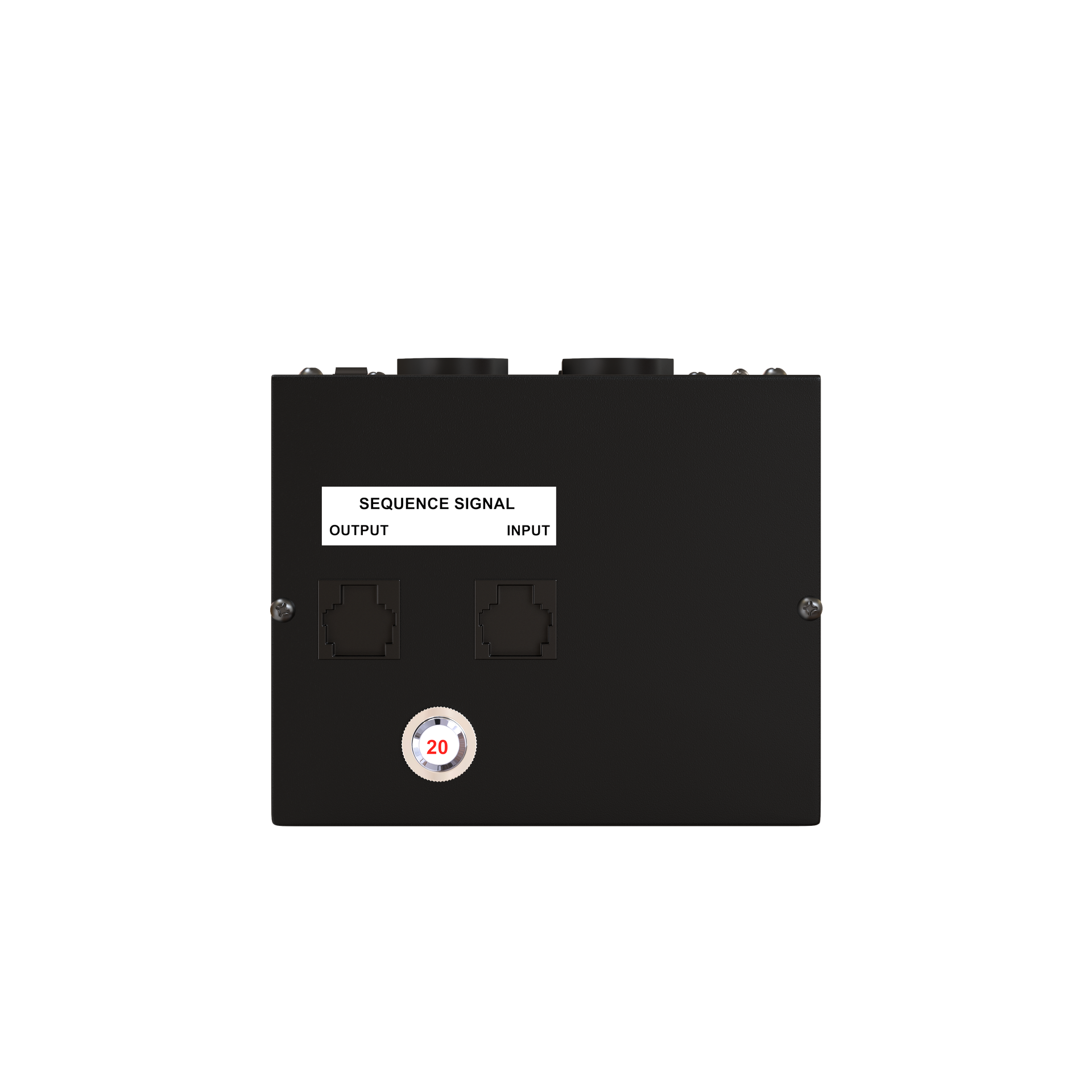

    • Interconnection
      RJ-45 for CQ signal line

    Physical

    • Chassis
      Steel Enclosure
    • Mounting
      Surface mount

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    CQ 2200 Support

    Find datasheets, manuals, and other resources to help with your installation.
    FAQ

    FAQs about the CQ 2200

    Can I use this with other sequencers?

    Yes, the CQ 2200 is part of the CQ Series and can be interconnected with other CQ devices to create larger, synchronized multi-zone sequencing systems. It operates on the same plug-and-play signal line.

    How is the CQ 2200 controlled?

    The CQ 2200 is activated by a simple, low-voltage contact closure. This allows for easy connection to remote key switches, push buttons, or third-party automation systems without needing special equipment.

    What problem does having two sequence events solve?

    Two events allow you to manage high inrush current on a single 20A circuit. You can power on sensitive front-end gear first, then delay the power-on for high-current amplifiers, preventing circuit overloads.

    Where is the CQ 2200 typically installed?

    Its compact chassis is designed to be mounted out of sight, typically behind an equipment rack, inside a cabinet, or in a utility closet. It is a hardwired device intended for permanent installation.
