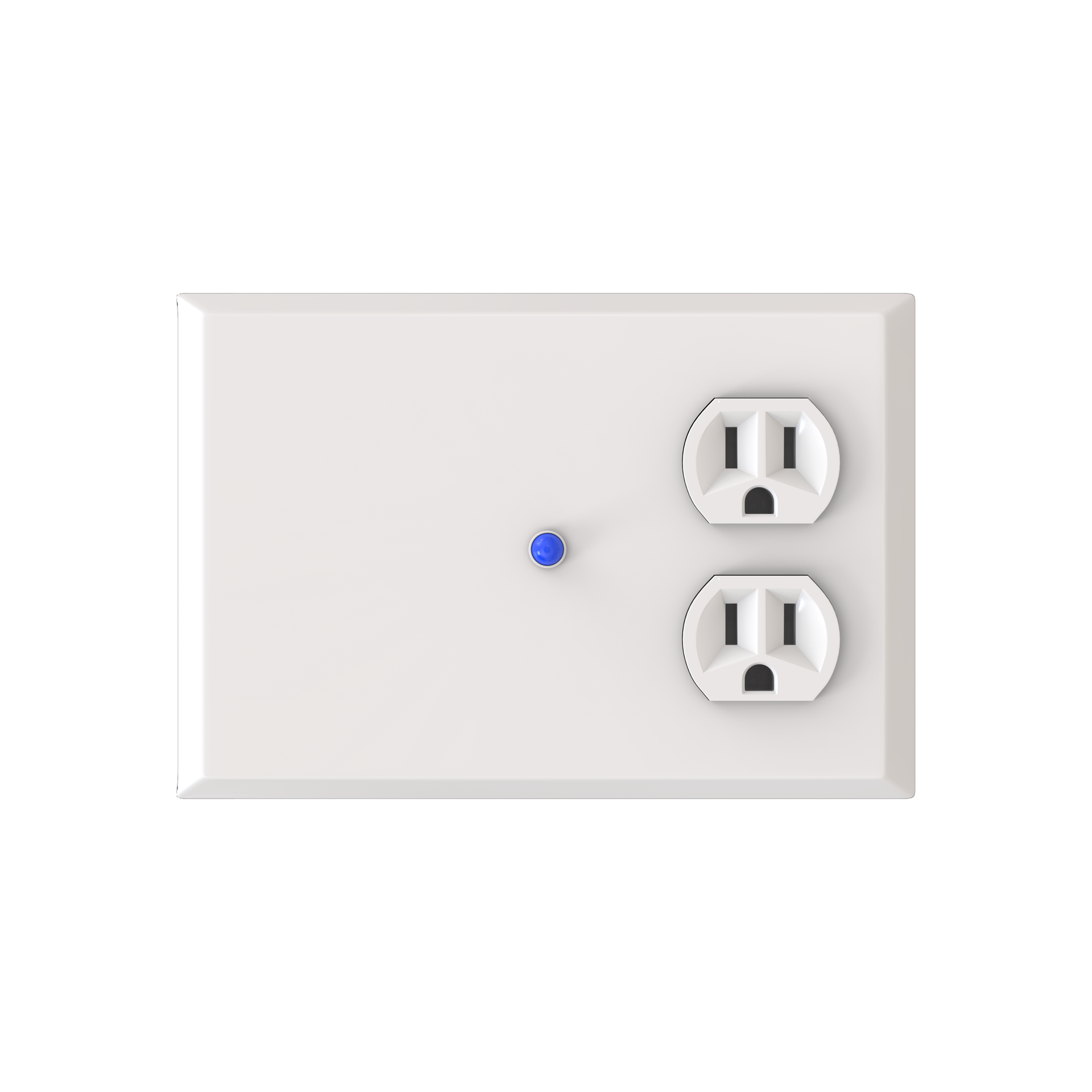

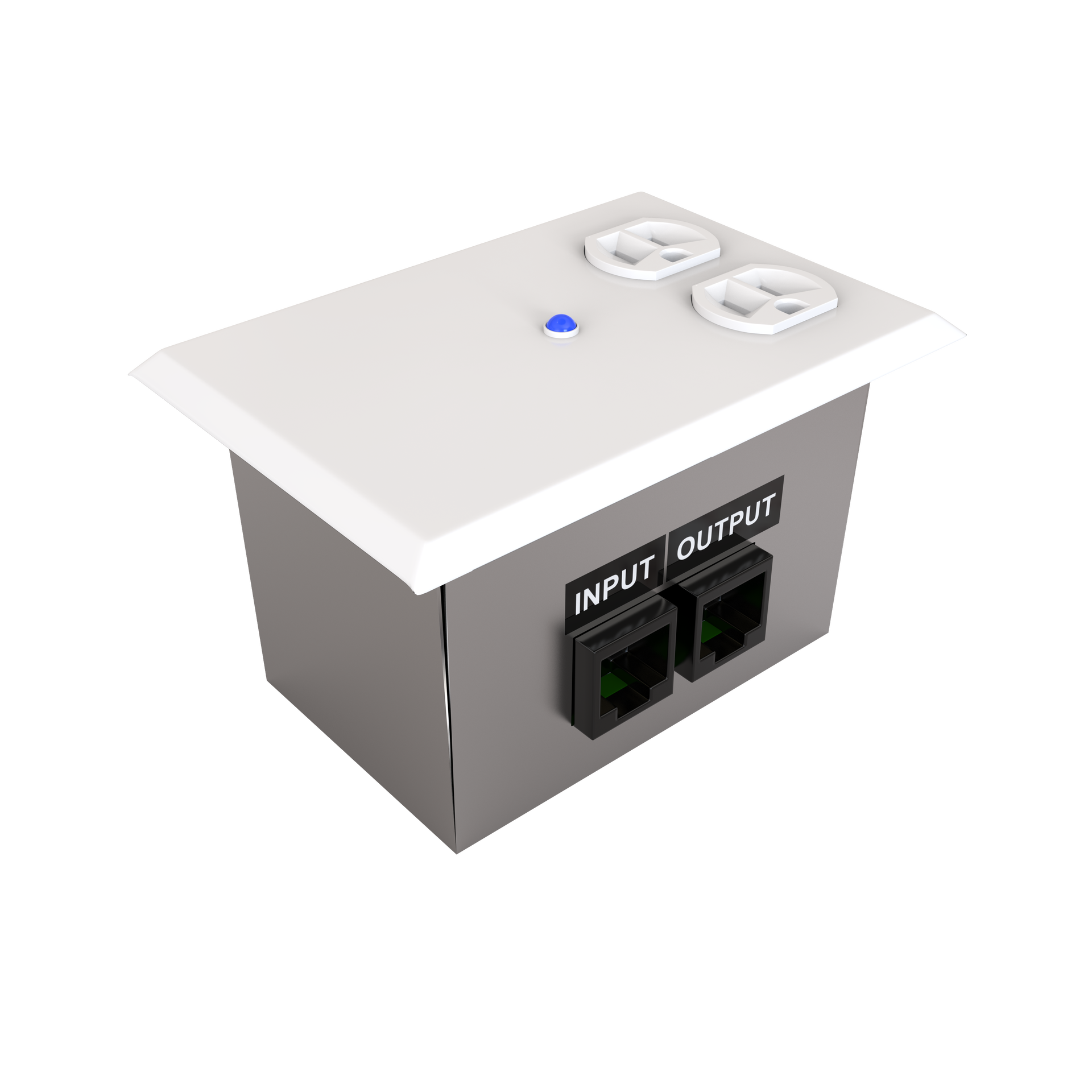

    CQ 1 Sequenced Duplex Receptacle

    Sequenced 15A in-wall duplex receptacle for distributed power control.

    The CQ 1 is a single-circuit power sequencing module with a 15A duplex receptacle designed for installation in a standard three-gang wall box. It provides simple, sequenced power for distributed equipment like powered speakers, simplifying installations in venues without traditional equipment racks for integrators.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    The CQ Series offers modular, standalone power sequencers designed for simple and reliable operation. Units can be easily linked with RJ-45 cables to create scalable, synchronized power-up sequences for AV systems of any size, without requiring a central controller.
    Simplified Distributed Power

    Service

    15A / 120V

    Outlets

    1x NEMA 5-15R

    Form Factor

    3-Gang In-Wall

    Sequencing

    1 Event

    Control

    Contact Closure
    IN-WALL POWER CONTROL

    Sequenced power control, right where you need it.

    The CQ 1 module extends the simplicity of the CQ sequencing platform to any wall, ceiling, or enclosure. It provides a single, sequenced 15A duplex outlet in a compact form factor that fits a standard three-gang electrical box, making it ideal for powering distributed AVL systems like powered speaker arrays or digital signage. There is no complex programming required, just connect the power and link it to other CQ devices using standard network cables.

    This plug-and-play approach simplifies installations that don’t have a central equipment rack, reducing labor and equipment costs. The CQ 1 can operate as a standalone unit triggered by a contact closure or be daisy-chained with other CQ sequencers for coordinated, system-wide power-up and power-down routines, protecting connected equipment and preventing nuisance breaker trips.

    BUILD A SYSTEM

    Expand your CQ 1 installation.

    Pair the CQ 1 with other CQ Series devices for a complete, scalable sequencing system.

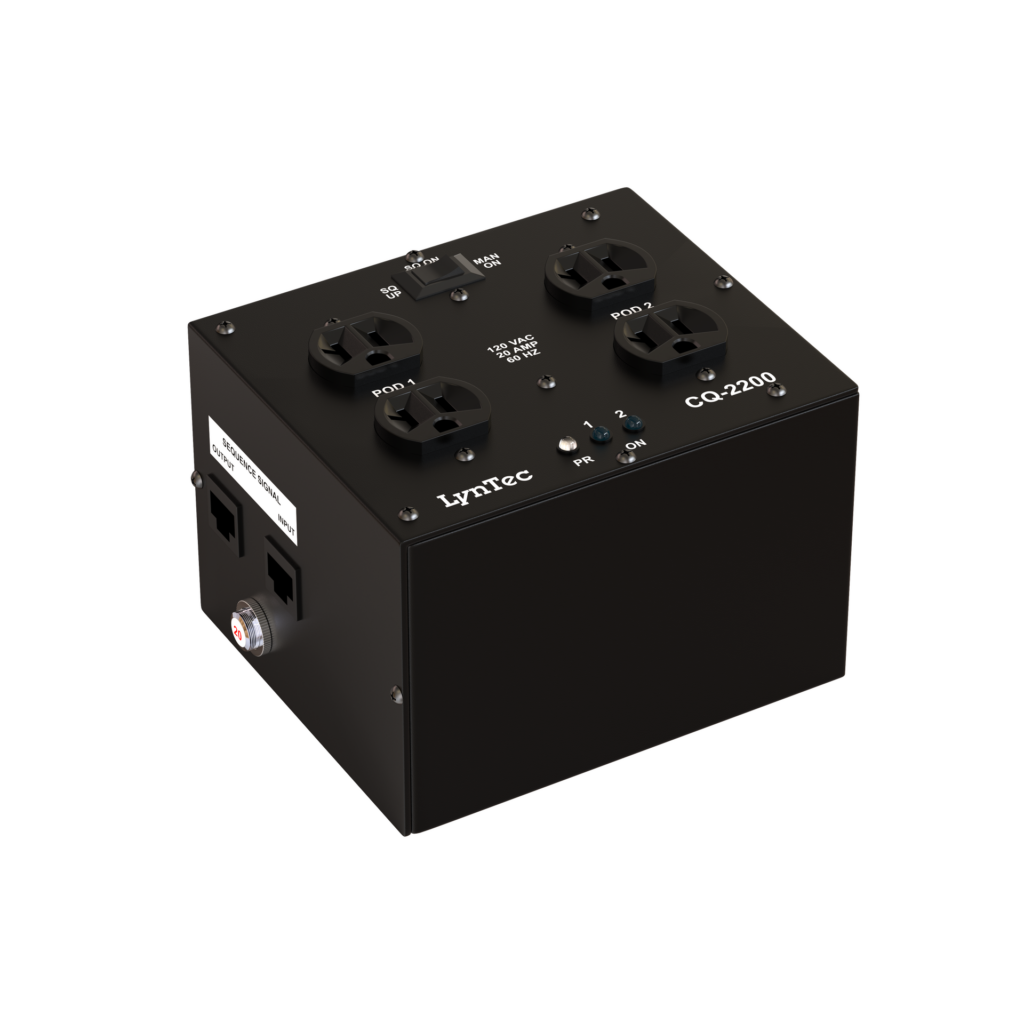

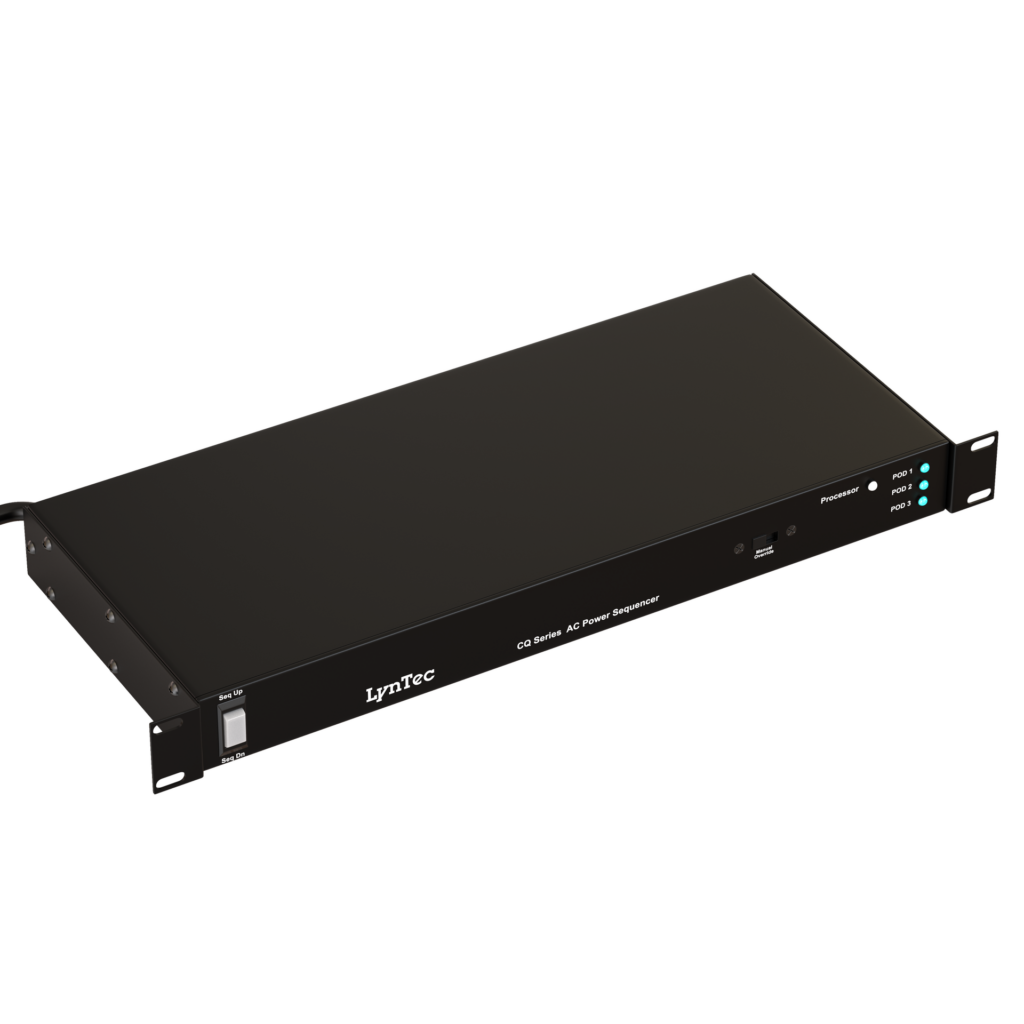

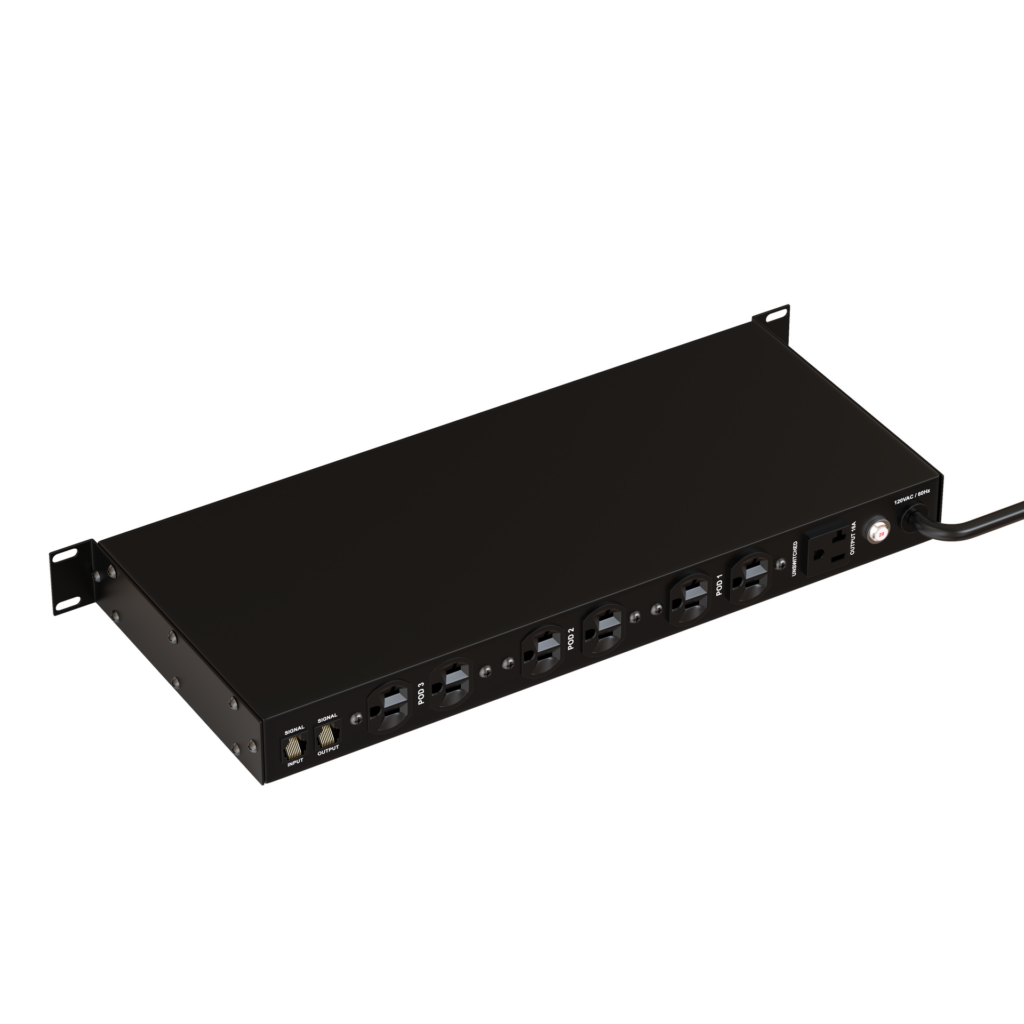

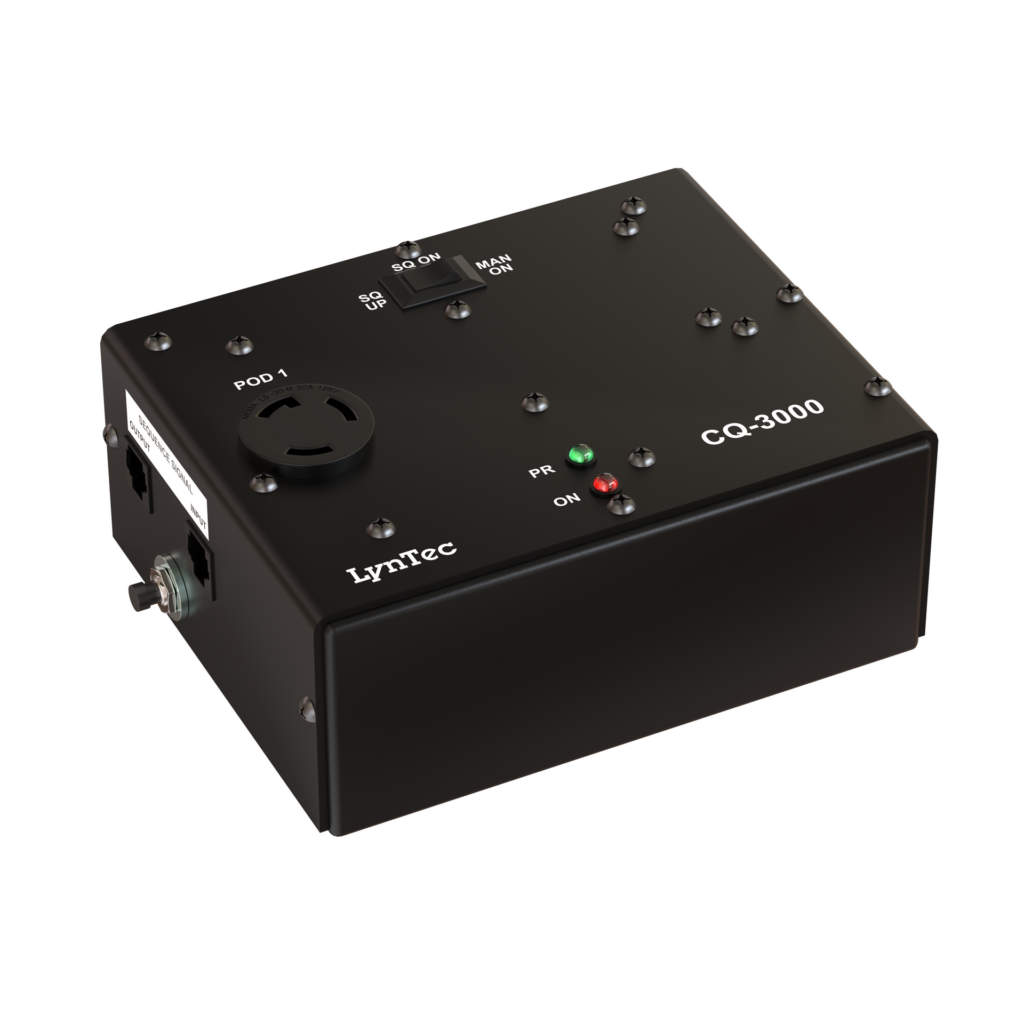

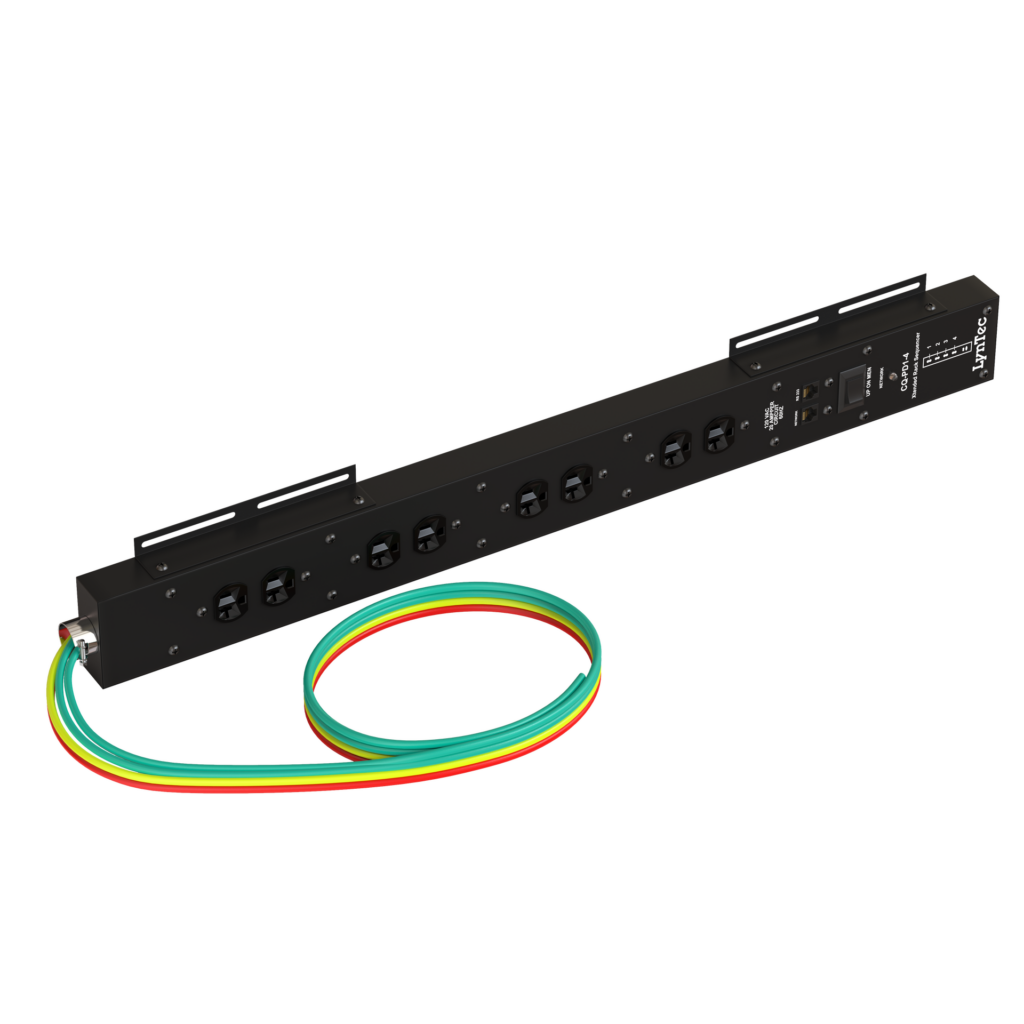

    Other CQ Series Sequencers

    Daisy-chain with any rack-mount or compact CQ sequencer for multi-circuit, multi-location control.

    CQ Remote Controls

    Trigger the sequence with simple wall-mounted keyswitches or push-button controls like the RC5-KPS or RC5-WM.

    Contact Closure Devices

    Integrate with any third-party system that provides a dry contact closure for simple on/off automation.

    Powered Loudspeakers and Displays

    Provides safe, sequenced power ideal for distributed audio systems and digital signage installations.
    WHY LYNTEC

    Power management simplified, for any location.

    • Plug-and-play simplicity reduces installation time
    • Daisy-chain with other CQ units for scalable systems
    • Designed for reliability in distributed applications
    • US-based support for design and installation questions
    FEATURES

    CQ 1 Features

    Core capabilities of the CQ 1 in-wall sequencing module.
    CAPABILITIES

    Features

    15A Duplex Receptacle

    Provides a standard NEMA 5-15R outlet for powering local equipment.

    Single Sequence Event

    Turns the outlet on and off as part of a simple, reliable power sequence.

    Three-Gang Box Installation

    Mounts cleanly into standard in-wall, ceiling, or floor enclosures for a professional finish.

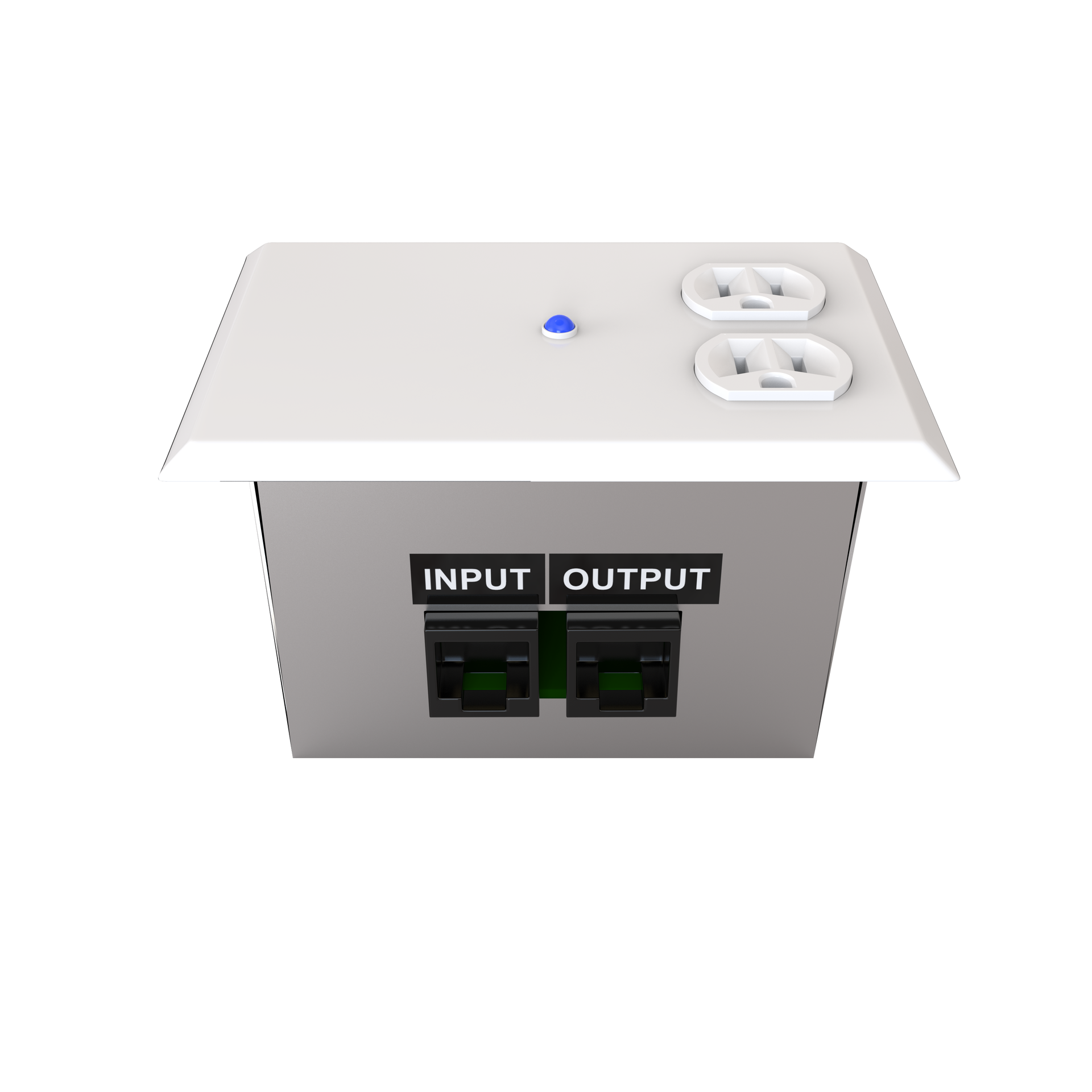

    Daisy-Chain Capable

    RJ-45 input and output ports allow easy linking to other CQ Series sequencers.

    Contact Closure Control

    Can be triggered by a simple keyswitch, relay, or other remote control device.

    Standalone Operation

    Functions independently for simple applications or as part of a larger CQ system.
    01

    Decentralized Power Control

    Install sequenced power exactly where it’s needed without pulling long speaker or power cables back to a central rack.
    • Fits standard 3-gang wall boxes
    • Ideal for powered speakers and projectors
    • Clean, aesthetic finish for public spaces
    02

    Simple, Scalable Sequencing

    The CQ 1 works out of the box and can be daisy-chained with other CQ devices to create a simple, reliable sequencing system.
    • Plug-and-play operation
    • RJ-45 ports for linking units
    • No primary controller or programming needed
    • Trigger via contact closure or other CQ units
    SPECIFICATIONS

    CQ 1 Specifications

    All the technical details needed for specification and installation.

    CQ 1 Technical Specifications

    Key electrical and physical details for integrating the CQ 1 into your installation.

    Electrical

    • Input Voltage
      120 VAC, 60 Hz
    • Load Capacity
      15 Amps
    • Receptacle
      1x NEMA 5-15R Duplex
    • Sequence Events
      1

    Control and Interconnection

    • Trigger Input
      Contact Closure (via RJ-45)
    • Signal Interconnection
      2x RJ-45 (Input / Output)
    • Cabling
      Standard 8-wire network cable

    Physical

    • Mounting
      Standard 3-gang wall box
    • Dimensions (Faceplate)
      6.375” W x 4.5” H
    • Enclosure Depth
      2.75” D
    • Finish Options
      Black, White, Ivory

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    CQ 1 Support

    Find datasheets, manuals, and answers to common questions.
    FAQ

    FAQs about the CQ 1

    Does the CQ 1 require a primary controller?

    No, the CQ 1 is a plug-and-play device that does not require a separate primary controller or any programming. It can operate as a standalone unit or as part of a larger, self-contained CQ system.

    How do I connect multiple CQ 1 units together?

    You can link multiple CQ units using standard eight-wire RJ-45 network cables. Each unit has an ‘Input’ and ‘Output’ port to create a simple daisy-chain for system-wide sequencing.

    How is the CQ 1 controlled?

    The CQ 1 can be controlled in two ways. It can be triggered by a simple remote contact closure from a keyswitch or relay, or it can be daisy-chained with other CQ Series sequencers and follow their sequence commands.

    What is the primary use for the CQ 1?

    The CQ 1 is designed to provide sequenced power to distributed AV equipment, such as powered speakers, projectors, or displays, in locations without a traditional equipment rack. It installs directly into a wall, ceiling, or floor box.

    What kind of electrical box does the CQ 1 install in?

    The CQ 1 is designed to fit into a standard three-gang electrical box. Two gangs are for the device itself, and the third provides space for power line connections. A plastic three-gang enclosure is included for convenience.
