SKU: iP-1520-RX Market: North America Series: IP

iP-1520-RX

Web-enabled PDU with RX Series surge protection and 20A service for AV racks.

The iP-1520-RX is a network-controlled power distribution unit that provides remote circuit switching and proven RX Series surge protection for sensitive electronics. It is engineered for AV installations requiring reliable 20A power, remote reboot capability, and advanced protection against ground line voltage surges.

Request a Quote

Where To Buy

IP

Series

Network-addressable power control and distribution units designed for remote management and integration with AV control systems. The IP Series allows for control and monitoring over standard IP networks via a web interface, TCP/IP, or UDP for simplified system automation.

Intelligent Control and Trusted Protection

Service

20A / 120V

Outlets

6 (3 Pods)

Control

IP / Network

Protection

RX Series

Form Factor

Rack Mount

NETWORKED PDU

Remote power control with integrated RX surge protection.

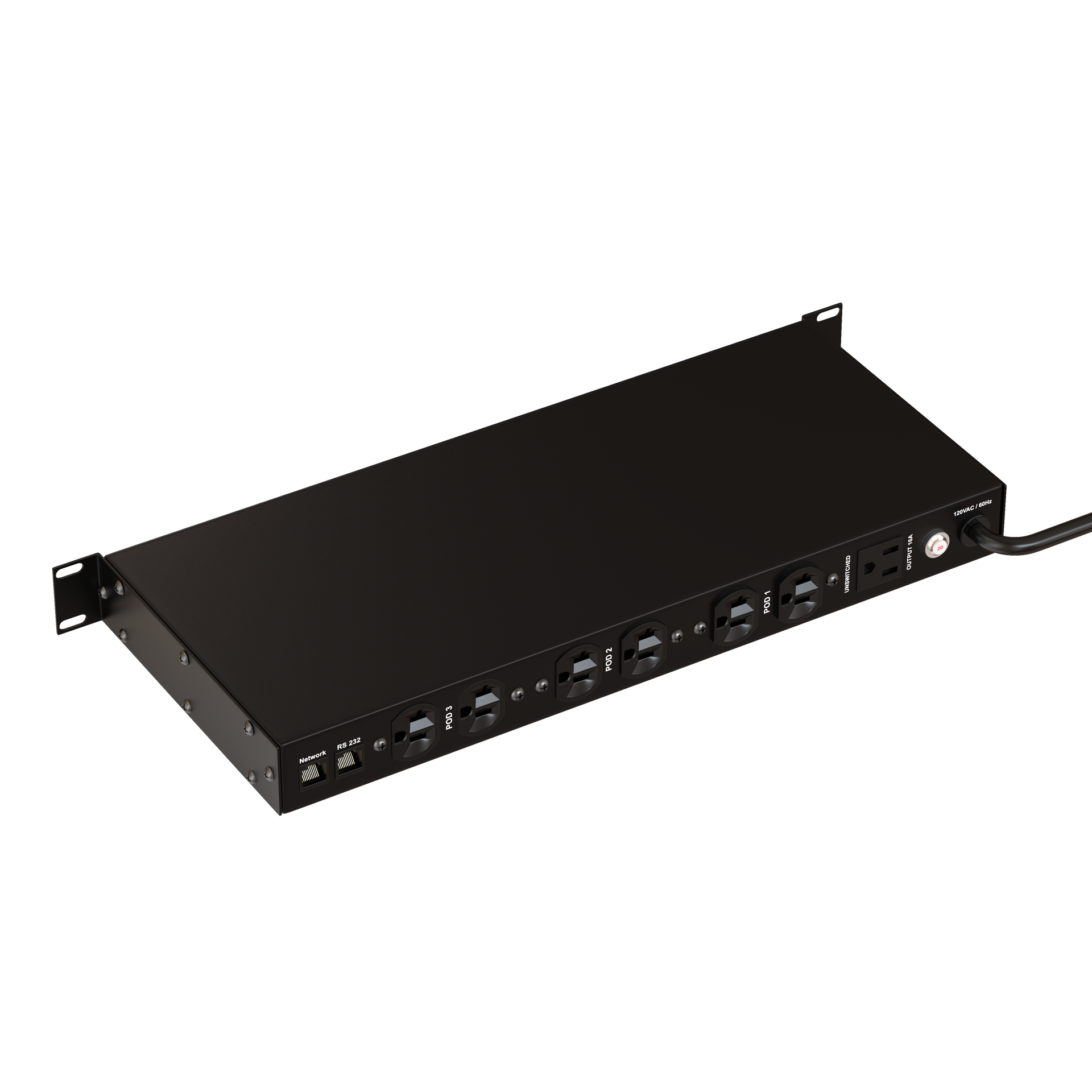

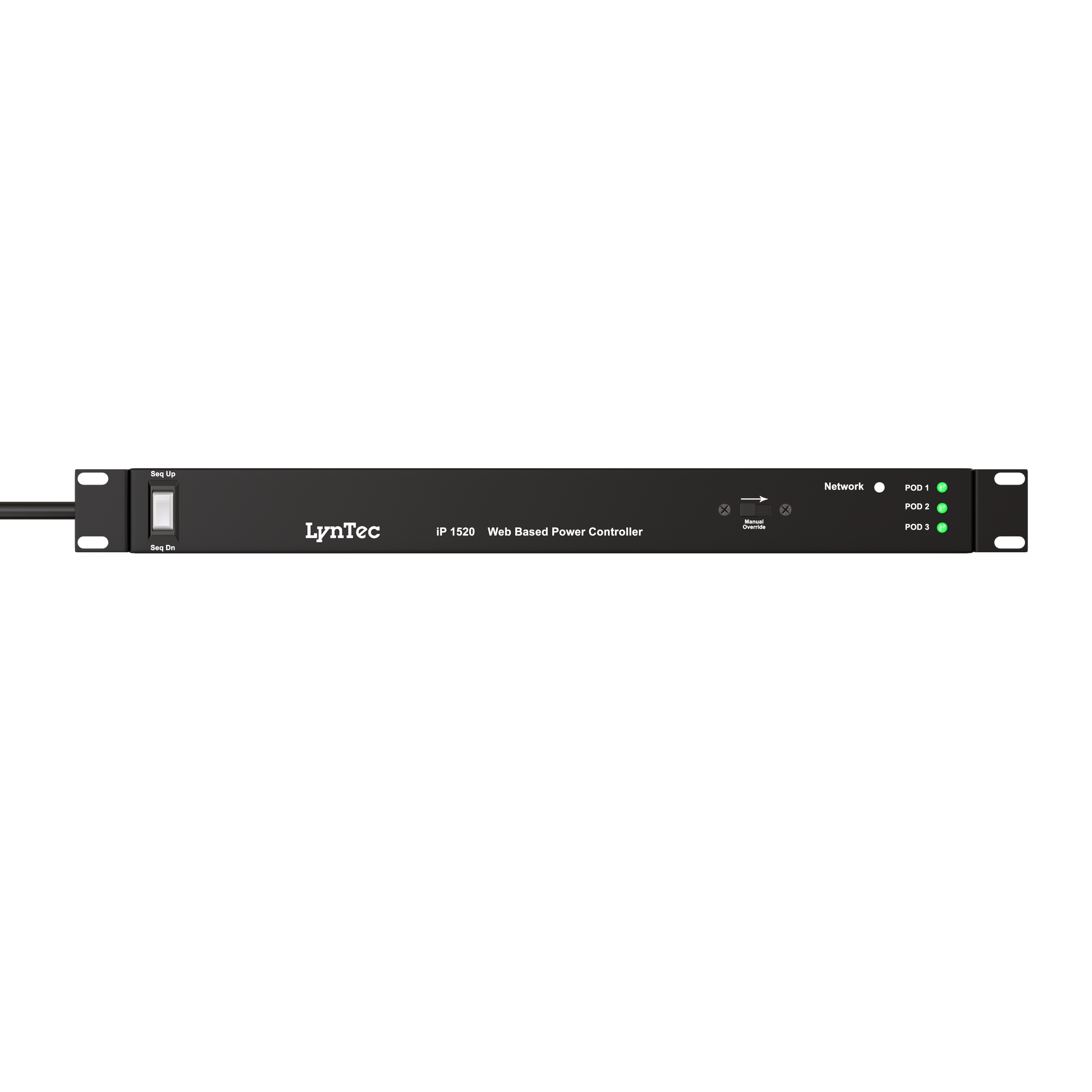

The Juice Goose iP-1520-RX combines intelligent, web-based power management with the trusted performance of RX Series surge protection and filtration. This 20A unit provides remote, individual control over three separate power pods, allowing integrators to switch and sequence equipment from any web browser or via TCP/IP and UDP commands. An onboard web server simplifies setup and provides real-time amperage monitoring for each pod, giving operators clear visibility into system loads.

Engineered for reliability, the iP-1520-RX features robust protection against transient surges and ground line noise, making it an ideal foundation for racks with sensitive digital signal processors and other critical AVL hardware. Local override switches ensure failsafe operation, providing confident control even if the network connection is lost.

IP SERIES FAMILY

Part of the trusted IP Series.

SYSTEM INTEGRATION

Integrate the iP-1520-RX with your system.

The iP-1520-RX is designed to work with standard rack hardware and control systems.

Standard 19-Inch Equipment Racks

The chassis is designed for mounting in any standard 19-inch EIA equipment rack.

Crestron Control Systems

Integrates directly with Crestron automation platforms using a dedicated control module.

Network Management Systems

Control and monitor the unit using any PC or control system that can send TCP/IP or UDP commands.

Digital Signal Processors

The advanced RX Series ground protection is ideal for racks containing sensitive DSPs and other digital audio hardware.

WHY LYNTEC

Intelligent power control, simplified and protected.

Web-based control simplifies remote system management.
Proven RX Series protection for sensitive digital equipment.
Per-pod amperage monitoring provides clear operational insight.
Designed and supported by power experts with decades of AVL experience.

FEATURES

iP-1520-RX Features

Explore the core capabilities for remote control, monitoring, and power protection.

CAPABILITIES

Features

Web Based Power Control

Manage individual power pods remotely via an onboard web server, TCP/IP, or UDP.

RX Series Protection

Provides robust surge protection and AC line filtration against common and normal mode events.

Amperage Monitoring

View real-time current draw from 0.2 to 20.0 amps for each of the three power pods.

Failsafe Sequencing

Local override switch ensures reliable power sequencing even in the event of a network failure.

Automatic Power Cycle

Can be configured to automatically reboot a connected router if network connectivity is lost.

Crestron Integration

A dedicated control module is available for seamless integration into Crestron automation systems.

20 Amp Capacity

Built with a 12-gauge power cord and NEMA 5/20P plug to support 20A circuits.

Control Every Circuit from Anywhere

An onboard web server provides an intuitive interface for remote power switching, sequencing, and monitoring without requiring special software.

Control via HTML, TCP/IP, or UDP
Monitor amperage draw per power pod
Reboot locked-up equipment remotely

Superior Surge and Noise Protection

Features proven RX Series technology to protect sensitive electronics from damaging surges and common-mode ground line noise.

1,020 Joules of transient energy absorption
Limits ground line surges to 0.5V
Reduces AC line noise by up to 80dB

Engineered for Uptime

Designed with multiple layers of control to ensure power is always available and manageable, even during a network or system failure.

Local manual override switch
Failsafe sequencing for predictable power-up
Automatic router reboot on lost connection

SPECIFICATIONS

iP-1520-RX Specifications

All the technical details you need for system design and integration.

iP-1520-RX Technical Specifications

Detailed electrical, control, and physical data for the iP-1520-RX power controller.

Electrical

Input Service

20A / 120V
Input Connector

NEMA 5-20P
Output Receptacles

6 (Grouped into 3 controllable pods)
Power Cord

12 AWG

Power Protection (RX Series)

Transient Energy Absorption

1,020 Joules
Line to Neutral Surge

10V maximum
Ground Line Surge

0.5V maximum
AC Line Filtration

60dB to 80dB @ 30MHz

Control and Monitoring

Network Protocols

HTML, TCP/IP, UDP
Local Control

Manual override switch
Monitoring

Per-pod amperage (0.2A to 20.0A)

Questions or Concerns?

Let us know, we’re here to help! Contact Us

PRODUCT SUPPORT

iP-1520-RX Support

Find manuals, data sheets, and other resources to get your system running.

FAQ

FAQs about the iP-1520-RX

Can this unit sequence power on and off for audio equipment?

Yes, the iP-1520-RX can be programmed to sequence the Power Pods on and off. This is useful in audio systems to prevent speaker pops and manage inrush current from multiple amplifiers starting simultaneously.

How is RX Series protection different from a standard surge protector?

RX Series technology protects against both normal mode (line-neutral) and common mode (ground) surges. It limits ground line surges to a maximum of 0.5 volts, which is critical for protecting sensitive digital processing equipment from operating faults.

What are the ‘Power Pods’ and how are they controlled?

The six outlets are grouped into three Power Pods of two outlets each. Each pod can be turned on or off independently via the web interface, TCP/IP, or UDP, giving you granular control over your connected equipment.

What is the ‘Automatic Power Cycle’ feature for?

This feature allows the unit to monitor its network connection. If it detects that the connection to a designated network device like a router is lost, it can automatically power cycle the pod that the router is plugged into, helping to restore connectivity without manual intervention.
