SKU: RT-REL Market: North America Series: RT

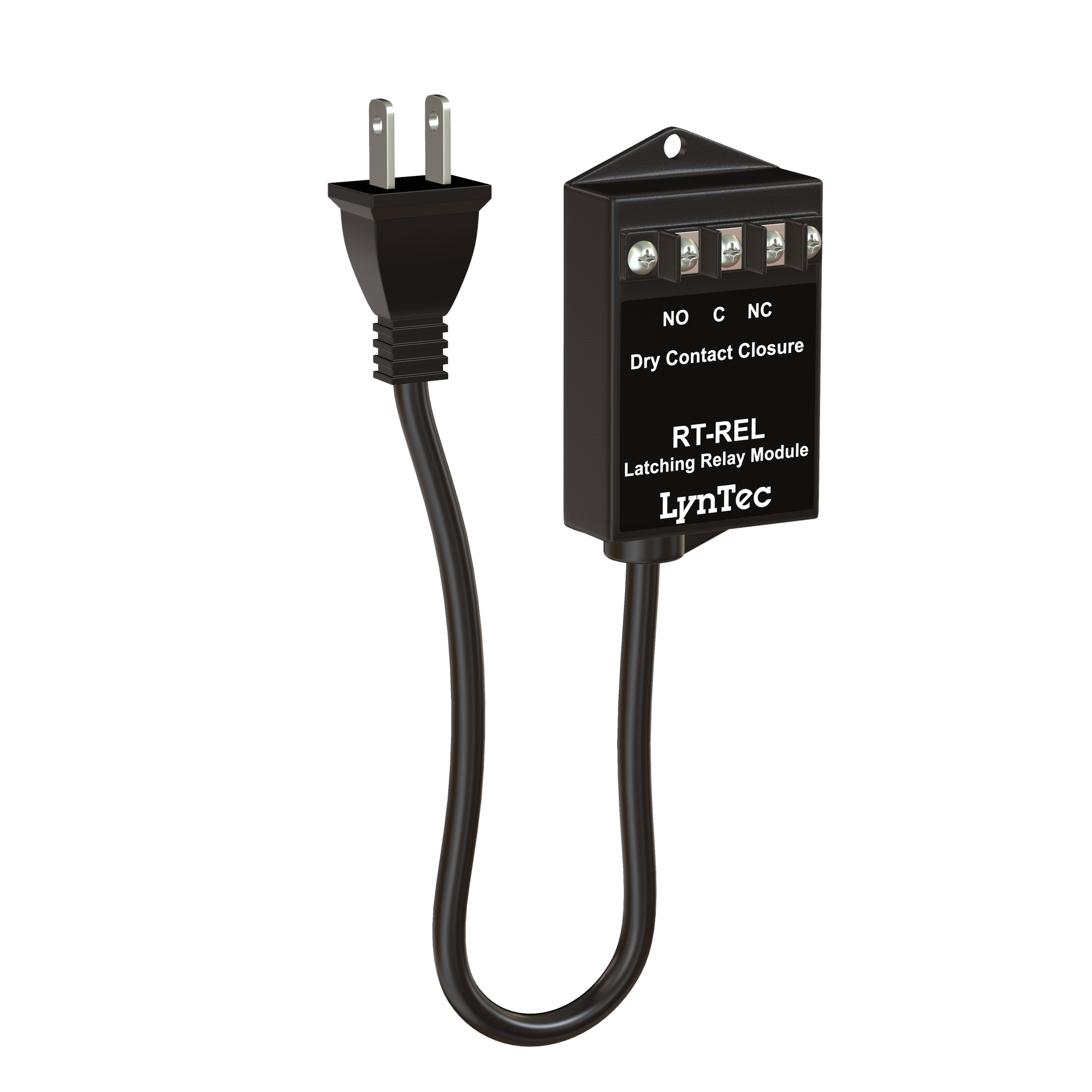

RT-REL Dry Contact Relay Trigger

Accessory that converts a 120V AC signal into a dry contact closure for automation.

The RT-REL is a compact interface accessory that translates a 120V AC signal from any switched outlet into a dry contact closure. It allows integrators to extend the control of a power sequencer or amplifier to trigger other devices without running new control wiring.

Request a Quote

Where To Buy

RT

Series

Simple and reliable remote power control activated by low-voltage contact closure. Engineered for non-networked applications requiring dependable, straightforward power sequencing.

Simple Integration, Reliable Control

Function

AC to Relay Trigger

Input

120V AC

Output

Dry Contact

CONTROL ACCESSORY

Extend switched outlet control with a simple relay.

The RT-REL is a straightforward problem solver for system integration. It provides a dry contact closure (normally open or normally closed) that is triggered by the presence of 120V AC power. Simply plug the RT-REL’s power cord into a switched outlet on a power sequencer, PDU, or amplifier. When that outlet is energized, the RT-REL activates its internal relay, providing a clean contact closure on its three-position terminal strip to control third-party equipment.

This simple utility device makes it easy to create control logic between power and automation systems, such as triggering a projector screen to lower when an amplifier is powered on, without requiring complex programming or dedicated control wiring runs.

SYSTEM INTEGRATION

Integrate with any switched AC source.

The RT-REL is designed to work with a wide range of power control equipment.

LynTec CQ and SQ Sequencers

Extend the control of any switched outlet on a LynTec sequencer to trigger external devices.

Any Switched Power Outlet

Connects to any brand of PDU, power strip, or wall outlet that provides switched 120V AC power.

Receivers and Amplifiers

Use the switched convenience outlets on the back of audio equipment to automate other parts of a system.

Automation and Control Systems

Provides a simple bridge between AC power status and a contact closure input on a control processor.

WHY LYNTEC

The Integrator’s Problem Solver.

Solves a common control challenge with a simple, reliable device
Engineered for long-term, dependable operation in commercial installs
A practical addition to the LynTec power control ecosystem
Supported by our US-based application engineering team

FEATURES

RT-REL Features

Core capabilities that make the RT-REL a versatile integration tool.

CAPABILITIES

Features

120V AC Trigger

Uses power from any standard switched 120V outlet as its control signal.

Isolated Dry Contact Output

Provides a clean, unpowered relay contact to safely interface with other systems.

Normally Open and Closed Contacts

Offers flexible integration options for triggering or cutting off control signals.

Three Position Terminal Strip

Allows for fast and secure wiring of control connections.

Compact, Durable Chassis

Designed to be easily placed or mounted behind equipment or in an enclosure.

Plug and Play Simplicity

No programming or configuration is required. The RT-REL works right out of the box, immediately translating AC power into a relay action.

Connects to any standard switched outlet
Simple three-position terminal for output
No external power supply needed

Flexible Control Logic

With both normally open (NO) and normally closed (NC) contacts, the RT-REL can be used to either activate or deactivate a connected device.

Normally Open for ‘power on, trigger on’ logic
Normally Closed for ‘power on, trigger off’ logic
Integrates with fire alarm or other control systems

SPECIFICATIONS

RT-REL Specifications

Technical details for integrating the RT-REL into your installation.

RT-REL Technical Specifications

Key electrical and physical details for the RT-REL.

Electrical

Trigger Input Voltage

120V AC
Output Type

Dry Contact Relay

Connections

Input Connector

Attached power cord with NEMA 5-15P plug
Output Terminals

3-position screw terminal (C, NO, NC)

Questions or Concerns?

Let us know, we’re here to help! Contact Us

PRODUCT SUPPORT

RT-REL Support

Find documentation and answers to common questions about the RT-REL.

FAQ

FAQs about the RT-REL

Can I use the RT-REL with non-LynTec equipment?

Yes. The RT-REL is designed to work with any standard 120V AC switched outlet, regardless of the manufacturer of the power distribution unit, sequencer, or amplifier.

Does the RT-REL need its own separate power supply?

No, the RT-REL is powered by the 120V AC signal from the switched outlet it is plugged into. It does not require any additional power source to operate its internal relay.

How do I wire the output terminals?

The three-position terminal strip includes Common (C), Normally Open (NO), and Normally Closed (NC). For a ‘trigger on’ action, wire to C and NO. For a ‘trigger off’ action, wire to C and NC. Refer to the product manual for a detailed diagram.

What is the primary use for the RT-REL?

The RT-REL is used to create a dry contact closure from a switched 120V AC power source. This allows you to use a switched outlet on a power sequencer or amplifier to trigger another device that requires a contact closure for control.

What kind of devices can I control with the RT-REL?

You can control any device that accepts a dry contact closure input for automation. Common examples include projector screens, motorized lifts, drapes, contactor coils, or inputs on a larger control system.
