SKU: PD1B Market: North America Series: PD

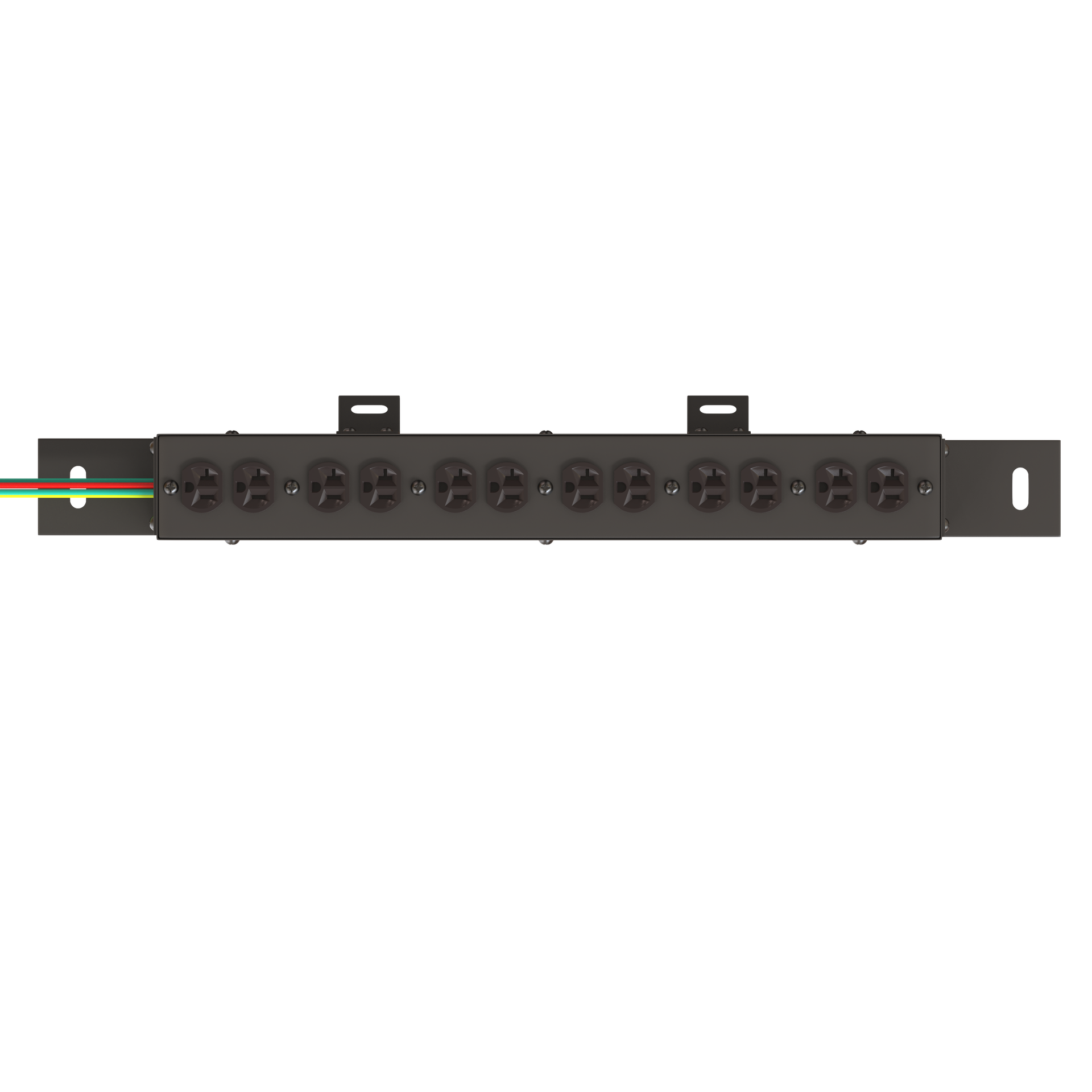

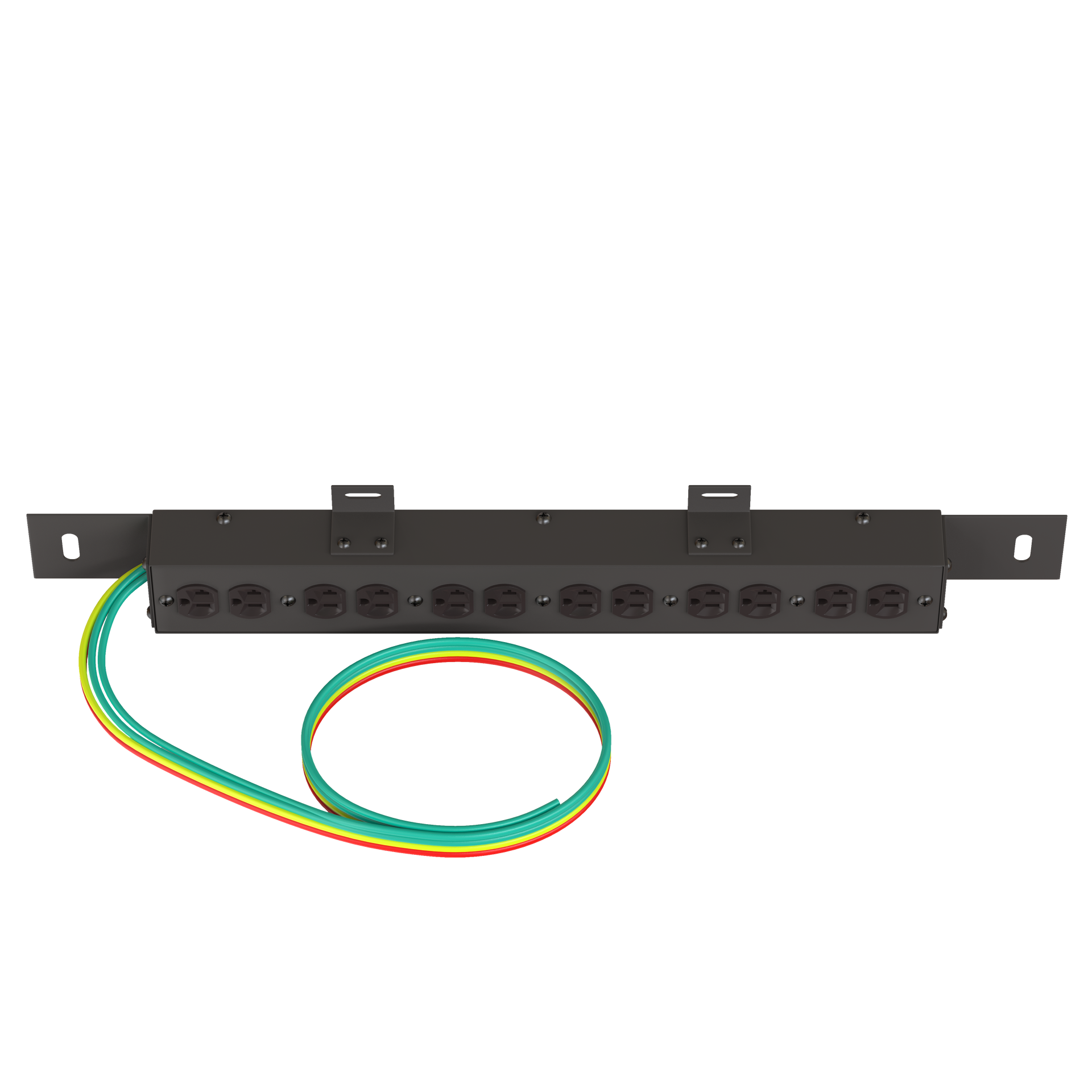

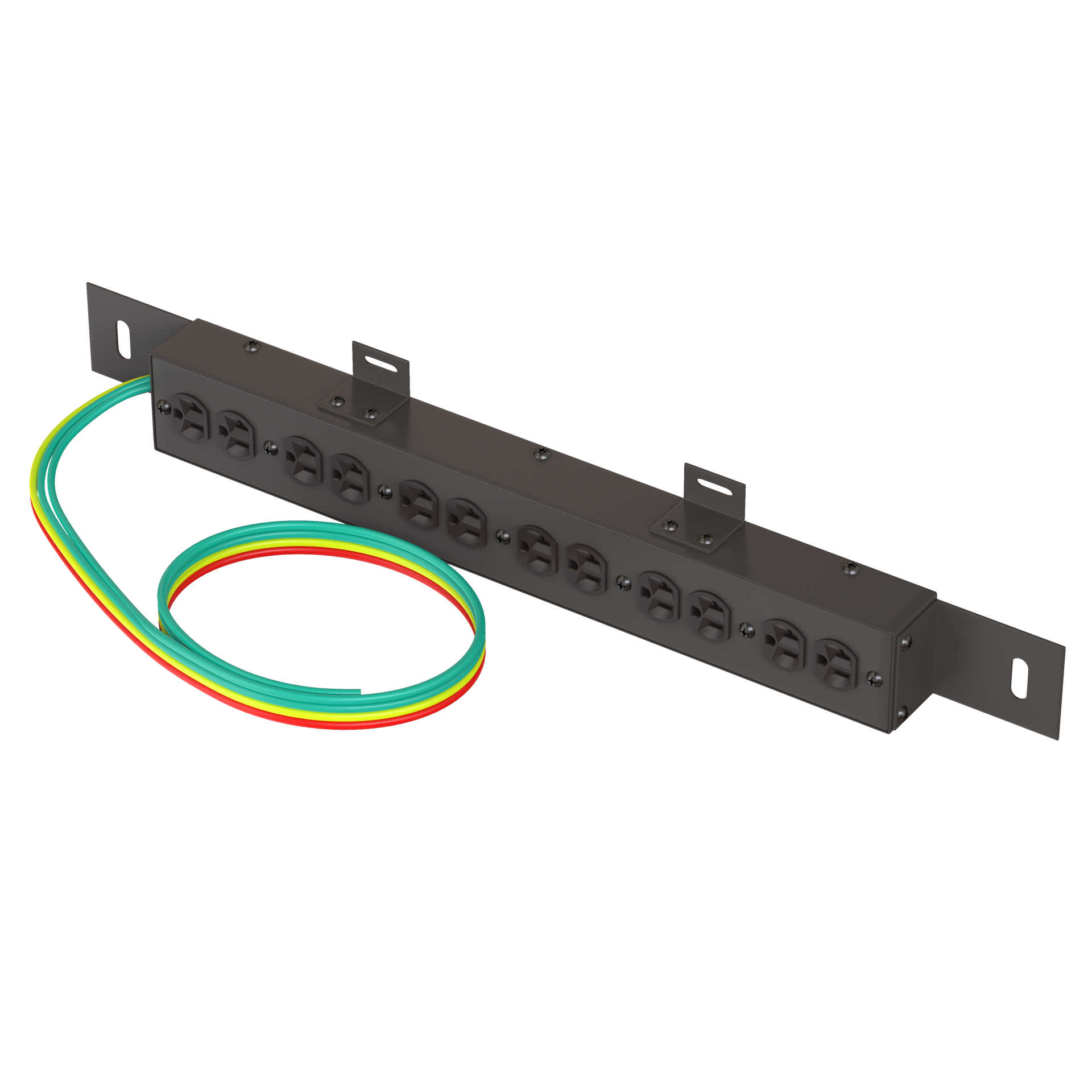

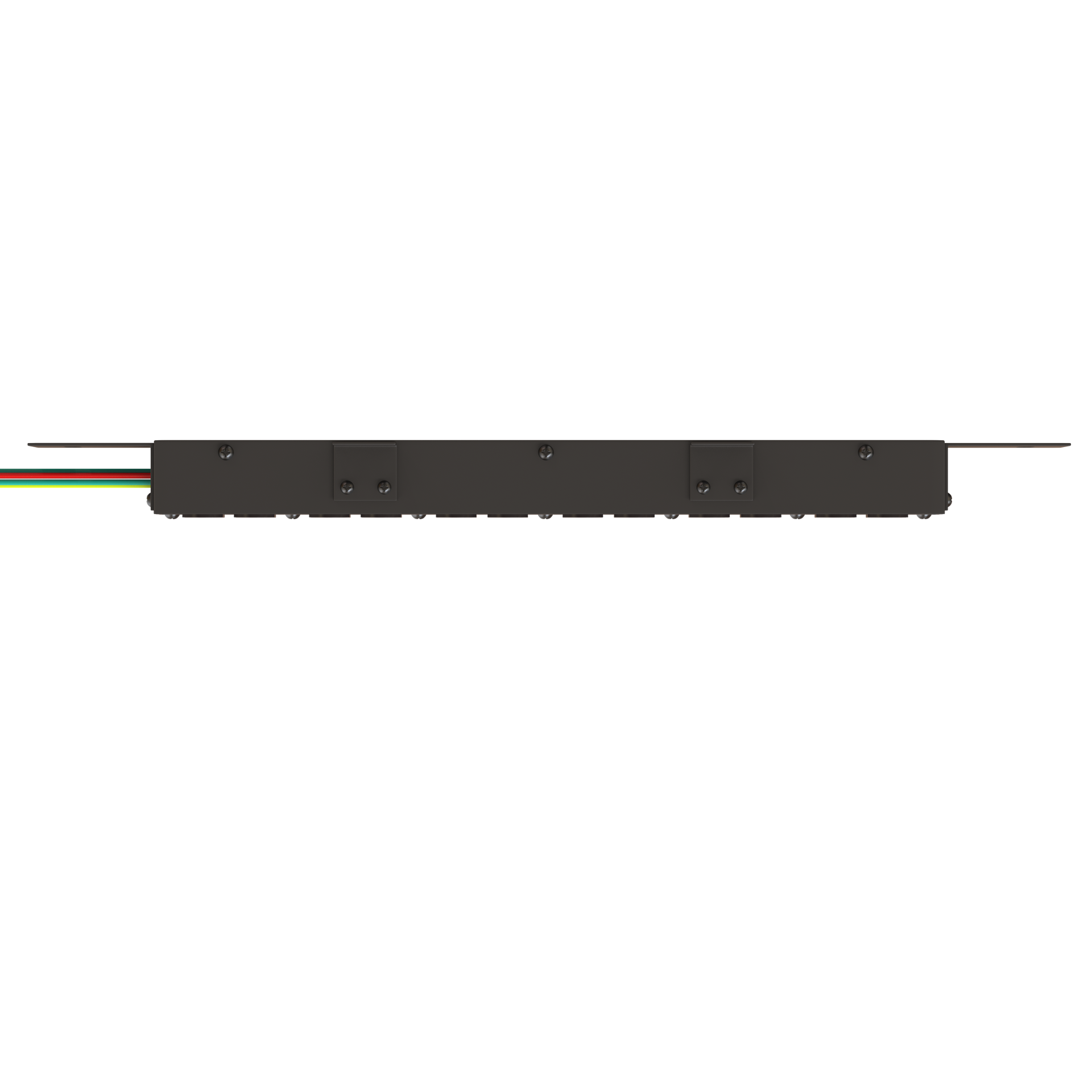

PD1B Custom Vertical Power Distribution

Custom vertical power distribution unit for up to (6) 20a circuits with (6) Edison duplex receptacles.

The PD1B is a custom-configured vertical power distribution unit providing up to seven 20A circuits across six NEMA 5/15-20R duplex receptacles. It is engineered for contractors and integrators who require a high-density, cost-effective power solution built to exact specifications for commercial AV equipment racks.

Request a Quote

Where To Buy

PD

Series

Custom-configured vertical power distribution strips designed for high-density equipment racks. Each unit is built to order with specified circuits, receptacles, and wiring to simplify complex AVL installations and reduce on-site labor.

Custom Power, Simplified

Receptacles

6 Duplex

Max Circuits

Up to 7

Amperage

20A per circuit

Form Factor

Vertical Mount

Lead Time

3-5 Days

CUSTOM POWER

High-density rack power, built to your specifications.

The Juice Goose PD1B delivers a streamlined, custom power infrastructure for equipment racks with high circuit density. Instead of field-wiring individual outlets, the PD1B arrives as a complete, pre-assembled vertical strip configured to your project’s exact needs, significantly reducing on-site labor and installation complexity. Each unit is built to order from a clear menu of options, including circuit count, receptacle orientation, and power harness specifications. With a typical production time of just three to five days, the PD1B provides a reliable, cost-effective, and fast-turnaround solution for getting the precise power distribution your rack design requires, without the expense or lead time of fully custom metalwork.

PD SERIES FAMILY

Part of the trusted PD Series.

INSTALLATION

Integrate the PD1B into your rack build.

The PD1B is designed to provide customized power within standard commercial equipment racks.

Standard Equipment Racks

Mounts vertically inside most commercial AV and IT equipment racks to save valuable horizontal space.

High-Density Installations

Provides a space-saving power solution for racks filled with servers, amplifiers, and processors.

Junction Box Power

The flexible conduit option is designed for a direct, hard-wired connection to a facility junction box by an electrician.

CONFIGURATION OPTIONS

Build your custom power strip.

Use the PD Series Feature Menu to specify the exact configuration for your project.

Available Models

The PD Series offers several chassis sizes to match your receptacle density requirements:

PD1B (This Model): A compact chassis with 6 duplex receptacles for a total of 12 outlets.
PD1A: A longer version with 12 duplex receptacles for a total of 24 outlets.
PD3 and PD3B: Alternative chassis that support 20A or 30A circuits with various receptacle counts.

Circuit and Receptacle Options

Define the electrical layout of your power strip:

Circuit Count: Specify up to seven individual 20A circuits.
Receptacle Orientation: Choose the direction outlets face to optimize cable management.
Grounding: Select standard or Isolated Ground (IG) receptacles for sensitive audio and video equipment.

Power Input Configuration

Specify how the unit connects to facility power:

Harness Location: Choose whether the power input is located at the top, bottom, or rear of the unit.
Harness Length: Define the exact length of the wire harness to reach the junction box.
Conduit or Cord: Select flexible metal conduit for permanent installs or SJT power cords for other applications.

Mounting Hardware

While designed for standard rack mounting, custom hardware is available:

Special Brackets: Order custom mounting brackets to fit unique rack designs or non-standard installations.

WHY LYNTEC

Custom power, simplified and delivered fast.

Built to your exact project specifications
Reduces on-site installation labor and complexity
Typical 3-5 day production lead time
Cost-effective for high-density racks

FEATURES

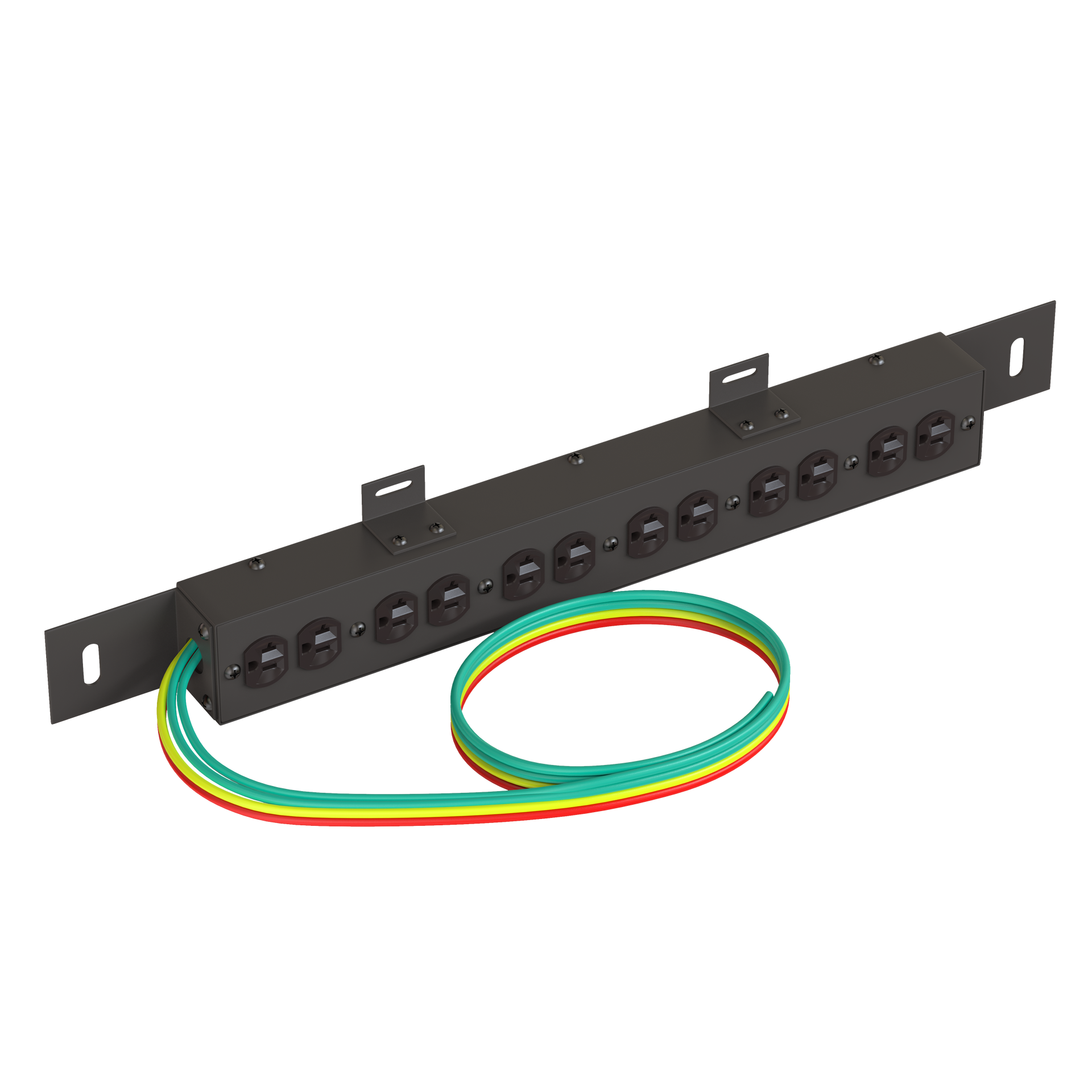

PD1B Features

An overview of the standard capabilities and extensive customization options available for the PD1B.

CAPABILITIES

Features

Custom Circuit Configuration

Specify up to seven 20A circuits with your choice of receptacle orientation.

Six Duplex Receptacles

Provides twelve total outlets in a compact vertical chassis for high-density applications.

Standard or Isolated Ground

Order with standard NEMA 5-15/20R or isolated ground (IG) receptacles for sensitive gear.

Tailored Power Harness

Define the exact length, location, and termination of the power input wiring.

Flexible Conduit or SJT Cords

Choose the input connection style that best suits your installation requirements.

Custom Mounting Options

Specialized brackets and hardware are available to fit non-standard rack configurations.

Configured for Your Exact Needs

Specify everything from circuit count and orientation to the length and exit point of the power harness to match your rack layout perfectly.

Up to seven 20A circuits
Standard or isolated ground receptacles
Custom harness and conduit lengths

Simplify On-Site Installation

The PD1B arrives as a pre-assembled unit, eliminating the time and cost of field-wiring multiple circuits inside the rack.

Reduces on-site labor costs
Ensures consistent, reliable wiring
Streamlines project deployment

Delivered on Your Timeline

Our efficient production process means custom-built power strips ship in just 3 to 5 business days, keeping your project on schedule.

Typical 3-5 day lead time
Shorter lead times available
Built in the USA

SPECIFICATIONS

PD1B Specifications

Technical details for the base PD1B model. Your final specifications will depend on the options you select.

PD1B Technical Specifications

Core electrical and physical specifications for the PD1B base model. Final specs vary based on custom configuration.

Electrical

Receptacle Type

NEMA 5-15/20R, Duplex
Receptacle Count

6 (12 total outlets)
Maximum Circuits

7
Circuit Rating

20A

Physical

Form Factor

Vertical Power Strip
Mounting

Rack interior, custom brackets available

Configuration

Grounding

Standard or Isolated Ground (IG)
Power Input

Custom wire harness, flexible conduit, or SJT cord

Questions or Concerns?

Let us know, we’re here to help! Contact Us

PRODUCT SUPPORT

PD1B Support

Find documentation and contact our engineering team for assistance with configuring your custom power strip.

FAQ

FAQs about the PD1B

Can I get isolated ground receptacles on the PD1B?

Yes, the PD1B can be configured with either standard NEMA 5-15/20R receptacles or isolated ground (IG) versions. IG receptacles are recommended for reducing electrical noise in sensitive audio and video systems.

How do I order a custom PD1B?

Ordering is based on the PD Series Feature Menu document. You select your desired options for circuits, receptacles, and power input, then contact a LynTec or Juice Goose representative to finalize the configuration and receive a quote.

What is the difference between the PD1B and the PD1A?

The primary difference is capacity. The PD1B has six duplex receptacles (12 outlets), while the larger PD1A has twelve duplex receptacles (24 outlets). Both can be configured with up to seven 20A circuits to meet your project’s needs.

What is the typical lead time for a custom PD1B?

Standard production time for custom PD Series units is three to five business days. For urgent projects, shorter lead times may be possible, so please discuss your timeline with our team when ordering.

NEXT Features

BACK Overview NEXT Specifications

BACK Features NEXT Product Support

BACK Specifications NEXT Contact Us

Ready to configure your PD1B?

Download the PD Series Feature Menu to see all available options, then contact our team to get a quote and place your order. Our engineers can help you spec the perfect unit for your project.
