SKU: PD3 Market: North America Series: PD

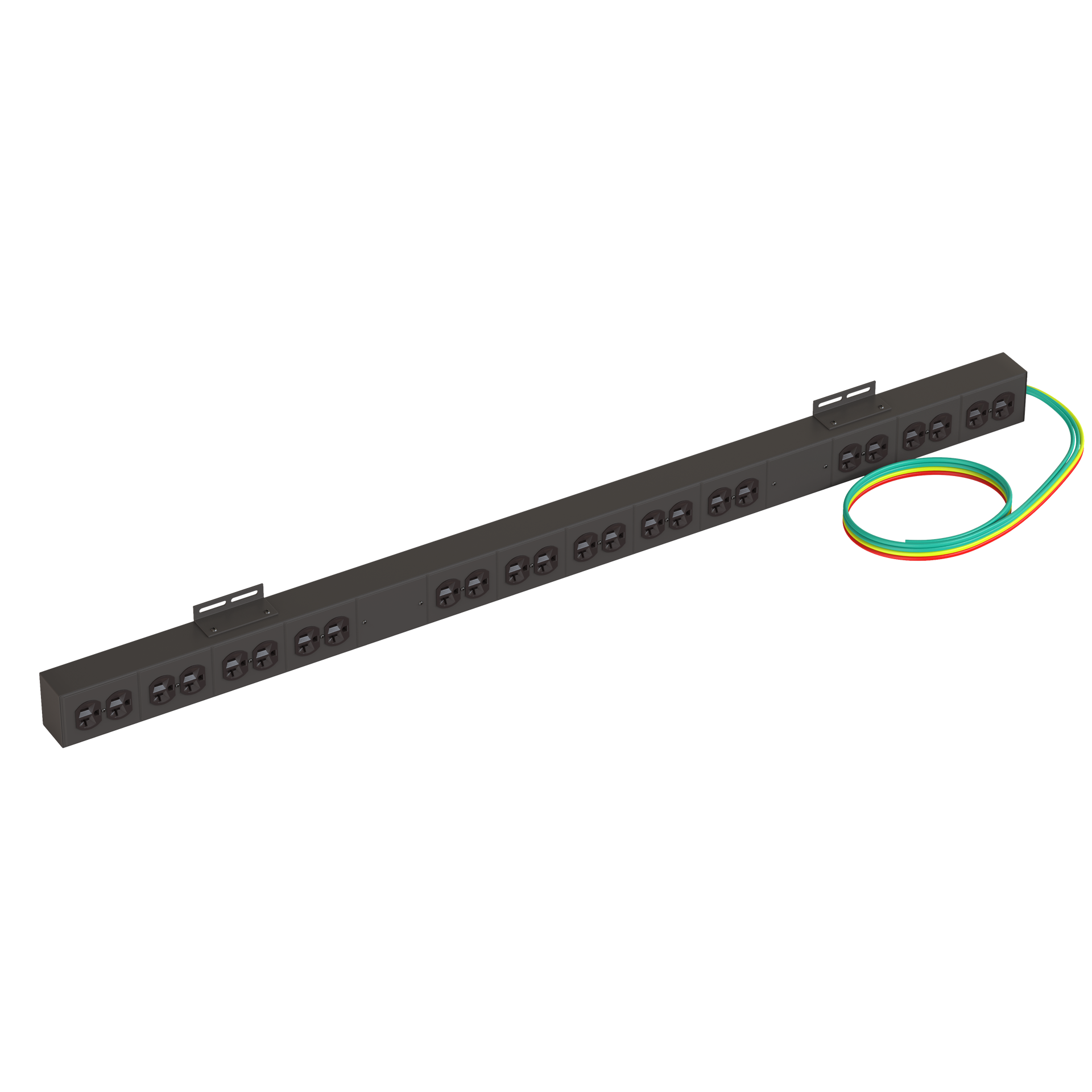

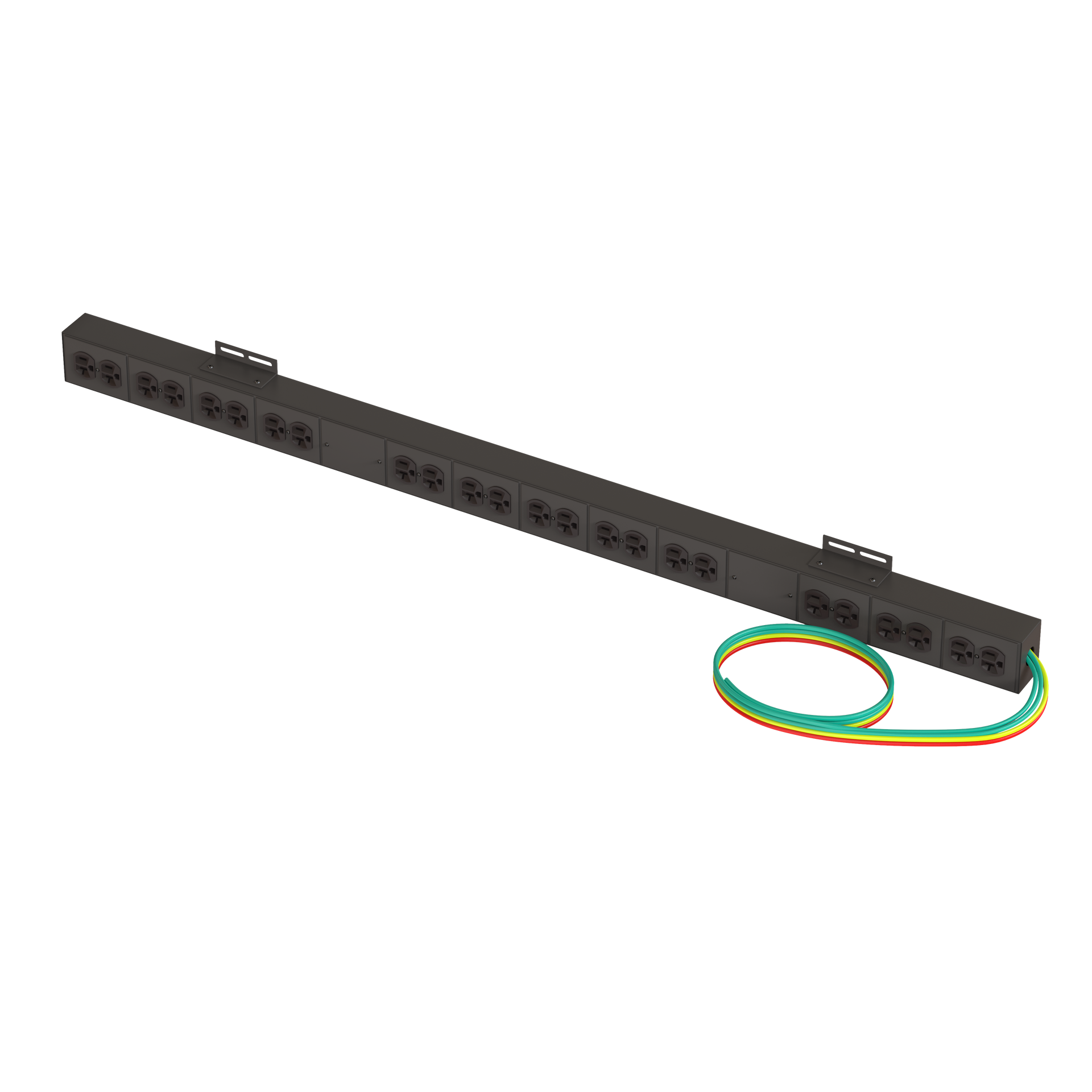

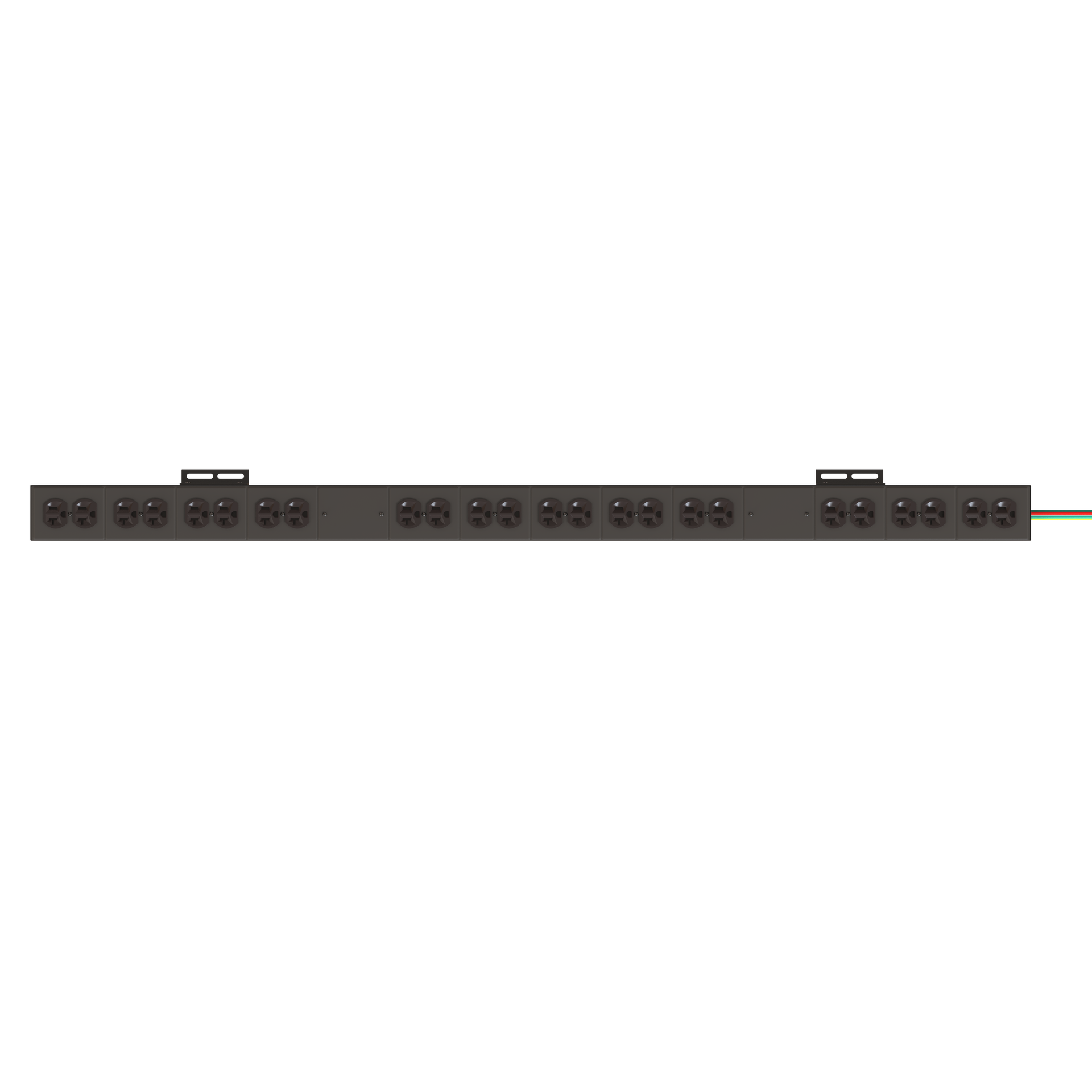

PD3 Custom Vertical Power Distribution

Custom vertical power distribution unit for up to (14) 20a or 30a circuits with (14) receptacles of choice.

The PD3 is a custom-built vertical power distribution unit with fourteen configurable receptacle positions designed for multi-circuit rack and enclosure applications. It provides integrators a streamlined, build-to-order power solution for installations requiring specific 20A and 30A circuit layouts and termination points.

Request a Quote

Where To Buy

PD

Series

Custom-configured vertical power distribution strips designed for high-density equipment racks. Each unit is built to order with specified circuits, receptacles, and wiring to simplify complex AVL installations and reduce on-site labor.

Custom Power, Simplified

Form Factor

Vertical Mount

Receptacles

14 Positions

Circuit Rating

20A or 30A

Configuration

Build-to-Order

Lead Time

Short

CUSTOM VERTICAL PDU

Engineered to your exact circuit specifications.

The Juice Goose PD3 simplifies complex power requirements in racks and enclosures by delivering a vertically-mounted power strip built to your project’s exact needs. With fourteen available receptacle positions, each PD3 is configured at our factory with the precise number of circuits, receptacle types (NEMA 5-20R or L5-30R), and wiring harness specifications you define. This build-to-order approach eliminates the need for extensive on-site electrical work, reducing installation time and ensuring a clean, professional setup.

By specifying details like harness length, exit location, and the use of flexible metal conduit, integrators receive a drop-in solution that is both code-compliant and perfectly matched to the physical constraints of the installation. The result is a reliable, custom power infrastructure with faster deployment and a more predictable outcome.

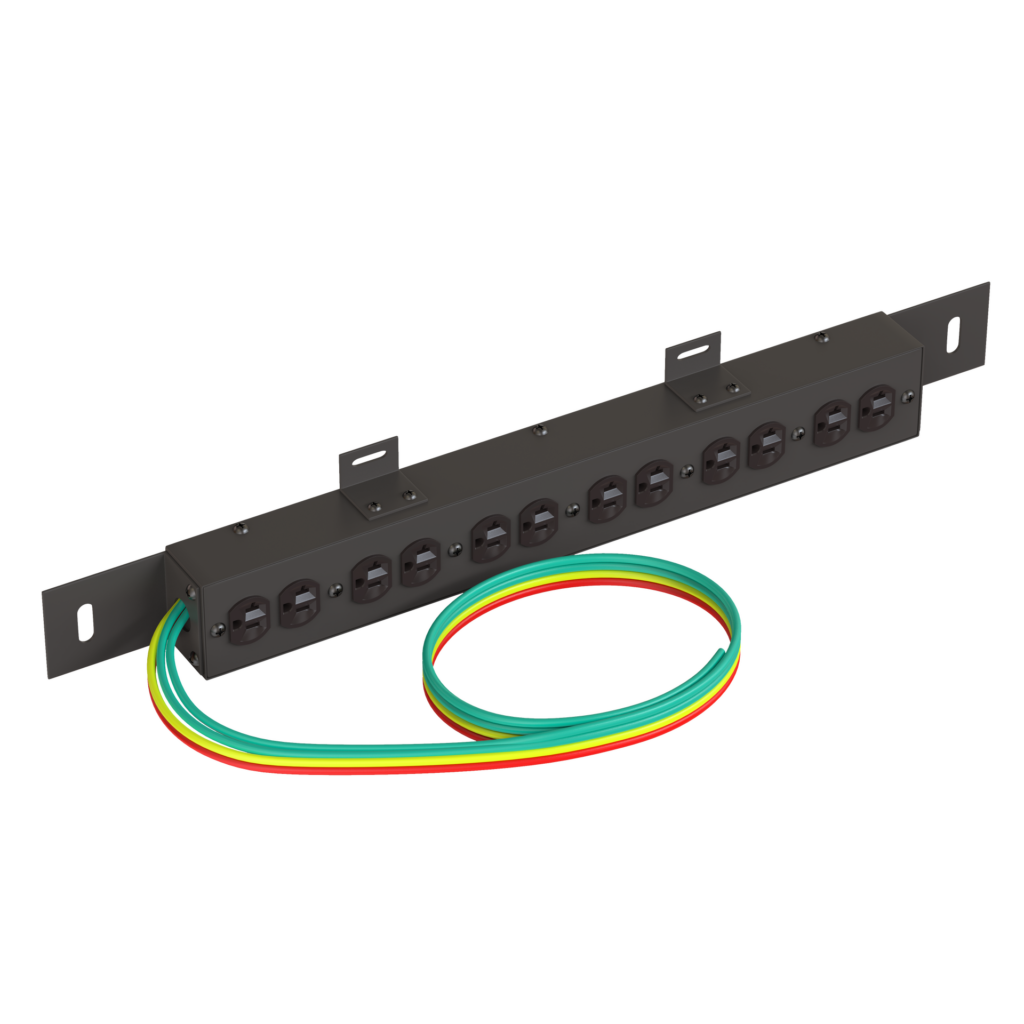

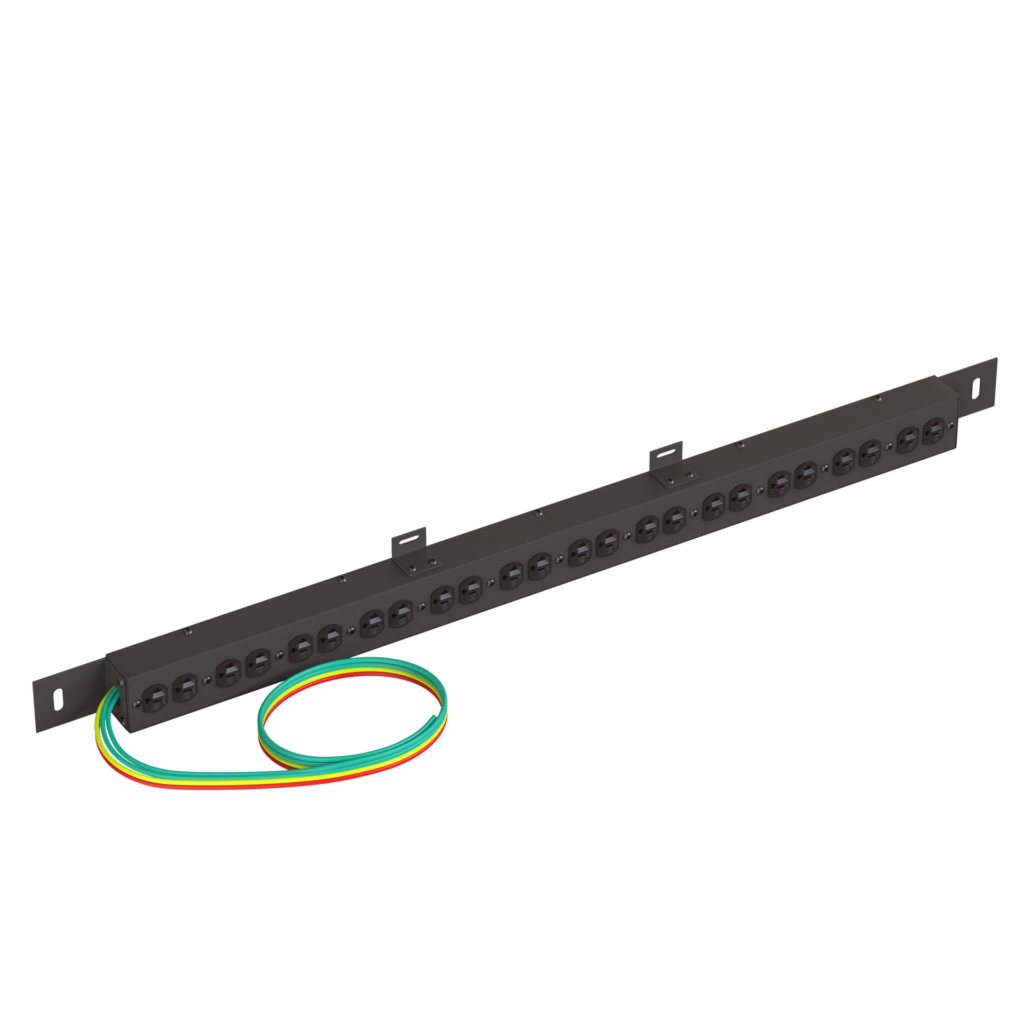

PD SERIES FAMILY

Part of the trusted PD Series.

SYSTEM INTEGRATION

Designed for commercial installations.

The PD3 is built to integrate cleanly into standard professional equipment racks and enclosures.

Standard Equipment Racks

The vertical form factor and adjustable brackets allow for secure mounting in most commercial AV and IT racks.

NEMA Power Connectors

Pairs with standard NEMA 5-20R and L5-30R receptacles for connecting a wide range of professional equipment.

Hard-Wired Installations

The flexible metal conduit option allows for direct, code-compliant integration with facility electrical systems.

CONFIGURATION OPTIONS

Build your custom PDU.

Each PD3 is built to order. Use these options to define the right configuration for your installation.

Circuit Configuration

Define the number and amperage of independent circuits needed for your application.

20A Circuits: Typically paired with NEMA 5-20R duplex receptacles for standard equipment loads.
30A Circuits: Paired with NEMA L5-30R twist-lock receptacles for high-current equipment.
Multiple Circuits: A single PD3 chassis can be wired with several independent circuits to isolate power for different systems.

Receptacle Selection

Choose the appropriate connector type for each of the fourteen available positions.

NEMA 5-20R: Standard 20A duplex receptacles for wide compatibility.
NEMA L5-30R: 30A twist-lock receptacles for secure, high-power connections.
Isolated Ground (IG): Available for both receptacle types to reduce electrical noise for sensitive audio and video gear.

Power Input and Harness

Specify how the PD3 receives power and how the wiring integrates with your facility.

Power Cords: Standard SJT power cords can be attached for simple plug-in installation.
Flexible Metal Conduit: Choose conduit for hard-wired installations that require protected cabling.
Harness Location: The wire harness can exit from either the top or bottom of the chassis to match your cable path.
Harness Length: Specify the exact length of the power cord or conduit needed to reach the power source.

Mounting Options

The PD3 is designed for flexible mounting within standard equipment racks and enclosures.

Adjustable Brackets: The included side brackets can be attached to any of nine threaded locations on the chassis back.
Custom Hardware: Special mounting brackets and hardware can be requested for non-standard installations.

WHY LYNTEC

Custom power infrastructure, delivered faster.

Custom built to your exact specifications, not off-the-shelf
Reduces on-site labor and installation complexity
Short lead times for custom-configured power distribution
Built on four decades of experience in AVL power systems

FEATURES

PD3 Features

An overview of the standard capabilities and configurable options available for the PD3.

CAPABILITIES

Features

Fourteen Receptacle Positions

A high-density layout that supports a large number of connections in a single vertical strip.

Multi-Circuit Design

Supports multiple independent circuits within a single chassis for separated power.

Custom Circuit Labeling

All receptacles and internal wires are clearly labeled to match your specified circuit plan.

Adjustable Mounting Brackets

Side mounting brackets can be moved between nine threaded locations for versatile installation.

Slim Chassis Profile

A depth of only 2.125 inches provides ample space for rack-mounted equipment.

Short Lead Times

Custom-configured units are built and shipped quickly to keep your project on schedule.

Built to your specification

Every PD3 is assembled to order based on your required circuit count, receptacle types, and power input configuration, ensuring a perfect fit for your project.

Specify number and orientation of circuits
Choose 20A duplex or 30A twist-lock receptacles
Standard or isolated ground options available

Streamlined installation

Receive a pre-wired, factory-tested unit that drops directly into your rack or enclosure, dramatically reducing on-site labor and wiring complexity.

Reduces field installation time and cost
Eliminates potential wiring errors
Ensures a clean, professional finish

Flexible by design

The PD3 chassis and wiring harness can be adapted to meet the physical constraints of any installation, with options for harness location, length, and conduit.

Wire harness can exit from top or bottom
Adjustable mounting brackets for flexible positioning
Slim 2.125 inch chassis depth

SPECIFICATIONS

PD3 Specifications

All configurable electrical and mechanical options for building your custom PD3 unit.

PD3 Configurable Specifications

Technical details and available options for configuring your PD3 unit.

Chassis

Receptacle Positions

14
Chassis Depth

2.125 inches
Mounting

Adjustable side brackets (9 positions)

Configurable Electrical Options

Circuit Amperage

20A or 30A
Receptacle Types

NEMA 5-20R (Duplex), NEMA L5-30R (Twist Lock)
Grounding

Standard or Isolated Ground (IG)
Power Input

SJT power cords or flexible metal conduit

Configurable Mechanical Options

Wire Harness Length

Custom specified
Wire Harness Exit

Top or bottom of chassis
Mounting Hardware

Standard or special order

Questions or Concerns?

Let us know, we’re here to help! Contact Us

PRODUCT SUPPORT

PD3 Support

Find documentation and answers to common questions about specifying and installing the PD3.

FAQ

FAQs about the PD3

Are isolated ground (IG) receptacles available for the PD3?

Yes, isolated ground versions of both the 20A duplex and 30A twist-lock receptacles are available as a configurable option to help minimize electrical noise for sensitive equipment.

Can I mix 20A and 30A receptacles on the same PD3 unit?

Yes, the fourteen receptacle positions can be populated with a mix of 20A duplex and 30A twist-lock connectors, each assigned to the appropriate circuit as per your specification.

How do I order a custom PD3 for my project?

To order, you will need to specify your requirements using the PD Series menu of choices. This includes the number of circuits, receptacle types, power input style, and harness length. Contact a LynTec representative or authorized reseller to walk through the configuration and receive a quote.

What information do I need to provide to specify a PD3?

You should know the number of 20A and 30A circuits required, the type of receptacles needed (duplex or twist-lock), whether you need isolated grounds, and the desired length and exit point (top or bottom) for the power harness. Our team can guide you through these options.

What is the typical lead time for a custom-configured PD3?

While each PD3 is assembled to individual specifications, we maintain a short, standard lead time. For a precise delivery estimate based on your configuration, please contact our sales team.

NEXT Features

BACK Overview NEXT Specifications

BACK Features NEXT Product Support

BACK Specifications NEXT Contact Us

Ready to configure your vertical power strip?

Our team can help you translate your project requirements into a specific PD3 configuration. Contact us with your circuit and receptacle needs to get a quote and submittal drawing.
