SKU: PD1A Market: North America Series: PD

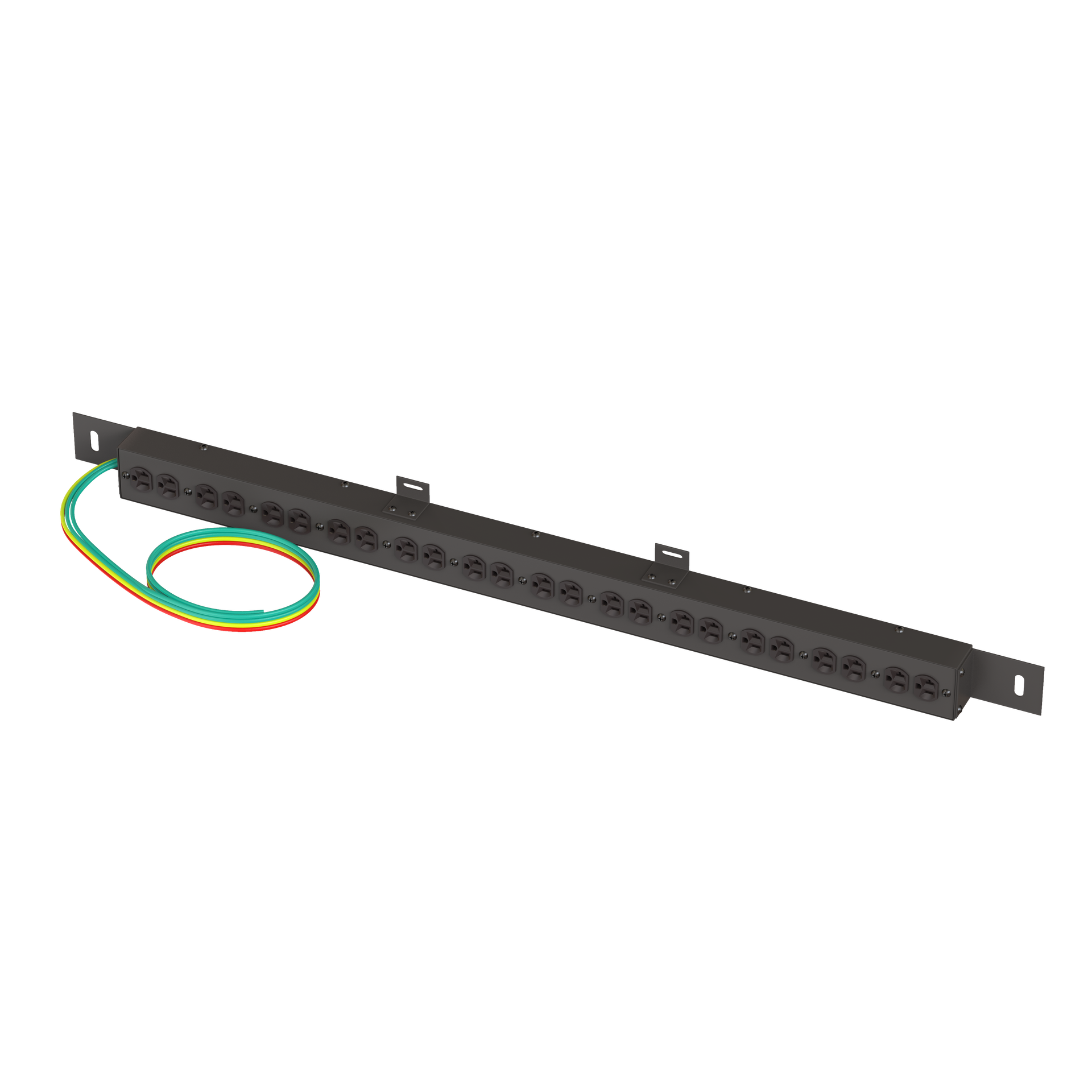

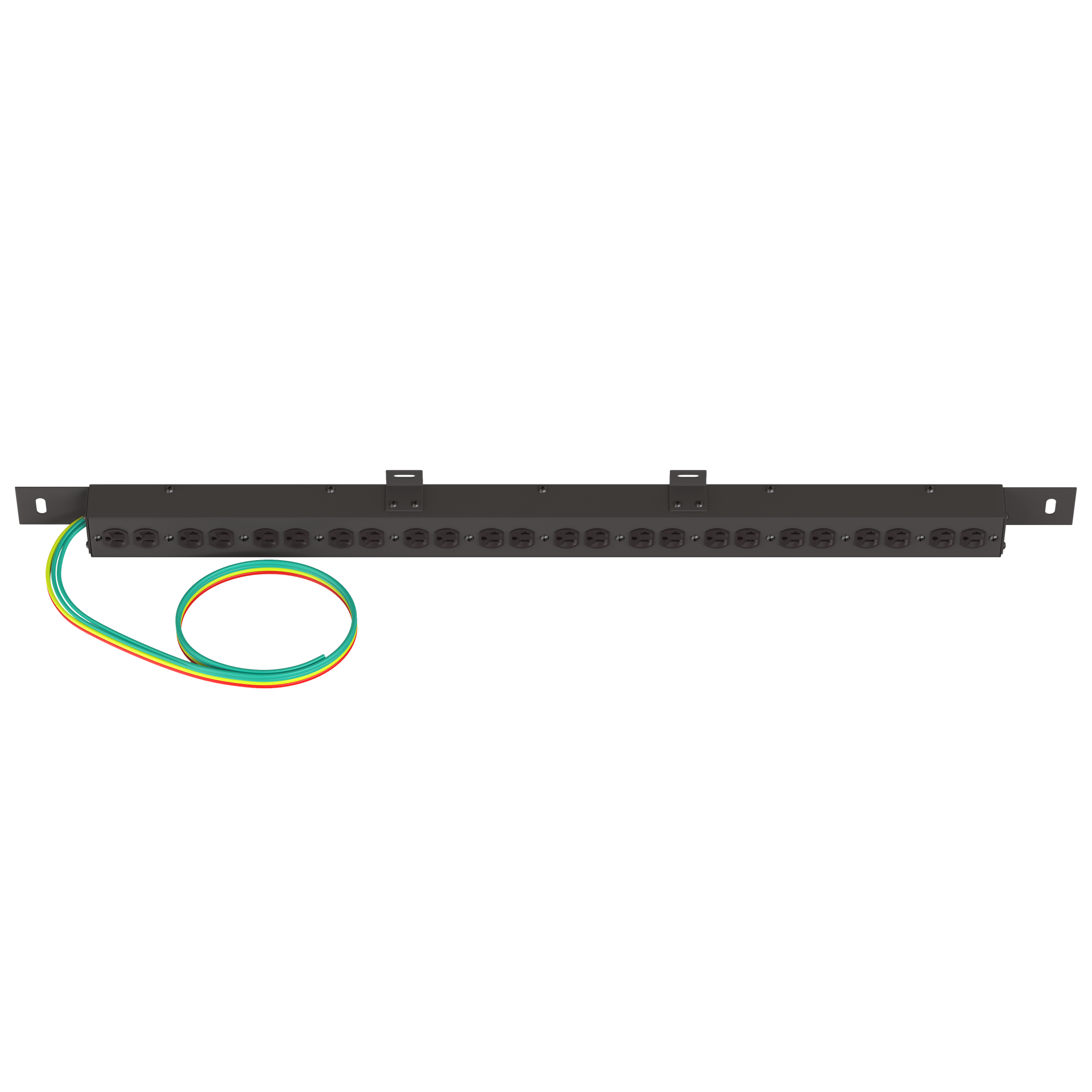

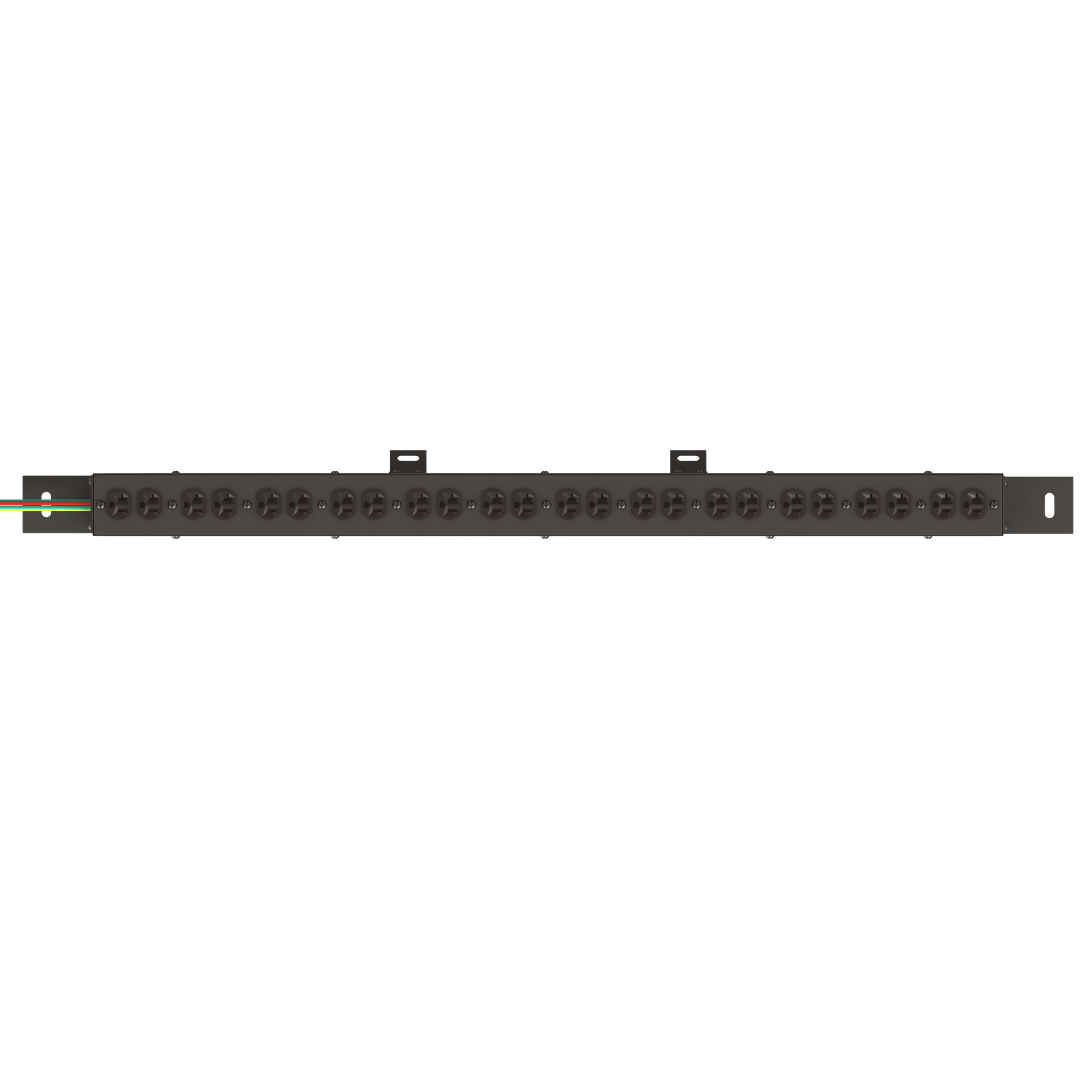

PD1A Custom Power Distribution Strip

Custom vertical power distribution unit for up to (12) 20a circuits with (12) Edison duplex receptacles.

The PD1A is a custom-built vertical power distribution strip with twelve duplex receptacles, providing high-density power for equipment racks and enclosures. It is designed for integrators who require specific circuit configurations and layouts, delivered with faster lead times than typical custom power products.

Request a Quote

Where To Buy

PD

Series

Custom-configured vertical power distribution strips designed for high-density equipment racks. Each unit is built to order with specified circuits, receptacles, and wiring to simplify complex AVL installations and reduce on-site labor.

Custom Power, Delivered Faster

Receptacles

12 Duplex

Max Circuits

Up to 7

Amperage

20A per circuit

Configuration

Custom Built

Lead Time

3-5 Days

CUSTOM POWER

High-density power, built to your exact specifications.

The Juice Goose PD1A provides a streamlined, economical solution for high-density power distribution in equipment racks. Each unit is custom-configured and assembled at our US facility, allowing integrators to specify the exact number of circuits, outlet orientation, and power-feed characteristics required for a project. This build-to-order process eliminates the need for generic, off-the-shelf power strips that often compromise rack layout and cable management.

With a typical production time of just three to five days, the PD1A significantly shortens lead times for custom power infrastructure. We work directly from your design documents or our simple order menu to deliver a reliable, purpose-built power strip that simplifies installation and provides clean, organized power for any multi-circuit application.

PD SERIES FAMILY

Part of the trusted PD Series.

COMPATIBLE ACCESSORIES

Designed for standard equipment racks.

The PD1A integrates into any installation requiring high-density, multi-circuit power distribution.

Standard Equipment Racks

Mounts vertically in standard server, AV, or broadcast equipment racks and enclosures.

NEMA 5-15 and 5-20 Plugs

Accepts standard 15A and 20A plugs used on most commercial AV and IT equipment.

Hard-Wired Installations

The flexible conduit option allows for direct, code-compliant connection to a facility junction box.

CONFIGURATION OPTIONS

Build your custom power strip.

Select from the options below to configure a PD1A that meets your project’s exact power requirements.

Circuit Configuration

Define the number and layout of circuits within the power strip.

Circuit Count: Specify up to seven individual 20A circuits to power your equipment.
Outlet Orientation: Choose the direction your outlets face for optimal cable management.
Grounding: Select standard or isolated ground (IG) receptacles for sensitive electronics.

Power Input

Specify how the PD1A connects to your facility’s power source.

Wire Harness: A hard-wired connection with custom length and exit point for clean, permanent installs.
Flexible Metal Conduit: Protects the wire harness in exposed or demanding environments.
SJT Power Cords: Provides a plug-in connection for applications requiring portability or simple setup.

Mounting and Hardware

Secure the power strip in your rack or enclosure.

Standard Brackets: Included for typical vertical rack mounting applications.
Custom Hardware: Special mounting brackets and hardware are available upon request for unique installations.

WHY JUICE GOOSE

Custom power, simplified and delivered fast.

Custom configured to your exact specs
Typical 3-5 day lead time
High-density power in an economical design
US-based assembly and support

FEATURES

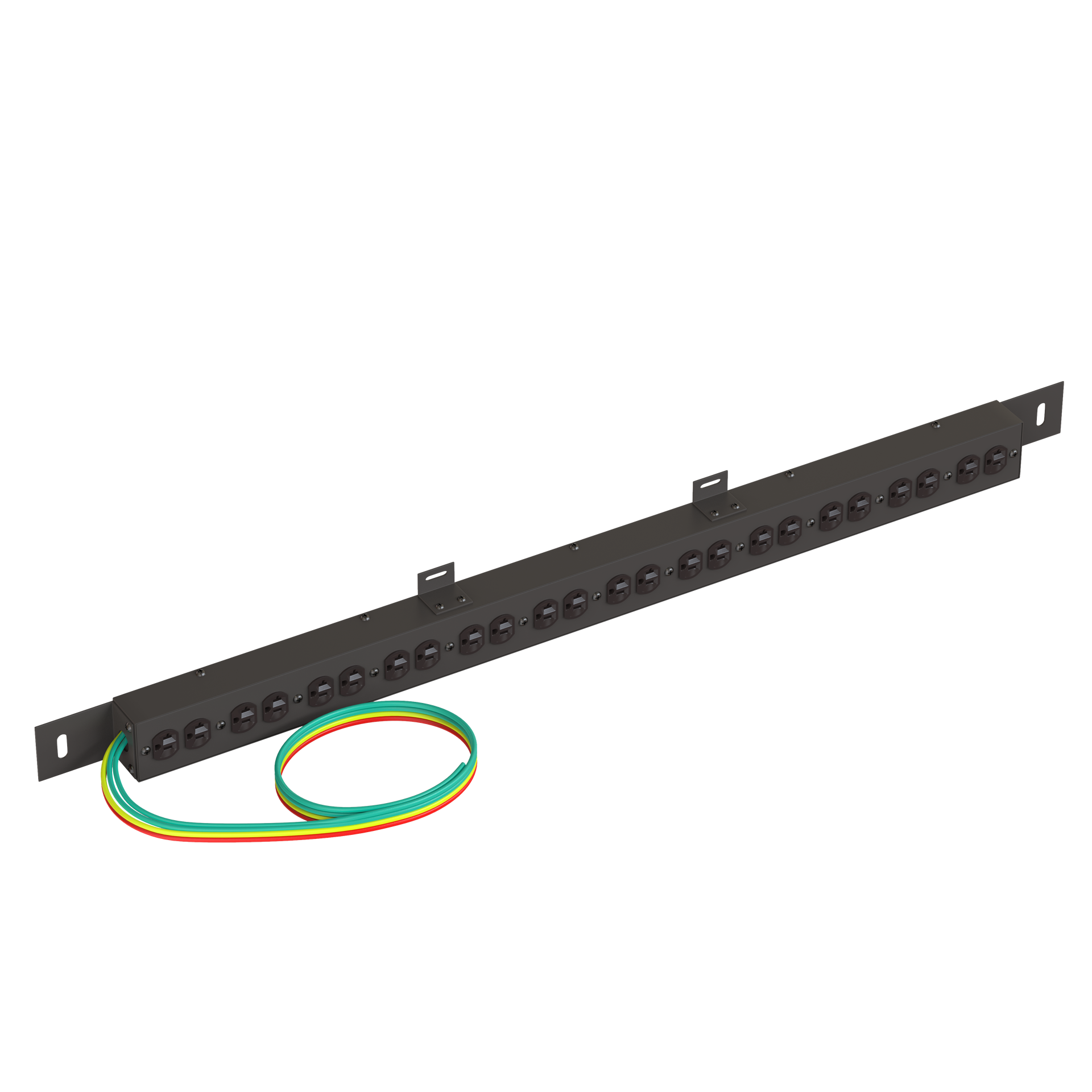

PD1A Features

Explore the standard capabilities and configurable options for the PD1A custom power strip.

CAPABILITIES

Features

Twelve Duplex Receptacles

Provides 24 total NEMA 5-15/20R outlets in a compact vertical channel.

Custom Circuit Configuration

Specify up to seven 20A circuits with custom orientation to match your power plan.

Made-to-Order Wire Harness

Define the exact length and exit location of the power feed for clean installation.

Flexible Conduit or Power Cord

Choose between flexible metal conduit for permanent installs or a heavy-duty SJT power cord.

Isolated Ground Option

Available with isolated ground (IG) receptacles to protect sensitive audio and video gear.

Custom Mounting Hardware

Specialized brackets and hardware can be included to fit non-standard rack configurations.

Power Configured for Your Project

Specify the number of circuits, outlet orientation, harness length, and more to get the exact power layout your installation requires.

Up to seven 20A circuits
Standard or isolated ground receptacles
Custom wire harness length and location
Flexible metal conduit or SJT cord options

Faster Turnaround on Custom Builds

Our US-based assembly allows for a typical production time of just 3 to 5 work days, getting custom power to your job site faster than the competition.

Reduces project delays
Order from a simple menu or design docs
Responsive support for custom requests

Economical, High-Density Design

The PD1A’s compact channel provides twelve duplex outlets, delivering more power in less space than comparable multi-circuit power strips.

Maximizes vertical rack space
Cost-effective alternative to multiple strips
Clean, organized power infrastructure

SPECIFICATIONS

PD1A Specifications

All technical details and available options for configuring the PD1A to your project’s needs.

PD1A Custom Power Strip Specifications

Technical details and available options for configuring the PD1A power strip.

Electrical

Maximum Circuits

Up to 7
Circuit Rating

20A
Receptacles

12 x NEMA 5-15/20R Duplex
Grounding

Standard or Isolated Ground (IG) option

Physical

Form Factor

Vertical Channel
Receptacle Positions

12
Power Input

Custom wire harness or SJT cord

Manufacturing

Typical Lead Time

3 to 5 business days
Country of Origin

United States

Questions or Concerns?

Let us know, we’re here to help! Contact Us

PRODUCT SUPPORT

PD1A Support

Find documentation and answers to common questions about the PD Series of custom power strips.

FAQ

FAQs about the PD1A

Can you help me design the right configuration?

Yes. Our support team can work with your project requirements, including circuit counts, rack layouts, and power sources, to recommend the ideal PD1A configuration. Contact us to speak with an engineer.

How do I order a custom PD1A power strip?

You can configure a PD1A using our PD Series Feature Menu document, available on the Support tab. Alternatively, you can send your design documents or power requirements to a LynTec engineer, and we will create a configuration and quote for you.

What is the difference between the PD1A and PD1B models?

The primary difference is density. The PD1A features twelve duplex receptacles, while the PD1B is a smaller model with six duplex receptacles. Both models offer the same level of circuit and power input customization.

What is the typical lead time for a custom PD Series strip?

Because each unit is assembled in our US facility, the typical production time is just 3 to 5 business days after the configuration is finalized. This is a key advantage over other custom power solutions.

NEXT Features

BACK Overview NEXT Specifications

BACK Features NEXT Product Support

BACK Specifications NEXT Contact Us

Ready to configure your PD1A?

Use our simple order menu or send us your design documents. Our team will provide a quote and drawing for your custom power strip, typically within one business day.
