    Lighting Control Relay Panel (LCRP)

    DMX-controlled relay panel for retrofitting power control to existing breaker panels.

    The LCRP is a lighting control relay panel that adds DMX control to existing electrical circuits without requiring a new breaker panel installation. It is designed for integrators working in retrofit projects who need a simple, reliable way to manage power for architectural or stage lighting systems.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    The LCRP series provides DMX-controlled relay panels for switching high-amperage lighting loads. Engineered for permanent installations, these panels offer direct DMX512 control over 30A relays, simplifying the integration of non-dimmable fixtures and effects into a theatrical or architectural lighting system.
    Simplified Power Control for Lighting Retrofits

    Control

    DMX-512

    Circuits

    4, 8, or 12

    Voltage

    120V/240V/277V

    Application

    Retrofit Control

    Emergency

    UL 924 Listed
    RETROFIT POWER CONTROL

    Add DMX lighting control to any standard breaker panel.

    The LynTec LCRP provides a straightforward solution for adding switched power control to any venue. Designed to mount adjacent to an existing breaker panel, the LCRP controls power to the connected ‘hot’ lines, simplifying installation and reducing labor costs. It uses reliable, energy-efficient Panasonic latching relays that require no continuous power to maintain their state, ensuring cool, long-term operation.

    Setup is simplified with an easy-to-use jumper system for DMX addressing, eliminating the need for on-site commissioning or specialized software. With an integrated emergency auto-on feature for egress lighting (ETL listed to UL 924), the LCRP is a complete, electrician-friendly package for modernizing lighting control infrastructure.

    SYSTEM INTEGRATION

    Integrate the LCRP with your lighting system.

    The LCRP is designed to work with standard lighting control hardware and electrical infrastructure.

    DMX Lighting Consoles

    Connects to any theatrical or architectural lighting controller that outputs a standard DMX-512 signal.

    Existing Circuit Breaker Panels

    Designed as a retrofit solution to add control to circuits from any manufacturer’s standard electrical panel.

    Emergency Egress Systems

    The UL 924-listed auto-on feature allows for seamless integration with facility-wide life safety and emergency lighting systems.
    CONFIGURATION OPTIONS

    Configure your LCRP panel.

    Select the circuit count and voltage to match your project’s requirements.
    Available Models

    The LCRP is available in five sizes based on the number of controllable circuits required for the installation.

    • LCRP-4: Provides control for up to 4 individual circuits.
    • LCRP-8: Provides control for up to 8 individual circuits.
    • LCRP-12: Provides control for up to 12 individual circuits.
    • LCRP-24: Provides control for up to 24 individual circuits.
    • LCRP-48: Provides control for up to 48 individual circuits.
    Voltage Options

    Each panel size can be ordered to match the service voltage of the circuits being controlled.

    • 120V Models: For standard North American general-purpose lighting circuits.
    • 240V Models: For split-phase or higher-power lighting applications.
    • 277V Models: For commercial and industrial lighting systems common in large venues.
    Control and Addressing

    All LCRP panels use the DMX-512 protocol for straightforward integration with lighting control systems.

    • DMX-512 Standard: Control is achieved via a standard DMX signal from a console or architectural controller.
    • Jumper-Based Addressing: A simple jumper block on the control board sets the starting DMX address, with no software needed.
    • Daisy-Chain Capability: Multiple panels can be linked on a single DMX line for large-scale, synchronized control.
    2-Pole Option

    A 2-pole option is available that ties two relays together, allowing them to switch as a single circuit for loads that require it.

    WHY LYNTEC

    The simple, reliable choice for lighting retrofits.

    • Simplifies installation by mounting next to existing panels
    • Energy-efficient latching relays run cool for a long service life
    • No software or on-site commissioning required for setup
    • ETL listed to UL 924 for code-compliant emergency lighting
    FEATURES

    LCRP Panel Features

    Engineered for simple installation, reliable operation, and seamless DMX integration in retrofit applications.
    CAPABILITIES

    Features

    DMX 512 Control

    Integrates with any standard DMX lighting controller using a simple and reliable jumper-based addressing system.

    Latching Relays

    Ensures energy efficiency and cool operation as no continuous power is needed to maintain state.

    UL 924 Emergency Egress

    An integrated auto-on feature for egress lighting is standard and ETL listed to UL 924 for life safety compliance.

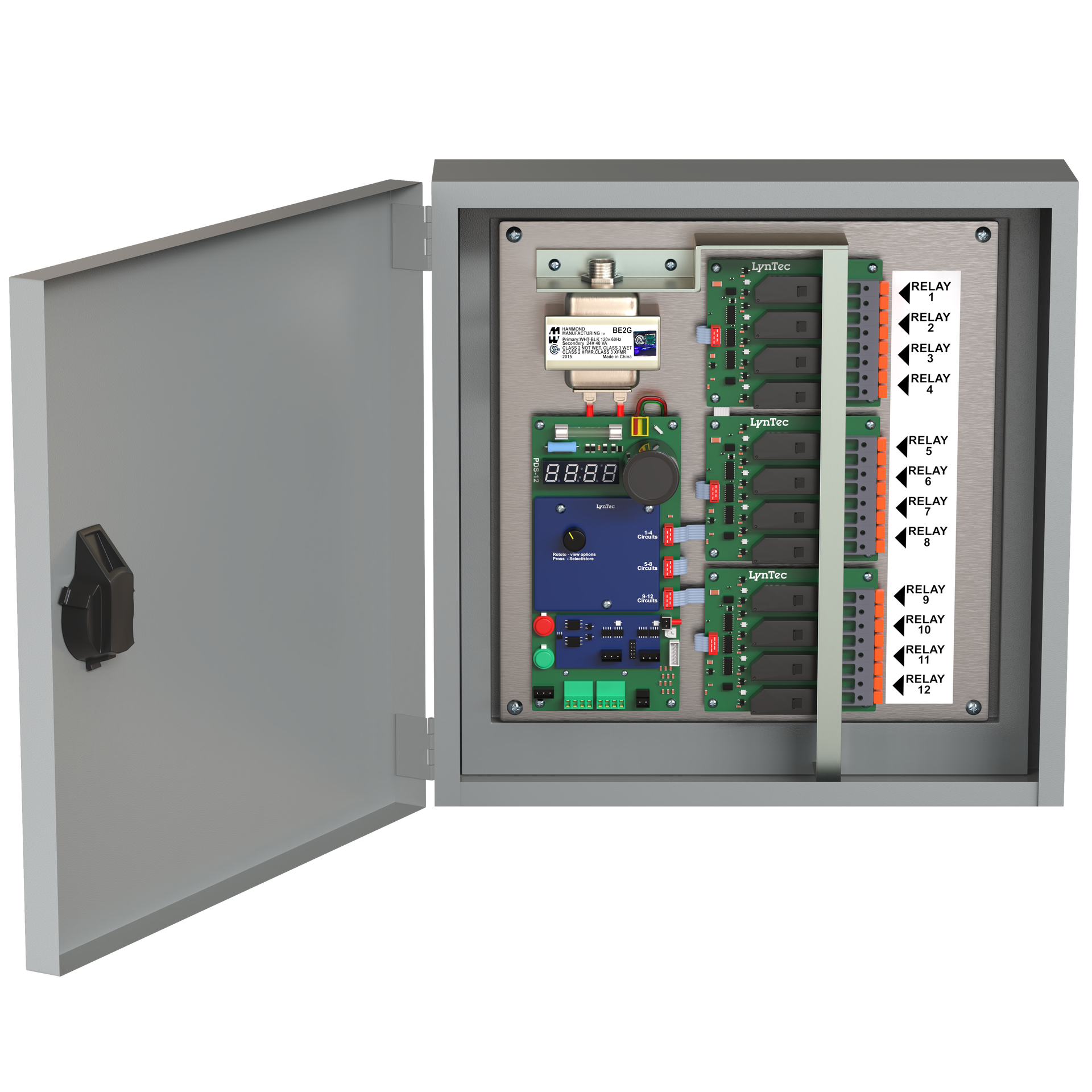

    Modular Relay Groups

    Reliable Panasonic relays are arranged in modules of four for simplified service and system expansion.

    Onboard Diagnostics

    Diagnostic LEDs and internal on/off test switches help speed up installation and troubleshooting.

    Multiple Voltage Options

    Available in 120V, 240V, or 277V models to match the electrical requirements of your facility.

    Scalable Architecture

    Panels can be daisy-chained to control an unlimited number of circuits from a single DMX data line.

    Simplified Commissioning

    Engineered for simple setup and operation, eliminating the need for factory startup or on-site programming.
    01

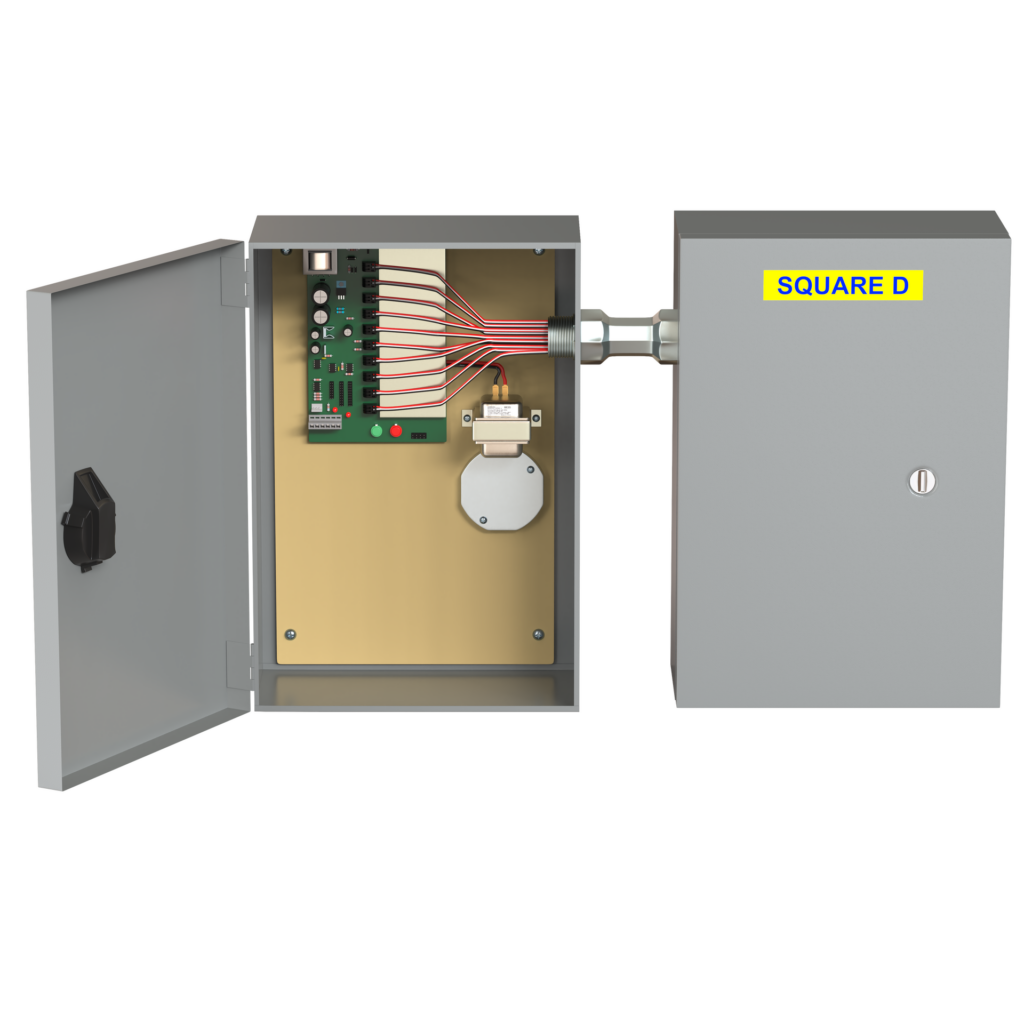

    Installs Alongside Existing Panels

    The LCRP is a self-contained unit designed to mount next to a building’s main circuit breaker panel, controlling the hot lines directly. This retrofit-friendly approach saves space and eliminates the need for redundant hardware and complex installations.
    • Controls AC power ‘hot’ lines
    • Reduces redundant installation and hardware costs
    • UL-listed cabinet and high-voltage components
    02

    Reliable and Efficient Operation

    Built with dependable Panasonic latching relays, the LCRP consumes minimal power. Relays do not require continuous coil current to hold their state, which means the panel runs cool, improving component lifespan and system reliability.
    • Low power consumption with no holding current
    • Modular 4-relay blocks for easy expansion
    • Designed for long-term, maintenance-free performance
    03

    Straightforward DMX Control

    Integrating the LCRP into a lighting system is simple. DMX 512 is the standard control protocol, and addressing is set with a simple physical jumper system. No on-site commissioning or factory startup is required.
    • Standard DMX 512 control input
    • Simple jumper system for setting DMX addresses
    • Control circuits individually or in zoned groups
    SPECIFICATIONS

    LCRP Panel Specifications

    All electrical, control, and compliance details for the LCRP series of lighting control relay panels.

    LCRP Series Specifications

    Technical details for integrating an LCRP panel into your lighting control system.

    Electrical

    • Input Voltage
      120, 240, or 277 VAC models available
    • Circuit Capacity
      4, 8, or 12 relay circuits
    • Relay Type
      Panasonic Latching Relays
    • Relay Rating
      30A General Use, 20A Ballast

    Control

    • Control Protocol
      DMX-512
    • Connections
      5-pin XLR In/Out (optional hardwire terminals)
    • Addressing
      Onboard jumpers
    • Local Test
      Internal ON/OFF test switches

    Compliance

    • Safety Listings
      UL Listed
    • Emergency
      ETL Listed to UL 924

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    LCRP Panel Support

    Find manuals, application notes, and answers to common questions about installing and operating the LCRP.
    WHITE PAPERS

    Deep dives & technical reads.

    View all White Papers
    FAQ

    FAQs about the LCRP

    Can I control multiple LCRP panels from one DMX controller?

    Yes, LCRP panels feature DMX in and out ports, allowing them to be daisy-chained. This lets you control a virtually unlimited number of circuits across multiple panels from a single DMX data line.

    How does the LCRP connect to an existing breaker panel?

    The LCRP is designed to be surface-mounted next to an existing panel. An electrician routes the ‘hot’ lines from the circuits to be controlled through the relays in the LCRP, providing DMX-based on/off control.

    How is the DMX address set on an LCRP panel?

    DMX addressing is set physically using a simple jumper system on the main control board. No software, computer, or on-site commissioning is required, making setup fast and straightforward for installers.

    Is the LCRP rated for emergency lighting applications?

    Yes, all LCRP panels include a standard emergency auto-on feature for egress lighting. This feature is ETL listed to the UL 924 standard, ensuring it is code-compliant for life safety applications.

    What are the benefits of using latching relays?

    Latching relays only require a momentary pulse of energy to change state (on or off). They do not need continuous power to stay in position, which means they consume very little energy and generate minimal heat, leading to a longer, more reliable service life.
