    RBSC Retrofit Serial Breaker Panel

    Retrofit breaker control for existing Square D panels via simple RS-232 commands.

    The RBSC is a retrofit controller that adds individual circuit sequencing to existing Square D QO breaker panels using RS-232 serial commands. It provides a cost-effective upgrade path for facilities needing to integrate legacy power infrastructure with modern, single-button control systems for AVL installations.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    A family of remote control accessories for the LynTec CQ Series power sequencing ecosystem. RC Series products provide simple, hard-wired control and status monitoring from convenient wall-mount or rack-mount locations.
    Modern Control for Legacy Panels

    Control

    RS-232 Serial

    Application

    Retrofit

    Capacity

    10 or 20 Circuits

    Compatibility

    Square D QO Panels

    Enclosure

    UL/CSA Listed
    RETROFIT CONTROL

    Add intelligent sequencing to existing breaker panels.

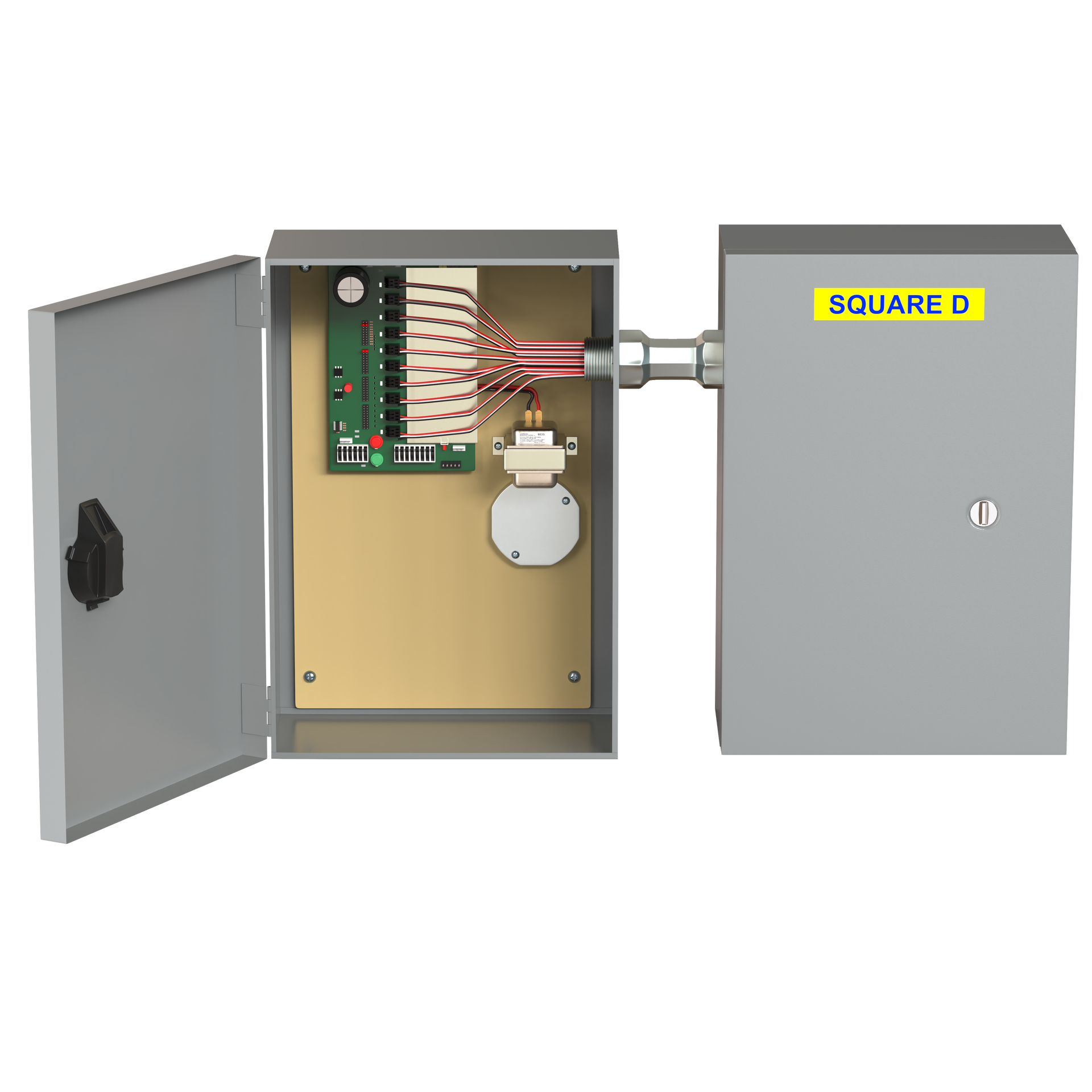

    The RBSC Retrofit Serial Breaker Panel provides a straightforward solution for adding remote power sequencing to any installation using Square D QO-style circuit breakers. Instead of replacing an entire panel, the RBSC mounts alongside the existing cabinet, connecting to motorized breakers to enable individual circuit control. This approach saves significant installation time and hardware costs, making it ideal for upgrading performance venues, houses of worship, and other facilities with established electrical infrastructure.

    Control is managed through the proven LynTec SC-10 board via standard RS-232 protocol, allowing for simple integration with third-party control systems. The energy-efficient design requires no holding current to maintain breaker state, ensuring cool, reliable, and long-term operation. With standard features like automatic load shedding and brownout protection, the RBSC delivers modern power control intelligence to legacy panels.

    SYSTEM COMPATIBILITY

    Integrate the RBSC with your facility.

    The RBSC is designed to work with specific panels and standard control protocols.

    Square D QO Breaker Panels

    Designed to retrofit any existing Square D electrical panel that accepts QO-style circuit breakers.

    Square D Motorized Breakers

    Controls Square D QO remote controlled breakers, available in 15A, 20A, and 30A models.

    Serial Control Systems

    Integrates with any automation or show control system capable of sending RS-232 serial commands.

    IP to Serial Converters

    Connects to network-based building management systems using a third-party IP to serial adapter.
    CONFIGURATION OPTIONS

    Configure your retrofit project.

    Select the right RBSC model and breakers to match your existing panel’s requirements.
    Available Models

    The RBSC is available in two capacities based on the number of circuits you need to control:

    • RBSC-10: Controls up to 10 motorized breakers from a single control board. Ideal for smaller systems or targeted upgrades.
    • RBSC-20: Controls up to 20 motorized breakers using two control boards. Suited for larger panels or more extensive sequencing needs.
    Breaker Requirements

    The RBSC controller works exclusively with Square D remote controlled motorized breakers. These must be purchased separately and installed in your existing panel.

    • Breaker Type: Must be Square D QO remote controlled (motorized) breakers.
    • Amperage Options: Compatible with 15A, 20A, and 30A versions.
    • Pole Configurations: Supports one, two, and three-pole motorized breakers.
    Control Integration

    The system is designed for simple serial control, making it compatible with a wide range of automation systems.

    • Native Protocol: RS-232 is the standard communication method for direct control.
    • IP-Based Control: Can be integrated into network systems using a third-party IP to serial converter.
    • BMS Ready: Easily connects to Building Management Systems that support serial device integration.
    WHY LYNTEC

    Intelligent control for the infrastructure you already own.

    • Cost-effective upgrade path for existing Square D panels.
    • Proven, reliable SC-10 control board technology.
    • Energy-efficient design runs cool with no holding current.
    • Simple setup with no on-site commissioning required.
    FEATURES

    RBSC Retrofit Panel Features

    Core capabilities designed to simplify upgrades and ensure reliable, long-term operation.
    CAPABILITIES

    Features

    Cost-Effective Retrofit

    Saves redundant installation and hardware costs by upgrading existing Square D panels.

    Energy Efficient Operation

    Requires no holding current to maintain breaker state, ensuring cool and reliable operation.

    Simple Setup

    Engineered for easy installation with no on-site commissioning or factory start-up required.

    RS-232 Address Jumper

    A simple jumper system makes setting the RS-232 device address quick and intuitive.

    Flexible Circuit Control

    Provides individual or zone-based control of circuits for precise power sequencing.

    BMS Integration

    Integrates with Building Management Systems through IP to serial converters.

    Automatic Load Shedding

    Includes a standard load shedding feature to manage power consumption intelligently.

    Brownout Protection

    Provides automated shutdown during brownout or power outage events to protect equipment.
    01

    Upgrade, Don’t Replace

    The RBSC adds remote sequencing capabilities to existing Square D panels, avoiding the cost and complexity of a full panel replacement.
    • Mounts next to existing panels
    • Connects to motorized QO breakers
    • Saves on labor and hardware costs
    02

    Simple Serial Integration

    Utilizes the industry-standard RS-232 protocol for straightforward integration with any serial-capable automation or building management system.
    • Proven LynTec SC-10 control board
    • Simple jumper for address setting
    • No on-site commissioning required
    03

    Engineered for Reliability

    Housed in a lockable, rain-tight Hoffman cabinet, the RBSC is built for long-term performance in both indoor and outdoor applications.
    • UL and CSA listed enclosure
    • Energy-efficient, cool-running design
    • Standard brownout and load-shedding protection
    SPECIFICATIONS

    RBSC Retrofit Panel Specifications

    Technical data for planning your installation and integrating with control systems.

    RBSC Retrofit Panel Specifications

    Technical details for integrating the RBSC into your existing power infrastructure.

    Control & Capacity

    • Control Protocol
      RS-232 Serial
    • Controllable Circuits
      Up to 10 (RBSC-10) or 20 (RBSC-20)
    • Addressing
      Onboard jumpers
    • Control Board
      LynTec SC-10

    Compatibility

    • Panel Compatibility
      Any Square D cabinet accepting QO breakers
    • Breaker Compatibility
      Square D QO remote controlled motorized breakers
    • Supported Breakers
      15A, 20A, 30A (1, 2, or 3-pole)

    Physical & Electrical

    • Enclosure
      Hoffman lockable, rain-tight cabinet
    • Mounting
      Surface mount
    • Power Supply
      Internal power transformer
    • Compliance
      UL & CSA listed cabinet

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    RBSC Retrofit Panel Support

    Find documentation and answers to common questions about installing and programming the RBSC.
    WHITE PAPERS

    Deep dives & technical reads.

    View all White Papers
    FAQ

    FAQs about the RBSC Retrofit Panel

    Can this control non-Square D breakers?

    No, the RBSC is specifically designed to control Square D QO-style remote controlled motorized breakers and is not compatible with other brands or types.

    How does the RBSC connect to my control system?

    The RBSC connects via a standard RS-232 serial connection. For network-based control systems, you can use a third-party IP-to-Serial converter.

    Is on-site commissioning by LynTec required?

    No, the RBSC is designed for a simple setup. Addressing is handled by onboard jumpers, and no factory start-up or commissioning is required for operation.

    What do I need to buy besides the RBSC panel?

    You will need to purchase the appropriate number and type of Square D QO remote controlled (motorized) breakers separately to install in your existing panel.
