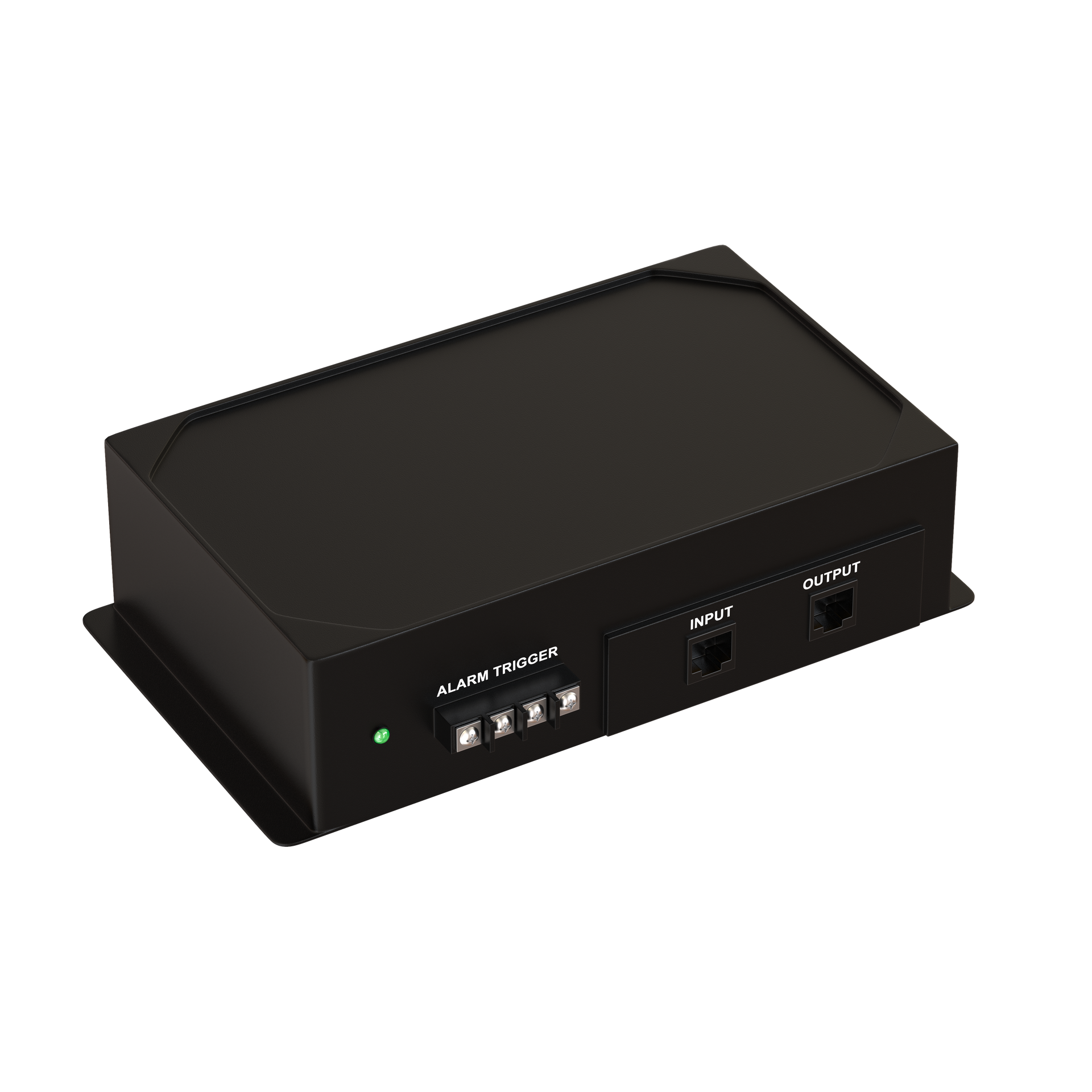

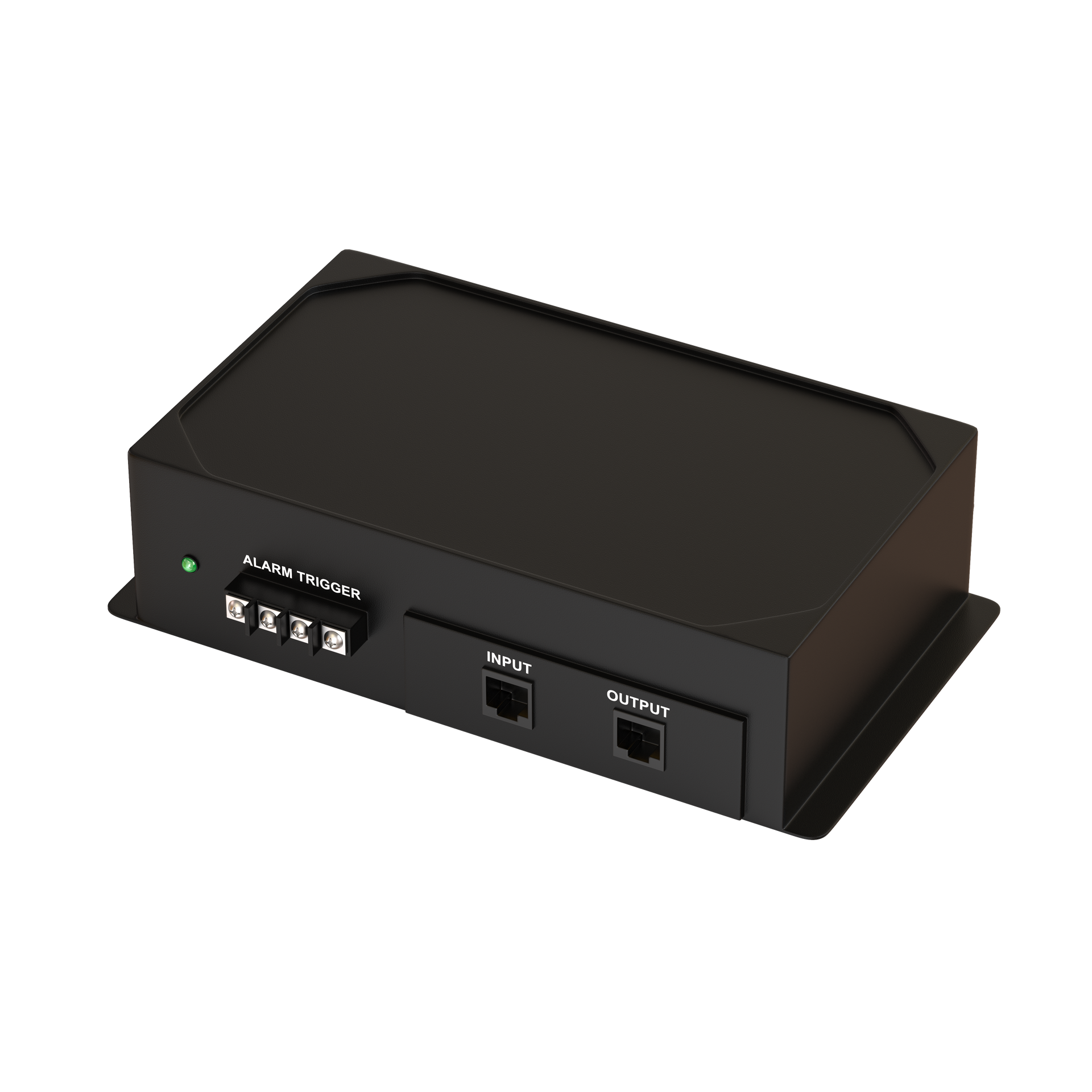

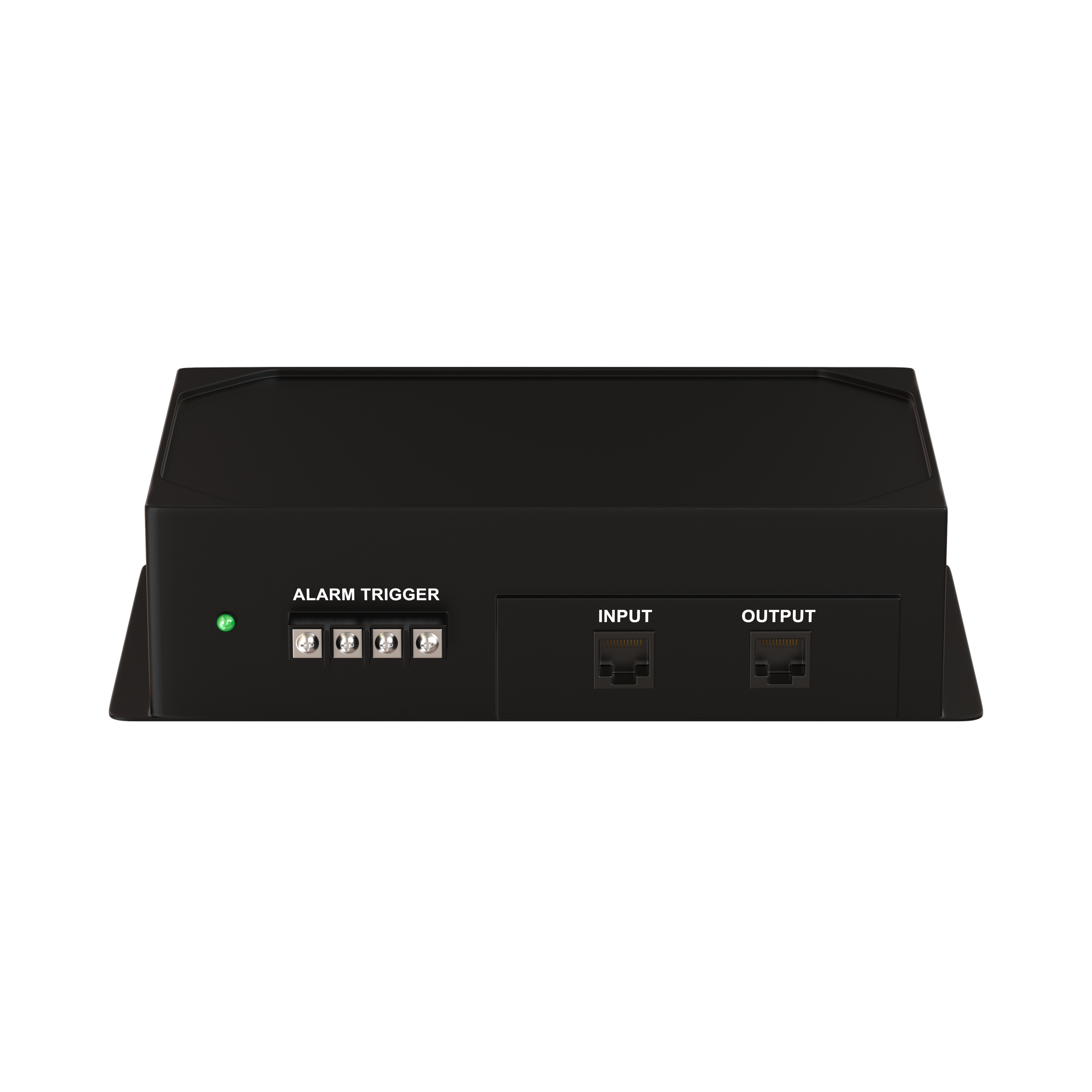

    RC DM1 Alarm Interface

    Alarm interface module for forcing a safe power-down sequence on CQ Series products.

    The RC DM1 is a dedicated interface module that connects a facility’s alarm panel to a network of Juice Goose CQ Series sequencers. It provides integrators a simple, reliable method for automatically initiating a safe power-down sequence of connected AVL systems during an emergency event.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    A family of remote control accessories for the LynTec CQ Series power sequencing ecosystem. RC Series products provide simple, hard-wired control and status monitoring from convenient wall-mount or rack-mount locations.
    Engineered for Safety and Simplicity

    Function

    Alarm Interface

    Compatibility

    CQ Series

    Trigger

    Dry Contact

    Connections

    RJ45, Terminals

    Power

    12 VAC (Included)
    ALARM SYSTEM INTERFACE

    Integrate emergency shutdown into your power sequence.

    The RC DM1 provides a simple and reliable bridge between a building’s alarm system and your sequenced power infrastructure. By monitoring a dry contact closure from an alarm control panel, the RC DM1 can automatically trigger an orderly power-down sequence for all connected Juice Goose CQ Series products. This ensures sensitive audio and video equipment is shut down safely in the event of an emergency, protecting investments and simplifying facility safety protocols.

    Installation is straightforward, with pass-through RJ45 ports that allow the module to be inserted into any CQ control line without complex wiring. A 12 VAC power supply is included, making it a complete, out-of-the-box solution for code-compliant system integration.

    SYSTEM COMPATIBILITY

    Integrate with your sequencing and alarm systems.

    The RC DM1 is designed to work with the following hardware and systems.

    Juice Goose CQ Series Sequencers

    Connects inline with any CQ Series product or network using standard RJ45 cabling.

    Alarm Control Panels

    Interfaces with any alarm panel that provides a normally-closed, latching dry contact output.

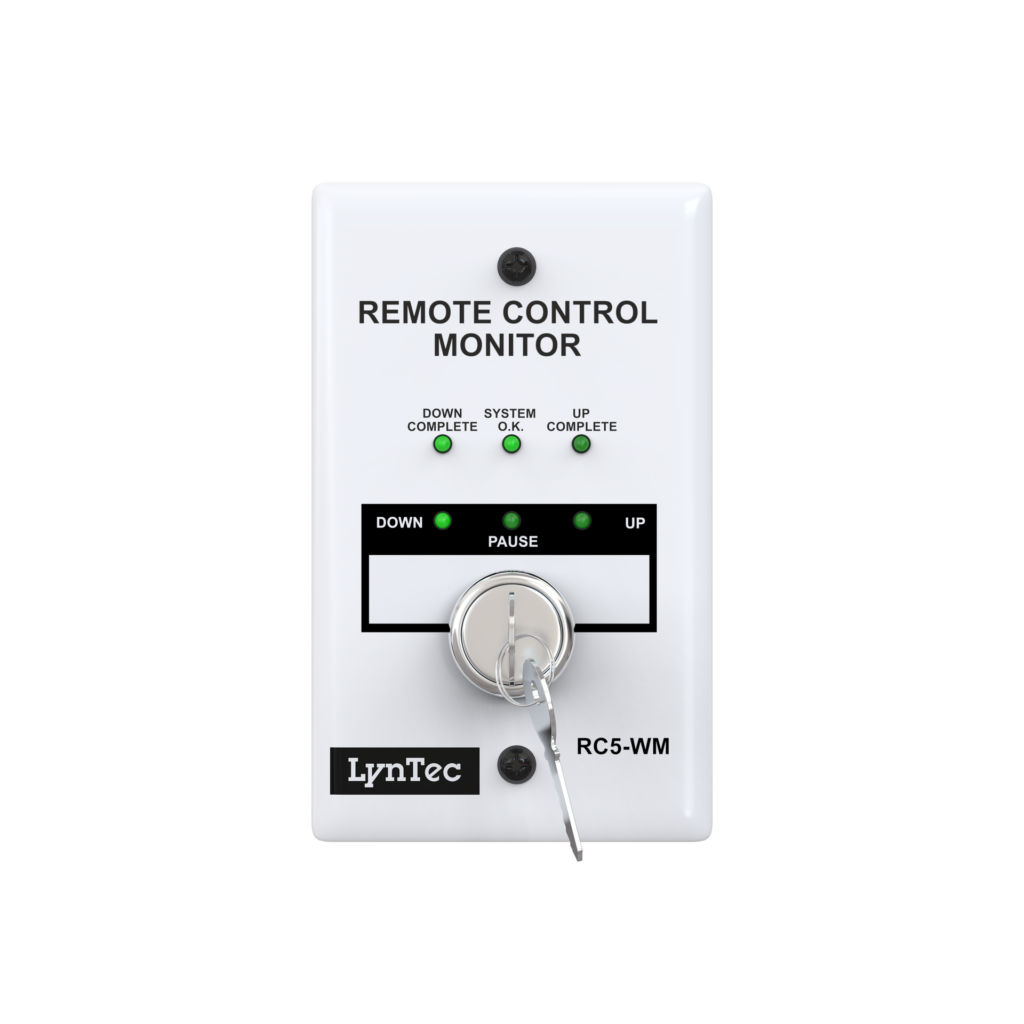

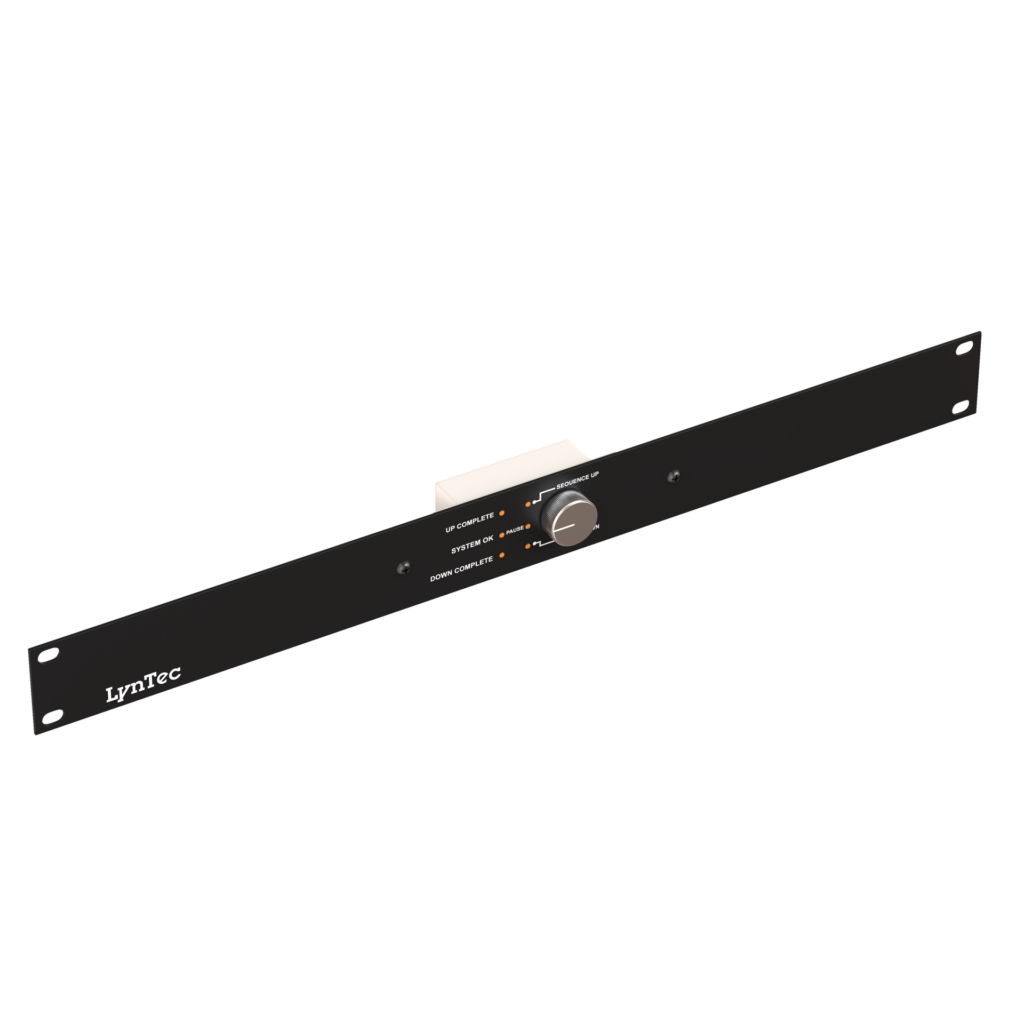

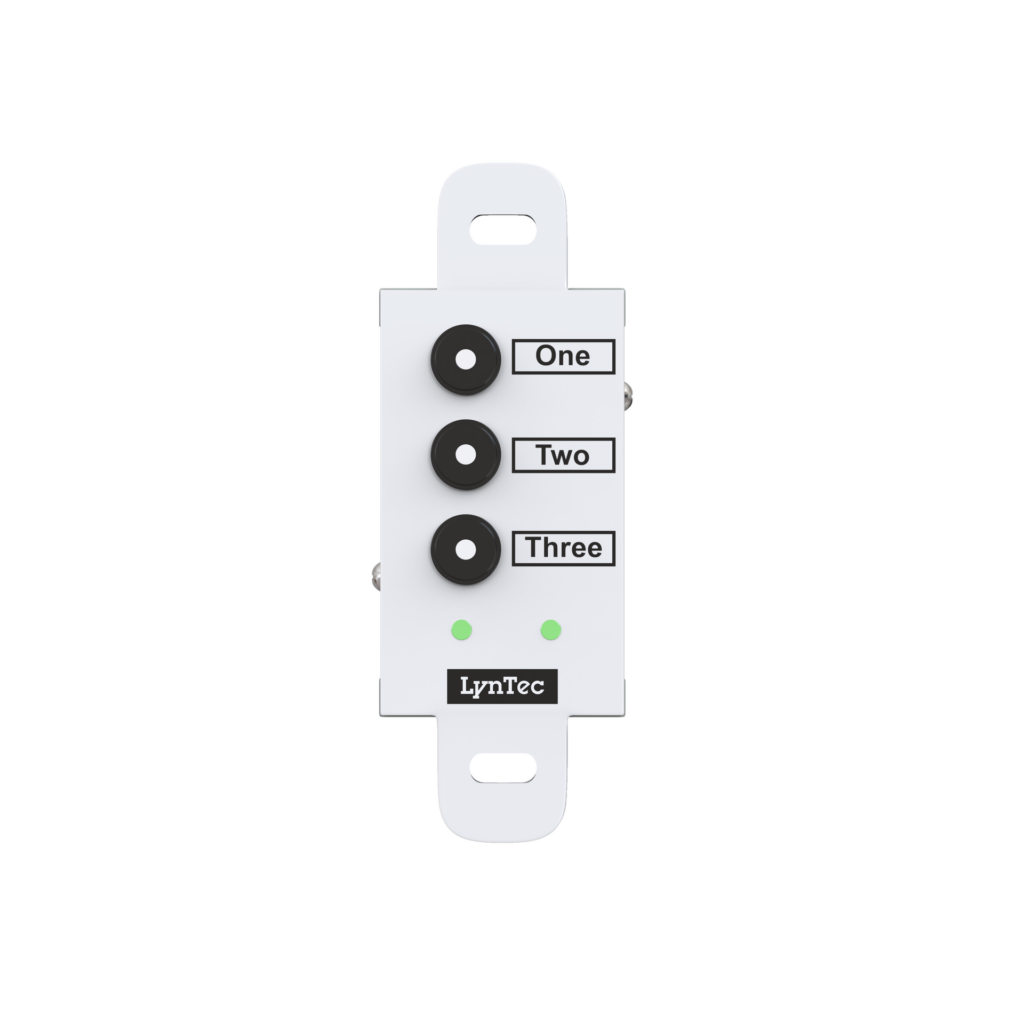

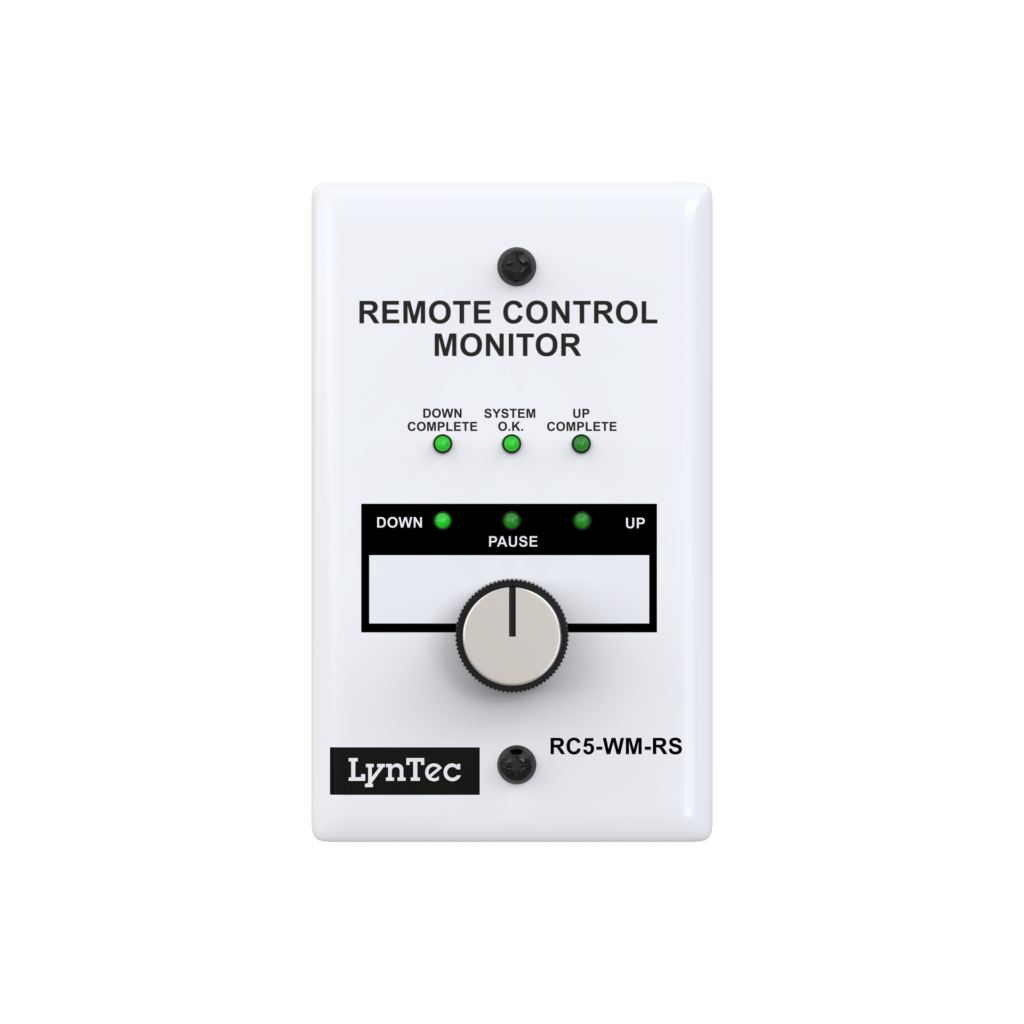

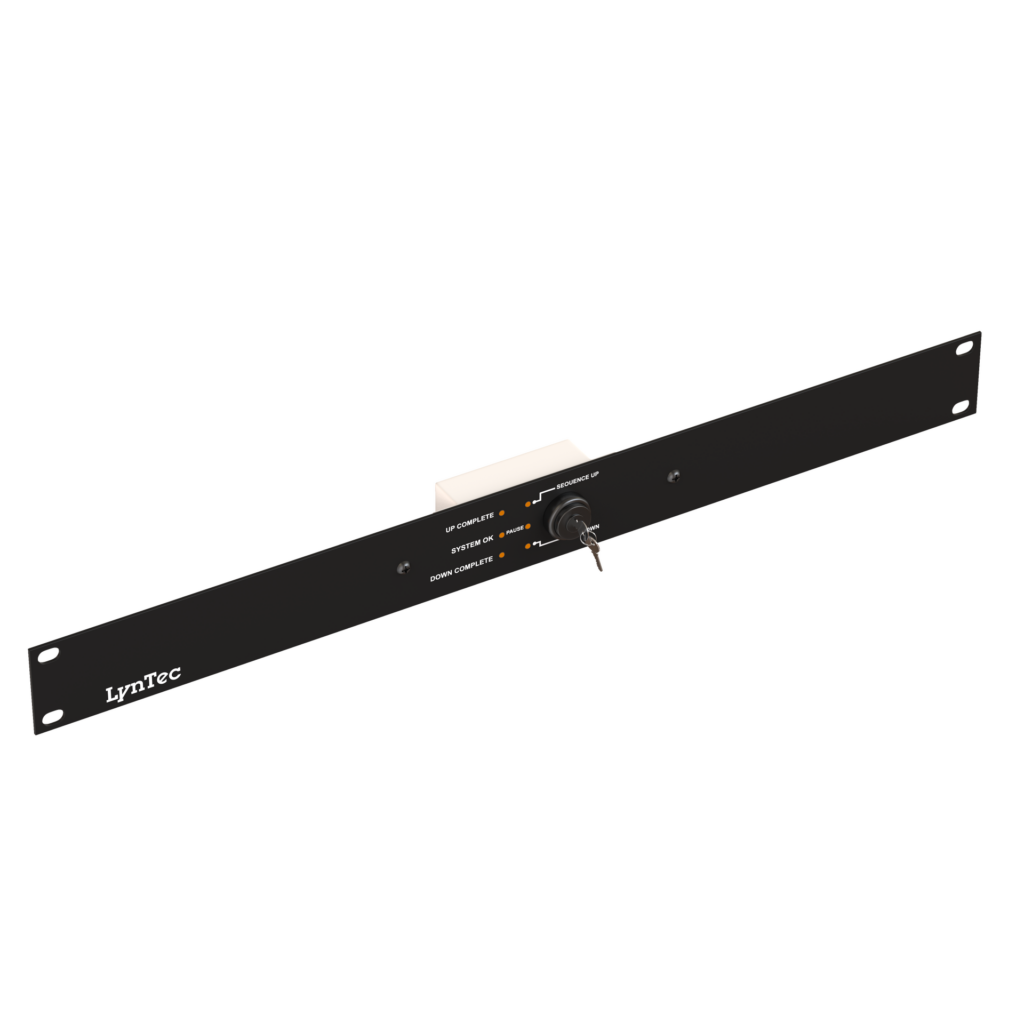

    Juice Goose RC5 Accessories

    Functions as part of a complete control chain that can include RC5 key switches or remotes.
    WHY LYNTEC

    Reliable safety integration, simplified.

    • Purpose-built for CQ Series for guaranteed compatibility
    • Simple, robust design for long-term reliability
    • Streamlines the integration of life safety systems with AVL power
    • Supported by our team of application engineers
    FEATURES

    RC DM1 Alarm Interface Features

    Core capabilities for integrating your power sequencing system with facility alarm controls.
    CAPABILITIES

    Features

    Dry Contact Terminal

    Provides a simple two-wire connection to any standard alarm control panel contact.

    Orderly Sequence Down

    Initiates the standard CQ power-down sequence, shutting off devices in the correct order.

    Automatic Sequence Up

    Restores power automatically with a normal sequence-up once the alarm contact is closed.

    RJ45 Pass-Through

    Allows for simple inline installation into an existing CQ Series control signal chain.

    Included Power Supply

    Ships with the required 12 VAC external power supply for immediate deployment.

    Compact Chassis

    Small form factor is easy to mount to any stable surface near the control equipment.
    01

    Automated Emergency Shutdown

    Connects to a standard alarm panel’s dry contact closure to automatically initiate a safe, sequenced power-down of all connected equipment.
    • Triggers on open contact from alarm panel
    • Ensures an orderly shutdown to protect sensitive electronics
    • Automatically sequences system back on once alarm is cleared
    02

    Seamless CQ Series Integration

    Designed specifically for the Juice Goose CQ Series, the RC DM1 installs inline using standard RJ45 cables for plug-and-play setup.
    • Input and Output RJ45 ports for easy connection
    • Passes through normal sequencing commands until alarm is triggered
    • Maintains the integrity of the existing CQ control network
    SPECIFICATIONS

    RC DM1 Alarm Interface Specifications

    All connection and operational specifications in one place.

    RC DM1 Specifications

    Technical details for integrating the RC DM1 alarm interface with your CQ Series power sequencing system.

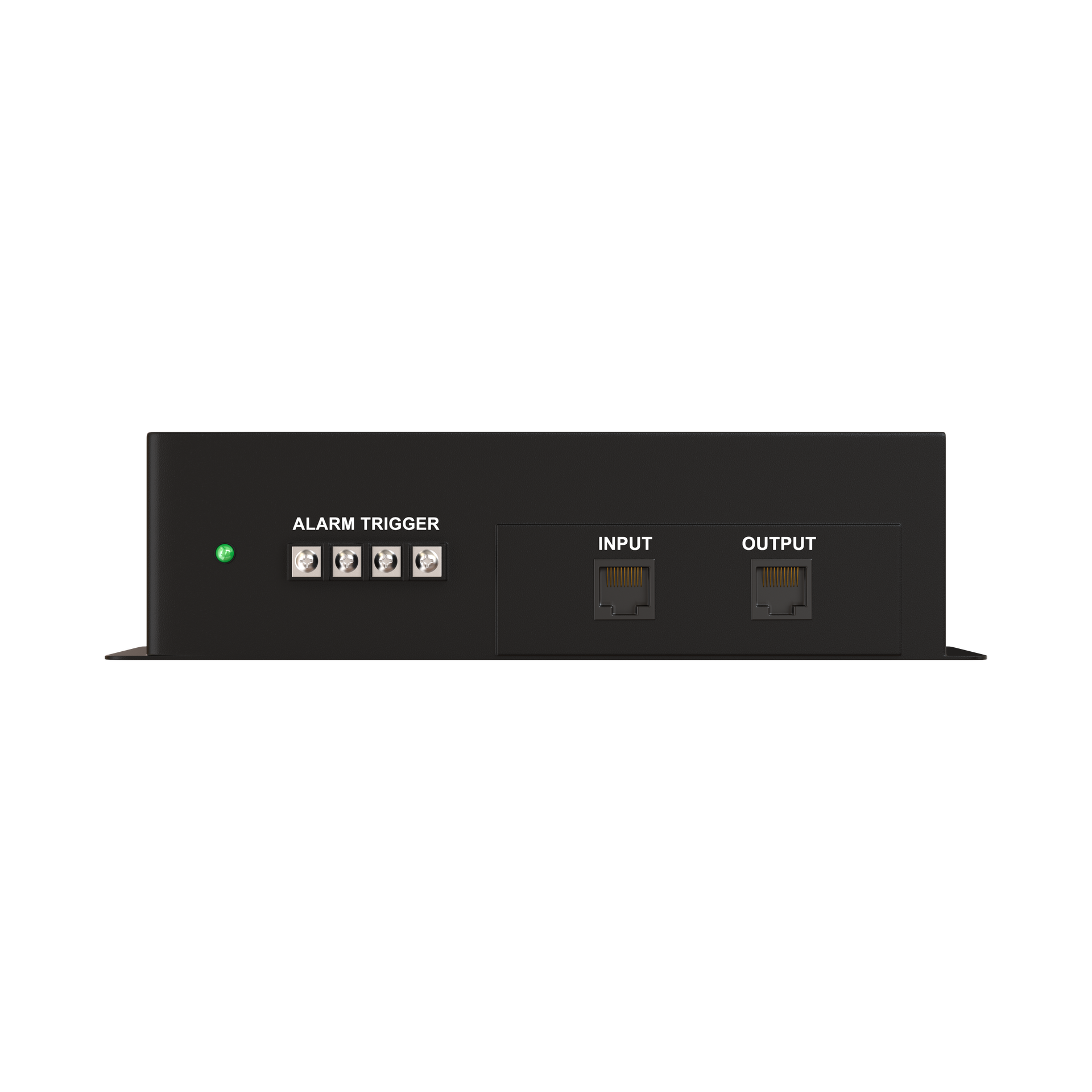

    Control Interface

    • Alarm Input
      2-position terminal block for a maintained dry contact
    • Trigger Logic
      Initiates sequence-down on open contact

    Connections

    • CQ Control Input
      1x RJ45
    • CQ Control Output
      1x RJ45

    Power

    • Input Requirement
      12 VAC
    • Power Supply
      External 12 VAC adapter (included)

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    RC DM1 Alarm Interface Support

    Find documentation and answers to common questions about installation and operation.
    WHITE PAPERS

    Deep dives & technical reads.

    View all White Papers
    FAQ

    FAQs about the RC DM1

    Can I use the RC DM1 with non-Juice Goose products?

    The RC DM1 is engineered specifically for the control signal and logic of the Juice Goose CQ Series power sequencing ecosystem. It is not designed or supported for use with other manufacturers’ sequencing products.

    Does the RC DM1 need its own power source?

    Yes, the RC DM1 requires a 12 VAC power source to operate. A compatible external power adapter is included with the unit.

    How does the RC DM1 connect to an alarm panel?

    The RC DM1 connects to a normally-closed, latching dry contact on an alarm control panel via a two-position screw terminal. When the alarm triggers, the contact opens, which signals the RC DM1 to begin the power-down sequence.

    What happens when the alarm condition is cleared?

    Once the alarm is cleared and the dry contact between the terminals is restored (closed), the RC DM1 will automatically initiate a normal power-up sequence for all connected CQ Series units.

    NEXT Features
    BACK Overview NEXT Specifications
    BACK Features NEXT Product Support
    BACK Specifications NEXT Contact Us

    Need to integrate with a specific alarm system?

    Our team can help you verify compatibility and design the RC DM1 into your next power sequencing project. Get the support you need to ensure a safe and compliant installation.
