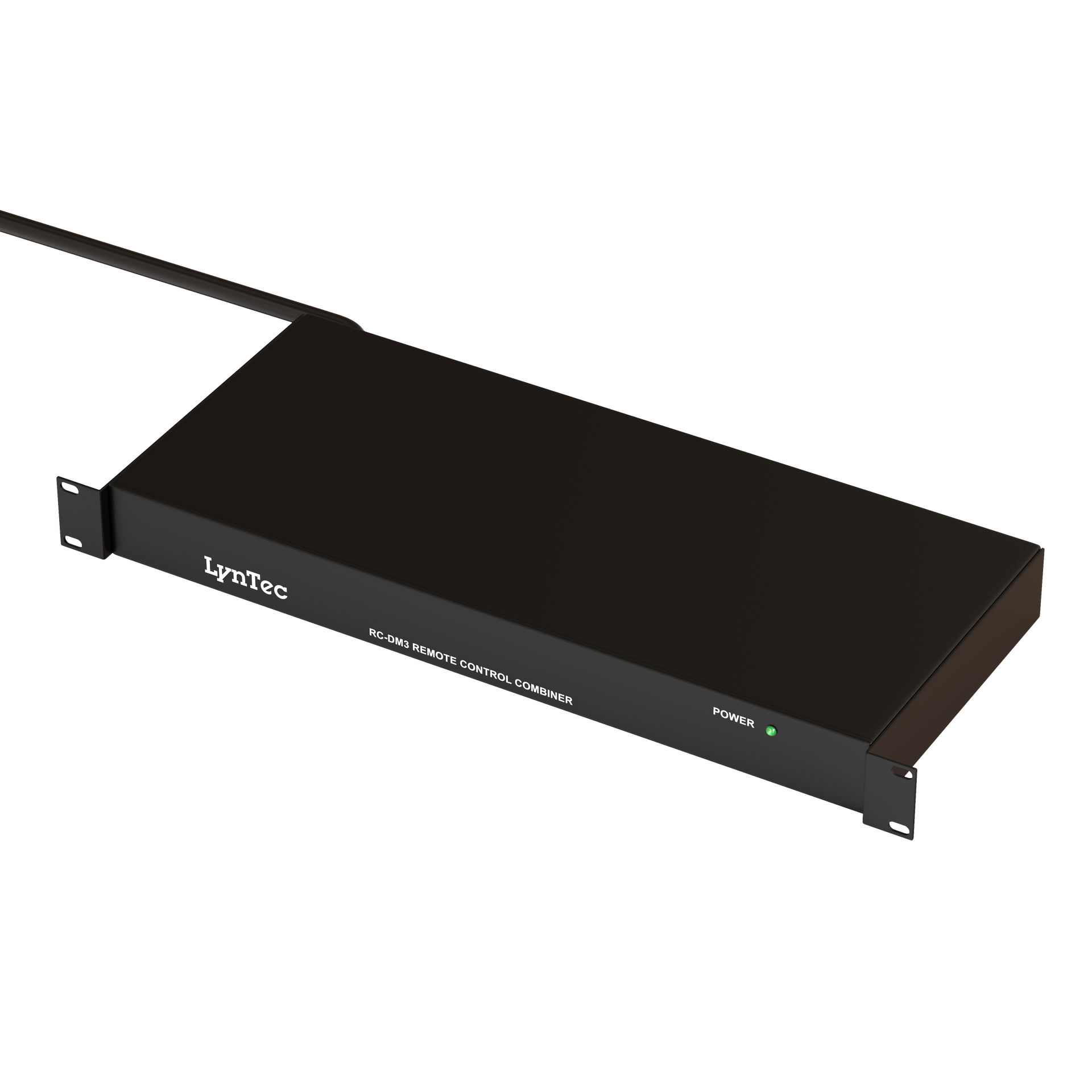

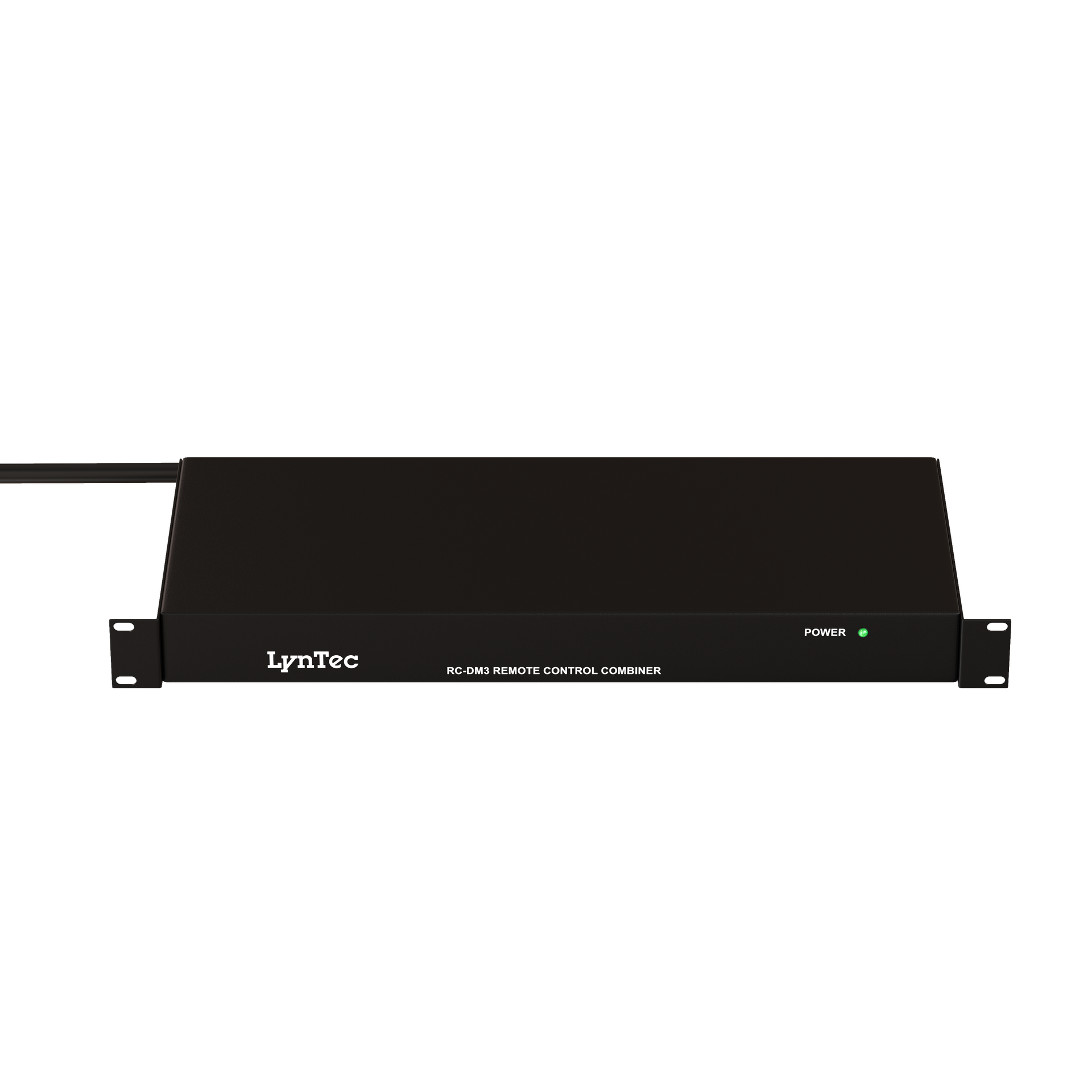

    RC DM3

    Centralizes control for CQ Series sequencers from up to three remote locations.

    The RC DM3 is a remote control module that consolidates inputs from up to three separate RC-5 key switches or control panels. It simplifies wiring for integrators in venues requiring multi-point sequencer control and integrates with alarm systems for automated emergency shutdowns.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    A family of remote control accessories for the LynTec CQ Series power sequencing ecosystem. RC Series products provide simple, hard-wired control and status monitoring from convenient wall-mount or rack-mount locations.
    Simplified Control for Complex Venues

    Compatibility

    CQ Series

    Control Points

    Up to 3

    Alarm Input

    Contact Closure

    Connectors

    RJ-45 (Signal)
    CQ SERIES ACCESSORY

    Centralize remote sequencing control from multiple locations.

    The RC DM3 simplifies installations that require power sequencing control from more than one location. Instead of complex custom wiring, this compact module provides a plug-and-play hub for up to three RC-5 remote controls, intelligently routing the most recent command to the CQ Series sequencing system. It eliminates control conflicts and dramatically reduces installation time and potential points of failure.

    For added safety, a dedicated contact closure input allows the RC DM3 to connect directly to a fire alarm or other emergency system. If the alarm is triggered, the module initiates an immediate, orderly power-down sequence across all connected equipment, protecting sensitive AVL systems and ensuring code compliance.

    COMPATIBLE ACCESSORIES

    Integrate the RC DM3 into your sequencing system.

    The RC DM3 is designed to work seamlessly with the LynTec CQ and RC series of products.

    LynTec CQ Series Sequencers

    Expands control for any LynTec CQ Series power sequencing product, including rack-mount and in-wall models.

    LynTec RC-5 Remote Controls

    Accepts inputs from up to three RC-5 remote key switches or rotary switches like the RC5-RM and RC5-WM.

    Fire Alarm and Safety Systems

    Connects to any alarm panel with a normally open dry contact output for automated emergency shutdown.
    WHY LYNTEC

    Simplify complex control scenarios reliably.

    • Reduces installation time and wiring complexity
    • Adds critical safety shutdown capability
    • Engineered for long-term, maintenance-free operation
    • Seamlessly integrates with the CQ Series ecosystem
    FEATURES

    RC DM3 Features

    Engineered for simple installation and reliable operation in multi-point control applications.
    CAPABILITIES

    Features

    Three Control Inputs

    Consolidates signals from up to three remote locations for centralized CQ system control.

    Plug-and-Play Setup

    Uses standard signal line connections for simple, fast installation with no programming.

    Last Command Priority

    Automatically routes the most recent command to the CQ sequencer, ensuring clear operation.

    Alarm System Integration

    A dedicated contact terminal allows for a forced, orderly system shutdown from an alarm panel.

    Compact Chassis

    Small form factor allows for easy mounting behind racks, in doghouses, or in control closets.

    No External Power Required

    Draws operating power directly from the CQ Series signal line, simplifying installation.
    01

    Unified Control, Simplified Wiring

    Consolidate control from a stage manager’s desk, a control booth, and a primary panel without custom logic or extensive cable runs.
    • Connects up to three RC-5 remote units
    • Uses standard, reliable RJ-45 signal cables
    • Last-command-wins logic prevents signal conflicts
    02

    Integrated Safety and Egress

    A dedicated terminal provides a straightforward way to integrate your power control system with building safety protocols for automated shutdown.
    • Normally open contact closure input
    • Triggers an orderly, pre-programmed sequence down
    • Integrates with fire alarm and emergency egress systems
    SPECIFICATIONS

    RC DM3 Specifications

    All connection and physical specs in one place for easy integration.

    RC DM3 Technical Specifications

    Key details for integrating the RC DM3 into your CQ Series power sequencing system.

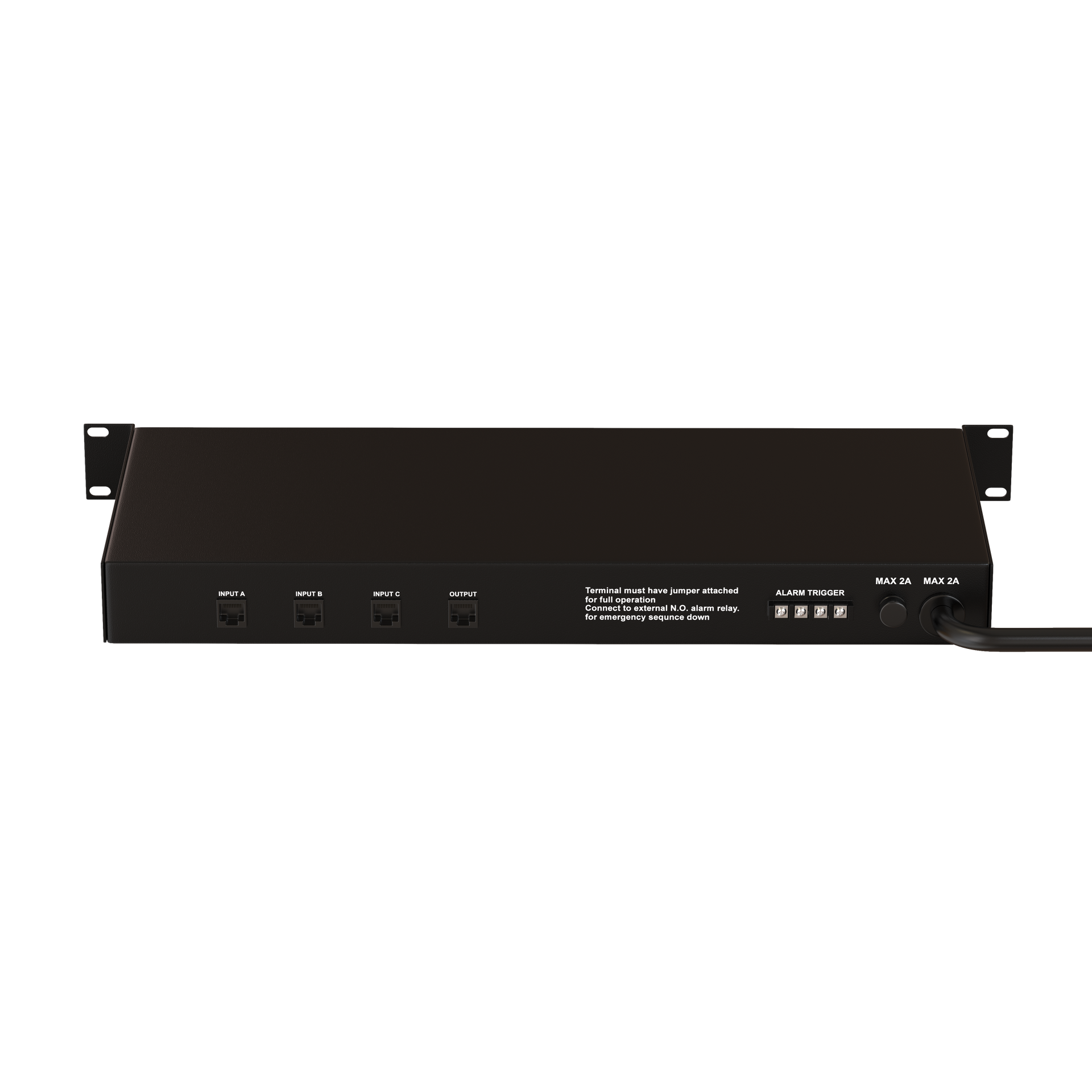

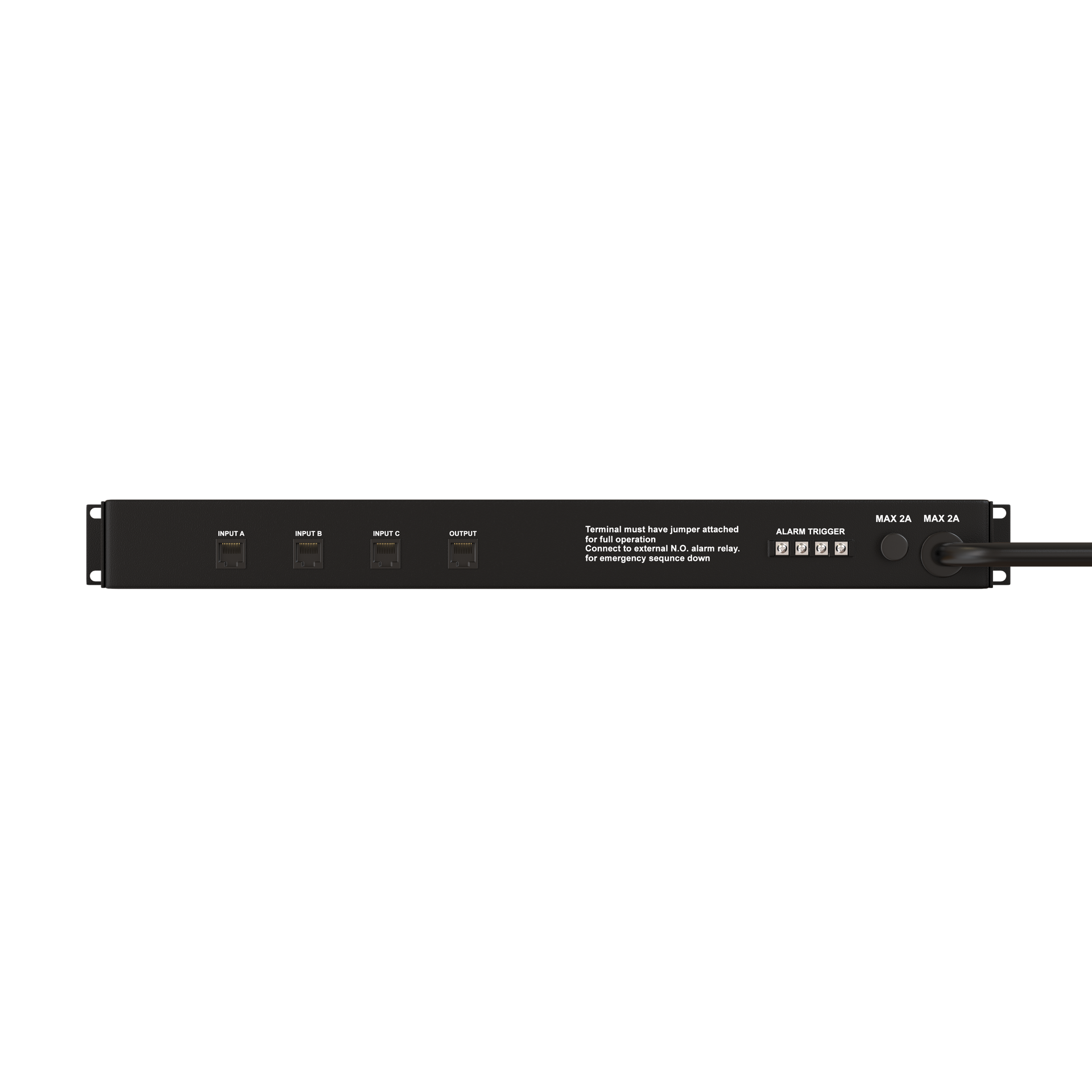

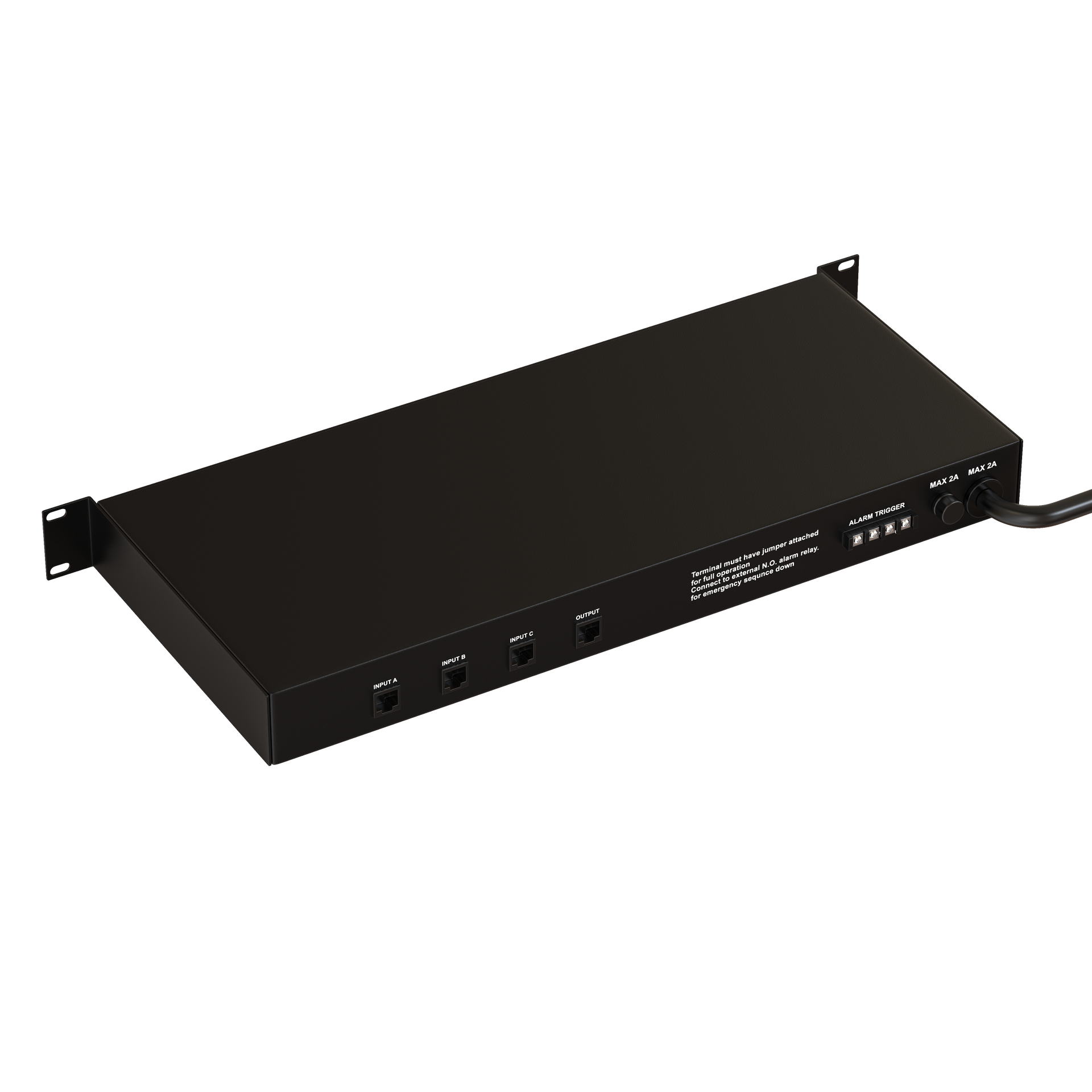

    Connections

    • Remote Inputs
      3 x RJ-45 for RC-5 Remotes
    • System Output
      1 x RJ-45 to CQ Sequencer
    • Alarm Trigger
      2-pin terminal for normally open dry contact

    Electrical

    • Power Source
      Powered via CQ Series signal line
    • Power Consumption
      Minimal, passive operation

    Physical

    • Chassis
      Compact metal enclosure
    • Mounting
      Surface mountable

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    RC DM3 Support

    Documentation, application notes, and answers to common questions.
    WHITE PAPERS

    Deep dives & technical reads.

    View all White Papers
    FAQ

    FAQs about the RC DM3

    Can I use more than one RC DM3 for more control locations?

    No, a single RC DM3 is designed to consolidate up to three locations. For systems requiring more complex control, please contact a LynTec engineer to discuss your design.

    Does the RC DM3 require its own power supply?

    No, it is powered directly over the signal line from the connected CQ Series sequencing system, which simplifies wiring and reduces points of failure.

    How does the RC DM3 connect to the CQ system?

    The RC DM3 connects using the same simple RJ-45 signal line as other CQ Series products, making installation plug-and-play with no special configuration required.

    What kind of alarm signal does the RC DM3 accept?

    It uses a normally open dry contact closure. When the contact is closed by an external alarm panel, it triggers an orderly sequence down of all connected CQ units.
