    RC5-KPS Secure Keypad Remote

    Wall-mounted keypad remote for secure, code-based control of CQ Series sequencers.

    The RC5-KPS is a Decora-style wall-mounted keypad that provides secure, code-required remote control for any Juice Goose CQ Series power sequencing product. It is designed for installations where access to power sequencing must be restricted, giving facility managers confident control over system startup and shutdown.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    A family of remote control accessories for the LynTec CQ Series power sequencing ecosystem. RC Series products provide simple, hard-wired control and status monitoring from convenient wall-mount or rack-mount locations.
    Simple, Secure Power Sequencing.

    Compatibility

    CQ Series

    Control

    4-Digit Code

    Form Factor

    Decora Style

    Connection

    RJ45
    CQ SERIES ACCESSORY

    Secure, wall-mount control of your CQ series power sequencing system.

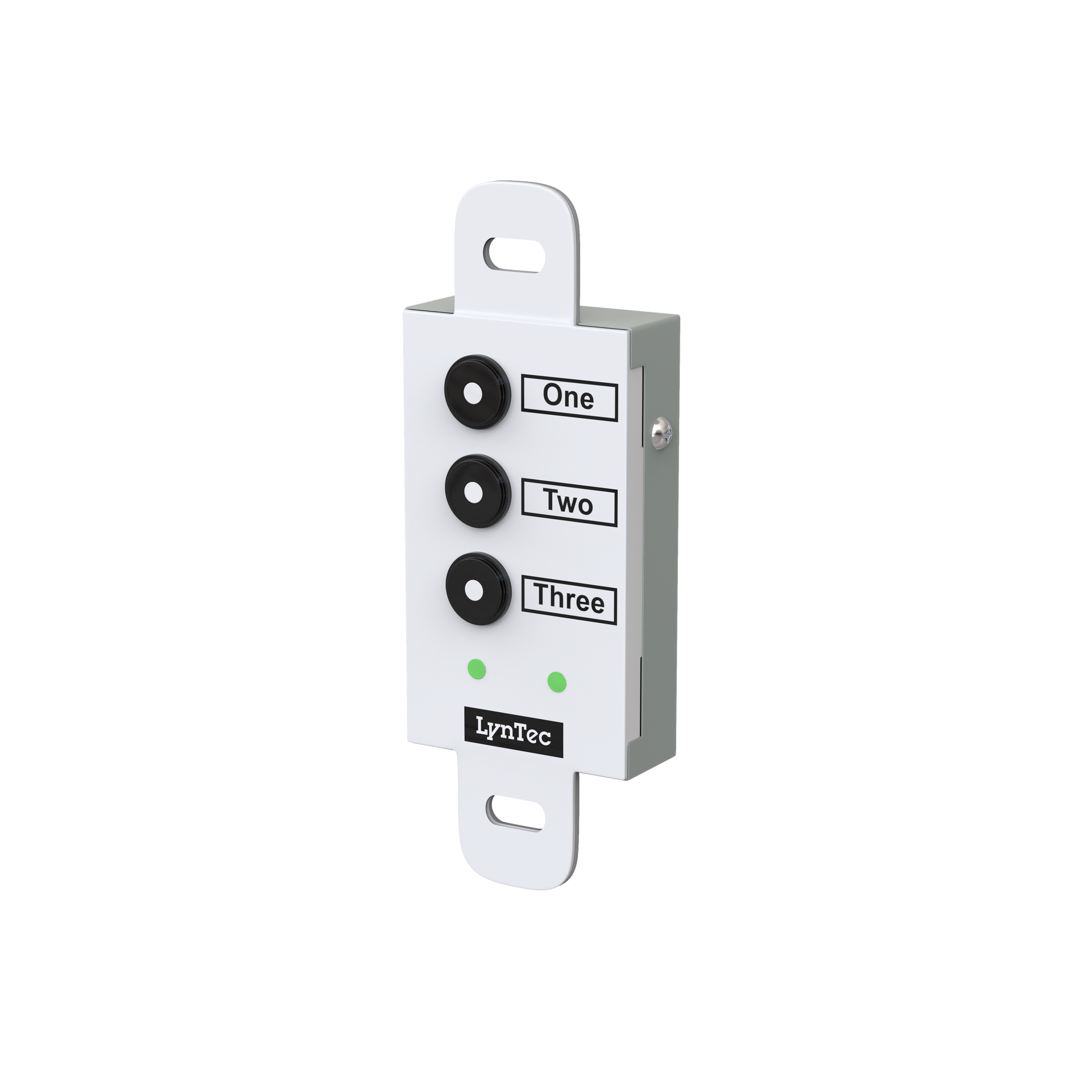

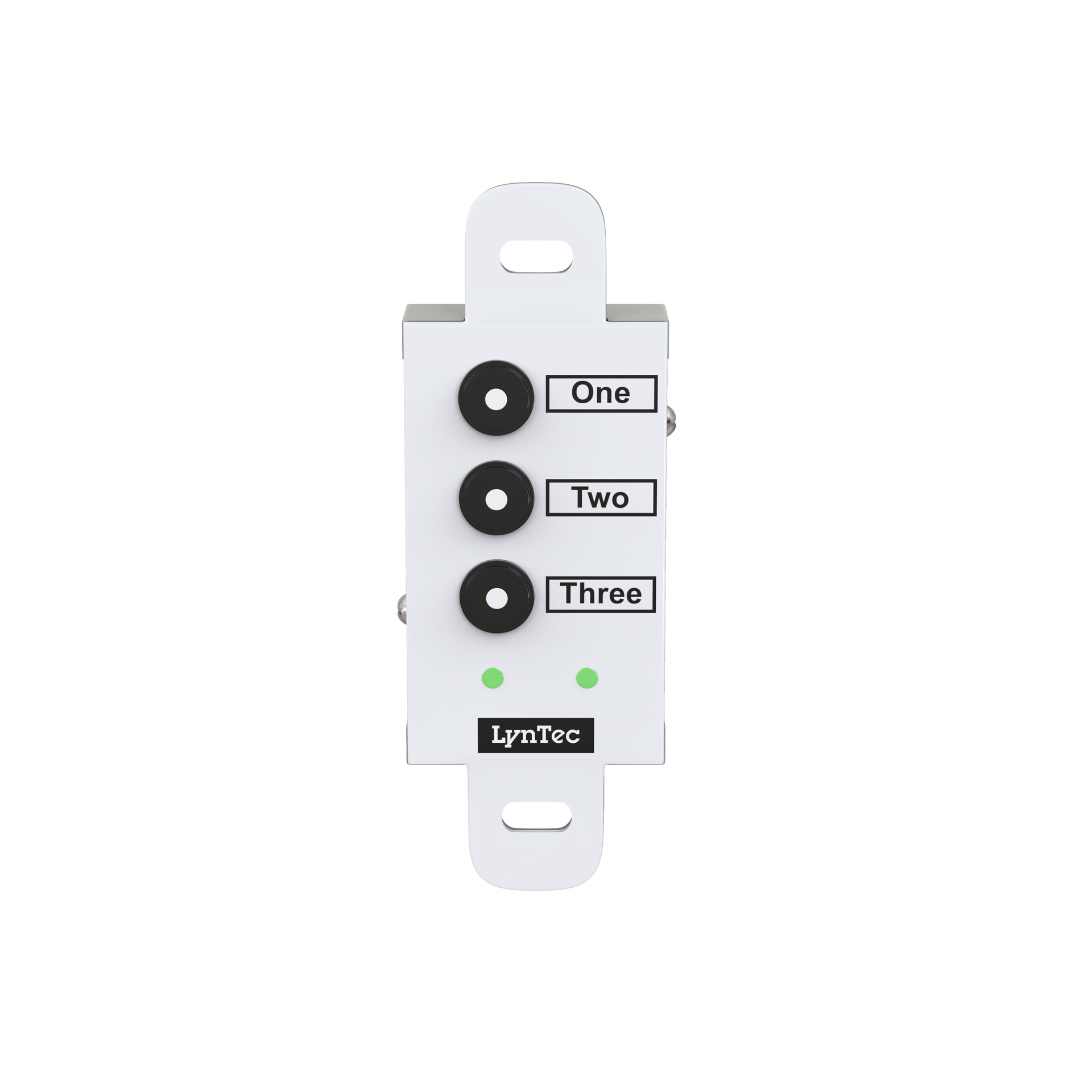

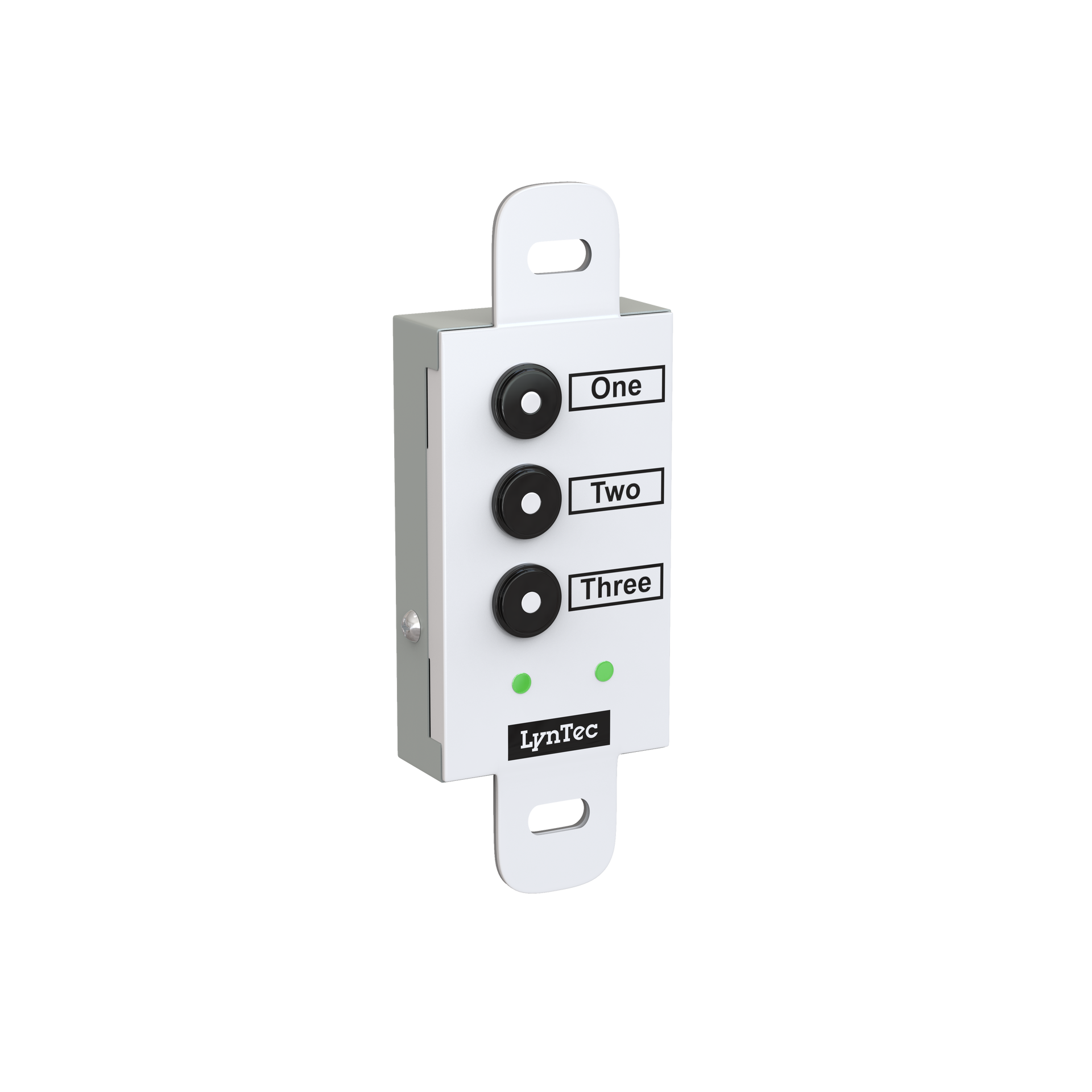

    The RC5-KPS provides a simple and secure interface for controlling any Juice Goose CQ Series power sequencer. Designed to fit a standard Decora faceplate, this three-button keypad requires a four-digit code to initiate sequence up or sequence down commands, preventing unauthorized operation of connected AVL systems. Clear LED indicators on the front panel confirm when a sequence is complete, providing immediate visual status feedback to the operator.

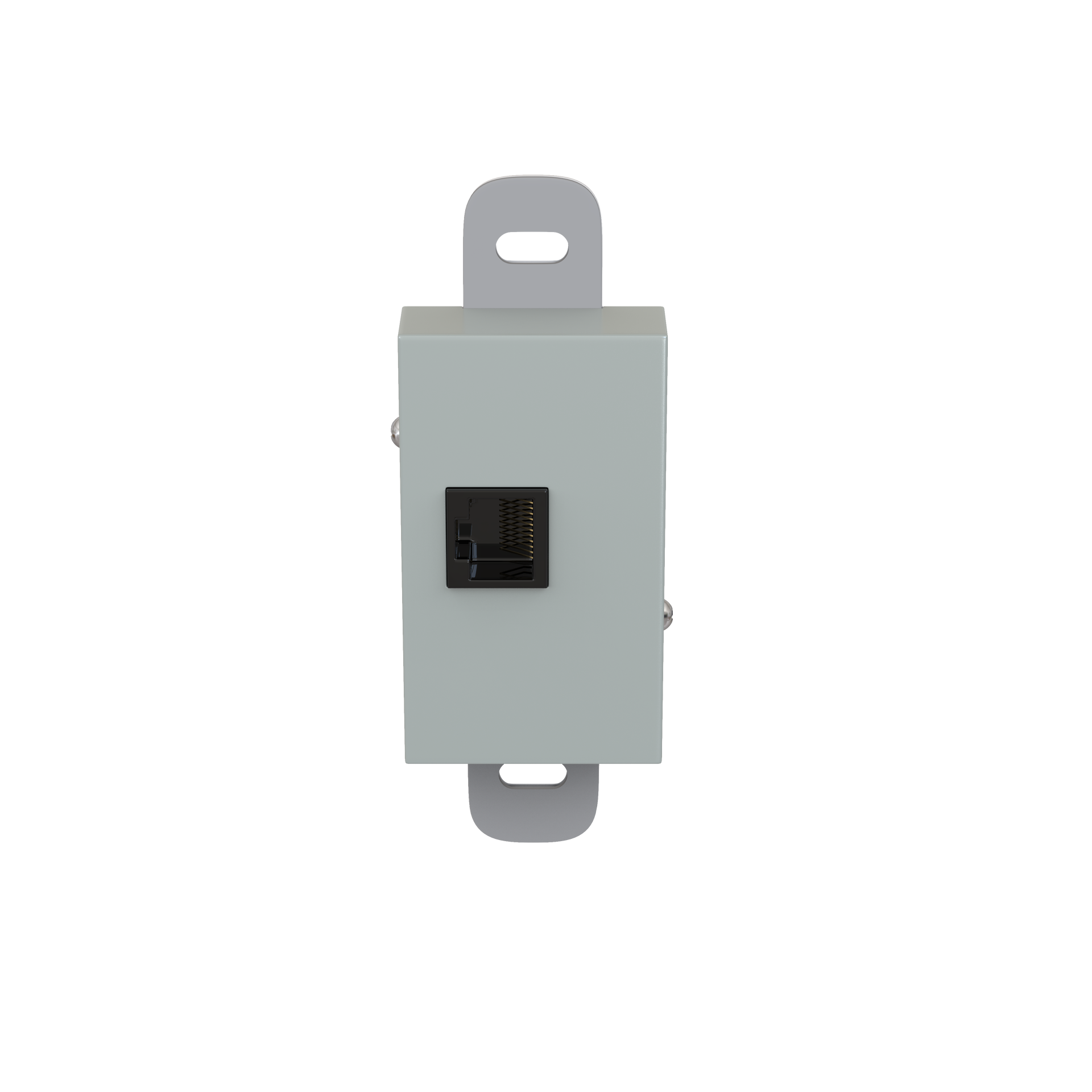

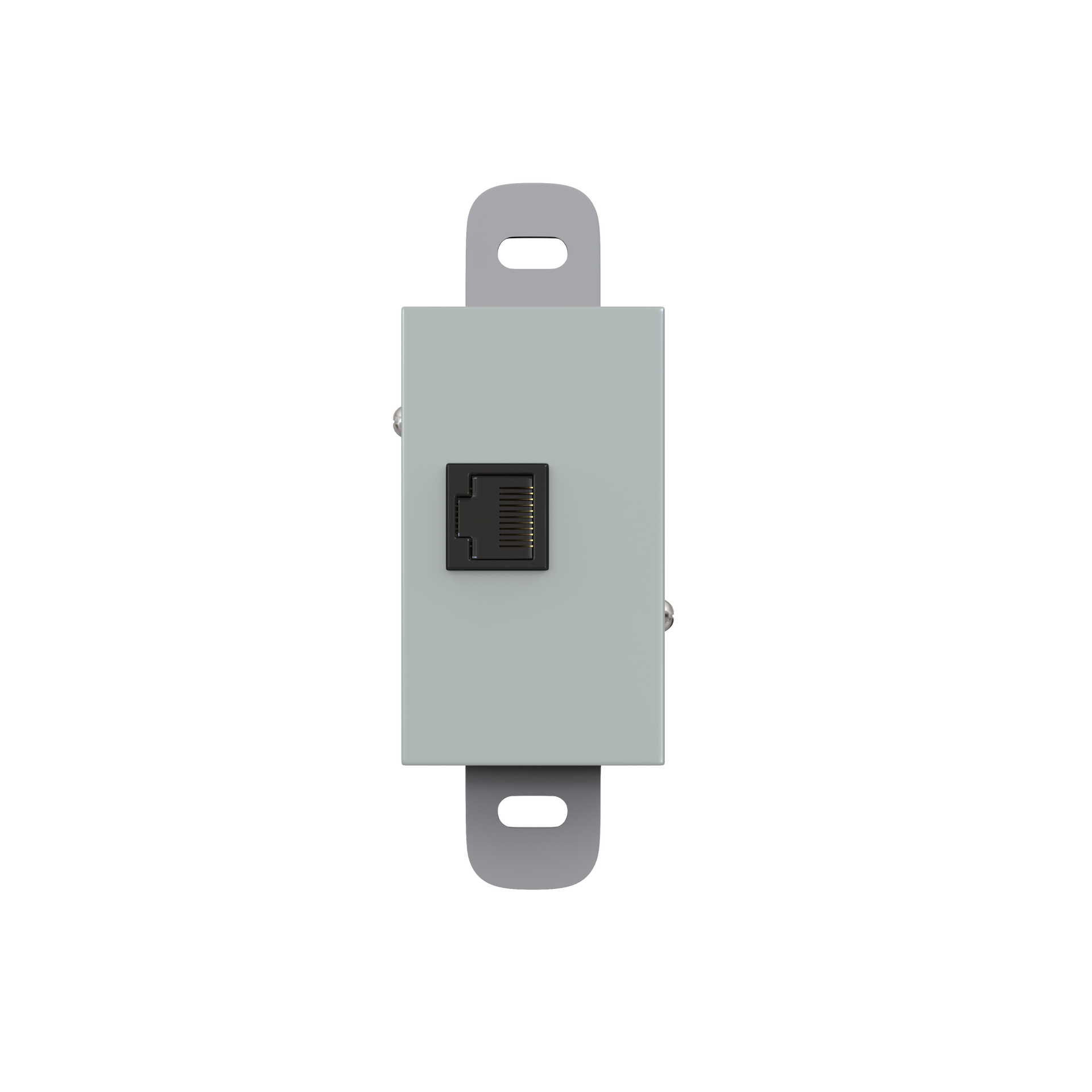

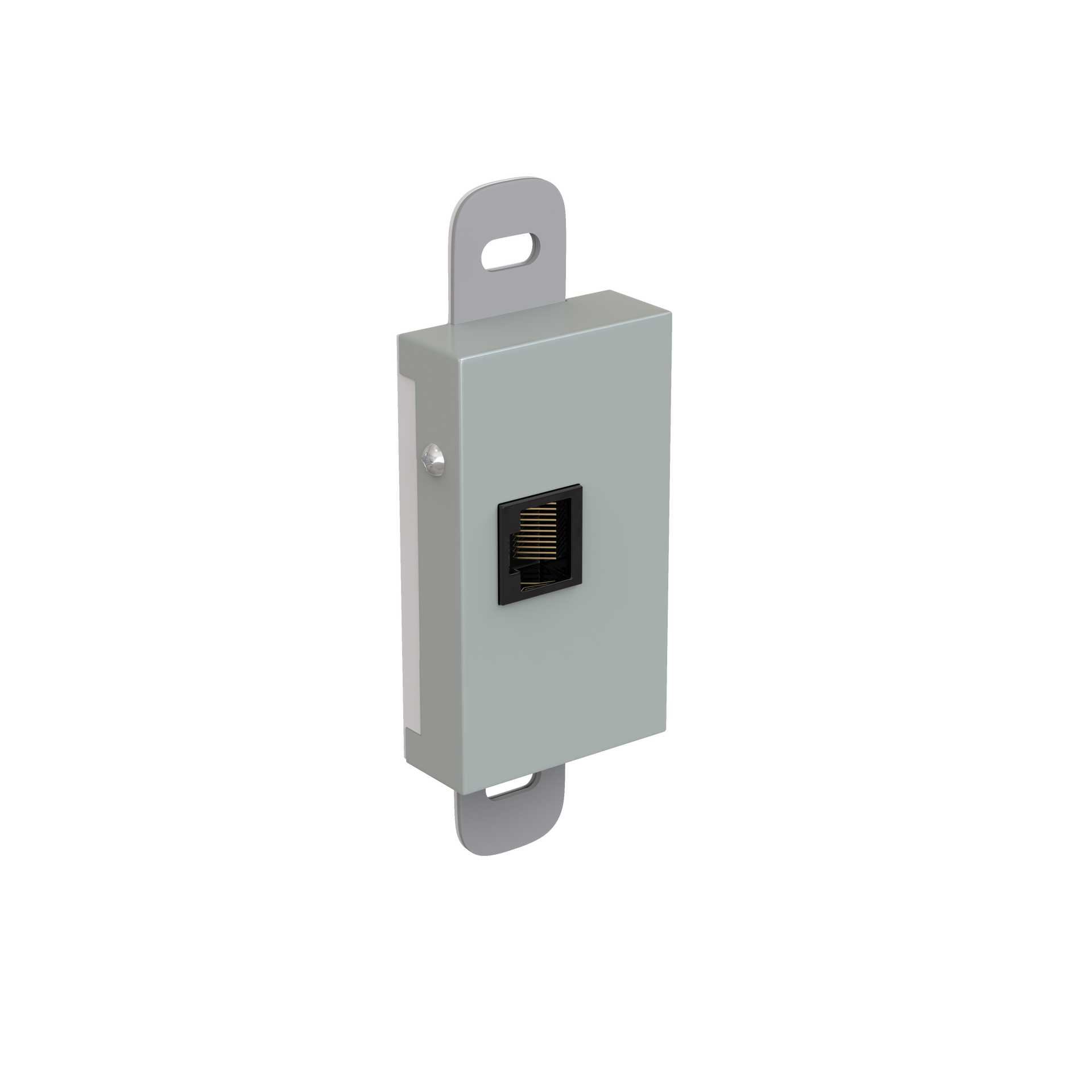

    Installation is streamlined and economical. The RC5-KPS connects to a CQ unit using an 8-wire cable with RJ-45 connector and requires no separate power supply, drawing operational power directly from the sequencer. This makes it an ideal and cost-effective solution for adding secure remote control points in performance venues, houses of worship, and conference rooms where system access needs to be managed.

    SYSTEM COMPATIBILITY

    Integrate with the CQ Sequencing System.

    The RC5-KPS is designed to work seamlessly with the following products and standards.

    Juice Goose CQ Series Sequencers

    Provides plug-and-play remote control for any product in the CQ Series power sequencing line.

    Standard Decora Wall Plates

    Fits any standard single-gang Decora-style faceplate for a clean, professional installation.

    CQ Series Control Network

    Can be connected in a network of CQ devices using other accessories like the RCDM3 combiner.
    WHY JUICE GOOSE

    Reliable control, simplified.

    • Add secure remote control without complex programming.
    • Installs cleanly into standard architectural wall plates.
    • Powered by the sequencer, no extra wiring needed.
    • Built for long-term, dependable operation in any venue.
    FEATURES

    RC5-KPS Secure Keypad Features

    Explore the core capabilities that make the RC5-KPS a simple and secure control solution.
    CAPABILITIES

    Features

    Secure Code Control

    Requires a four-digit code to prevent unauthorized system activation or deactivation.

    Sequence Up and Down

    Provides dedicated control for both power-up and power-down sequencing of CQ units.

    LED Status Indicators

    Two front-panel LEDs provide clear visual confirmation of sequence completion status.

    Decora Form Factor

    Mounts in any standard Decora-style single-gang wall plate for a clean installation.

    Simple RJ45 Connection

    Connects to the CQ sequencer via a single, commonly available network patch cable.

    No External Power Needed

    Draws all necessary operating power directly from the connected CQ Series unit.
    01

    Code-Required Operation

    Prevent unauthorized use by requiring a four-digit code to sequence power up or down, ensuring only trained personnel can operate the system.
    • User-changeable 4-digit code
    • Protects sensitive equipment
    • Ideal for public or shared spaces
    02

    At-a-Glance System Status

    Integrated LEDs provide immediate visual confirmation of sequence completion, so operators know precisely when the system is ready or fully powered down.
    • Sequence Up completion indicator
    • Sequence Down completion indicator
    • Reduces operational guesswork
    03

    Streamlined Installation

    The RC5-KPS connects to any CQ sequencer with a single RJ45 cable and requires no external power supply, reducing installation time and complexity.
    • Fits standard Decora plates
    • Powered by the CQ unit
    • Plug-and-play setup
    SPECIFICATIONS

    RC5-KPS Secure Keypad Specifications

    Review the technical details needed for planning and installation.

    RC5-KPS Technical Specifications

    Details for integrating the RC5-KPS secure keypad into your installation.

    Control and Indication

    • User Interface
      3-button keypad
    • Security
      4-digit user-settable code
    • Indicators
      2 LEDs (Sequence Up/Down Complete)

    Connectivity

    • Connection Type
      RJ45
    • Compatible Cable
      Standard Cat5/6
    • Power Source
      Via RJ45 from CQ Series unit

    Physical

    • Mounting
      Single-gang Decora plate

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    RC5-KPS Secure Keypad Support

    Find documentation and answers to common questions about the RC5-KPS.
    DOCUMENTS

    Manuals, guides, and factsheets.

    Manuals
    Datasheets
    WHITE PAPERS

    Deep dives & technical reads.

    View all White Papers
    FAQ

    FAQs about the RC5-KPS

    Can the security code be changed?

    Yes, the four-digit security code can be changed from the factory preset. This allows you to set a unique code for your facility to maintain secure access.

    How does the RC5-KPS connect to a sequencer?

    It connects to any CQ Series sequencer using a standard RJ45 network cable (Cat5 or better). The remote is powered through this single cable, so no additional power supply is required.

    Is the RC5-KPS compatible with other brands of sequencers?

    The RC5-KPS is specifically designed and tested to operate with Juice Goose CQ Series power sequencers. Compatibility with other manufacturers’ products is not guaranteed.

    What do the LED indicators on the front mean?

    The two LEDs provide status for the sequencing process. One light indicates when the ‘sequence up’ process is complete, and the other indicates when ‘sequence down’ is complete.

    What is the RC5-KPS used for?

    The RC5-KPS is a wall-mounted remote control for Juice Goose CQ Series power sequencers. It provides secure, code-based access to initiate power up and power down sequences.
