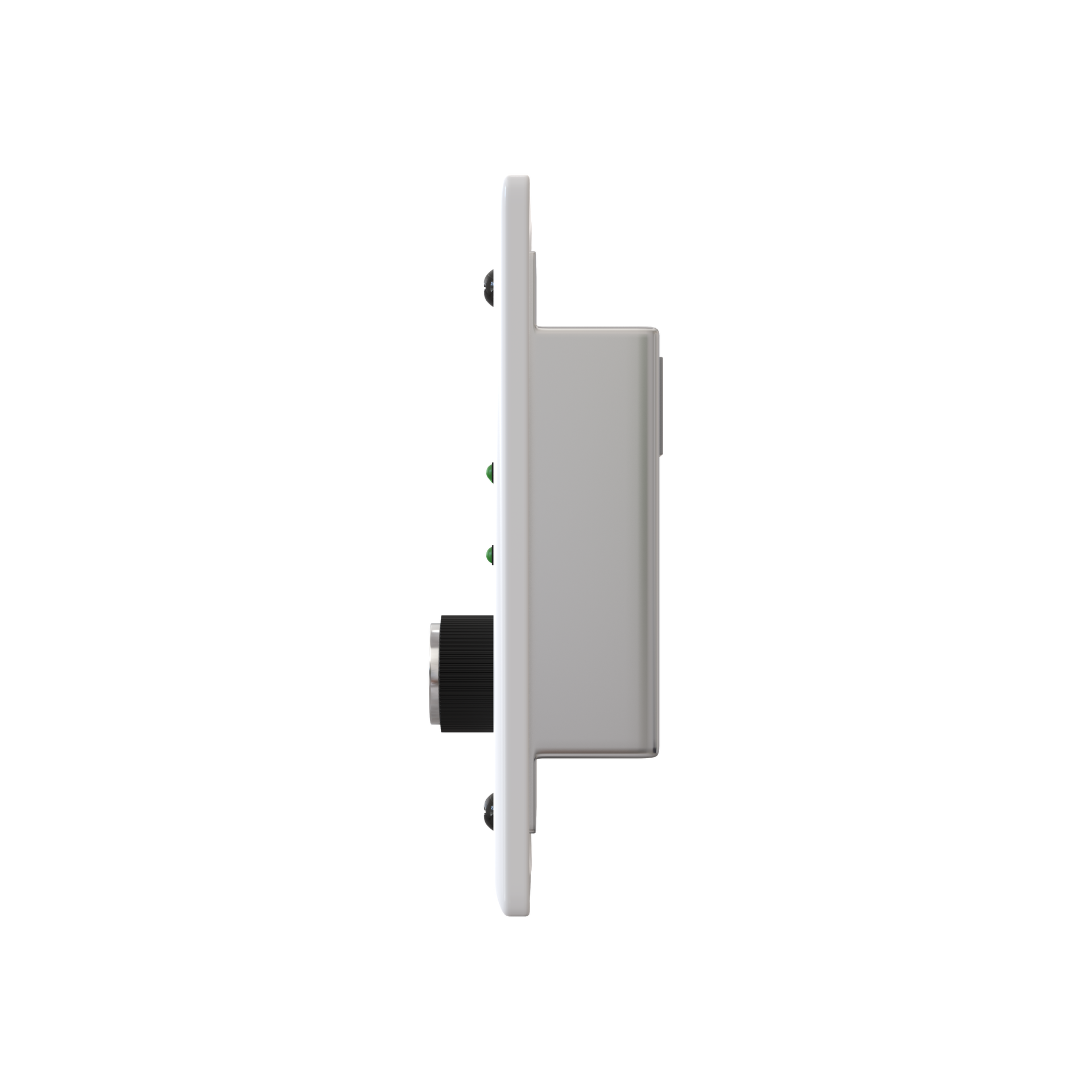

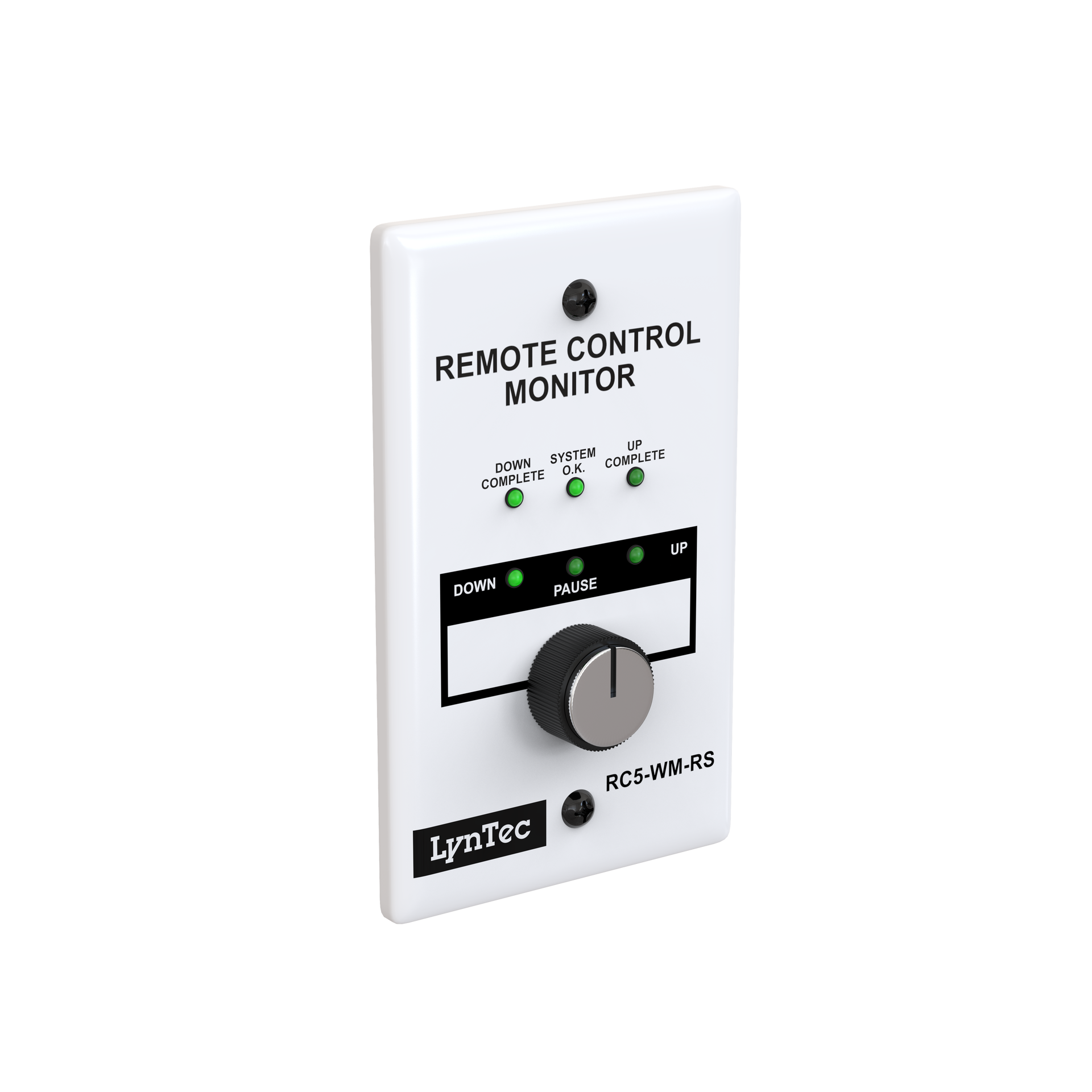

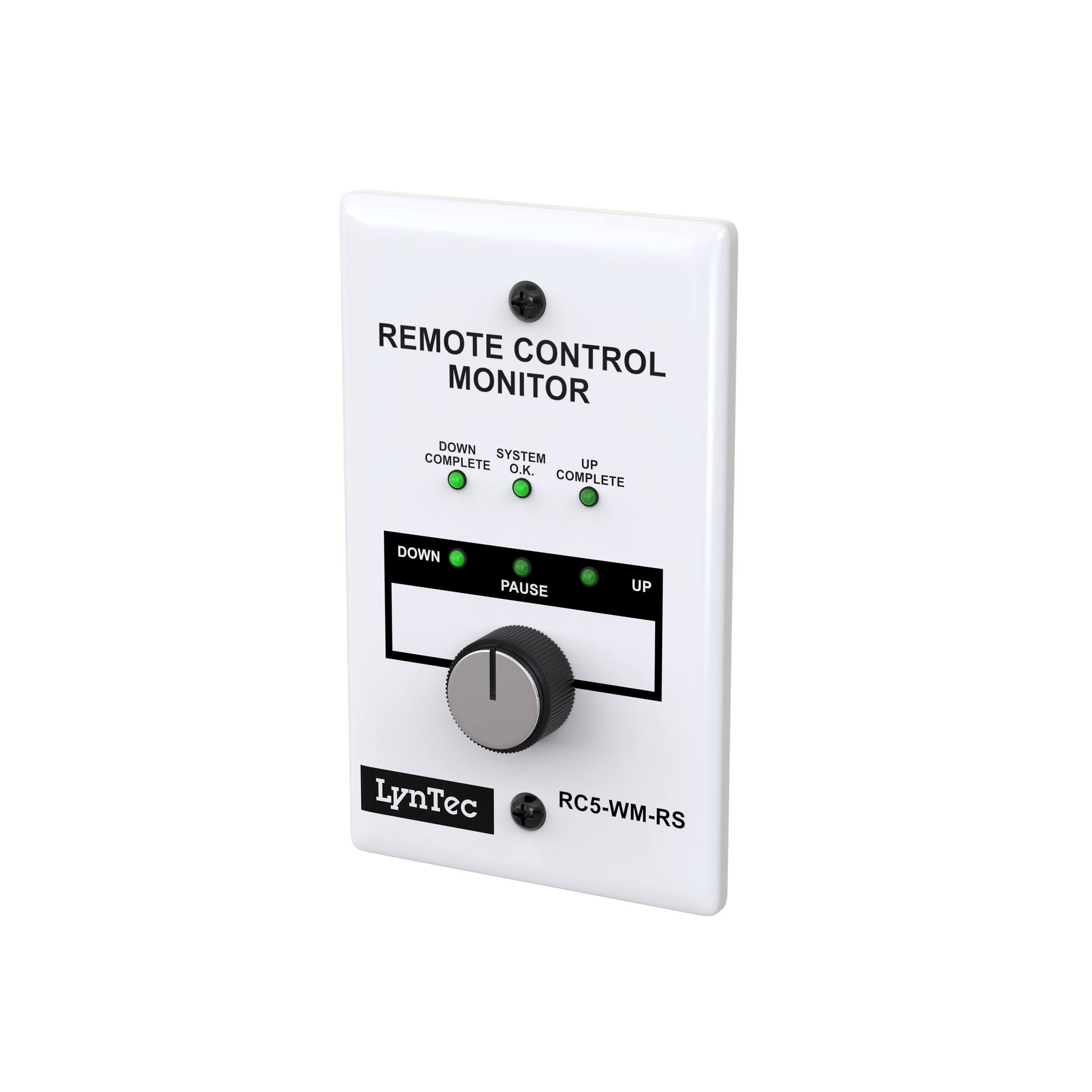

    RC-5WM-RS Remote Control

    Wall-mount rotary switch for remote control of CQ Series power sequencers.

    The RC-5WM-RS is a wall or panel-mounted remote control accessory providing convenient, non-secure sequence activation for any connected CQ Series power sequencer. It simplifies system operation for integrators in venues where physical access is already controlled, offering a simple rotary switch for sequence up, down, and pause.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    A family of remote control accessories for the LynTec CQ Series power sequencing ecosystem. RC Series products provide simple, hard-wired control and status monitoring from convenient wall-mount or rack-mount locations.
    Dedicated Control Where You Need It

    Accessory For

    CQ Series

    Control Type

    Rotary Switch

    Mounting

    Wall or Panel

    Connection

    RJ-45
    CQ SERIES ACCESSORY

    Rack-mount control of your CQ series power sequencing system.

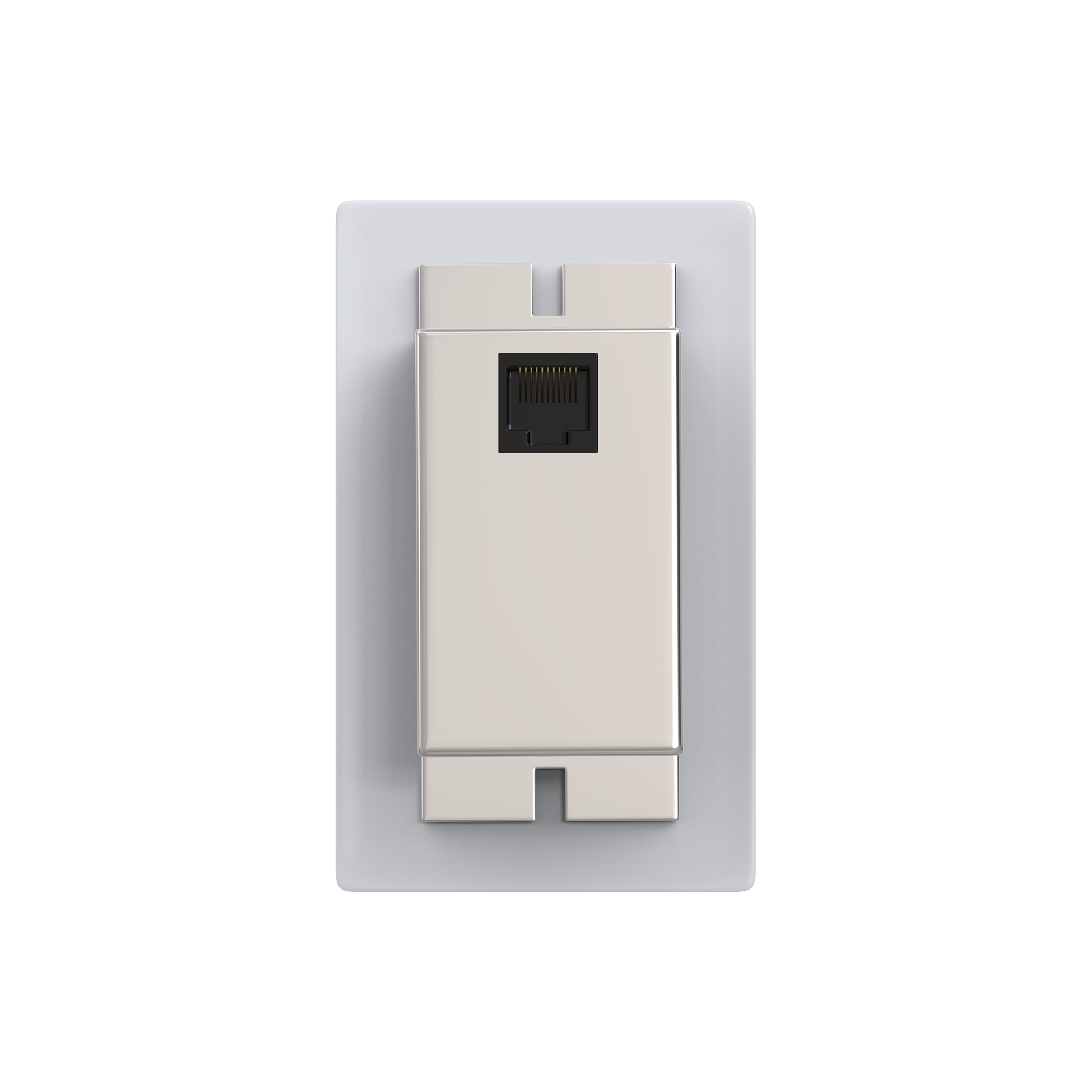

    The RC-5WM-RS provides a dedicated, physical control point for your LynTec CQ Series power sequencing system. Designed for wall or panel mounting, this remote uses a simple rotary switch to trigger sequence up, down, and pause commands. It connects to any CQ unit via an 8-wire cable with RJ-45 connector and draws power directly from the sequencer, eliminating the need for a separate power supply and simplifying installation. Onboard LED indicators provide immediate visual feedback on sequence operation, completion, and overall system status, giving operators clear insight at a glance. It’s the ideal solution for adding convenient remote operation where key-based security is not a requirement.

    SYSTEM COMPATIBILITY

    Integrates with the CQ Sequencing System.

    The RC-5WM-RS is designed exclusively as an accessory for the LynTec CQ Series.

    LynTec CQ Series Sequencers

    Connects to the input port of any CQ model, including the CQ-1, CQ1515, and CQ1520.

    RCDM3 Remote Combiner

    Pair with the RCDM3 accessory to allow control from up to three different remote locations.
    WHY LYNTEC

    Power control simplified, down to the switch.

    • Designed as a native accessory for the CQ Series
    • Simple plug-and-play installation with an 8-wire cable and RJ-45 connector
    • No external power supply required
    • Clear, immediate visual status feedback for operators
    FEATURES

    RC-5WM-RS Remote Control Features

    Explore the standard capabilities that make remote sequencing simple and reliable.
    CAPABILITIES

    Features

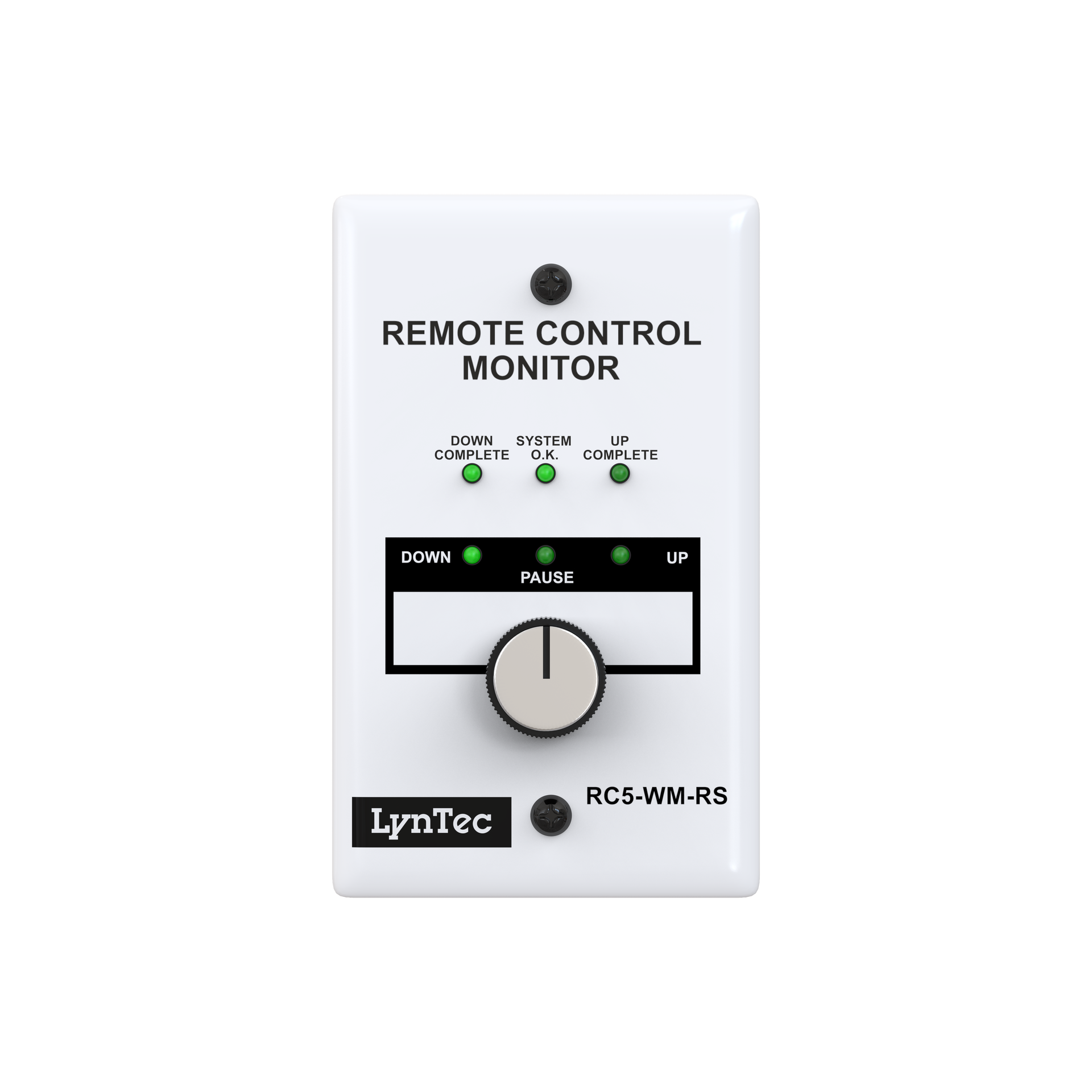

    Rotary Switch Control

    Provides simple, non-secure remote operation for CQ Series sequencers.

    Sequence Up, Down, and Pause

    Offers complete control over the power sequencing process from a remote location.

    LED Status Indicators

    Gives operators at-a-glance feedback on sequence operation, completion, and system status.

    Wall or Panel Mount

    Flexible installation options to fit standard electrical boxes or custom control panels.

    RJ-45 Connectivity

    Uses standard, readily available network cabling for a simple and reliable connection.

    No External Power Required

    Draws power directly from the connected CQ sequencer, simplifying installation.
    01

    Plug and Play Installation

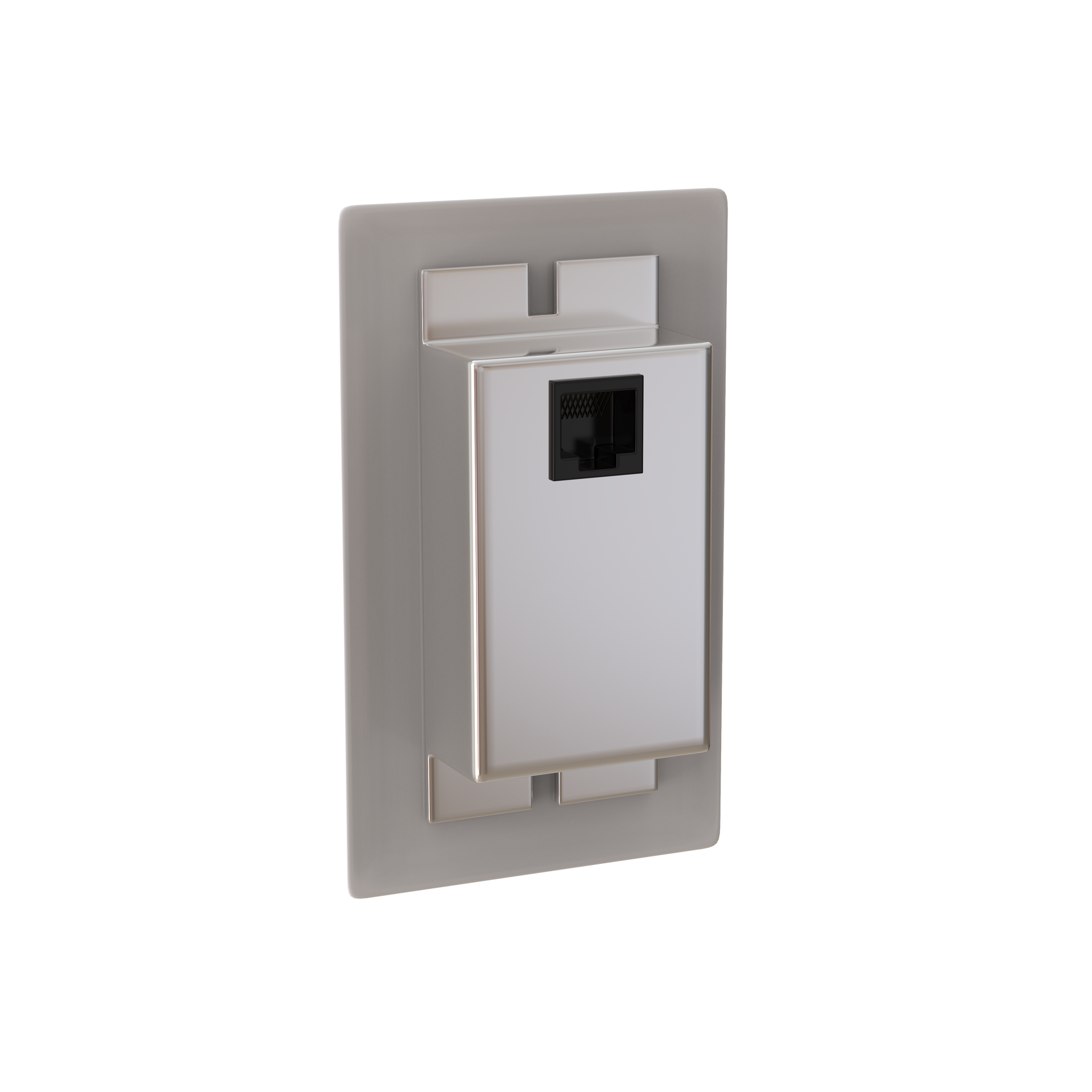

    Connects to any CQ Series sequencer with a single RJ-45 cable for both signal and power, requiring no complex wiring or external power supply.
    • Simple RJ-45 connection
    • No external power needed
    • Installs in a standard gang box
    02

    Clear System Status

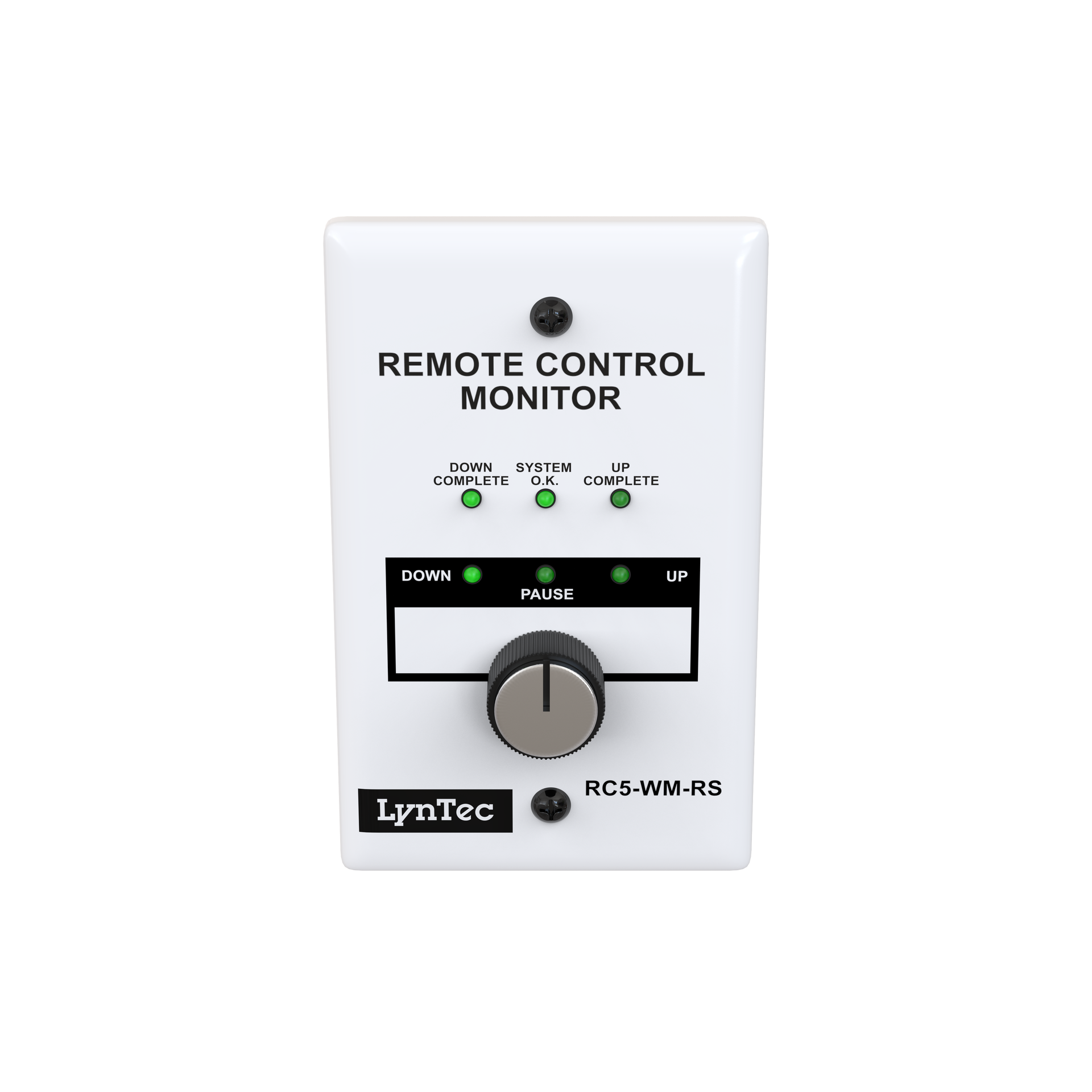

    Three onboard LED indicators provide instant visual confirmation of sequence operation, completion, and overall system health.
    • Sequence Operation LED
    • Sequence Completion LED
    • System Status LED
    03

    Intuitive Rotary Control

    A simple three-position rotary switch provides tactile, reliable control over sequencing up, down, or pausing the current state.
    • Sequence Up position
    • Sequence Down position
    • Pause (center) position
    SPECIFICATIONS

    RC-5WM-RS Remote Control Specifications

    Find all the technical details needed for planning and installation.

    RC-5WM-RS Remote Control Specifications

    Technical details for integrating the RC-5WM-RS into your CQ Series installation.

    Control & Indicators

    • Control Interface
      Three-position rotary switch
    • Control Functions
      Sequence Up, Sequence Down, Pause
    • Indicators
      LEDs for Sequence Operation, Sequence Completion, System Status

    Physical & Electrical

    • Connection to Sequencer
      RJ-45 Port
    • Power Source
      Powered by connected CQ Series unit
    • Mounting
      Fits standard single-gang electrical box

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    RC-5WM-RS Remote Control Support

    Access datasheets, manuals, and other resources for the RC-5WM-RS.
    DOCUMENTS

    Manuals, guides, and factsheets.

    Manuals
    Datasheets
    WHITE PAPERS

    Deep dives & technical reads.

    View all White Papers
    FAQ

    FAQs about the RC-5WM-RS

    Can I use multiple remote controls with one CQ system?

    Yes, by using the RCDM3 remote control combiner accessory, you can connect up to three remote control locations to a single CQ sequencer system for added flexibility.

    Does the RC-5WM-RS require its own power supply?

    No, it is powered directly by the CQ Series sequencer it is connected to via the RJ-45 cable. This simplifies installation and eliminates the need for a local power outlet.

    How does the RC-5WM-RS connect to a CQ sequencer?

    It connects using a standard RJ-45 network cable to the Input control port on any CQ Series sequencer. This single cable provides both the control signal and power for the remote.

    What is the difference between the RC-5WM-RS and the RC-5-WM?

    The RC-5WM-RS model uses a rotary switch for control, ideal for locations where security is not a concern. The RC-5-WM model uses a key switch to prevent unauthorized operation.
