    RBLC Retrofit Lighting Control Panel

    DMX lighting control for existing Square D panels with QO-style breakers.

    The RBLC is a retrofit controller that adds DMX sequencing to any installation using a Square D panel with QO-style motorized breakers. It provides a simple, reliable upgrade path for integrators modernizing architectural or venue lighting systems without replacing the entire electrical panel.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    The LC Series provides DMX512-addressable control for lighting circuits using motorized breakers within integrated panelboards and load centers. Engineered for lighting designers and integrators needing direct control over non-dimmed loads from a lighting console.
    Modern Control for Legacy Panels

    Compatibility

    Square D QO Panels

    Control

    DMX512

    Capacity

    10 or 20 circuits

    Egress Lighting

    UL 924 Listed

    Enclosure

    NEMA 3R
    RETROFIT DMX CONTROL

    Add intelligent DMX control to existing Square D breaker panels.

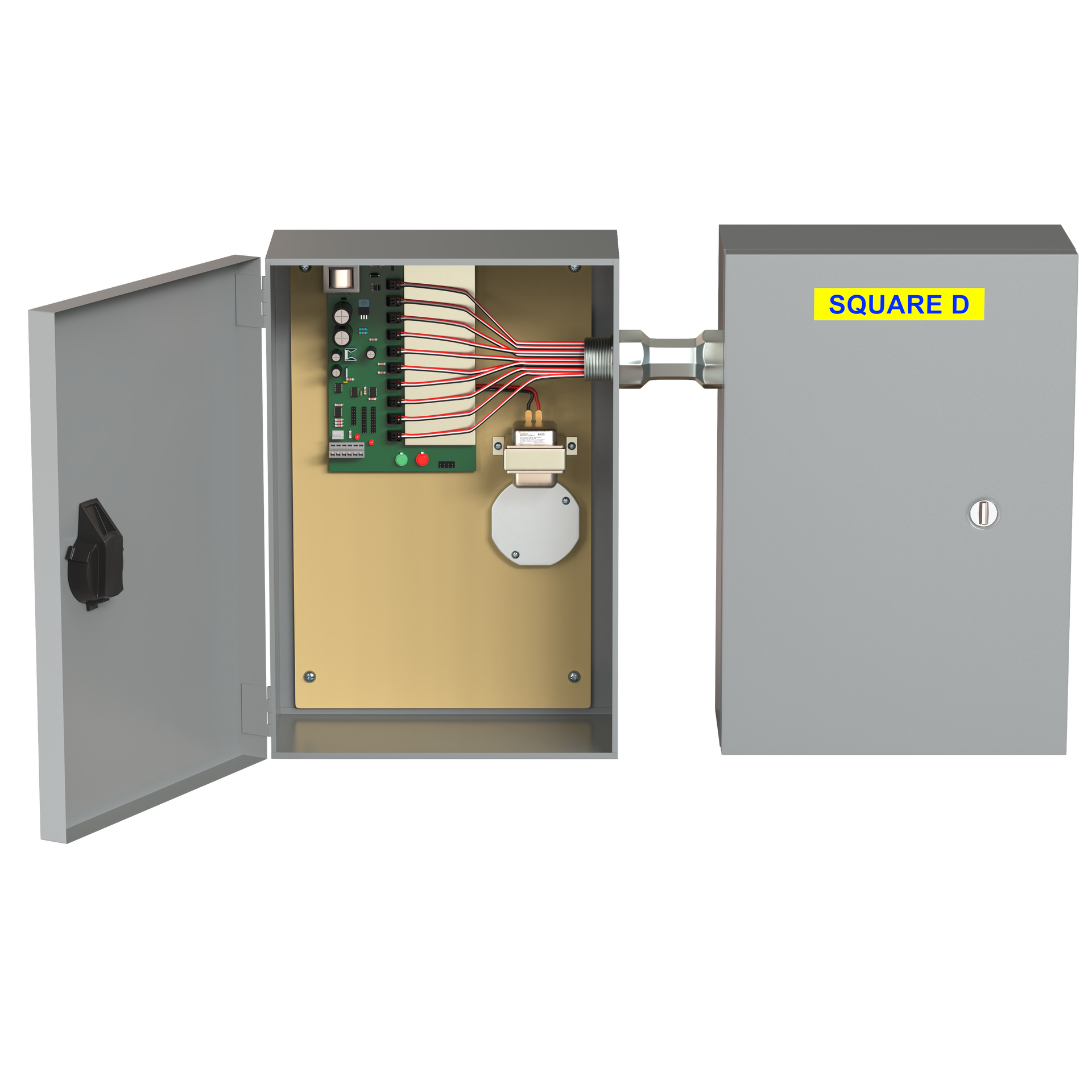

    The RBLC provides a streamlined solution for adding modern DMX512 lighting control to facilities with existing Square D electrical infrastructure. Instead of a costly and disruptive panel replacement, the RBLC mounts alongside the current cabinet, integrating directly with new Square D QO-style remote-controlled breakers. This architecture simplifies the upgrade process, allowing contractors to introduce sequenced, zoned, or individual circuit control with minimal new wiring.

    The system is housed in a lockable, rain-tight Hoffman enclosure, making it suitable for both indoor and outdoor applications. It is engineered for straightforward installation and setup, eliminating the need for specialized on-site commissioning and providing a cost-effective path to intelligent power management.

    SYSTEM COMPATIBILITY

    Integrate the RBLC with your facility.

    The RBLC is designed to work with specific electrical panels and standard control protocols.

    Square D QO Panels

    Designed to mount alongside and control any Square D electrical panel that accepts QO-style breakers.

    Square D QO Motorized Breakers

    Requires remote-controlled QO breakers (15A, 20A, or 30A; 1, 2, or 3-pole) which are sold separately.

    Standard DMX512 Controllers

    Integrates with any lighting console or architectural controller that outputs the standard DMX512 protocol.
    CONFIGURATION OPTIONS

    Configure your retrofit panel.

    Select the RBLC model based on the number of circuits you need to control.
    Available Models

    The RBLC is available in two capacities to match your project’s scale.

    • RBLC-10: Controls up to ten Square D QO motorized circuit breakers. Ideal for smaller zones or systems.
    • RBLC-20: Controls up to twenty Square D QO motorized circuit breakers. Suited for larger installations requiring more circuits.
    Control and Integration

    The RBLC uses DMX512 for straightforward integration into lighting control systems.

    • DMX512 Protocol: Provides individual on, off, or no-change commands for each connected breaker.
    • Simple Addressing: A jumper system sets the starting DMX address, and subsequent breakers are assigned sequential addresses automatically.
    Required Breakers

    The RBLC controller requires compatible motorized breakers, which are ordered separately.

    • Square D QO Breakers: Use any remote-controlled QO-style breaker from Square D.
    • Flexible Sizing: Breakers are available in 15A, 20A, and 30A ratings with 1, 2, or 3 poles to match load requirements.
    WHY LYNTEC

    A simpler path to intelligent lighting control.

    • Retrofit existing panels, saving on hardware and labor costs.
    • Simple DMX setup requires no on-site commissioning.
    • UL 924 listed emergency egress feature included standard.
    • Built on proven, reliable LynTec control board technology.
