SKU: SQ-1500 Market: North America Series: SQ

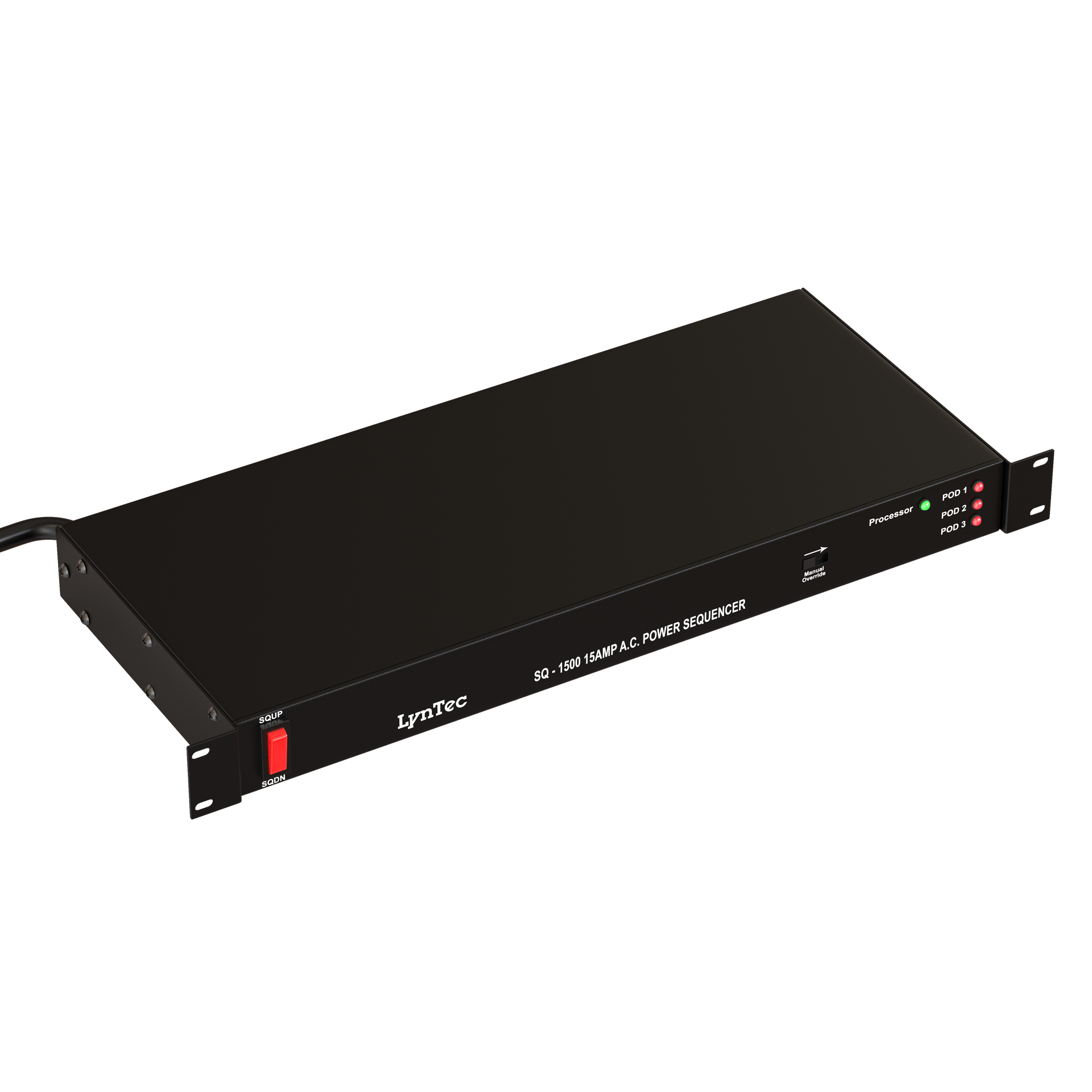

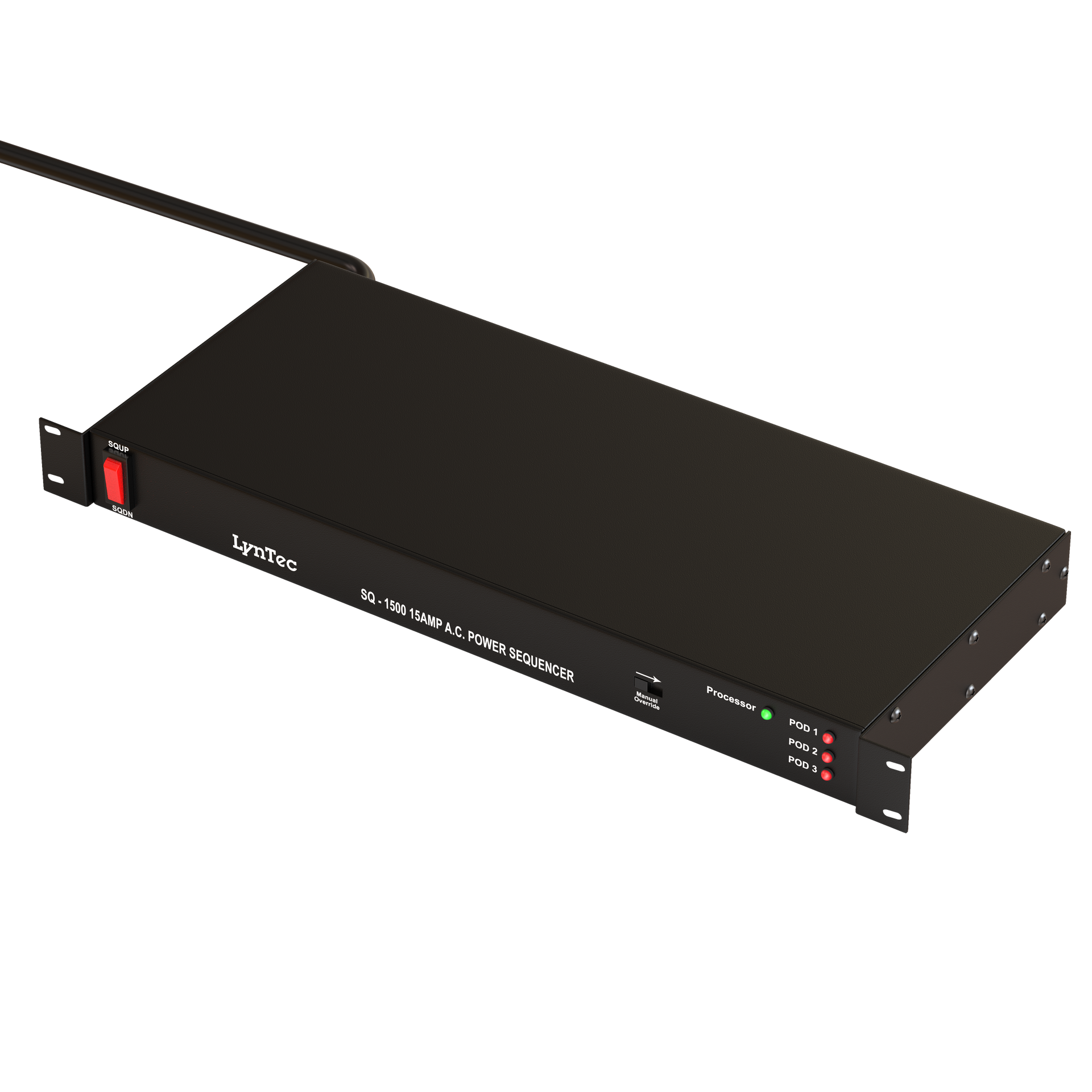

SQ-1500 Power Sequencer

Economical 15A power sequencer for single-rack AV and audio installations.

The SQ-1500 is a standalone 15A power sequencer with three delayed output groups for protecting equipment in single-rack installations from inrush current. It provides simple, reliable startup sequencing for AV integrators and audio engineers who need remote contact closure control without complex network programming.

Request a Quote

Where To Buy

SQ

Series

A standalone, rack-mounted power sequencer with a three-step delay. Designed for simple, reliable startup and shutdown protection in single-rack AV systems without requiring a master controller.

Engineered for Simplicity and Reliability

SERVICE

15A / 120V

SEQUENCE STEPS

OUTLETS

6 Switched, 1 On

CONTROL

Contact Closure

PROTECTION

Surge & Noise

POWER SEQUENCING

Simple, reliable sequencing for single-rack systems.

The Juice Goose SQ-1500 delivers straightforward, dependable power sequencing for single-rack AV systems. It provides a 15A capacity distributed across six outlets, grouped into three sequenced steps to prevent harmful inrush current during startup. An additional seventh outlet remains unswitched for devices that require constant power. The simple design includes integrated surge protection and line noise filtration to protect connected equipment.

Designed for ease of use, the SQ-1500 can be activated locally via its front-panel switch or remotely using a simple latching contact closure. This makes it an ideal solution for installations in conference rooms, classrooms, and project studios where reliable, automated power-up is needed without the complexity of a networked control system. Front-panel LEDs provide clear, at-a-glance status of the sequencing process.

SYSTEM INTEGRATION

Integrate the SQ-1500 into your system.

The SQ-1500 is designed to work with standard AV racks and simple control hardware.

Standard 19-Inch Equipment Racks

The 1U chassis mounts easily into any standard 19-inch AV or IT equipment rack.

Contact Closure Control Systems

Connects to any control system, keypad, or switch that provides a latching contact closure output.

Single-Rack AV Systems

Ideal for providing sequenced power in classrooms, conference rooms, and small-venue sound systems.

WHY JUICE GOOSE

Reliable sequencing, simplified.

Engineered for long-term, dependable operation
Simple contact closure control reduces installation complexity
Integrated protection for connected AV equipment
Built on four decades of power infrastructure experience

FEATURES

SQ-1500 Power Sequencer Features

A detailed look at the standard capabilities built into every SQ-1500 unit.

CAPABILITIES

Features

15 Amp Capacity

Provides ample power for typical single-rack audio and video systems.

Three Sequence Events

Six switched outlets are grouped into three pairs, each with a timed delay on startup.

One Unswitched Outlet

An always-on outlet is available for devices that require continuous power.

Contact Closure Control

A simple remote connection allows for activation from a switch or third-party controller.

Surge and Spike Protection

Protects sensitive electronics from damaging power surges and voltage spikes.

AC Line Noise Filtration

Reduces interference from the power line for cleaner audio and video performance.

Front Panel Status LEDs

Provides clear visual feedback on processor operation and relay status for easy monitoring.

Simplified Remote Activation

Integrate with basic control systems using a latching contact closure for remote power-up and power-down sequencing.

Simple two-wire connection
No network or programming required
Ideal for lecterns and wall plates

Protect Your Connected Gear

Three sequenced steps prevent high inrush currents from tripping breakers, while onboard protection shields against power anomalies.

Three delayed output pods
Integrated surge and spike protection
AC line noise filtration

At-a-Glance System Monitoring

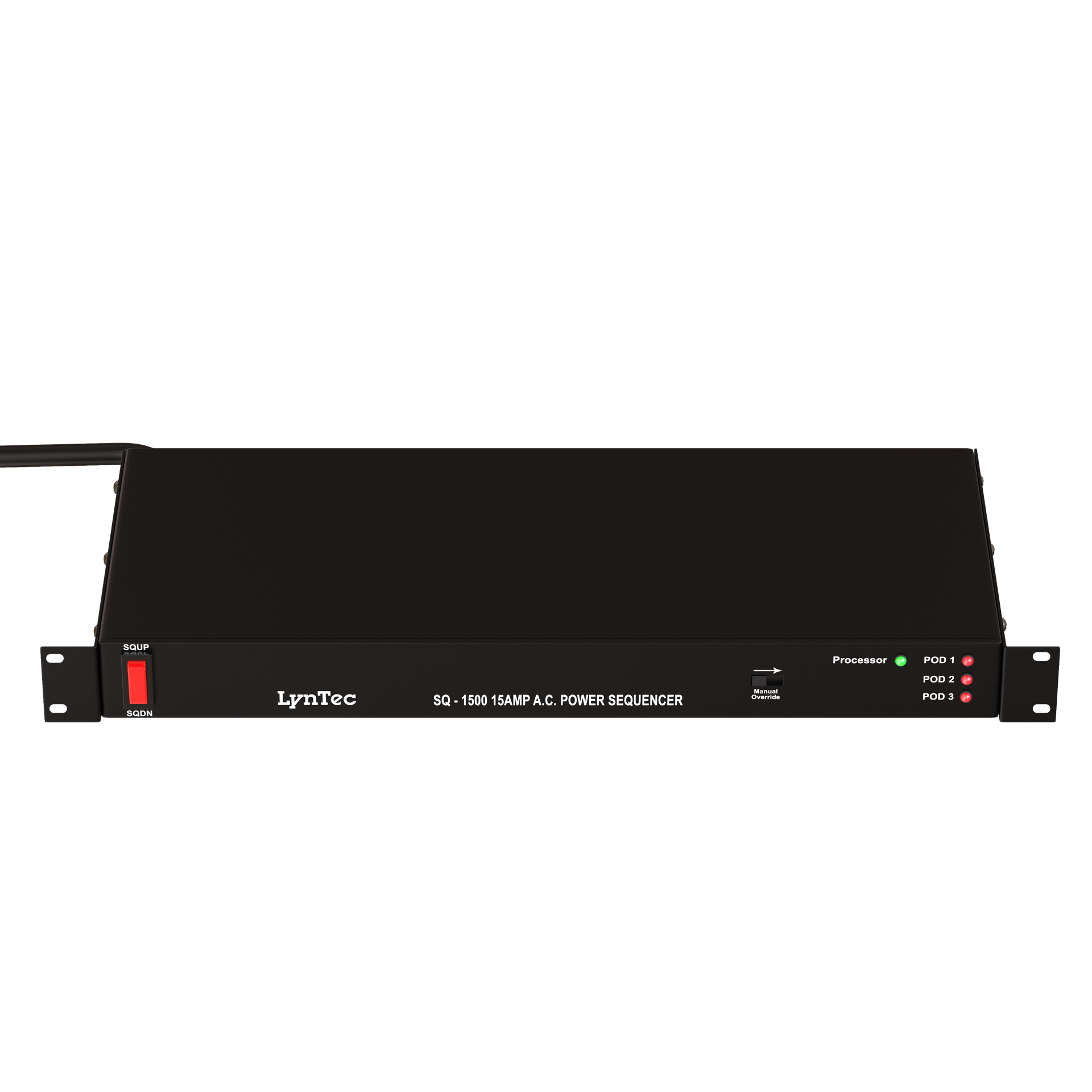

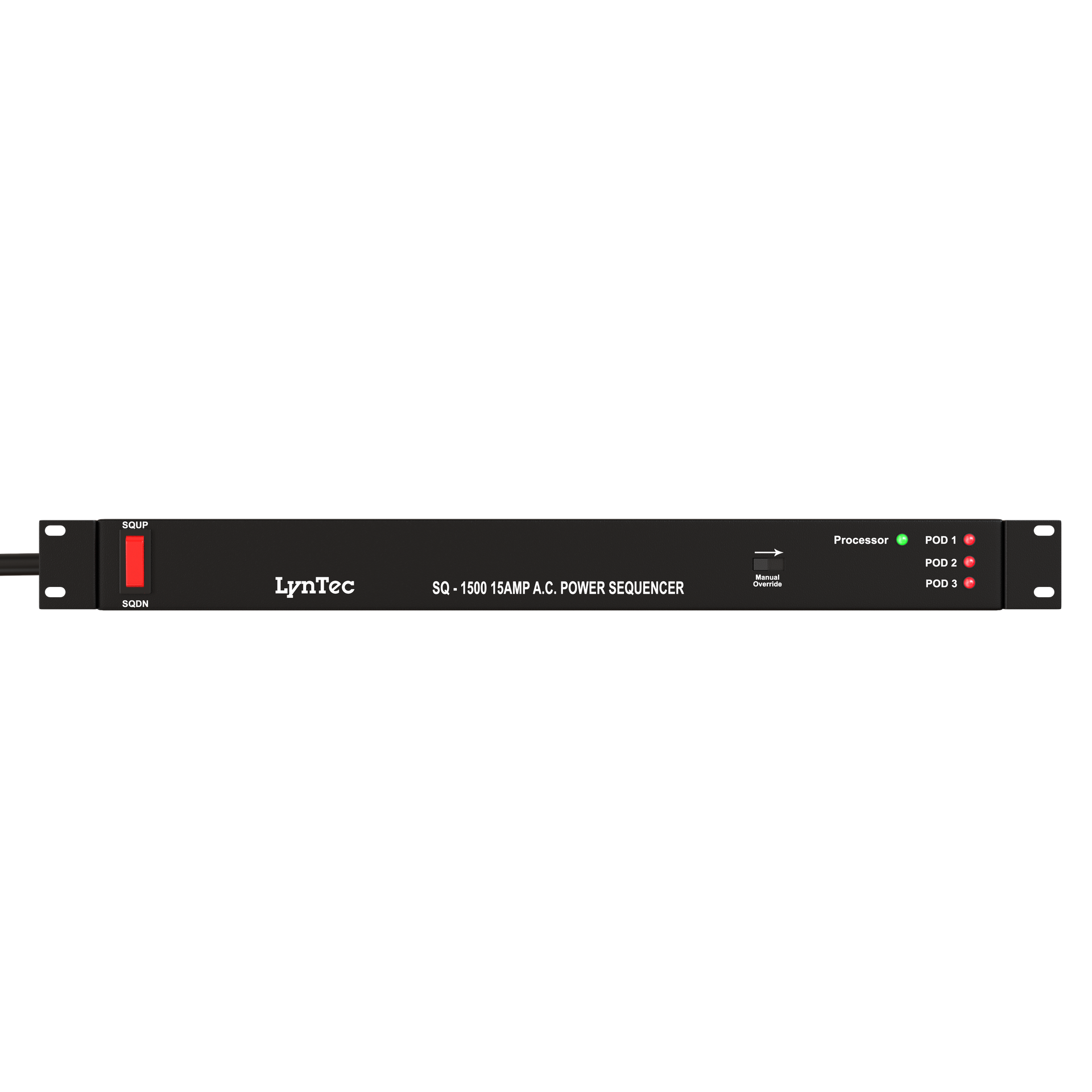

Front-panel LEDs provide immediate visual confirmation of the processor’s health and the status of each sequenced relay.

Green LED for processor status
Red LEDs for each sequence step
Confirm relay state instantly

SPECIFICATIONS

SQ-1500 Power Sequencer Specifications

All the technical data needed for system design and installation.

SQ-1500 Technical Specifications

Key electrical and physical details for integrating the SQ-1500 into your rack.

Electrical

Input Voltage

120 VAC, 60 Hz
Current Capacity

15 Amps
Power Outlets

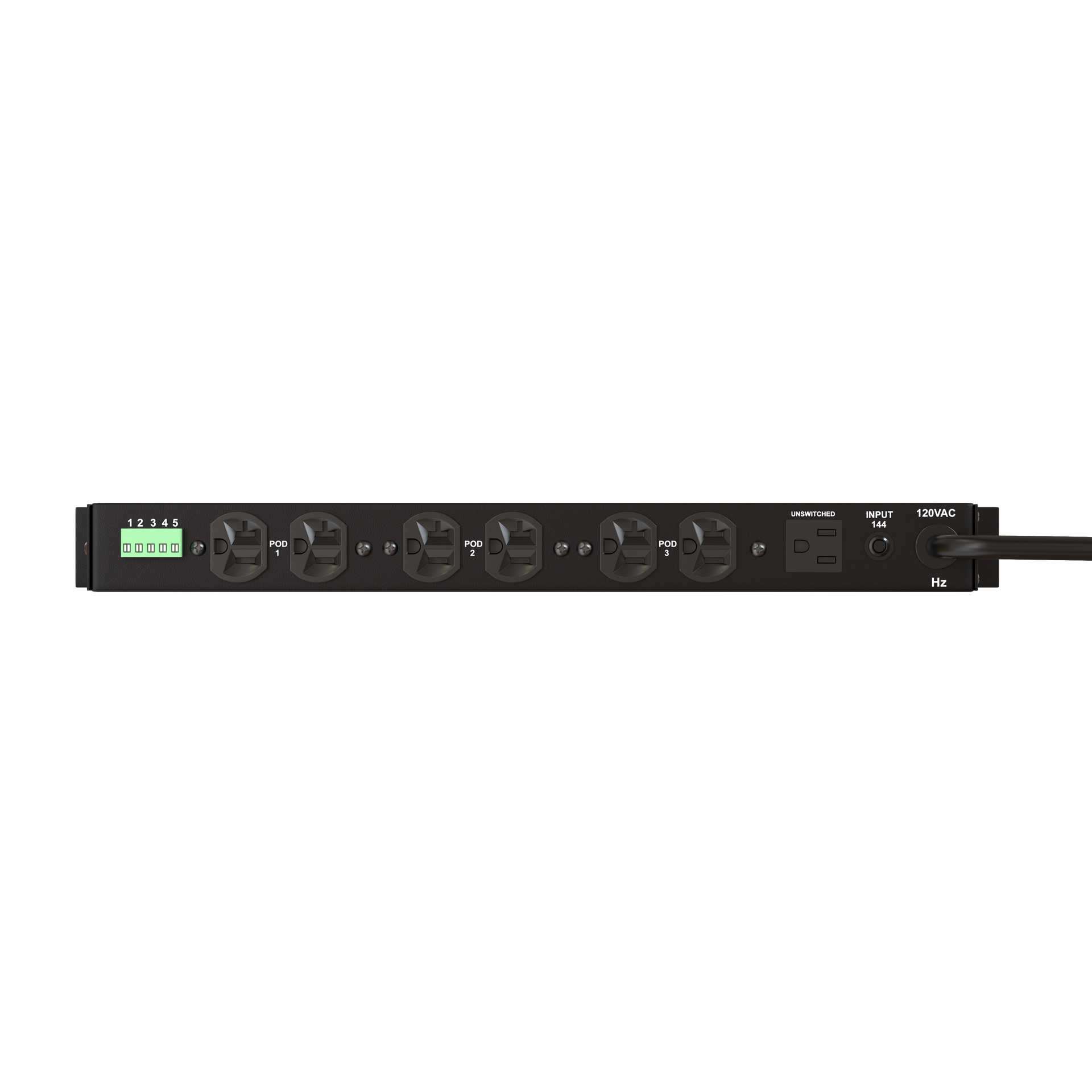

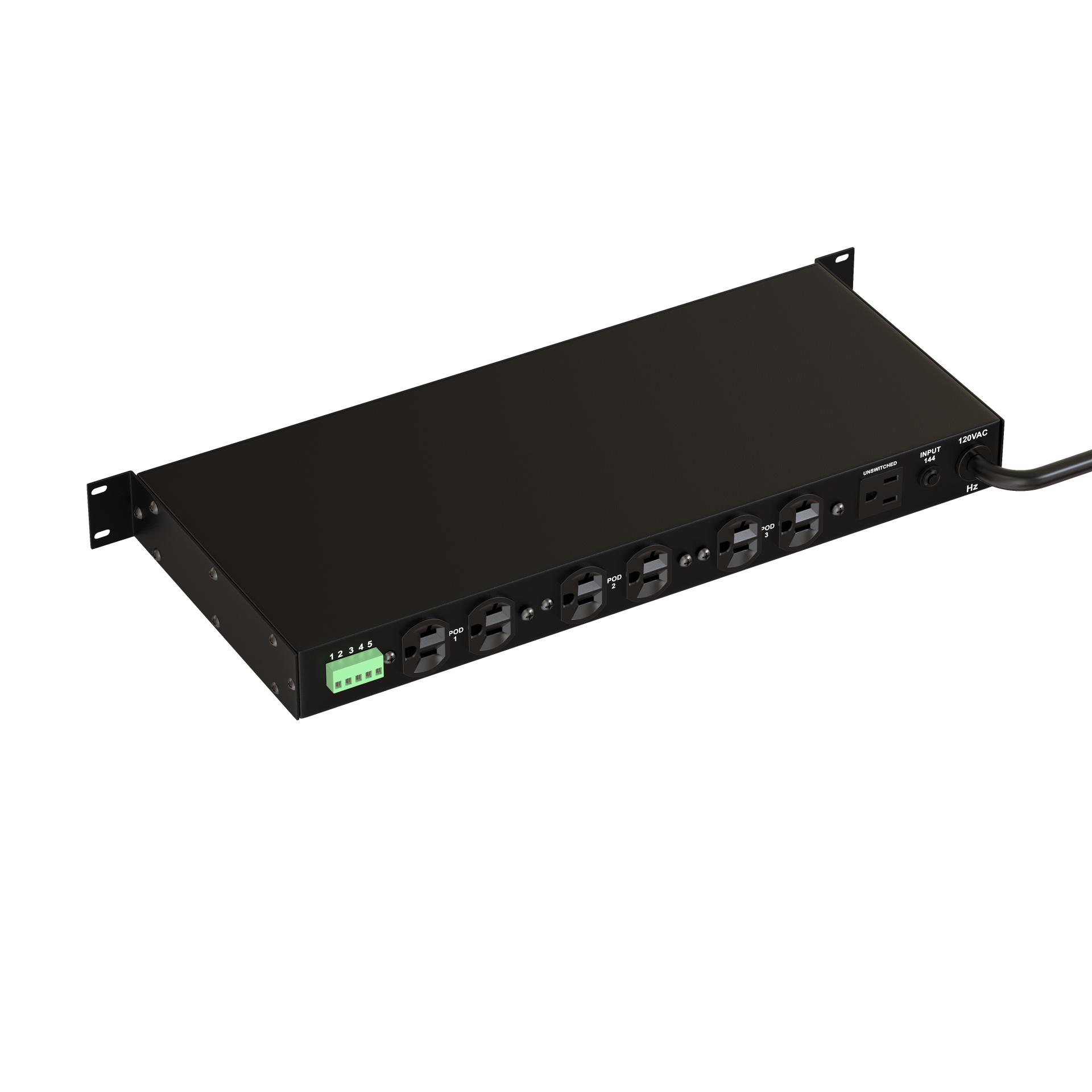

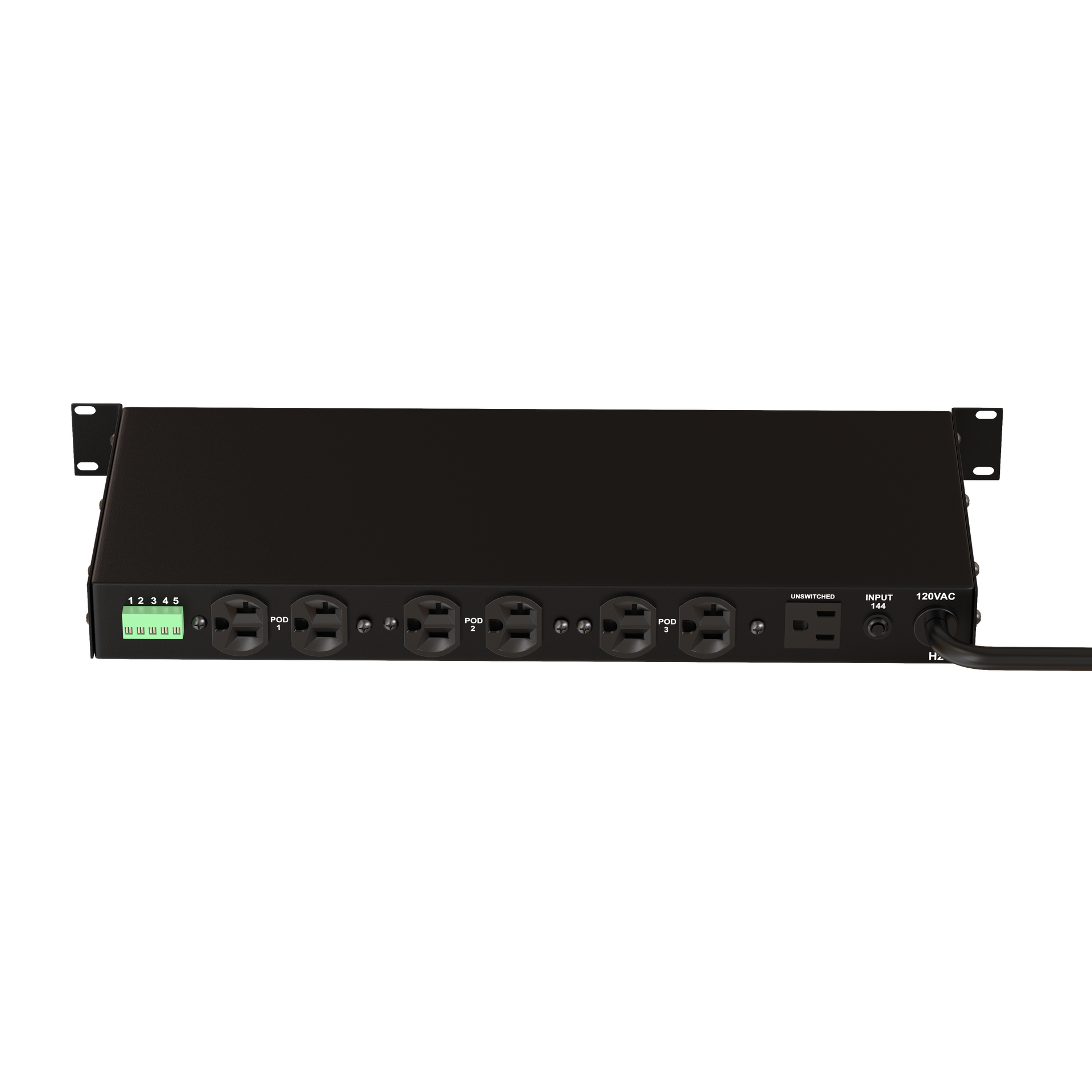

7 NEMA 5-15R (6 sequenced, 1 unswitched)
Sequence Steps

3 (2 outlets per step)
Protection

Surge, Spike, AC Line Noise Filtration

Control

Local Control

Front panel switch
Remote Control

Latching contact closure input
Indicators

LEDs for processor and relay status

Physical

Chassis

1U Rack Mount
Dimensions (W x H x D)

19 in. x 1.75 in. x 7 in.
Weight

6 lbs

Questions or Concerns?

Let us know, we’re here to help! Contact Us

PRODUCT SUPPORT

SQ-1500 Power Sequencer Support

Find manuals, datasheets, and answers to common questions about the SQ-1500.

FAQ

FAQs about the SQ-1500

Does the SQ-1500 require a primary controller to operate?

No, the SQ-1500 is a completely standalone power sequencer. It is designed for single-rack applications and does not need to be connected to a primary or primary control unit.

How do I control the SQ-1500 remotely?

The SQ-1500 is controlled remotely via a simple latching contact closure. This allows activation from a basic wall switch, lectern button, or a third-party control system’s relay output without any network programming.

What kind of electrical protection is included?

The SQ-1500 includes surge and spike protection to guard against voltage anomalies, as well as AC line noise filtration to ensure cleaner power for sensitive audio and video equipment.

Which outlets on the SQ-1500 are sequenced?

Six of the seven rear outlets are sequenced. They are arranged in three groups of two, with each group turning on in a timed delay. One outlet is always on for devices that need constant power.
