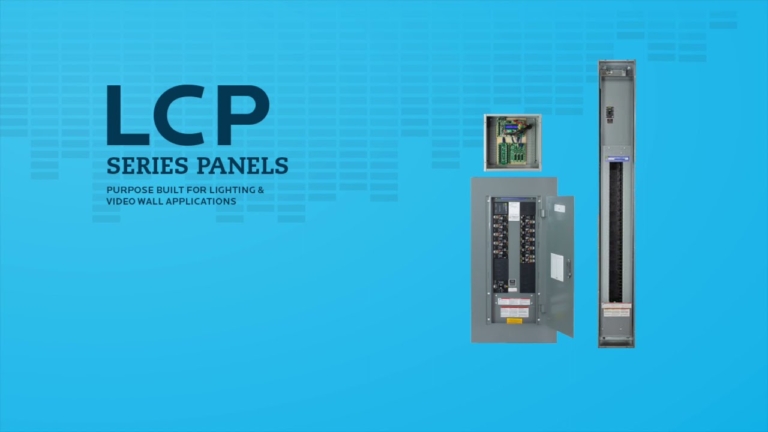

    LCP Lighting Control Panel System

    Intelligent lighting control panel system with native DMX, sACN, and IP control.

    The LCP system is a family of network-controlled panelboards providing circuit-level power management for permanent lighting and video wall installations. It simplifies complex lighting environments for integrators with a built-in web server, astronomical clock, and support for multiple control protocols.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    Intelligent lighting control panelboards built on reliable motorized breakers. LCP panels provide versatile DMX, sACN, and IP control for performance venues, houses of worship, and architectural applications requiring robust, automated power management for lighting and video walls.
    Purpose-built for lighting applications

    Load Capacity

    100A – 600A

    Circuits

    30 – 84

    Control

    DMX, sACN, IP

    Platform

    Square D G3

    Emergency

    UL 924 Capable
    LCP SYSTEM OVERVIEW

    Intelligent power control for lighting and video walls.

    The LynTec LCP series provides a complete, intelligent power control solution purpose-built for modern lighting and video wall applications. Built on the trusted Square D G3 Powerlink motorized breaker platform, the LCP system combines robust, reliable hardware with flexible, network-native control. Every panel includes an integrated web server for simple setup, monitoring, and control from any computer, tablet, or smartphone.

    An LCP system scales to your project’s needs, starting with a main LCP panel and expanding with cost-effective LCS secondary panels. With native support for DMX, sACN, and IP, the LCP system integrates directly with lighting consoles and control systems, providing a streamlined infrastructure that reduces installation complexity and simplifies venue operation.

    SYSTEM INTEGRATION

    Integrate the LCP system with your facility.

    The LCP system is designed to work with standard lighting, automation, and protection equipment.

    Lighting Control Consoles

    Connect directly to any console that outputs DMX or sACN for unified show and architectural lighting control.

    Architectural Control Systems

    Integrate with building-wide control systems via IP or contact closure inputs for seamless operation.

    Occupancy and Photo Sensors

    Use contact closure inputs to trigger lighting scenes based on room occupancy or ambient light levels.

    SurgeX In-Panel Modules

    Add optional, factory-installed SurgeX modules for industrial-grade surge protection on critical circuits.
    CONFIGURATION OPTIONS

    Built to your project’s specs.

    Every LCP panel is custom-configured. Expand each category for available options.
    Available Models

    The system uses a primary and secondary architecture for scalable and cost-effective deployment.

    • LCP Primary Panels: Function as the system controller, with the web server, scheduling, and protocol interfaces. One is required per system.
    • LCS Secondary Panels: Provide cost-effective circuit expansion. They are controlled by a primary LCP panel.
    • Narrow Profile Variants: Available for both primary and secondary panels for installations with limited wall space.
    Panel Size Options

    Panel capacity is determined by the total number of breaker spaces.

    • Small: Up to 30 controlled circuits.
    • Medium: Capacities range from 42 to 66 circuits.
    • Large: Maximum-capacity panels holding up to 84 controlled circuits.
    Breaker Configurations

    Breakers are selected based on the load requirements for each circuit.

    • Amperage: Available in 15A, 20A, and 30A ratings.
    • Poles: Choose from 1, 2, or 3-pole motorized breakers to match circuit voltage and phase requirements.
    Control and Automation

    Integrate the LCP system with your facility’s control infrastructure.

    • Protocols: Control circuits via DMX, sACN, or IP commands from a lighting console or other controller.
    • BMS Integration: An optional BACnet module allows the LCP system to integrate with building management systems.
    • Scheduling: Use the internal astronomical clock for automated, time-of-day based events.
    • Sensors: Connect light or motion sensors via contact closures for automated responses.
    Add-Ons and Accessories

    Enhance system protection with optional, factory-installed modules.

    • Integrated SPD: Add a Service Entrance-rated Surge Protective Device for the entire panel.
    • SurgeX In-Panel Modules: Add industry-leading SurgeX surge elimination for critical circuits.
    THREE PANELS. ONE UNIFIED SYSTEM.

    Build Your LCP System

    Start with a primary LCP panel and add secondary LCS panels as needed to control any number of circuits.
    Required

    LCP Lighting Control Panels

    The core of the system, providing DMX-controlled circuit breakers in a range of main breaker sizes.
    WHY LYNTEC

    Simplified control for complex lighting systems.

    • Built on the trusted Square D G3 Powerlink platform
    • Reduces installation labor with a simple, integrated design
    • Native DMX and sACN control simplifies lighting system integration
    • US-based engineering support for design and commissioning
    The LynTec software is a great monitoring tool, allowing us to set load thresholds per circuit and investigate proactively before equipment fails.
    Andrew Paull
     SPEC Engineering
    FEATURES

    LCP System Features

    Explore the capabilities, control protocols, and integration support engineered for lighting and video wall installations.
    CAPABILITIES

    Features

    Integrated Web Server

    Provides a browser-based interface for remote setup, control, and monitoring.

    Universal Protocol Support

    Native DMX-512, sACN, and IP control, plus contact closure for sensors and switches.

    Flexible Zone Control

    Organize circuits into up to 12 zones, each controllable by a unique protocol.

    Advanced Address Management

    Assign unique DMX or sACN addresses to individual circuits or control entire zones.

    UL 924 Emergency Lighting

    ETL Listed to UL 924 for code-compliant control of emergency egress lighting.

    Astronomical Scheduling

    Built-in clock supports up to 84 schedules for automated, time-based control.

    Customizable Panel Sizes

    Available in 30 to 84 space configurations with 100A to 600A service.

    Robust Motorized Breakers

    Built on the Square D G3 platform, rated for 200,000 on/off cycles.
    01

    Native lighting protocol control

    Integrate directly with lighting consoles and architectural control systems using DMX, sACN, and IP. No complex gateways or protocol converters are required.
    • Control individual circuits or entire zones
    • Create up to four unique DMX or sACN address sets
    • Interface with contact closures for sensors and switches
    02

    Simplified setup and operation

    A built-in web server provides an intuitive browser-based interface for all configuration, control, and monitoring, accessible from any device on the network.
    • No special software required for setup
    • Built-in scheduling with an astronomical clock
    • Monitor circuit status and system health remotely
    03

    Reliable and scalable by design

    Based on the proven Square D G3 Powerlink platform, LCP panels are engineered for long-term performance and can be customized to fit any installation size.
    • Motorized breakers rated for 200,000 cycles
    • Panel sizes from 30 to 84 circuits
    • Optional in-panel SurgeX surge elimination
    SPECIFICATIONS

    LCP System Specifications

    Review the electrical and control specifications for the LCP family of lighting control panelboards.
    PRIMARY PANELS

    LCP Lighting Control Panels

    The core of the system, providing DMX-controlled circuit breakers in a range of main breaker sizes.

    Model Main Breaker Size Circuits
    LCP 338-xx <100A Varies
    LCP 341-xx 125A-225A Varies
    LCP 341-xx M400 400A Varies

    Shared LCP System Specifications

    Technical details common across the LCP and LCS panel families. Individual model specifications are available on component sales sheets.

    Electrical

    • Main Service
      100A to 600A MLO or MCB
    • Circuit Capacity
      30 to 84 circuits
    • Breaker Types
      Motorized 1, 2, or 3-pole
    • Breaker Amperage
      15A, 20A, 30A

    Control

    • Network Protocols
      IP, DMX-512, sACN
    • Local Interface
      Web browser UI
    • Automation
      Contact closure, scheduling, astronomical clock

    Compliance

    • Emergency Lighting
      ETL Listed to UL 924
    • Platform
      Built on the Square-D Powerlink Platform

    Common LCP System Specs

    • DMX 512 Control
      Standard
    • Emergency Feature
      Auto-on for egress lighting (ETL listed UL 924)
    • Setup
      No on-site commissioning required
    • Energy Efficiency
      No holding current or heat sinks required to maintain state.

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    LCP System Support

    Find documentation, application notes, and answers to common questions for the LCP panelboard system.
    VIDEOS

    Setup & training video series.

    EPISODE 1 / 8 · 9:27
    Building a Controllable Breaker Panel Part Number
    DOCUMENTS

    Manuals, guides, and factsheets.

    Quick Start Guides
    Optional Features
    CASE STUDIES

    Real-world installations.

    View all Case Studies
    WHITE PAPERS

    Deep dives & technical reads.

    View all White Papers
    FAQ

    FAQs about the LCP System

    Can I control the LCP without a lighting console?

    Yes. Every LCP panel has a built-in web server for manual control from any browser. You can also use the internal scheduler with its astronomical clock for automated, time-based operation without an external controller.

    Can I use LCP panels for emergency lighting?

    Yes, LCP panels are ETL Listed to UL 924 standards, making them suitable for controlling emergency and egress lighting circuits in compliance with building codes.

    How do I choose the right panel size for my project?

    Panel selection depends on your total circuit count and main service amperage. LCP systems are available in sizes from 30 to 84 circuits with service ratings from 100A to 600A. A LynTec engineer can help you specify the correct configuration.

    How does the LCP system integrate with lighting consoles?

    The LCP system supports DMX and sACN protocols natively. You can connect your lighting console directly to the panel’s network interface to control individual circuits or zones, just like any other lighting fixture.

    What is the difference between LCP and LCS panels?

    LCP panels are the primary controllers containing the system’s intelligence, including the web server and protocol interfaces. LCS panels are secondary, cost-effective expansion units that provide additional circuits and must be controlled by a primary LCP panel.
