    RPC Remote Control Breaker Panel System

    Intelligent, web-enabled breaker management system for AVL installations.

    The RPC is a network-controlled breaker panel system that combines a primary controller with optional expansion panels for centralized power management. It is built for permanent installations in performance venues, houses of worship, and broadcast facilities that need scalable, code-compliant power control with remote visibility.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    The RPC series provides a complete, web-enabled power control infrastructure for complex installations. It combines master and secondary panels to manage up to 168 circuits from a single interface, offering robust sequencing, brownout protection, and remote monitoring for performance venues and broadcast facilities.
    An Integrated Approach to Power Control

    Platform

    Square-D Powerlink

    Max Circuits

    Up to 168

    Control

    Web, DMX, sACN, IP

    Load Capacity

    100A , 400A

    Compliance

    ETL, UL 924
    RPC SYSTEM OVERVIEW

    Complete power control infrastructure, simplified for installation and use.

    The LynTec RPC series brings intelligent, network-enabled control to the foundational infrastructure of AVL installations. Built on the trusted Square-D Powerlink hardware platform, the RPC system provides reliable, remotely operated breakers in a self-contained panel. The architecture is designed for scalability, starting with a required RPC Primary Panel that functions as the system’s brain and expanding with cost-effective RPS Secondary Panels to meet any circuit count up to 168.

    Every panel is managed through a unified, browser-based interface, simplifying setup, monitoring, and daily operation without requiring on-site factory commissioning. With native support for all major control protocols and built-in protection features, the RPC system reduces installation complexity and gives operators confident control over every circuit in their facility.

    SYSTEM INTEGRATION

    Integrate the RPC system with your facility.

    The RPC system is designed to work with a wide range of building automation and show control platforms.

    Building Automation Systems

    Native network protocols allow the RPC to be monitored and controlled by facility-wide building management systems.

    Show Control Platforms

    Native support for DMX and sACN integrates power control directly into lighting consoles and show control software.

    Third-Party Control Systems

    Integrate with platforms like Crestron and Q-SYS using IP, Telnet, or RS-232 for unified automation.

    SurgeX Surge Elimination Modules

    Add robust surge elimination in a companion sidecar enclosure to protect all downstream equipment.

    I/O/R Expansion Card

    Adds remote input, output, and relay triggers for contact-closure automation and high-current contactor control.
    CONFIGURATION OPTIONS

    Built to your project’s specs.

    Every RPC panel is custom-configured. Expand each category for available options to build your system.
    Available Models

    The system uses a primary-secondary architecture to scale efficiently for any installation size.

    • RPC Primary Panels (Required): The system controller, including the web server, scheduling, and communication interfaces.
    • RPS Secondary Panels (Optional): Cost-effective expansion panels that add circuit capacity and are controlled by a primary RPC Primary.
    • ITG Variants: An Isolated Technical Ground sidecar is available for both primary and secondary panels to reduce electrical noise.
    Panel Size Options

    Panel capacity is determined by the main electrical service rating and total breaker slots.

    • Small (100A Main): Supports up to 29 controlled circuits in Primary units or 30 in Secondary units.
    • Medium (225A Main): The system standard, with capacities from 42 to 66 circuits depending on the model.
    • Large (400A MLO): Maximum-capacity panels for 400A Main Lug Only service, holding up to 84 circuits.
    Breaker Configurations

    All breakers are remotely operable Square D Powerlink models, known for their robust mechanical life.

    • Circuit Capacity: A single RPC controller can manage up to 168 breakers across a network of primary and secondary panels.
    • Breaker Ratings: Standard breakers are available in 15A, 20A, and 30A ratings, in 1, 2, or 3-pole configurations.
    • Installation: Plug-on control bus strips simplify wiring and reduce installation labor.
    Control

    The RPC system offers a comprehensive suite of control and integration options to fit any environment.

    • Network Control: An integrated web server allows for control and monitoring via HTTP, Telnet, DMX, and sACN.
    • Automation: Features include a built-in scheduler with astronomical clock, sequencing, and load-shedding.
    • BMS Integration: An optional BACnet module allows the RPC system to integrate with building management systems.
    Add-Ons & Accessories

    Expand the functionality of your RPC system with these optional, factory-installed modules.

    • SurgeX Protection: Add industrial-grade in-panel surge elimination to protect connected equipment.
    • Current Monitoring: Provides circuit-level current data for advanced monitoring and reporting.

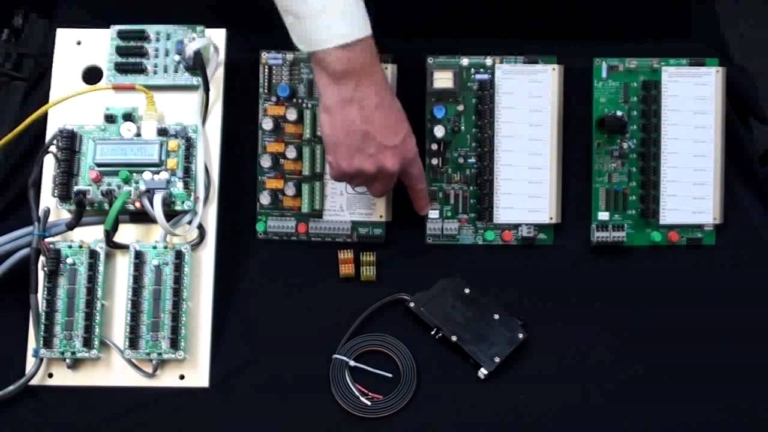

    • I/O/R Expansion: An Input/Output/Relay card adds control for high-current contactors.
    • IPC Integration: The Integrated Power Center combines an isolation transformer and breakers into a single floor unit.

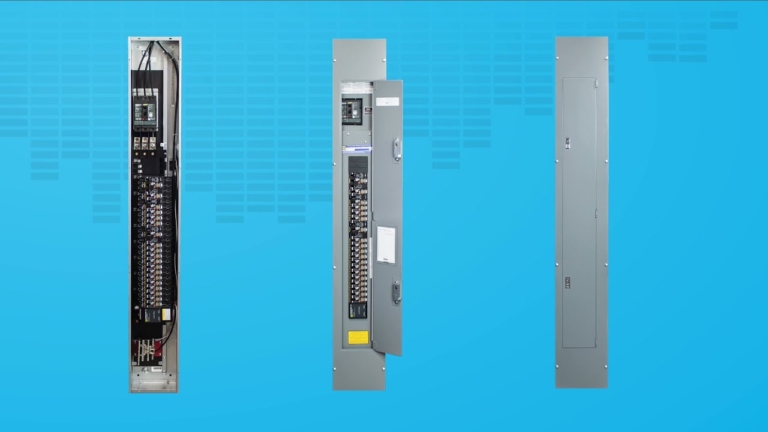

    THREE PANELS. ONE UNIFIED SYSTEM.

    Build Your RPC System

    Start with a primary panel, add secondary panels for more circuits, and include optional add-ons for enhanced functionality.
    Required

    RPC Primary Panel

    The core of your system, providing intelligent control and web-enabled management for up to 84 circuits.
    Optional

    RPS Secondary Expansion Panel

    Expand your system with secondary panels, each adding up to 84 more circuits, controlled by the primary RPC panel.
    REMOTE CONTROL

    Manage your facility from anywhere.

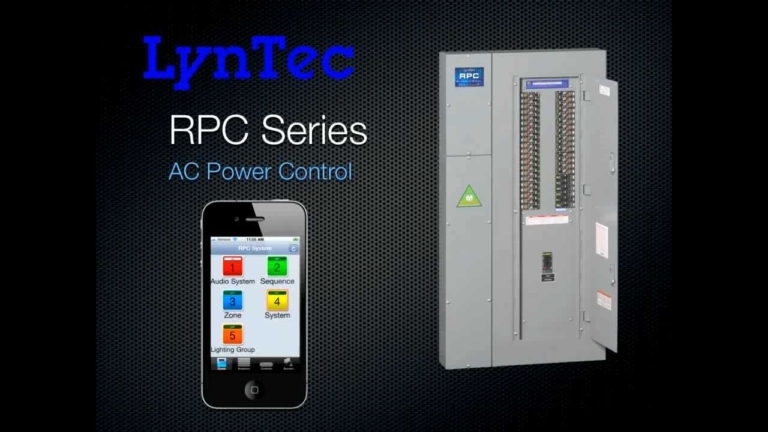

    The LynTec Control app provides remote access to monitor circuit status, toggle individual breakers or zones, and trigger sequences from your phone or tablet.
    Download on Apple App Store
    Get It On Google Play
    WHY LYNTEC

    Engineered for reliability, built for the real world.

    • Built on the trusted Square-D Powerlink platform for unmatched reliability.
    • Simplified installation and setup reduces labor costs and deployment time.
    • Decades of experience engineering power solutions for mission-critical AVL.
    • Responsive, practical support from our US-based team of AVL power experts.
    The LynTec software is a great monitoring tool, allowing us to set load thresholds per circuit and investigate proactively before equipment fails.
    Andrew Paull
     SPEC Engineering
    FEATURES

    RPC System Features

    Explore the capabilities, control protocols, and integration support engineered into every RPC panel.
    CAPABILITIES

    Features

    Integrated Web Server

    Provides remote setup, control, and live system monitoring from any networked device.

    Universal Protocol Support

    Native DMX, sACN, HTTP, Telnet, and RS-232 for integration with show control and building systems.

    Automated Power Sequencing

    Circuit-level sequencing with selectable step-rates protects equipment from inrush current.

    Smart Astronomical Scheduling

    A built-in scheduler with an astronomical clock enables timed control for zones and circuits.

    UL 924 Emergency Egress

    Always-active auto-on for emergency egress lighting, ETL listed to UL 924. Special panel labeling is required for full standard compliance.

    Brownout Protection

    Selectable over- and under-voltage protection automatically shuts down circuits to prevent equipment damage from sags and spikes.

    Simple Commissioning

    Engineered for straightforward installer setup, eliminating the need for on-site factory specialists.

    Contact Closure Integration

    Built-in inputs allow for simple control from wall switches, sensors, or third-party systems.

    Isolated Technical Ground

    Optional ITG variants reduce electrical noise for improved performance in sensitive audio systems.
    01

    Centralized Control, Anywhere

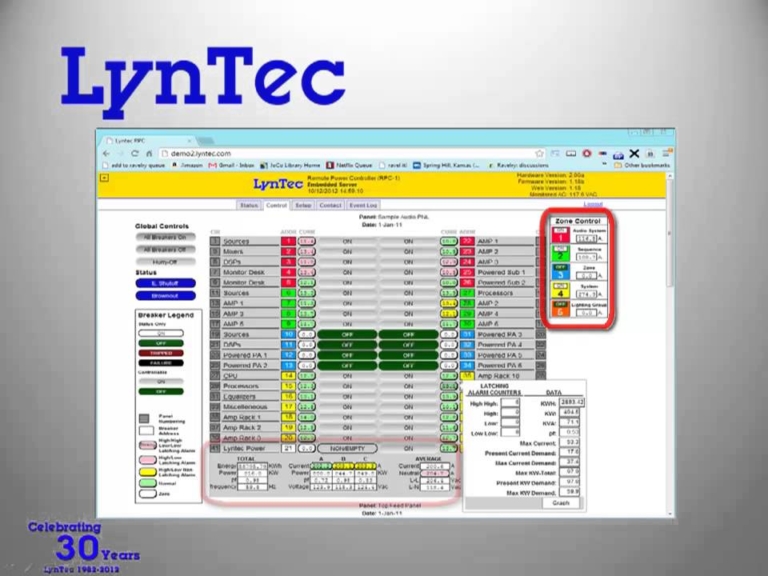

    A built-in web server provides a single point of control and monitoring for the entire system from any networked device, no special software required.
    • Intuitive browser-based interface
    • Monitor and control individual circuits or zones
    • Remote management simplifies troubleshooting
    02

    Scalable by Design

    Start with a single RPC Primary Panel and add RPS Secondary Panels as your system grows. This modular architecture allows for flexible and cost-effective expansion.
    • Control up to 168 circuits from one controller
    • Primary and secondary panel architecture
    • Simplified wiring with plug-on control bus strips
    03

    Automated Protection and Scheduling

    The RPC system includes standard features for automated sequencing, brownout protection, and emergency lighting to protect equipment and ensure safety.
    • Circuit-level sequencing prevents inrush overload
    • Under-voltage protection safeguards sensitive gear
    • ETL listed to UL 924 for emergency egress lighting
    SPECIFICATIONS

    RPC System Specifications

    Review the core electrical and control specifications for the RPC family of intelligent breaker panels.
    PRIMARY PANELS

    RPC Primary Panels

    The core of your system, providing intelligent control and web-enabled management for up to 84 circuits.

    Model Circuits Main
    RPC 329 30 100A Standard (to 125A or MLO)
    RPC 338 30 < 100A
    RPC 341 42 125A-225A or MLO
    RPC 341 M400 42 400A or MLO
    RPC 348 48 125A-250A or MLO
    RPC 348 M400 48 400A or MLO
    RPC 365 66 125A-250A or MLO
    RPC 365 M400 66 400A or MLO
    RPC 383 84 400A MLO
    SECONDARY PANELS

    RPS Secondary Expansion Panels

    Expand your system with secondary panels, each adding up to 84 more circuits, controlled by the primary RPC panel.

    Model Circuits Main Grounding
    RPS 330 30 Varies Standard
    RPS 330 ITG 30 Varies Isolated Technical Ground
    RPS 339 30 < 100A Standard
    RPS 339 ITG 30 < 100A Isolated Technical Ground
    RPS 342 42 125A-250A or MLO Standard
    RPS 342 ITG 42 125A-250A or MLO Isolated Technical Ground
    RPS 342 M400 42 400A or MLO Standard
    RPS 342 ITG M400 42 400A or MLO Isolated Technical Ground
    RPS 348 48 125A-250A or MLO Standard
    RPS 348 ITG 48 125A-250A or MLO Isolated Technical Ground
    RPS 348 M400 48 400A or MLO Standard
    RPS 348 M400 ITG 48 400A or MLO Isolated Technical Ground
    RPS 366 66 125A-250A or MLO Standard
    RPS 366 ITG 66 125A-250A or MLO Isolated Technical Ground
    RPS 366 M400 66 400A or MLO Standard
    RPS 366 M400 ITG 66 400A or MLO Isolated Technical Ground
    RPS 384 84 400A MLO Standard

    Shared RPC System Specifications

    Technical details common across the RPC family. Individual panel specifications vary by model.

    Electrical

    • System Voltages
      120/208V, 240V, or 277/480V
    • Main Breaker Rating
      225A Standard (100A to 400A or MLO optional)
    • Neutrals
      200% standard
    • Breaker Type
      Square D Powerlink remotely operated breakers
    • Breaker Ratings
      15A, 20A, and 30A (1, 2, or 3-pole)

    Control

    • Network Protocols
      HTTP, Telnet, DMX, sACN
    • Serial Protocol
      RS-232
    • Optional Protocol
      BACnet
    • Local Inputs
      Contact closure inputs for switches or sensors

    Compliance

    • Emergency Lighting
      ETL Listed to UL 924
    • Platform
      Based on Square D G3 Powerlink hardware

    Common RPC System Specs

    • Platform
      Square D G3 Powerlink
    • Control Interfaces
      DMX, sACN, HTTP, Telnet, RS-232 (BACnet optional)
    • Web Interface
      Built-in for remote setup, control, and monitoring
    • Voltage
      120/208V, 240V, or 277/480V
    • Neutral
      200% rated
    • Egress Lighting
      Standard, ETL listed to UL 924
    • Brownout Protection
      Standard
    • Sequencing
      Circuit-level with selectable step-rates

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    RPC System Support

    Find documentation, setup guides, and answers to common questions for the RPC system.
    VIDEOS

    Setup & training video series.

    EPISODE 1 / 10 · 9:25
    Control Options for Motorized Circuit Breakers
    DOCUMENTS

    Manuals, guides, and factsheets.

    Quick Start Guides
    Optional Features
    CASE STUDIES

    Real-world RPC installations.

    View all Case Studies
    WHITE PAPERS

    Deep dives & technical reads.

    View all White Papers
    FAQ

    FAQs about the RPC System

    Can the RPC system integrate with a building management system?

    Yes. The RPC system integrates with most building automation and management systems for centralized control and monitoring using its native network protocols, including HTTP, Telnet, DMX, and sACN.

    How do I configure an RPC system for my facility?

    Every RPC system starts with a required RPC Primary Panel, which contains the controller. You can add optional RPS Secondary Panels to expand the circuit count. Contact a LynTec engineer to spec the right configuration for your needs.

    Is on-site factory commissioning required for an RPC system?

    No. The RPC system is designed for simple setup and commissioning by the installer. The integrated web browser interface provides all the tools needed for configuration without requiring a factory specialist on-site.

    What is an ITG (Isolated Technical Ground) panel?

    ITG panels include a separate, isolated ground bar for sensitive audio and video equipment. This helps to reduce electrical noise and hum that can degrade system performance, making it ideal for recording studios and performance venues.

    What is the difference between an RPC and an RPS panel?

    The RPC is the Primary Panel and contains the system intelligence, including the web server and control inputs. The RPS is a Secondary Panel that provides additional circuits but must be connected to and controlled by an RPC Primary Panel.

    What kind of surge protection is available for RPC panels?

    We offer optional SurgeX in-panel surge elimination modules. These can be factory-installed to provide industrial-grade protection against transient voltage surges and spikes for all connected circuits. Whole-panel surge protective devices (SPDs), such as the EMB22, are also available to protect the entire panel at the service entrance.
