    RPCR Automated Relay Panel System

    Web-enabled relay panel system for independent circuit control and sequencing.

    The RPCR is a self-contained, network-controlled relay panel providing individual control and sequencing for up to sixty-four circuits from a single web interface. It is designed for performance venues and architectural installations requiring simple, scalable, and reliable control over non-dimmable lighting and other switched loads.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    A series of modular relay panels for high-amperage circuit control in installed sound and lighting systems. RPCR panels provide scalable, remotely operated control for 8 to 64 circuits, with options for 2-pole relays and integrated brownout protection.
    Intelligent Relay Control, Simplified

    Relay Capacity

    8 to 64 circuits

    Control

    Web, IP, DMX, sACN

    Sequencing

    Per-circuit

    Scheduling

    Astronomical Clock

    Compliance

    ETL Listed UL 924
    RPCR SYSTEM OVERVIEW

    Simplified, intelligent control for every relay.

    The RPCR Automated Relay Panel system simplifies power infrastructure by providing web-enabled control over every circuit in a self-contained, ready-to-install package. Engineered for straightforward setup without requiring on-site factory commissioning, the RPCR’s integrated web server allows for remote configuration, operation, and monitoring from any standard browser. This approach reduces installation complexity and provides facility managers with greater visibility and control.

    Each panel allows for individual relay control or grouping into up to 12 zones. With a built-in astronomical clock for scheduled events, contact closure inputs for physical switches, and native support for common AVL control protocols, the RPCR system integrates seamlessly into both new and existing installations. It delivers a robust, scalable solution for managing switched power loads with precision and reliability.

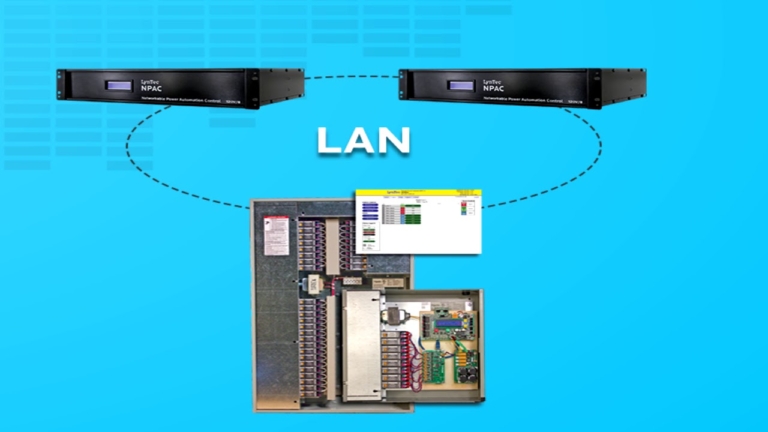

    SYSTEM INTEGRATION

    Integrate the RPCR with your facility.

    The RPCR system is designed to work with a wide range of standard control and automation platforms.

    Entertainment Control Systems

    Native DMX and sACN support allows for direct integration with lighting consoles and show control systems.

    Building Automation Systems

    An optional BACnet module enables communication with building management systems for centralized facility control.

    Architectural Control Systems

    Use the contact closure inputs to connect with wall stations, sensors, and other architectural control devices.

    IP-Based Control

    Control and monitor the RPCR from any smart device, laptop, or third-party system using HTTP or Telnet commands.
    CONFIGURATION OPTIONS

    Configure your RPCR panel.

    Every RPCR panel is built to order. Use these options to specify the right configuration for your installation.
    Available Models

    The RPCR system is available in six standard configurations, differentiated by the total number of controllable relays.

    • RPCR-8: 8 single-pole relays.
    • RPCR-16: 16 single-pole relays.
    • RPCR-24: 24 single-pole relays.
    • RPCR-32: 32 single-pole relays.
    • RPCR-48: 48 single-pole relays.
    • RPCR-64: 64 single-pole relays.
    Relay Type

    Select the relay type based on the electrical requirements of the circuits you need to control.

    • Single-Pole Relays (Standard): Included as the base configuration for all models.
    • Double-Pole Relays (Optional): Can be substituted for single-pole relays to accommodate different wiring schemes.
    Voltage and Phase

    RPCR panels can be ordered to match the service voltage of your facility.

    • 120/208V: Standard configuration for most commercial AVL installations in North America.
    • 277/480V: Available for facilities with higher voltage lighting or power distribution systems.
    Control Integration

    While all panels include a comprehensive set of standard protocols, an optional module is available for deeper building integration.

    • Standard Protocols: IP, Web, DMX, sACN, HTTP, Telnet, and RS-232 are included on every panel.
    • BACnet (Optional): Adds native support for integration with building management systems (BMS).
    Add-Ons and Accessories

    Enhance the reliability and security of your installation with optional modules.

    • Brownout Protection (Optional): Ensures circuits do not power up or down incorrectly during voltage sags or outages.
    • Locking Cover (Optional): Secures the hinged cover to prevent unauthorized access to the panel interior.
    FLEXIBLE RELAY CONFIGURATIONS

    Build Your RPCR System

    Select the RPCR panel with the right number of relays for your application.
    Required

    RPCR Automated Relay Panels

    Choose a panel based on the number of single-pole relays required. Double-pole relays are available as an option.
    REMOTE CONTROL

    Manage your system from anywhere.

    The LynTec Control app provides remote access to monitor and operate your RPCR panels from any iOS or Android device.
    Download on Apple App Store
    Get It On Google Play
    WHY LYNTEC

    Reliable Power Control, Engineered for Simplicity.

    • Direct manufacturer support for quotes, delivery, and service.
    • Engineered for simple setup, no on-site commissioning required.
    • Integrated scheduling and safety features are standard, not costly add-ons.
    • Built on decades of experience in AVL power infrastructure.
    Integrating LynTec’s RPCR relay panels provides intelligent power protection and advanced monitoring capabilities from any Web-enabled device.
    Justin Hames
    Design 2020
    FEATURES

    RPCR System Features

    Explore the standard capabilities engineered into every RPCR automated relay panel.
    CAPABILITIES

    Features

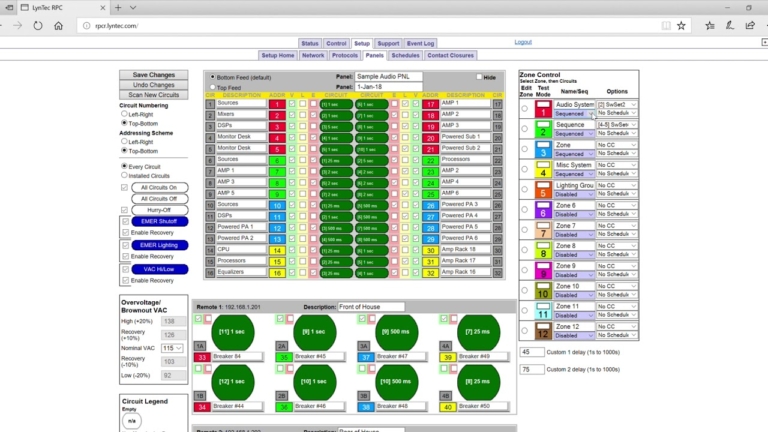

    Integrated Web Server

    Provides a browser-based interface for remote setup, control, and monitoring from any device.

    Individual and Zoned Control

    Operate relays one-by-one or group them into as many as 12 zones for simplified management.

    Astronomical Scheduling

    A built-in scheduler with an astronomical clock enables timed events based on sunrise and sunset.

    Universal Protocol Support

    Integrates with DMX, sACN, HTTP, Telnet, and RS-232, with optional BACnet support.

    Circuit Level Sequencing

    Protects sensitive equipment with programmable power-on and power-off sequences at selectable rates.

    UL 924 Emergency Egress

    A circuit-selectable auto-on feature for egress lighting is standard, enabling UL 924 compliance with additional labeling.

    Contact Closure Inputs

    Allows for simple integration with external sensors or physical wall switches for manual control.

    Emergency Override

    A built-in override function is standard to ensure manual control is always available.

    Circuit Level Load Shedding

    Helps manage energy consumption by selectively deactivating circuits based on system demand.
    01

    Streamlined Installation and Setup

    An integrated web server with an intuitive browser interface allows for complete remote setup and operation, eliminating the need for specialized software or on-site factory commissioning.
    • Ready-to-install panel packages
    • Point-and-click zone and relay configuration
    • Reduces installation time and labor costs
    02

    Flexible Control and Integration

    Control relays individually or in zones and integrate seamlessly with existing control systems through a wide range of native protocols, providing a versatile solution for any environment.
    • Native DMX, sACN, HTTP, Telnet, and RS-232 support
    • Optional BACnet integration for building management systems
    • IP interface for control from smartphones, tablets, or laptops
    03

    Built-in Automation and Safety

    Automate daily operations with a built-in scheduler and astronomical clock, while ensuring safety with standard features like emergency override and selectable egress lighting.
    • Astronomical clock for timed zone control
    • Contact closure inputs for sensors or wall switches
    • ETL listed to UL 924 for automated emergency lighting
    SPECIFICATIONS

    RPCR System Specifications

    Review the electrical, control, and mechanical details for the RPCR panel series.
    PRIMARY PANELS

    RPCR Automated Relay Panels

    Choose a panel based on the number of single-pole relays required. Double-pole relays are available as an option.

    Model Model Relays Relay Type Panel Code
    RPCR-8 RPCR-8 8 Single Pole PAN-1P
    RPCR-16 RPCR-16 16 Single Pole PAN-1P
    RPCR-24 RPCR-24 24 Single Pole PAN-1P
    RPCR-32 RPCR-32 32 Single Pole PAN-1P
    RPCR-48 RPCR-48 48 Single Pole PAN-1P
    RPCR-64 RPCR-64 64 Single Pole PAN-1P

    Shared RPCR System Specifications

    Technical details applicable across all RPCR panel configurations. Individual model specifications are available on component sales sheets.

    Electrical

    • Input Voltage
      120/208V or 277/480V
    • Relay Capacity
      8, 16, 24, 32, 48, or 64 relays
    • Relay Type
      Single-pole (standard), Double-pole (optional)

    Control

    • Network Interface
      10/100 Mbps Ethernet (RJ-45)
    • Protocols (Standard)
      IP, DMX, sACN, HTTP, Telnet, RS-232
    • Protocols (Optional)
      BACnet
    • Local Inputs
      Contact closure inputs

    Mechanical

    • Enclosure
      Locking hinged cover (lock optional)
    • Compliance
      ETL Listed to UL 924

    Common RPCR Specs

    • Control Voltage
      120/208V or 277/480V
    • Interface
      Integrated web server and browser
    • Protocols
      DMX, sACN, HTTP, Telnet, RS-232 (BACnet optional)
    • Listings
      ETL listed UL 924

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    RPCR System Support

    Find documentation, guides, and answers to common questions for your RPCR installation.
    VIDEOS

    Setup & training video series.

    EPISODE 1 / 4 · 8:23
    Lyntec RPCR Lighting Control Relay Panel
    CASE STUDIES

    Real-world installations.

    View all Case Studies
    WHITE PAPERS

    Deep dives & technical reads.

    View all White Papers
    FAQ

    FAQs about the RPCR System

    Can RPCR panels integrate with third-party control systems?

    Yes. All RPCR panels include native support for DMX, sACN, IP, Telnet, HTTP, and RS-232. An optional BACnet module is also available for integration with building management systems.

    How do I choose the right RPCR panel size for my project?

    Select the RPCR model based on the total number of circuits you need to control. Models are available in configurations from 8 to 64 relays. Contact a LynTec engineer for assistance with sizing and configuration.

    How does the astronomical clock feature work?

    The built-in astronomical clock allows you to schedule automated events, such as turning lights on or off, based on the local time of sunrise and sunset. This provides set-and-forget control for architectural lighting.

    Is on-site factory commissioning required for an RPCR panel?

    No. The RPCR is designed for simple installation and setup. The integrated web server provides an intuitive, browser-based interface for all configuration, eliminating the need for a factory technician on site.

    What is the UL 924 Egress Lighting feature?

    This is a standard safety feature that automatically turns on designated lighting circuits in an emergency situation to illuminate paths of egress. While the feature is standard, ETL listing to the UL 924 standard requires additional labeling.
