    SKU: RX100-15A Market: North America Series: RX
    Contact Us
    SKU: RX100-15A Market: North America Series: RX

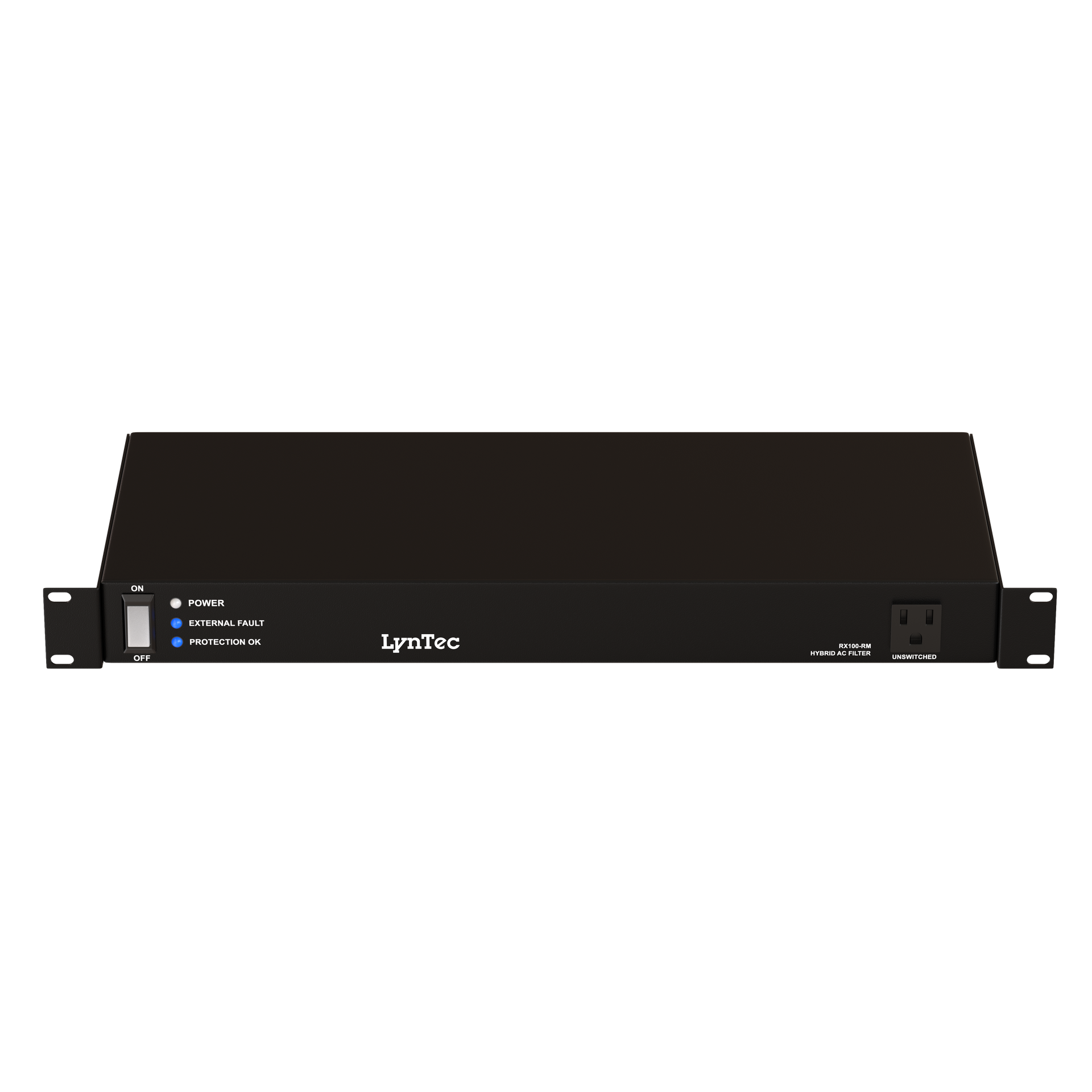

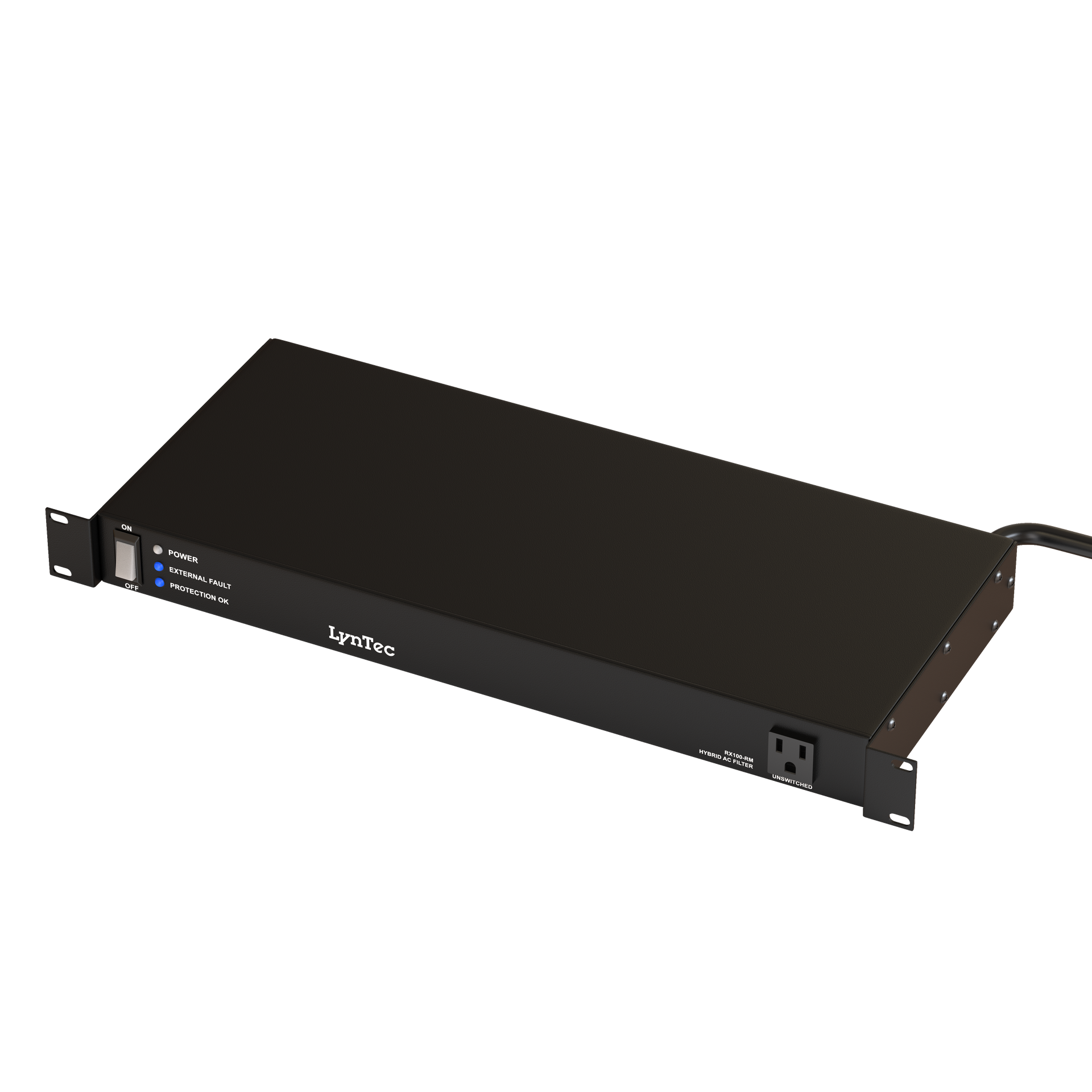

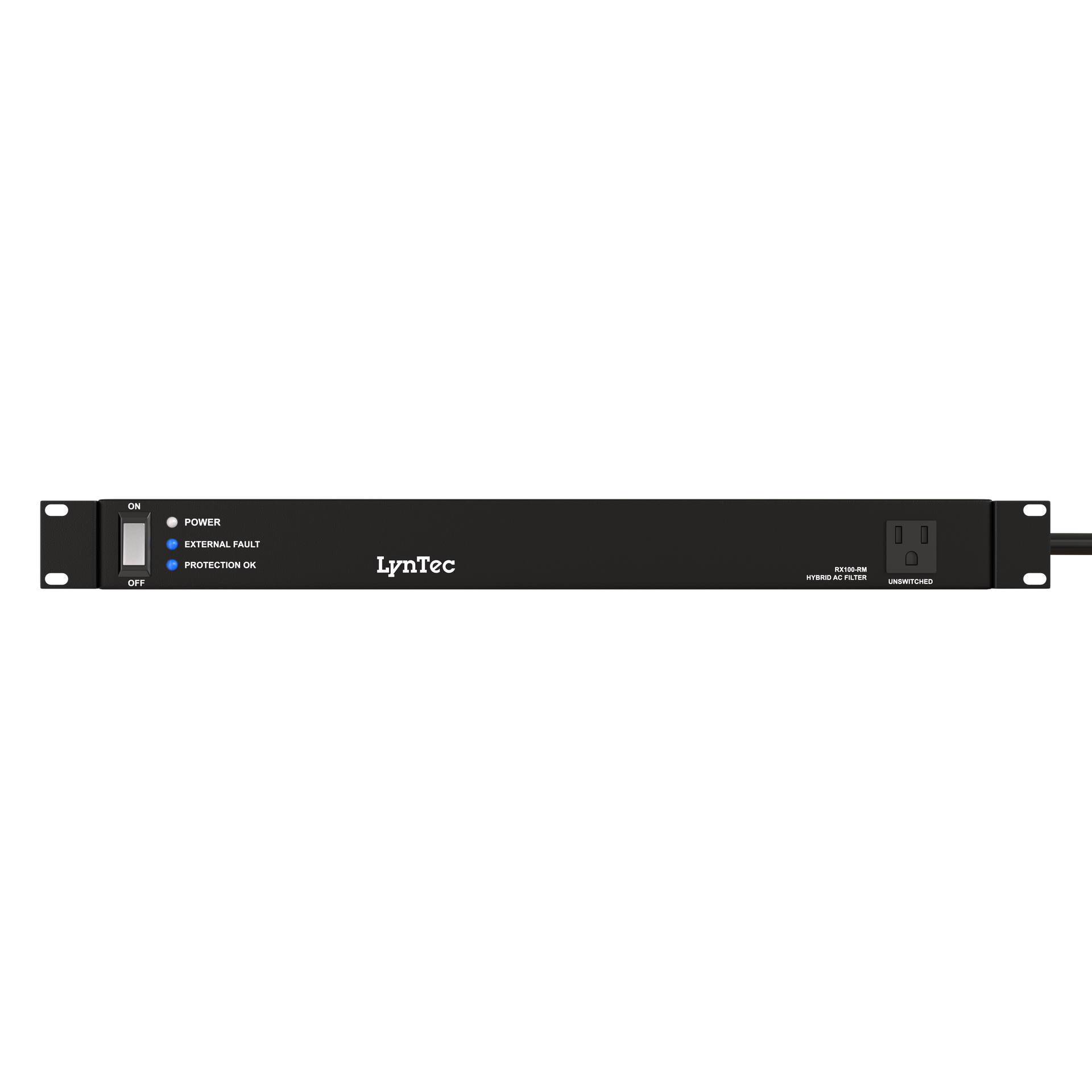

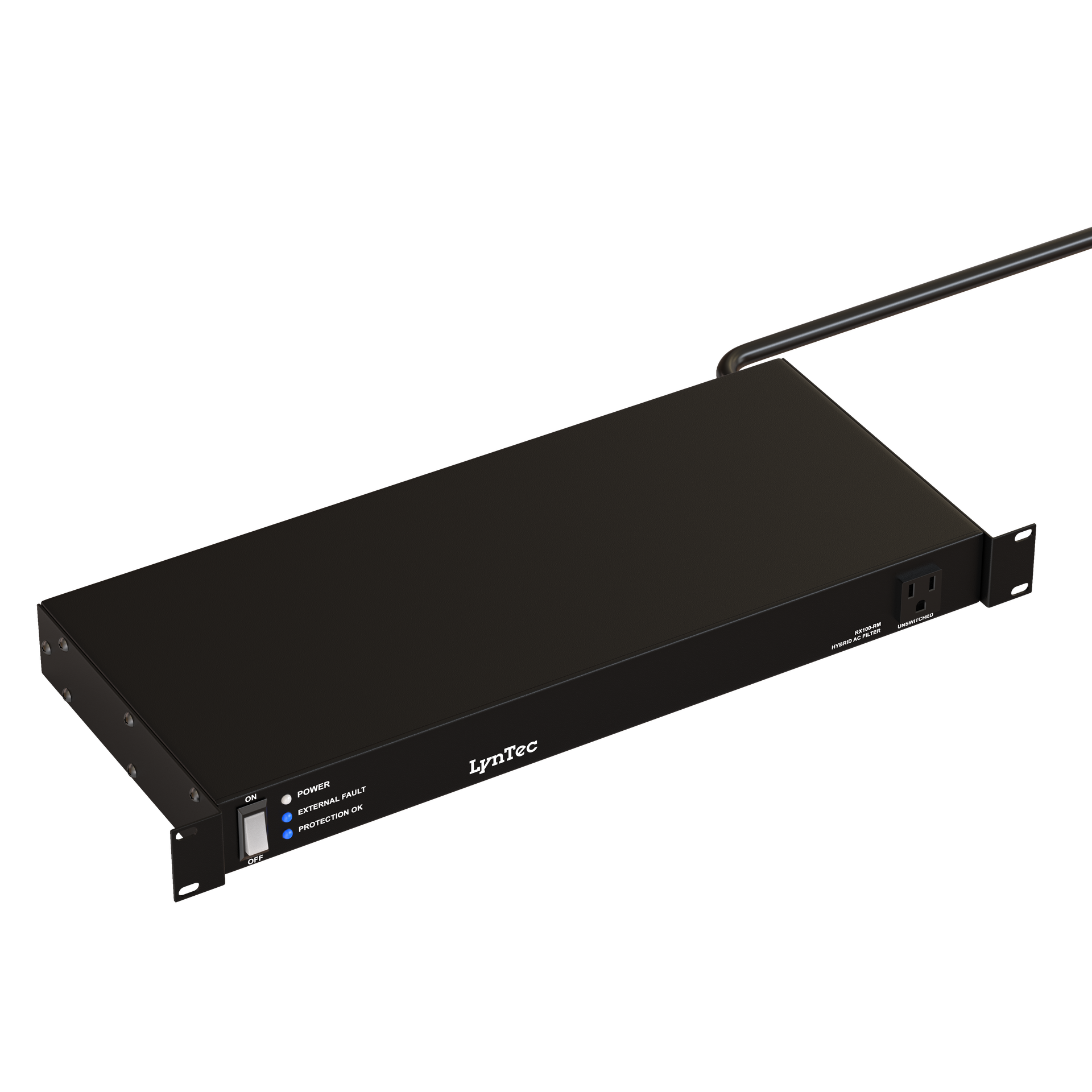

    RX 100-15A Surge Protector and Power Conditioner

    Rack-mount power conditioner with Hybrid Filter Technology for 15A applications.

    The RX 100-15A is a rack-mounted power distribution unit featuring Hybrid Filter Technology to protect against surges and high-frequency power line interference. It is designed for AV racks and touring rigs requiring reliable 15A power conditioning to improve electronic performance and protect sensitive connected equipment.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    Professional surge protection and power conditioning for sensitive AV and digital processing systems. The RX series uses a patented Hybrid Filter Technology to protect all three power lines (hot, neutral, ground) from both high-energy surges and low-level line noise.
    Engineered for Clean, Protected Power

    SERVICE

    15A / 120V

    OUTLETS

    8 Total

    PROTECTION

    Hybrid Filter

    FORM FACTOR

    1U Rack-Mount

    FILTRATION

    Normal & Common
    POWER CONDITIONING

    Reliable power conditioning and protection for 15A racks.

    The Juice Goose RX 100-15A provides robust power protection and filtration engineered for professional AVL environments. Its core is the proven Hybrid Filter Technology, which defends sensitive electronics against dangerous power surges and filters out high-frequency noise not just on the hot and neutral lines, but on the ground line as well. This is critical for digital processing equipment where even minor ground contamination can cause operational failures.

    Built into a durable, Tour Class chassis, the RX 100-15A also includes over-voltage shutdown and protection against external wiring faults, providing a dependable foundation for any equipment rack operating on a 15A service.

    SYSTEM COMPATIBILITY

    Protect your sensitive electronics.

    The RX 100-15A is designed to provide clean power for a wide range of professional equipment.

    Standard 19-Inch Equipment Racks

    The 1U chassis and reinforced mounting brackets fit securely in any standard EIA rack.

    Digital Audio Workstations

    Filters ground line noise that can interfere with audio interfaces and processing hardware.

    Video and Broadcast Gear

    Provides stable, clean power to protect video switchers, recorders, and signal processors.

    Network and IT Equipment

    Delivers reliable power protection for switches, servers, and other rack-mounted IT hardware.
    WHY LYNTEC

    Reliable Power Infrastructure, Simplified.

    • Protection that cleans the ground line, not just hot and neutral
    • Engineered for the demands of professional AVL systems
    • Built on four decades of power management experience
    • Durable construction for long-term, dependable operation
    FEATURES

    RX 100-15A Features

    A detailed look at the standard capabilities engineered into every RX 100-15A unit.
    CAPABILITIES

    Features

    Hybrid Filter Technology

    Provides professional-grade filtration and surge protection on all three power lines.

    Common Mode Filtration

    Cleans the ground line of interference that can disrupt digital electronics.

    Normal Mode Filtration

    Reduces noise between the hot and neutral lines for cleaner audio and video signals.

    Over Voltage Shutdown

    Automatically disconnects power to safeguard equipment during sustained over-voltage events.

    Wiring Fault Protection

    An LED indicator illuminates to warn of potentially unsafe external wiring issues.

    15 Amp Capacity

    Sized for standard equipment racks in studios, edit bays, and small venues.

    Eight AC Outlets

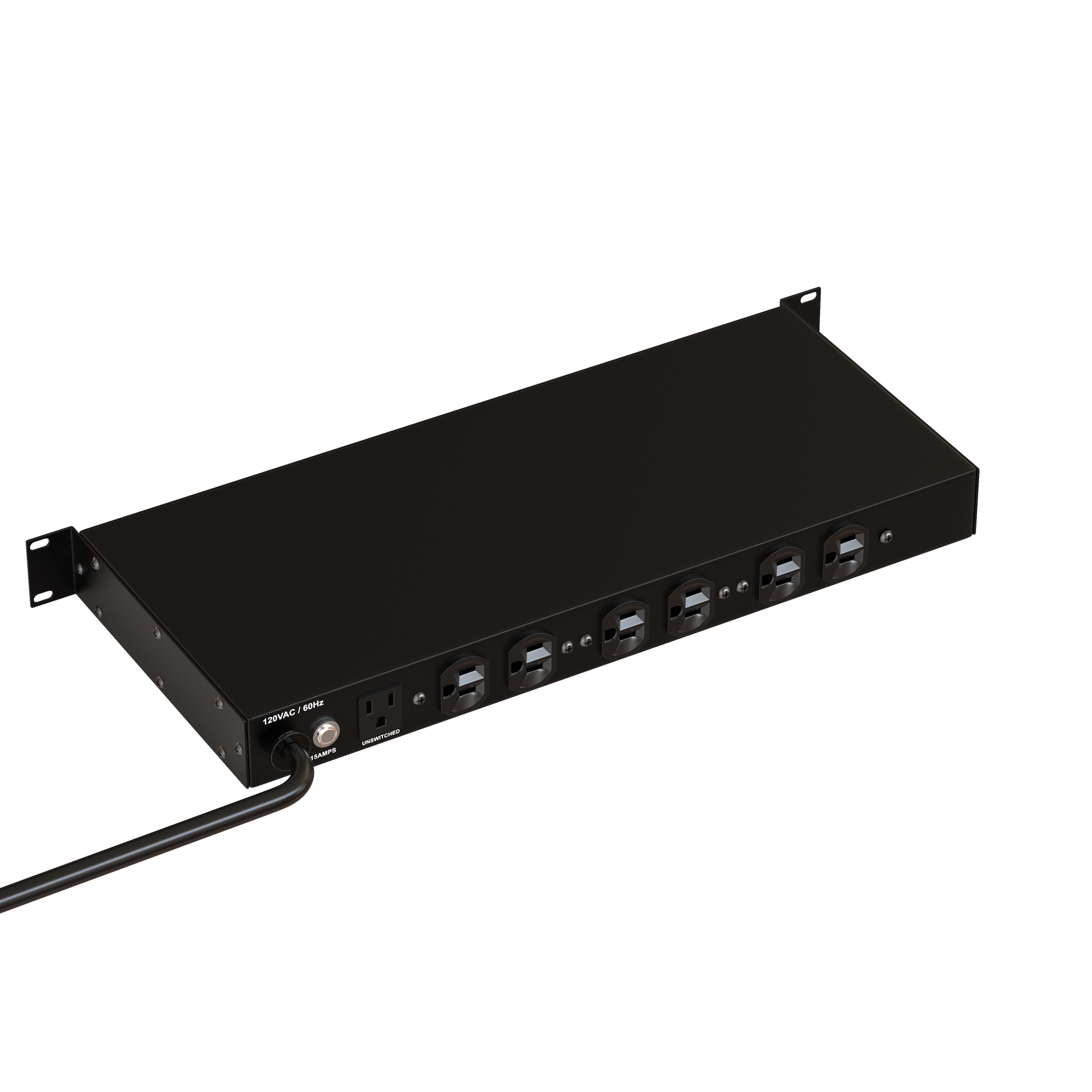

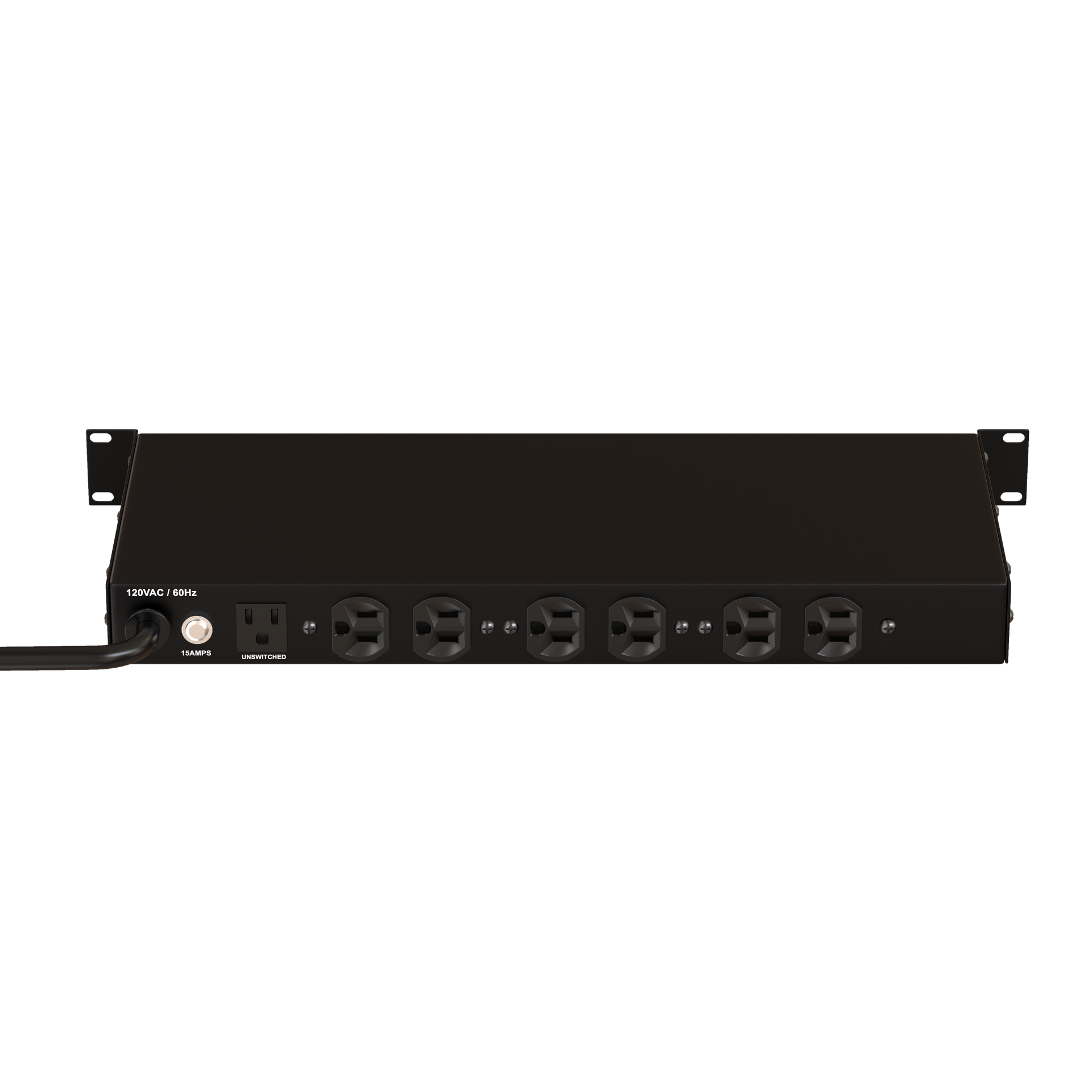

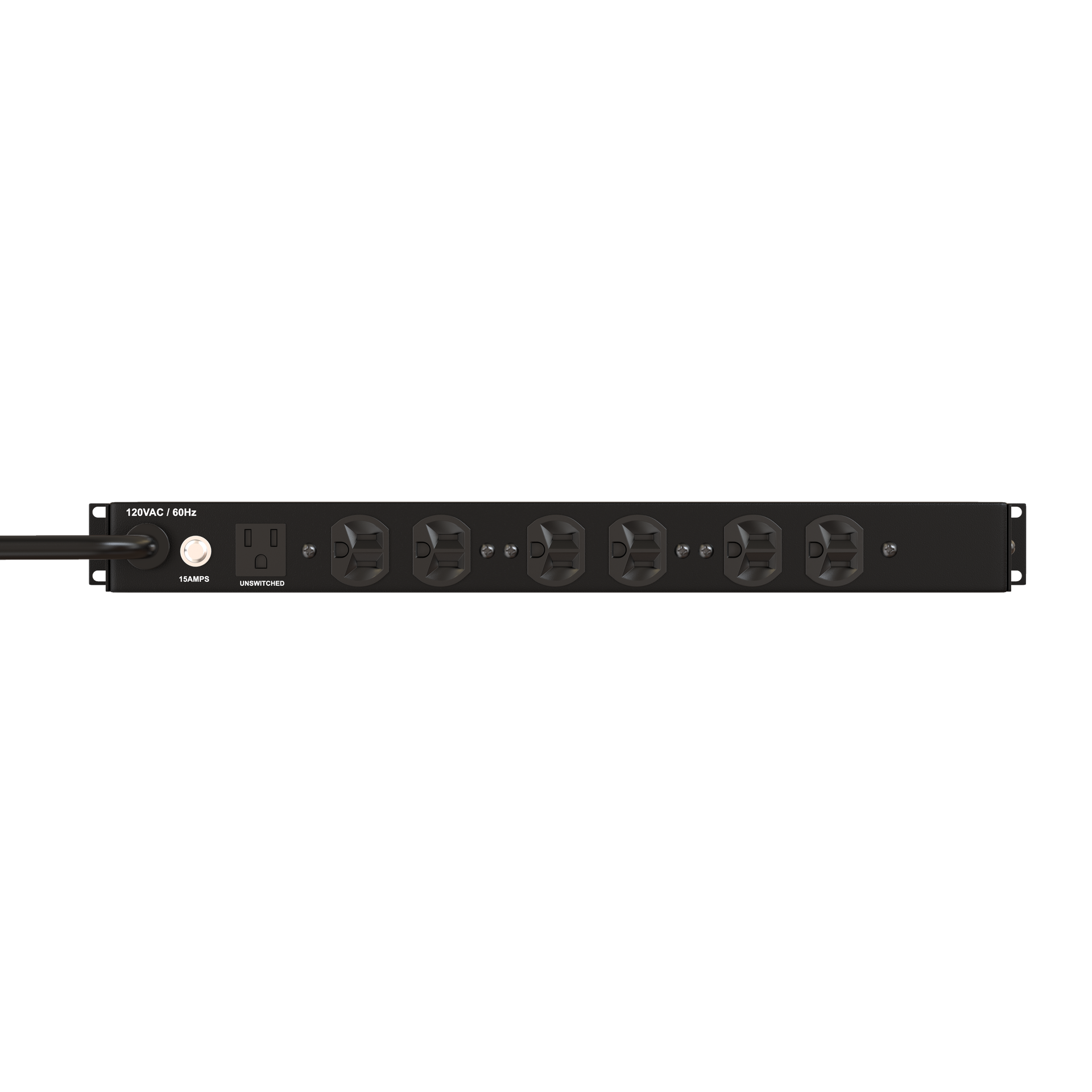

    Features seven outlets on the rear panel and one convenient outlet on the front.

    Tour Class Chassis

    Robust steel construction ensures durability in both fixed and mobile applications.
    01

    Advanced Hybrid Filter

    Our proven Hybrid Filter Technology cleans and protects all three power leads, hot, neutral, and ground, to ensure stable operation for sensitive digital equipment.
    • Filters common mode (ground) and normal mode (hot-neutral) noise
    • Does not contaminate the ground line
    • Improves performance of digital processing components
    02

    Serious Surge Protection

    Goes beyond basic protection with specific, low let-through voltage ratings that shield connected gear from damaging electrical events.
    • Maximum 10 volt surge let-through between line and neutral
    • Maximum 0.5 volt surge let-through on ground
    • Protects against surges up to 6,000 volts
    03

    Built for the Road and the Rack

    The Tour Class chassis is constructed from a single piece of cold-rolled steel with reinforced mounting brackets, built to withstand the demands of touring and permanent installs.
    • Durable single-piece steel construction
    • Reinforced mounting for secure installation
    • Designed for long-term reliability in professional use
    SPECIFICATIONS

    RX 100-15A Specifications

    The source of truth for all electrical, protection, and mechanical data.

    RX 100-15A Specifications

    Technical details for integrating the RX 100-15A into your power infrastructure.

    Electrical

    • Load Capacity
      15 Amps
    • Voltage
      120V / 60Hz
    • Outlets
      8 NEMA 5-15R (7 rear, 1 front)

    Protection and Filtration

    • Surge Let-Through (Line-Neutral)
      Maximum 10.0 Volts
    • Surge Let-Through (Ground)
      Maximum 0.50 Volts
    • Filtration Type
      Hybrid Filter (Normal and Common Mode)
    • Safety Features
      Over Voltage Shutdown, Wiring Fault Indicator

    Physical

    • Chassis
      Tour Class, single-piece cold-rolled steel
    • Form Factor
      1U Rack-Mount

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    RX 100-15A Support

    Find documentation and answers to common questions about setup and operation.
    FAQ

    FAQs about the RX 100-15A

    How is this different from a standard rack-mount power strip?

    Unlike a basic power strip, the RX 100-15A includes advanced filtration to remove AC line noise and robust surge protection with a very low voltage let-through to safeguard connected equipment. It also protects against over-voltage events and wiring faults.

    What is Hybrid Filter Technology?

    It is a proprietary Juice Goose circuit that provides power filtration and surge protection across all three power leads: hot, neutral, and ground. This is especially important for protecting sensitive digital equipment from common mode noise on the ground line.

    What is the difference between the RX 100-15A and the RX 100-20A?

    The primary difference is the amperage capacity. The RX 100-15A is designed for 15-amp circuits, while the RX 100-20A is built for higher-current applications on 20-amp circuits. Choose the model that matches your electrical service.

    Where is the RX 100-15A typically used?

    It is designed for professional 15A applications such as audio recording studios, video edit suites, broadcast racks, and touring sound systems where clean, protected power is critical for equipment performance and longevity.

    NEXT Features
    BACK Overview NEXT Specifications
    BACK Features NEXT Product Support
    BACK Specifications NEXT Contact Us
