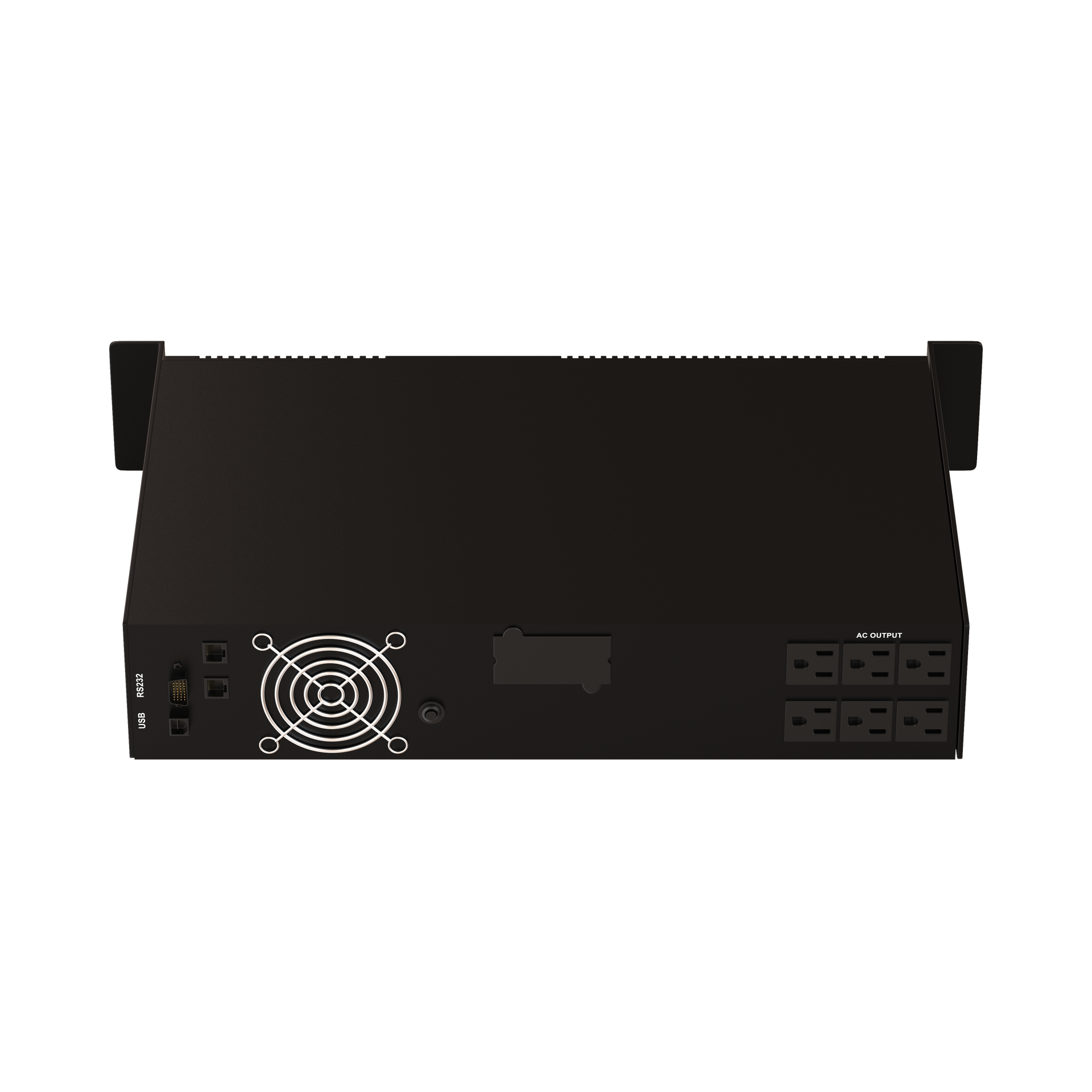

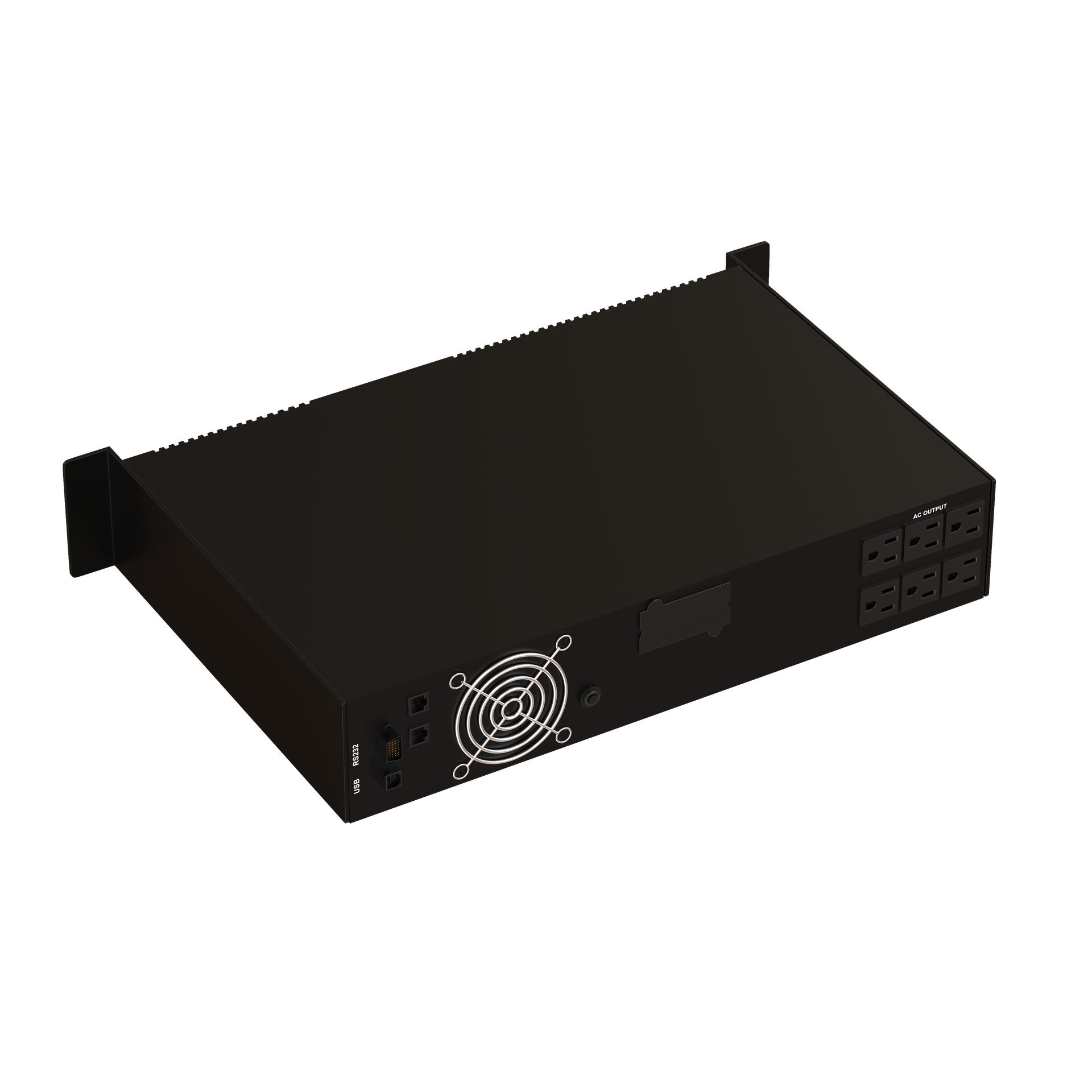

    SCV-10001 On-Line UPS

    2U rack-mount UPS with on-line, double-conversion power for critical systems.

    The SCV-10001 is a 1000VA on-line UPS that completely isolates connected equipment from power disturbances by running continuously from its internal battery. It provides clean, stable 120V power for AV racks and control rooms, ensuring uptime for integrators and facility managers during any grid event.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    On-line, double-conversion Uninterruptible Power Supply (UPS) systems designed to provide the highest level of power protection for mission-critical AVL, broadcast, and IT equipment in rack-mount applications.
    Reliable Power for Mission-Critical Systems

    CAPACITY

    1000VA / 900W

    TOPOLOGY

    On-Line

    FORM FACTOR

    2U Rack-Mount

    RUNTIME (FULL)

    3 Minutes

    WARRANTY

    3-Year / 1-Year
    ON-LINE UPS

    Uninterruptible, double-conversion power for critical AVL racks.

    The SCV-10001 provides true on-line power protection, creating a clean, stable AC signal from its battery inverter at all times. Unlike standby units, its double-conversion architecture completely isolates sensitive electronics from sags, surges, and line noise, with zero transfer time during a utility power failure. This ensures that critical processors, servers, and control systems in your AVL installation receive uninterrupted, computer-grade power regardless of incoming line quality.

    With a 900-watt capacity in a 2U rack-mount chassis, the SCV-10001 is engineered for efficiency and operational visibility. An easy-to-read LCD display provides real-time status of load levels and battery health, while hot-swappable batteries allow for service without taking the system offline. For extended runtime requirements, optional external battery packs can be connected to keep essential systems running longer.

    OPTIONS & INTEGRATIONS

    Expand your SCV-10001 installation.

    Optional hardware and software that integrate directly with the SCV-10001 UPS.

    SNMP Network Card (SCV-SNMP)

    Adds an Ethernet port for full remote monitoring, management, and automated shutdown capabilities over your network.

    External Battery Packs

    Connect additional battery cabinets to the rear panel to significantly extend runtime during prolonged outages.

    Standard 19-Inch Equipment Racks

    Installs into any standard 19-inch equipment rack using the included mounting hardware.

    Sensitive Electronic Equipment

    Provides clean, stable power ideal for digital mixers, video servers, network switches, and control system processors.
    CONFIGURATION OPTIONS

    Configure your power protection.

    Select the right capacity, management, and runtime options for your installation.
    Available Capacities

    The SCV Series is available in four capacities to match your specific load requirements:

    • SCV-10001 (This Model): Provides 1000VA / 900W for smaller critical racks and control systems.
    • SCV-15001: Steps up to 1500VA / 1350W for moderately loaded racks.
    • SCV-20001: Delivers 2000VA / 1800W for more demanding equipment.
    • SCV-30001: Offers 3000VA / 2700W for high-density applications.
    Remote Management

    Enable network-based monitoring and control with an optional expansion card:

    • Standard: Includes USB and RS-232 ports for local connection with SentryHD software.
    • Optional SNMP Card: Adds an Ethernet port for full remote management, monitoring, and automated shutdown over the network.
    Extended Runtime

    Increase battery runtime for critical systems during prolonged power outages:

    • Internal Batteries: Provide 3 minutes of runtime at full load and 10 minutes at half load.
    • Optional External Battery Packs: Connect via a dedicated rear-panel port to significantly extend runtime. Contact a LynTec engineer to size the right battery solution.
    WHY JUICEGOOSE

    Reliable power infrastructure, built on experience.

    • On-line topology provides superior protection for sensitive AVL gear.
    • Engineered for high efficiency to reduce long-term operating costs.
    • Hot-swappable batteries ensure continuous operation during maintenance.
    • Built on four decades of experience in professional power management.
    FEATURES

    SCV-10001 UPS Features

    Engineered for reliable performance and clear operational insight in professional AVL installations.
    CAPABILITIES

    Features

    On-Line Double Conversion

    Provides the highest level of power protection by completely isolating outputs from the AC line.

    1000VA / 900W Capacity

    Supports critical loads up to 900 watts with a high 0.9 output power factor.

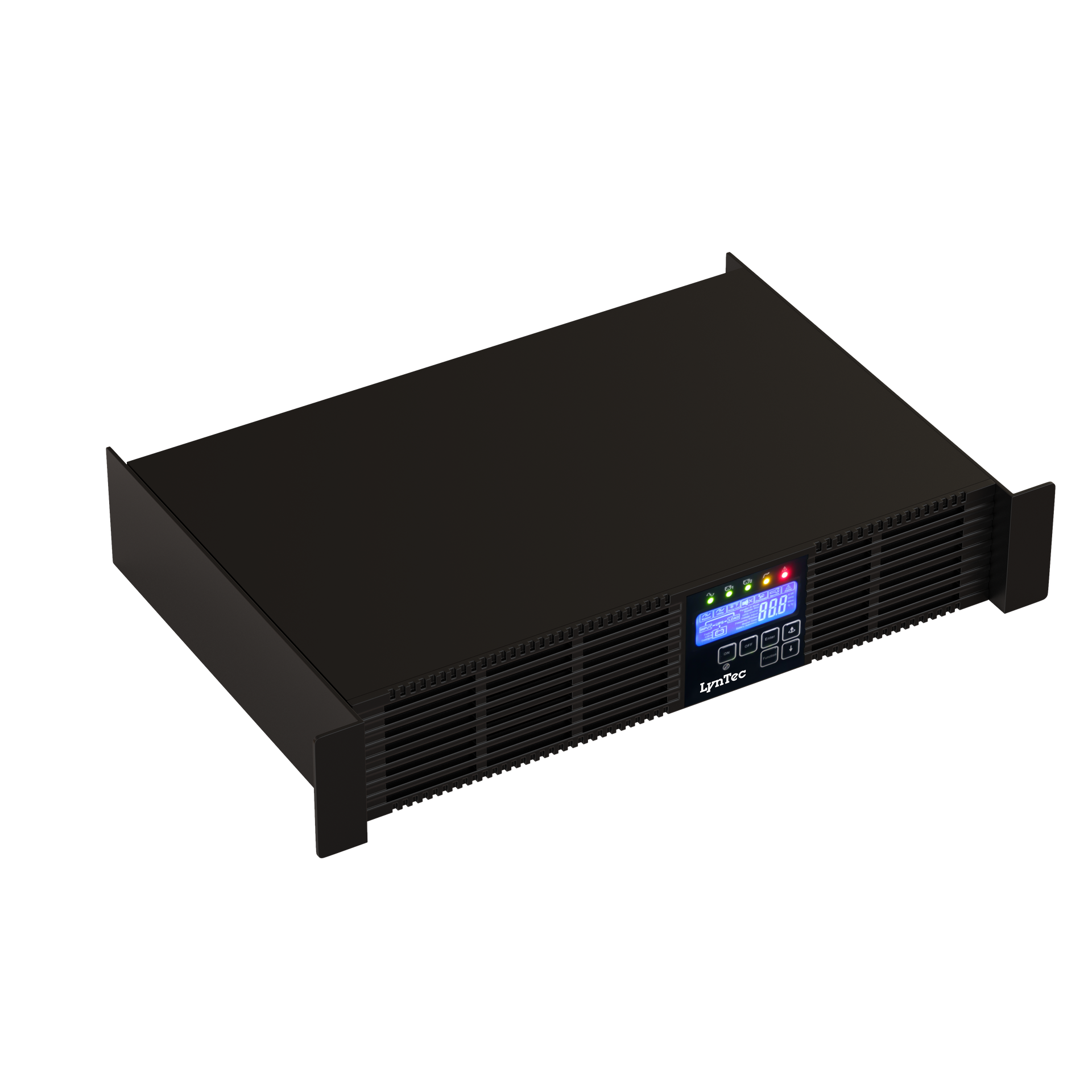

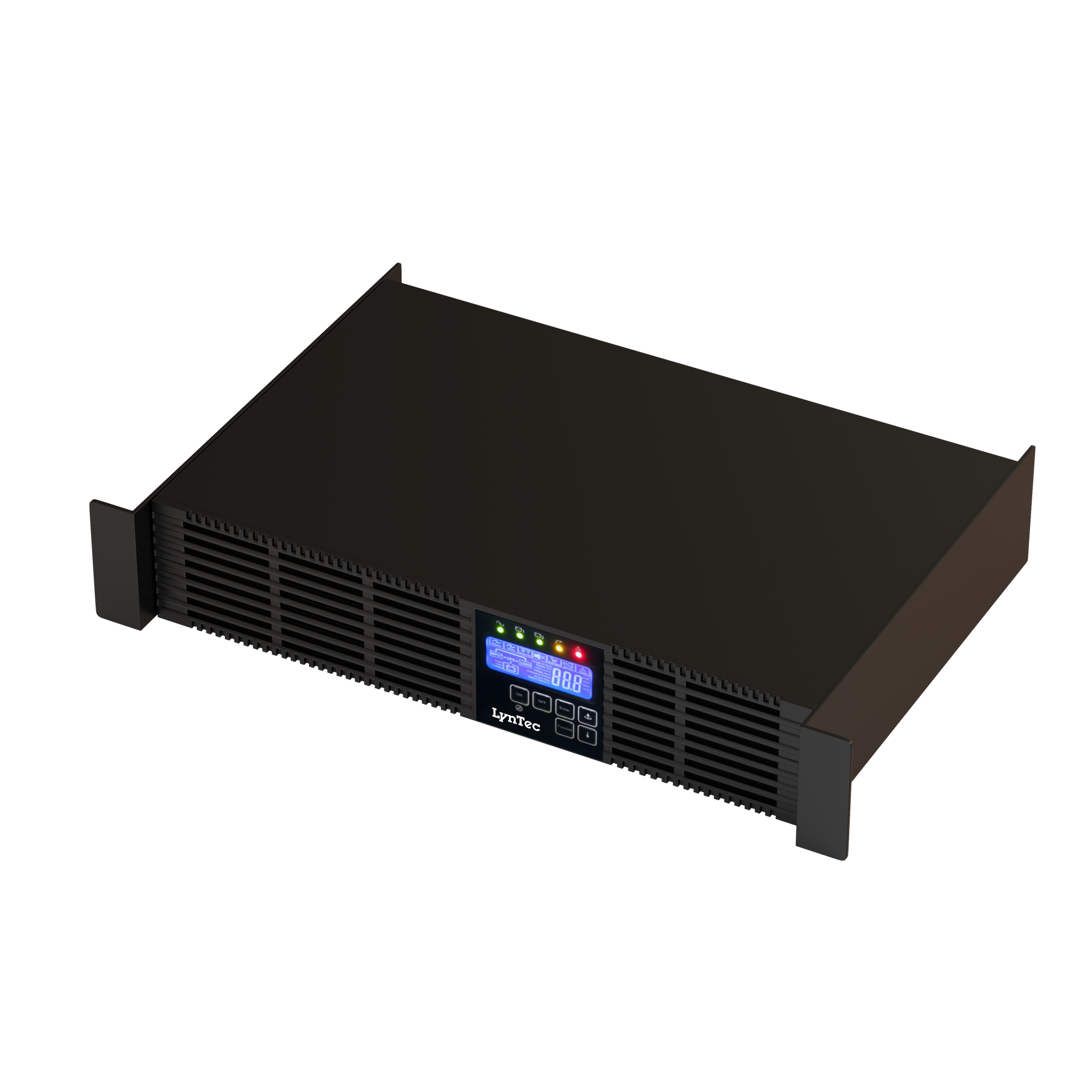

    Front Panel LCD

    Offers immediate, intuitive access to system status, including load and battery levels.

    Hot-Swappable Batteries

    Allows for battery replacement without powering down connected equipment, ensuring continuous uptime.

    Expandable Runtime

    An external battery connector allows for the addition of battery packs to extend runtime.

    Versatile Form Factor

    Ships with hardware for either 2U rack-mount or vertical tower installation.

    Intelligent Communication Slot

    Accepts an optional SNMP network card for remote monitoring and management.

    Included Management Software

    NetAgent9 software provides local monitoring and control capabilities via USB or serial.
    01

    True On-Line Protection

    Double-conversion topology continuously regenerates a clean, stable sine wave from the battery, completely isolating equipment from grid disturbances.
    • Zero transfer time during outages
    • Protects against sags, surges, and noise
    • Unconditional voltage and frequency stability
    02

    High-Efficiency Operation

    Advanced circuitry with a 0.9 power factor converts more available current into usable power for your equipment, reducing operating costs.
    • 90% conversion efficiency
    • Lower heat output and energy use
    • Supports modern power-factor-corrected supplies
    03

    Clear Status and Management

    A front-panel LCD provides at-a-glance system status, while an optional SNMP card enables full remote monitoring and control.
    • Real-time load and battery level display
    • Audible alarms and fault signals
    • Optional network management card
    SPECIFICATIONS

    SCV-10001 UPS Specifications

    All electrical, battery, and physical data for integrating the SCV-10001 into your system.

    SCV-10001 Technical Specifications

    Detailed electrical, battery, and physical data for the SCV-10001 UPS.

    Output

    • Power Capacity
      1000VA / 900W
    • Nominal Output Voltage
      120 VAC
    • Voltage Regulation
      ±1%
    • Frequency (Synchronized to Mains)
      50/60 Hz

    Input

    • Nominal Input Voltage
      120 VAC
    • Input Voltage Range
      60-138 VAC
    • Input Frequency
      40-70 Hz

    Battery

    • Battery Type
      Maintenance-free sealed Lead-Acid
    • Typical Runtime at Full Load
      3 minutes
    • Typical Runtime at Half Load
      10 minutes
    • Typical Recharge Time
      4 hours to 90%

    Physical

    • Form Factor
      2U Rack-Mount / Tower
    • Net Weight
      29 lbs (13.2 kg)

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    SCV-10001 UPS Support

    Find user manuals, data sheets, and answers to common integrator questions.
    DOCUMENTS

    Manuals, guides, and factsheets.

    Manuals
    Datasheets
    FAQ

    FAQs about the SCV-10001 UPS

    Can I replace the batteries myself without shutting down my equipment?

    Yes. The SCV-10001 features hot-swappable batteries that can be safely replaced through the front panel without interrupting power to your connected devices. This ensures your critical systems remain online during routine maintenance.

    How do I choose the right size (VA/Watt) UPS for my rack?

    To size a UPS, add up the total wattage of all equipment you need to protect. Choose an SCV model with a watt rating that is at least 20-25% higher than your total load to allow for future growth. Contact a LynTec engineer if you need help calculating your system’s power draw.

    What is on-line, double-conversion and why do I need it?

    On-line, double-conversion UPS technology continuously powers your equipment from its battery inverter, completely isolating it from the incoming utility line. This provides the highest level of protection against all power problems, with zero transfer time during an outage, which is critical for sensitive digital electronics.

    What kind of remote monitoring is available?

    The SCV-10001 includes USB and serial ports for local monitoring. For full network-based remote control and monitoring, you can install the optional SCV-SNMP card, which adds an Ethernet port and enables management through a web browser or network management system.
