    SCV Series On-Line Double Conversion UPS

    Rack-mount UPS with on-line, double-conversion power for critical AVL systems.

    The SCV Series is a rack-mountable, on-line double-conversion Uninterruptible Power Supply that completely isolates connected equipment from power grid disturbances. It provides clean, stable power for mission-critical AVL and broadcast racks, ensuring maximum uptime and protecting sensitive electronics from damage.

    Request a Quote

    Request A Quote

    Request more information about this product or speak directly with our sales team today.

    This field is for validation purposes and should be left unchanged.
    We route your message directly to the right team so you don’t get bounced around.

    Where To Buy
    On-line, double-conversion Uninterruptible Power Supply (UPS) systems designed to provide the highest level of power protection for mission-critical AVL, broadcast, and IT equipment in rack-mount applications.
    Engineered for Uninterrupted Performance

    CAPACITY

    1000VA – 3000VA

    TOPOLOGY

    On-Line

    FORM FACTOR

    2U Rack-Mount

    OUTPUT

    Pure Sine Wave

    WARRANTY

    3-Year Electronics
    UPS BATTERY BACKUP

    Reliable, clean power for mission-critical systems.

    The SCV Series delivers the highest level of power protection available through its true on-line, double-conversion architecture. This design continuously regenerates clean, stable AC power, completely isolating sensitive audio, video, and lighting equipment from incoming line noise, voltage fluctuations, and power outages. With a high 0.9 output power factor, the SCV Series efficiently converts utility power into usable wattage, reducing operational costs and supporting more of your critical hardware. The result is dependable, uninterrupted operation for broadcast facilities, performance venues, and any environment where power quality is non-negotiable. An intuitive front-panel LCD provides real-time system status, including load and battery levels, simplifying monitoring for facility engineers.

    COMPATIBLE ACCESSORIES

    Expand your SCV Series UPS installation.

    Optional hardware and software for integrating the SCV Series into your facility.

    SNMP Network Card (SCV-SNMP)

    Adds an Ethernet port for remote monitoring and management over your IP network.

    Rack Rail Kit (SCV-RAIL)

    Secures the 2U chassis into any standard 19-inch equipment rack.

    Standard 19" EIA Racks

    The 2U chassis is designed to fit perfectly in standard server and AV equipment racks.

    Network Management Systems

    With the optional SNMP card, the UPS integrates with standard NMS platforms for centralized monitoring.
    CONFIGURATION OPTIONS

    Spec your UPS for your rack.

    Select the right SCV model and options based on your power load and management needs.
    Available Models

    Choose the capacity that matches your total equipment load, leaving a 20-30% margin for future growth.

    • SCV-10001: Provides 1000VA / 900 Watts of power, ideal for smaller audio workstations or control racks.
    • SCV-15001: Delivers 1500VA / 1350 Watts, suitable for typical edit bays or mid-sized AV racks.
    • SCV-20001: Supplies 2000VA / 1800 Watts for more densely populated racks or critical network closets.
    • SCV-30001: Offers 3000VA / 2700 Watts for high-demand applications and centralized rack protection.
    Remote Management

    Add network-based monitoring and control for enhanced visibility and proactive system management.

    • Standard: Includes USB and RS-232 ports for local monitoring and basic shutdown software.
    • Optional SNMP Card (SCV-SNMP): Adds an Ethernet port for remote monitoring, control, and integration with Network Management Systems.
    Mounting Options

    The versatile chassis supports both rack and tower orientations to fit your specific installation environment.

    • Rack Mount: Installs in a standard 19-inch equipment rack using the optional SCV-RAIL kit.
    • Tower: Can be stood vertically on a floor or shelf for standalone applications.
    WHY LYNTEC

    Engineered for uptime, supported by experts.

    • True on-line, double-conversion architecture for ultimate protection
    • High 0.9 power factor supports more equipment per VA
    • 3-year electronics warranty and US-based technical support
    • Hot-swappable batteries for zero-downtime maintenance
    FEATURES

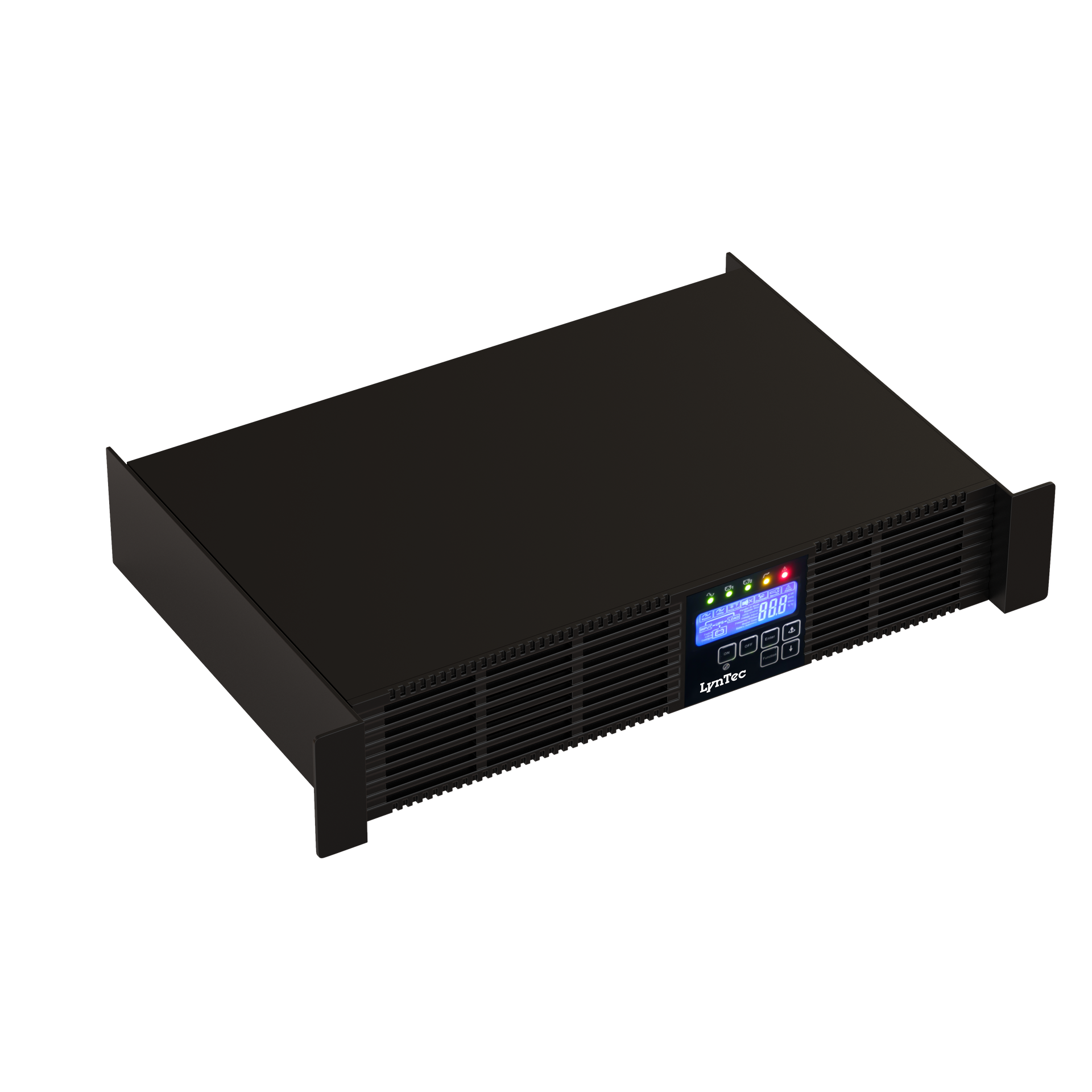

    SCV Series UPS Features

    Core capabilities engineered into every SCV Series model for reliable power protection.
    CAPABILITIES

    Features

    On-Line Double Conversion

    Provides the highest level of power protection by completely isolating equipment from raw utility power.

    High Power Factor (0.9)

    Delivers more real wattage to power more devices from a smaller VA-rated UPS, saving space and cost.

    Pure Sine Wave Output

    Ensures clean, stable power for sensitive electronics, preventing operational issues and damage.

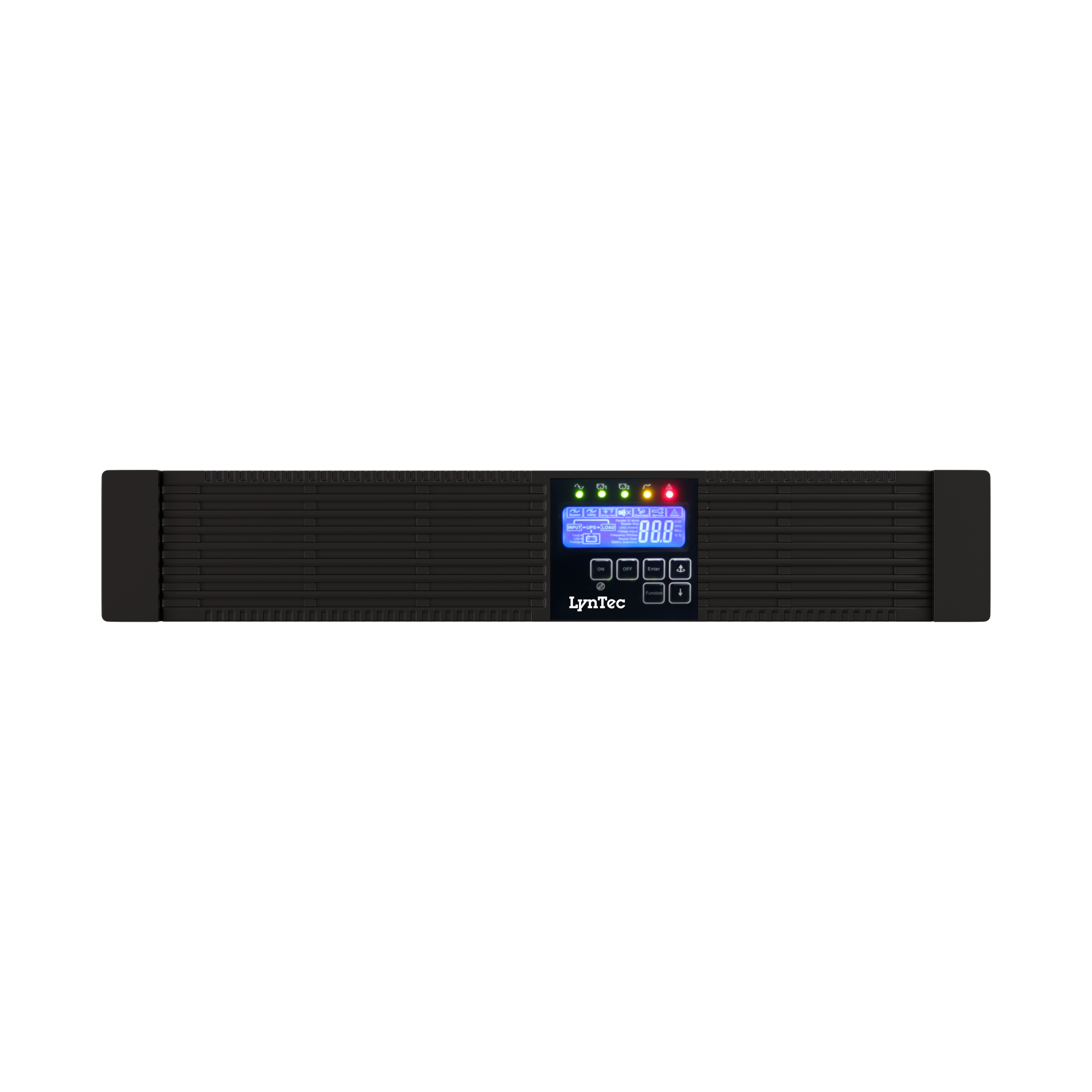

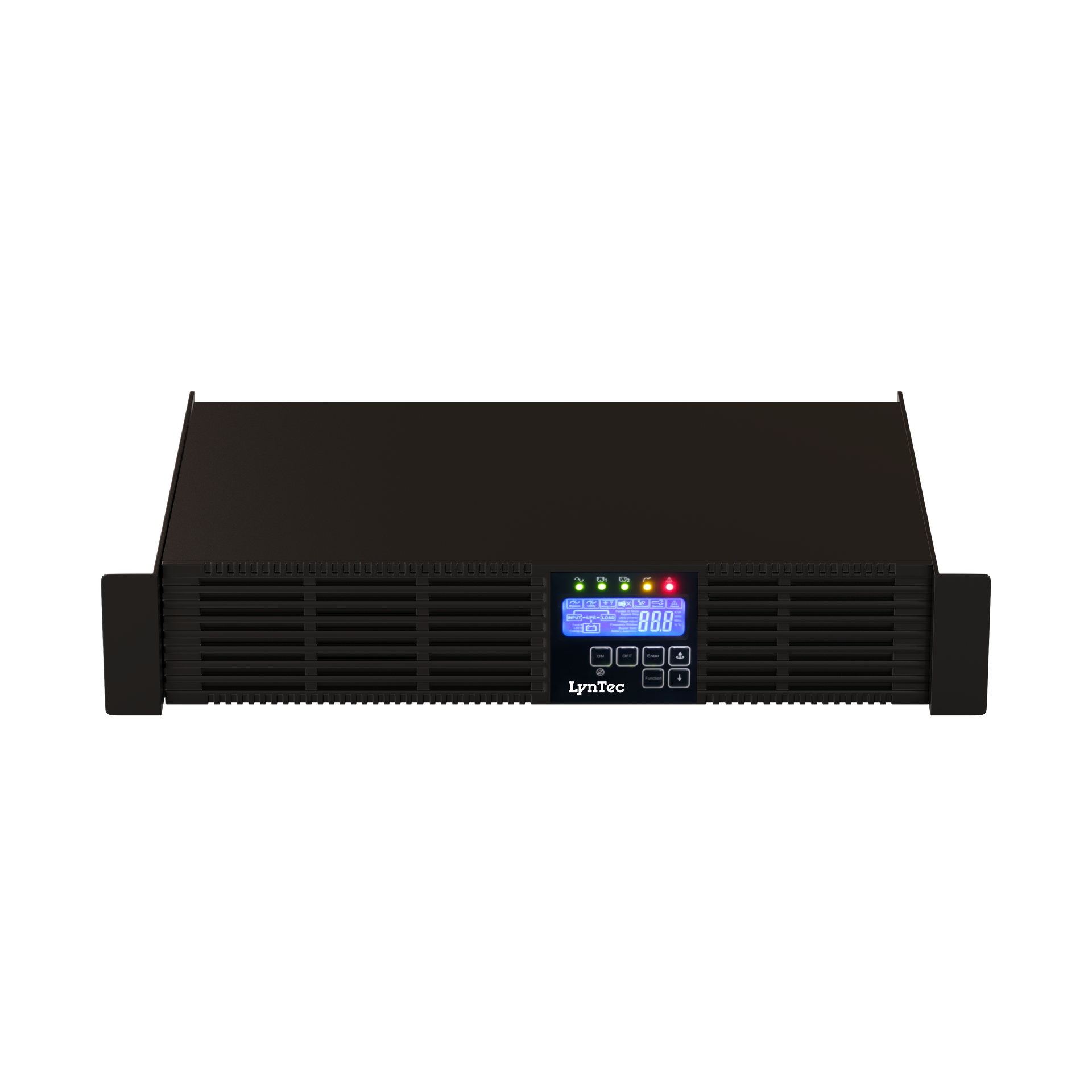

    Front Panel LCD Display

    Offers immediate, intuitive access to real-time UPS status, including load and battery levels.

    Hot-Swappable Batteries

    Allows for user-replacement of batteries without powering down connected equipment, ensuring continuous uptime.

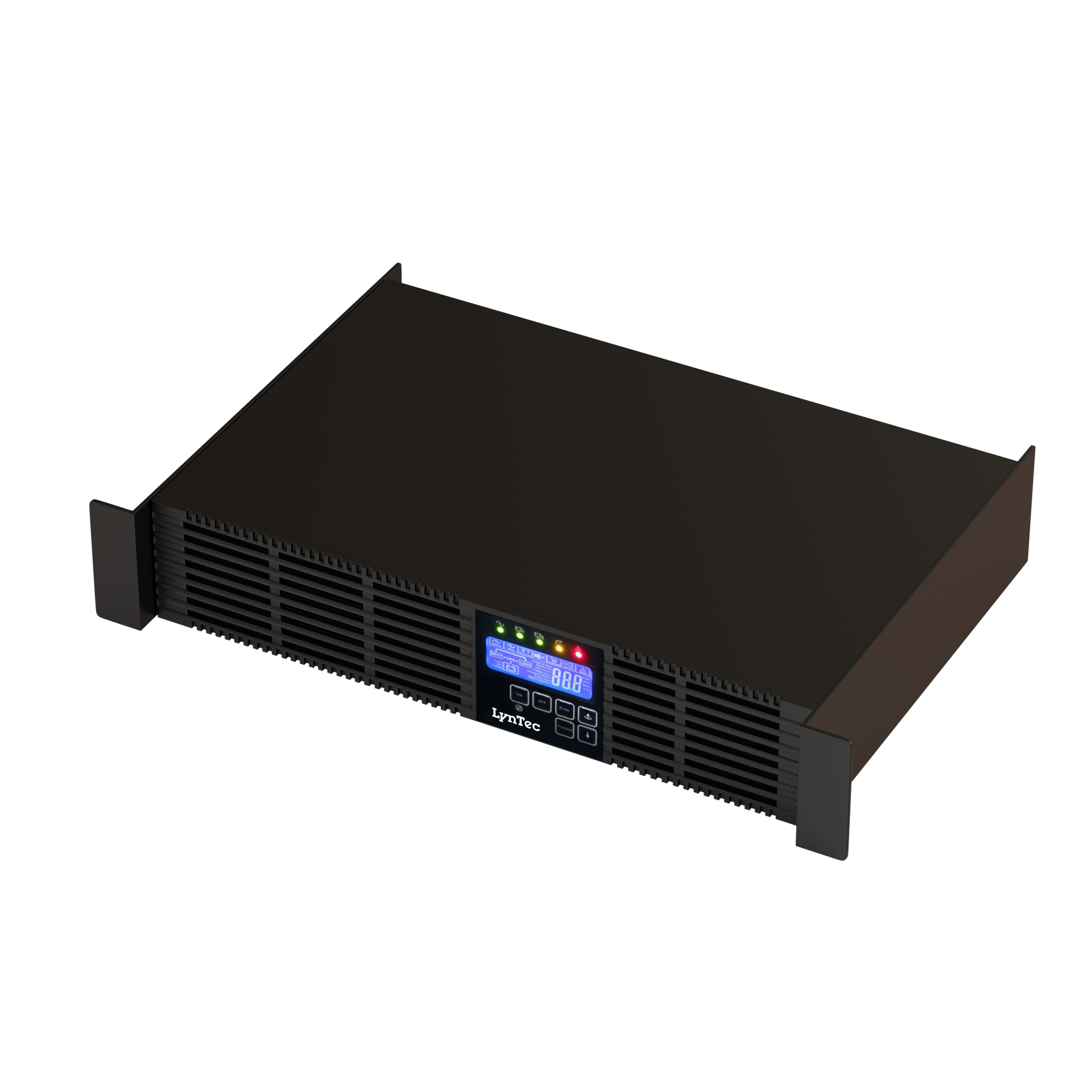

    2U Rack Mount Chassis

    Installs easily into standard 19-inch equipment racks for streamlined integration.

    Optional Network Management

    An available SNMP card enables remote monitoring, management, and automated shutdown procedures.
    01

    True Double-Conversion Protection

    The on-line architecture completely regenerates power, isolating connected equipment from all incoming AC line and neutral disturbances for unconditional voltage stability.
    • Zero transfer time to battery
    • Protects against surges, noise, and brownouts
    • Pure sine wave output for sensitive electronics
    02

    High-Efficiency Operation

    An advanced 0.90 output power factor provides higher performance and efficiency, converting more available current into real work to power more of your critical equipment.
    • Reduces equipment and operating costs
    • Supports higher density racks
    • Optimized for modern switch-mode power supplies
    03

    Simplified System Management

    An easy-to-read front panel LCD provides real-time status of all major system parameters, while an optional network card enables remote monitoring and management.
    • Live load and battery level indicators
    • At-a-glance fault signaling
    • Optional SNMP card for network integration
    SPECIFICATIONS

    SCV Series UPS Specifications

    Shared technical data for the SCV Series. For model-specific details, please see the product datasheet.

    SCV Series Shared Specifications

    Technical details common to all SCV Series models. Refer to individual datasheets for model-specific ratings.

    Electrical

    • Topology
      On-Line, Double Conversion
    • Output Power Factor
      0.9
    • Output Waveform
      Pure Sine Wave
    • Nominal Input Voltage
      120V

    Physical

    • Form Factor
      Rack-Mount / Tower
    • Rack Height
      2U
    • Batteries
      User-replaceable, hot-swappable

    Communications and Management

    • User Interface
      LCD Status Display

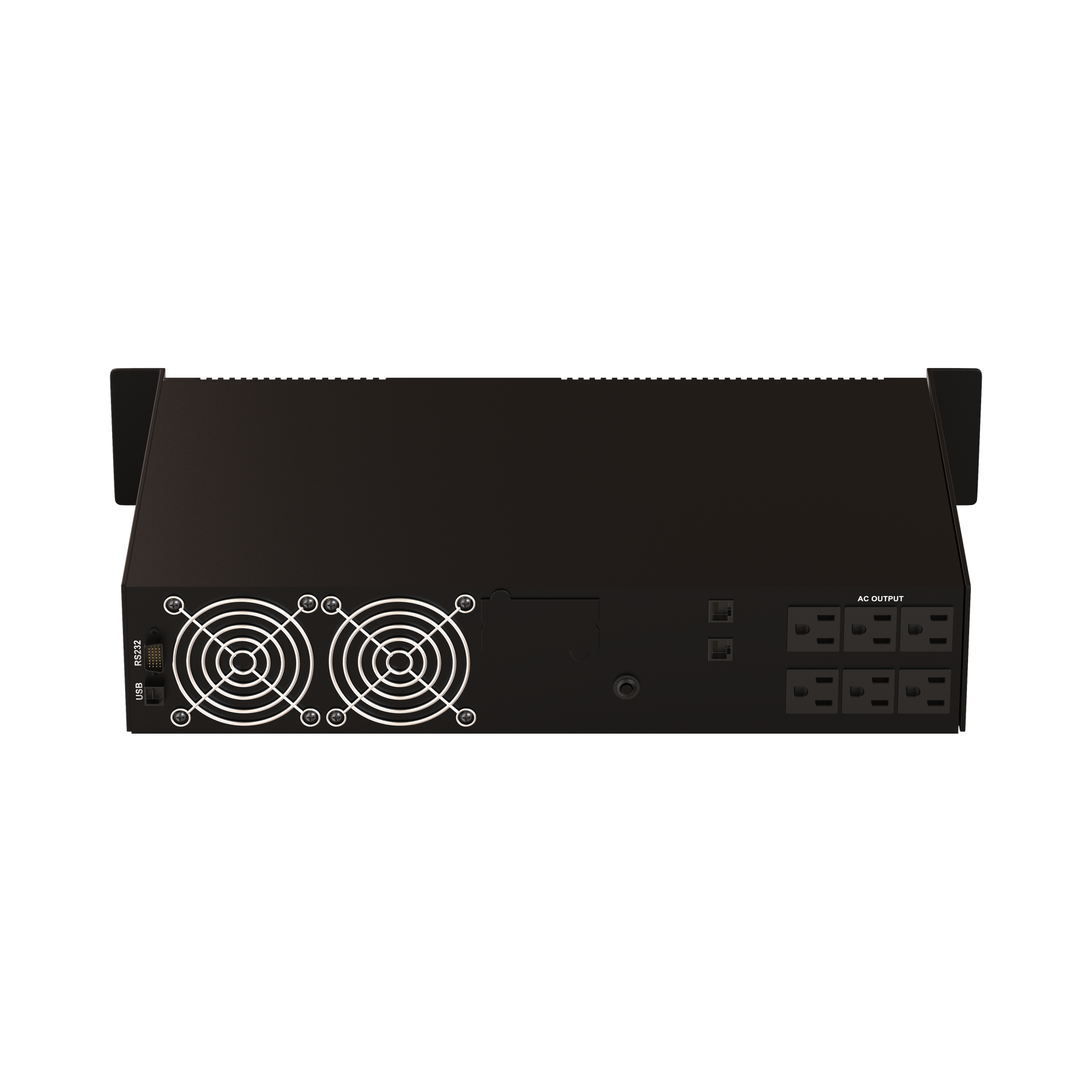

    • Communication Ports
      USB, RS-232
    • Optional Management
      SNMP Network Card (SCV-SNMP)

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    PRODUCT SUPPORT

    SCV Series UPS Support

    Find user manuals, datasheets, and answers to common questions about the SCV Series.
    DOCUMENTS

    Manuals, guides, and factsheets.

    Manuals
    Datasheets
    FAQ

    FAQs about the SCV Series UPS

    Can I replace the batteries myself without shutting down my equipment?

    Yes. All SCV Series models feature hot-swappable, user-replaceable batteries. You can safely replace the battery module while the UPS continues to power your connected devices, ensuring zero downtime for maintenance.

    How do I choose the right VA or Watt rating for my rack?

    Add up the total wattage of all equipment you need to protect. Choose an SCV model with a Watt rating that is at least 20-30% higher than your total load to ensure reliable performance and allow for future expansion.

    How long will the UPS power my equipment during an outage?

    Runtime depends on the specific model and the amount of connected load. For example, the SCV-15001 provides approximately 3 minutes of runtime at a full 1350W load, or 10 minutes at a half load. Check the datasheet for detailed runtime charts.

    What does on-line, double-conversion mean?

    It is the highest level of UPS protection. The UPS continuously converts incoming AC power to DC, then back to perfect AC power. This completely isolates your equipment from all power problems on the utility line, providing clean, stable, and uninterrupted power.

    What is the optional SNMP network card used for?

    The SCV-SNMP card adds an Ethernet port to the UPS. This allows you to monitor status, receive alerts, and manage the UPS remotely over your network using standard network management software, enhancing system visibility and control.
